Equipment ↠ Hyundai ↠ Wheel Loaders ↠ 2016 Hyundai HL940

2016 Hyundai HL940 For Sale in Fort Worth, Tx

Name: 2016 Hyundai HL940
Brand: Hyundai
SKU: 88558253
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-17 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

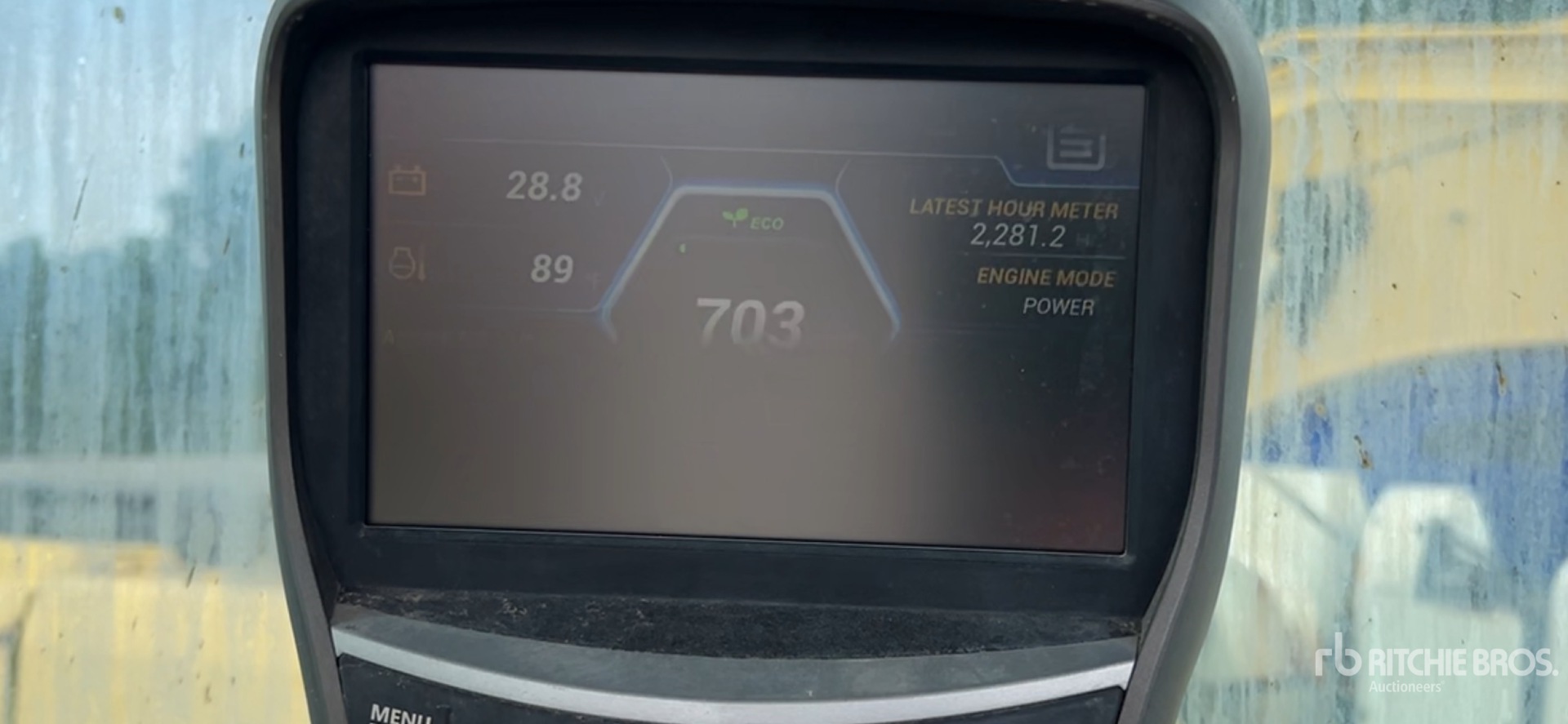

Hours:	2281

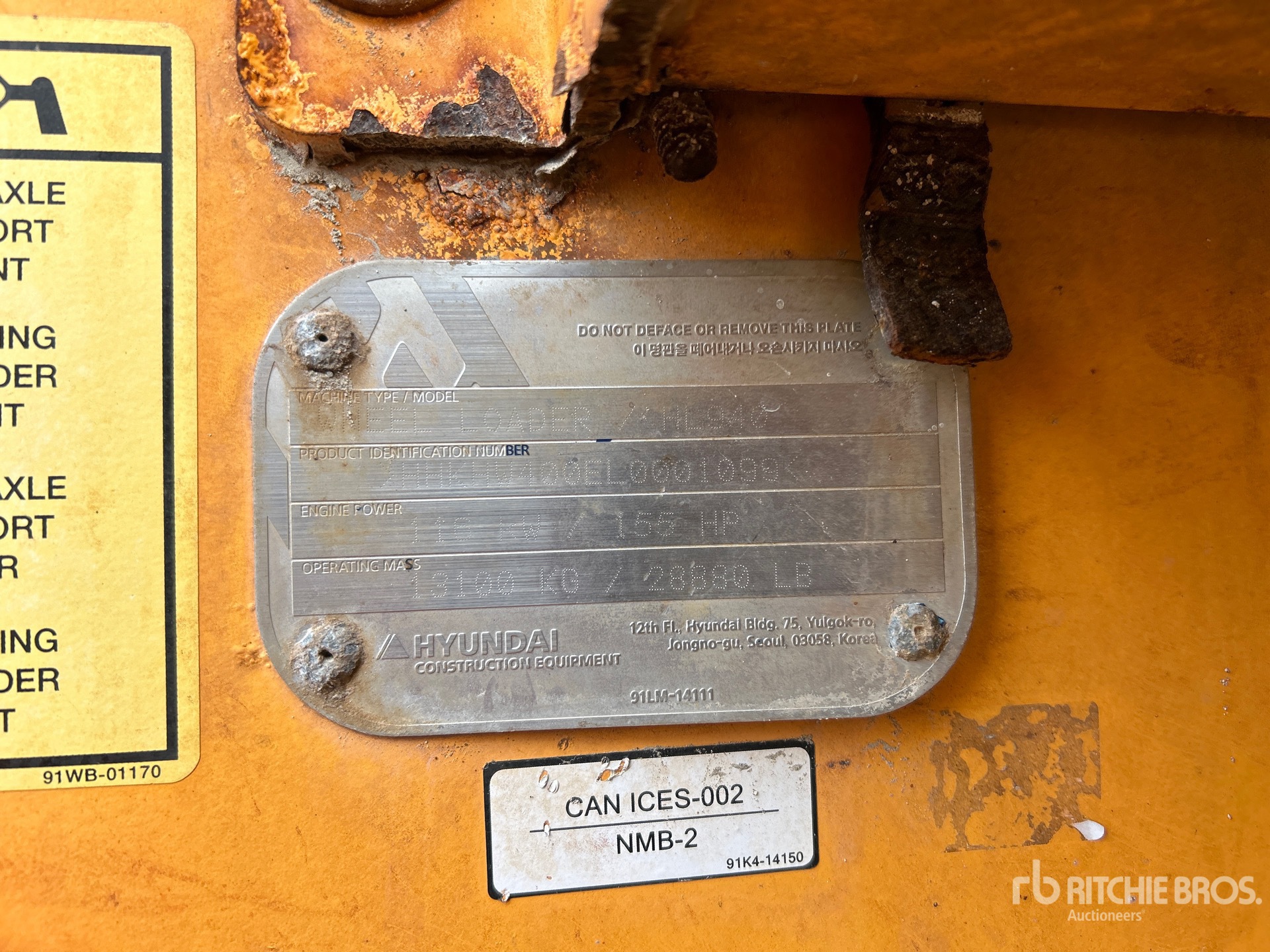

Serial Number:	HHKHW400EL0001099
Machine Location:	FORT WORTH, TX

Description:

Enclosed Cab, 2019 US EPA Label, Requires Diesel Exhaust Fluid, 101 in Bucket

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Hyundai HL940 is a wheel loader designed for material handling, loading, stockpiling, and general construction applications. It is part of Hyundai's HL series and is commonly used in aggregate yards, construction sites, landscaping operations, and industrial material movement. The HL940 typically features a diesel engine, articulated steering, hydraulic lift and bucket systems, and an operator cab designed for visibility and control. Wheel loaders in this class are used for moving soil, gravel, sand, debris, and other bulk materials. The HL940 is recognized for its utility in medium-duty loading tasks where maneuverability, cycle efficiency, and reliable performance are required.

Bucket
Breakout Force	24,800 lbs (11,249 kg)
Bucket Capacity - heaped	3 cu yd (2 cu m)
Bucket Capacity - struck	3 cu yd (2 cu m)
Bucket Width	9 ft (3 m)
Dump Clearance at Max Raise	9 ft (3 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Length with Bucket on Ground	24 ft (7 m)
Reach at Max Lift and Dump	5 ft (2 m)
Wheelbase	10 ft (3 m)
Engine
Air cleaner	Dry Two stage dual elements
Aspiration	Turbocharged
Bore	4 in (11 cm)
Displacement	409 cu in (6,701 cu cm)
Engine Make	CUMMINS
Engine Model	QSB6.7
Gross Power	158 hp (118 kw)
Make	Cummins
Net Power	156 hp (116 kw)
Number of Cylinders	6
Power Measured @	2,100 rpm
Stroke	5 in (12 cm)
Torque	622 lbs ft (843 nm)
Torque Measured @	1,500 rpm
General Specifications
Bucket Capacity (Since 2017)	3.0 (2.3)
Bucket Capacity (2019)	3.0 (2.3)
Bucket Capacity (2020)	3.0 (2.3)
Bucket Capacity (2021)	3.0 (2.3)
Bucket Capacity (2022)	3.0 (2.3)
Bucket Capacity (2023)	3.0 (2.3)
Bucket Capacity (2024)	3.0 (2.3)
Bucket Capacity cu. yd. (cu m) (Since 2025)	3.0 (2.3)
Engine Power (Since 2017)	156 (116.3)
Engine Power (2019)	156 (116.3)
Engine Power (Since 2020)	156 (116)
Engine Power (2021)	156 (116)
Engine Power (2022)	156 (116)
Engine Power (2023)	156 (116)
Engine Power (2024)	156 (116)
Engine Power Gross hp (kW) (Since 2025)	156 (116)
Engine type (Since 2017)	Cummins QSB6.7
Engine type (2019)	Cummins QSB6.7
Engine type (2020)	Cummins QSB6.7
Engine type (2021)	Cummins QSB6.7
Engine type (2022)	Cummins QSB6.7
Engine type (2023)	Cummins QSB6.7
Engine type (2024)	Cummins QSB6.7
Engine type (2025)	Cummins QSB6.7
Max Dump Height (Since 2017)	9.2 (2.79)
Max Dump Height (2019)	9.2 (2.79)
Max Dump Height (2020)	9.2 (2.79)
Max Dump Height (2021)	9.2 (2.79)
Max Dump Height (2022)	9.2 (2.79)
Max Dump Height (2023)	9.2 (2.79)
Max Dump Height (2024)	9.2 (2.79)
Max Dump Height ft. (m) (Since 2025)	9.2 (2.79)
Operating Weight (Since 2017)	29,320 (13 300)
Operating Weight (Since 2019)	29,320 (13,300)
Operating Weight (Since 2020)	29,321 (13,300)
Operating Weight (2021)	29,321 (13,300)
Operating Weight (2022)	29,321 (13,300)
Operating Weight (2023)	29,321 (13,300)
Operating Weight (2024)	29,321 (13,300)
Operating Weight lbs. (kg) (Since 2025)	29,321 (13,300)
Hydraulic System
Dump Time	1 seconds
Lower Time	3 seconds
Pump Flow Capacity	39 gpm (148 lpm)
Pump Type	Variable displacement piston pump
Raise Time	6 seconds
Relief Valve Pressure	2,987 psi
Operating Specifications
Alternator Supplied Amperage	95 amps
Cooling System Fluid Capacity	9 gal (34 l)
Front Axle/Diff Fluid Capacity	6 gal (24 l)
Fuel Capacity	58 gal (220 l)
Hydraulic System Fluid Capacity	34 gal (130 l)
Operating Voltage	24 volts
Operating Weight	28,881 lbs (13,100 kg)
Rated Bucket Capacity	3 cu yd (2 cu m)
Rear Axle Oscillation	24 degrees
Rear Axle/Diff Fluid Capacity	6 gal (24 l)
Tire Size	20.5 R25
Transmission Fluid Capacity	7 gal (27 l)
Transmission
Max Speed - Forward	25 mph (40 kph)
Max Speed - Reverse	26 mph (42 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	Full automatic power shift
Weights
Operational Weight	29,320 lbs (13,299 kg)
