Equipment ↠ JCB ↠ Compact Track Loaders ↠ 2011 JCB 300T

2011 JCB 300T For Sale in Londonderry, NH

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-06-11 Click here to place a bid

Jeff Martin Auctioneers, Inc

Jeff Martin Auctioneers, Inc Dealer Info

Jeff Martin Auctioneers, Inc Website

Click here to email Jeff Martin Auctioneers, Inc.

Click for Phone Number

Machine Info:

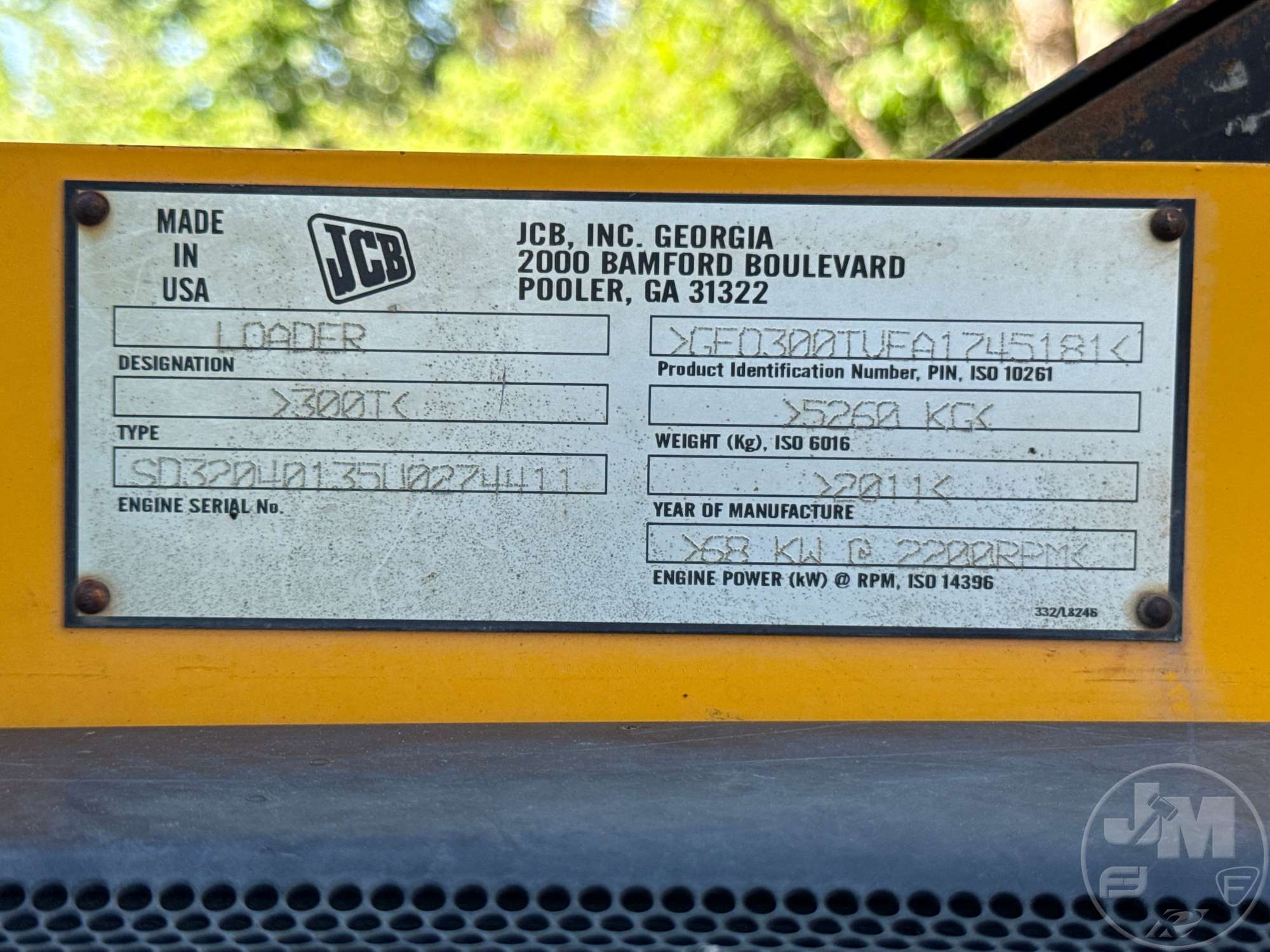

Serial Number:	GFO300TVFA1745181
Machine Location:	LONDONDERRY, NH
More Information:	https://www.jeffmartinauctioneers.com/auctions/1228/lot/331534-2011-JCB-300T-MULTI-TERRAIN-LOADER-SN%3A-GFO300TVFA1745181

Description:

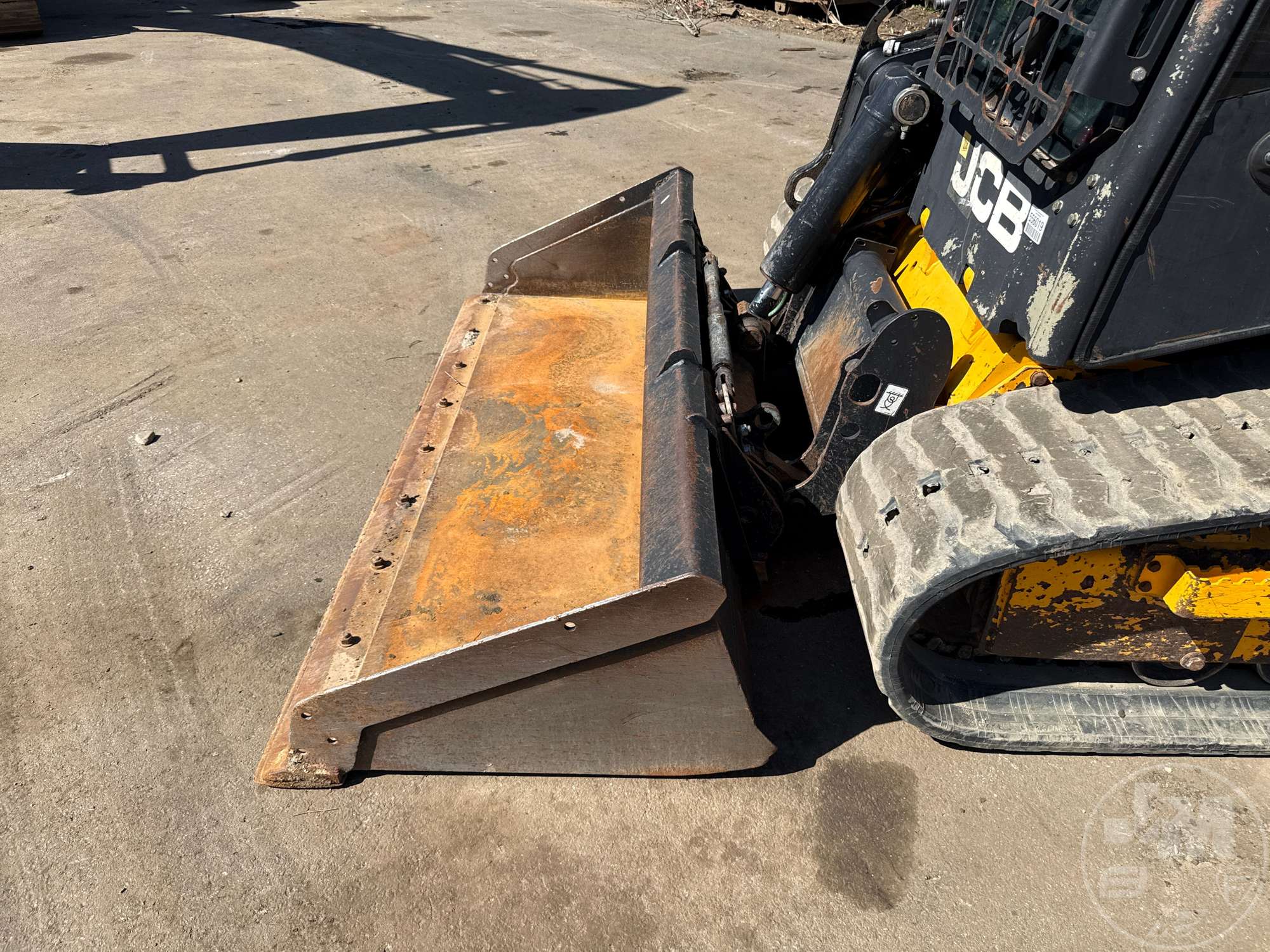

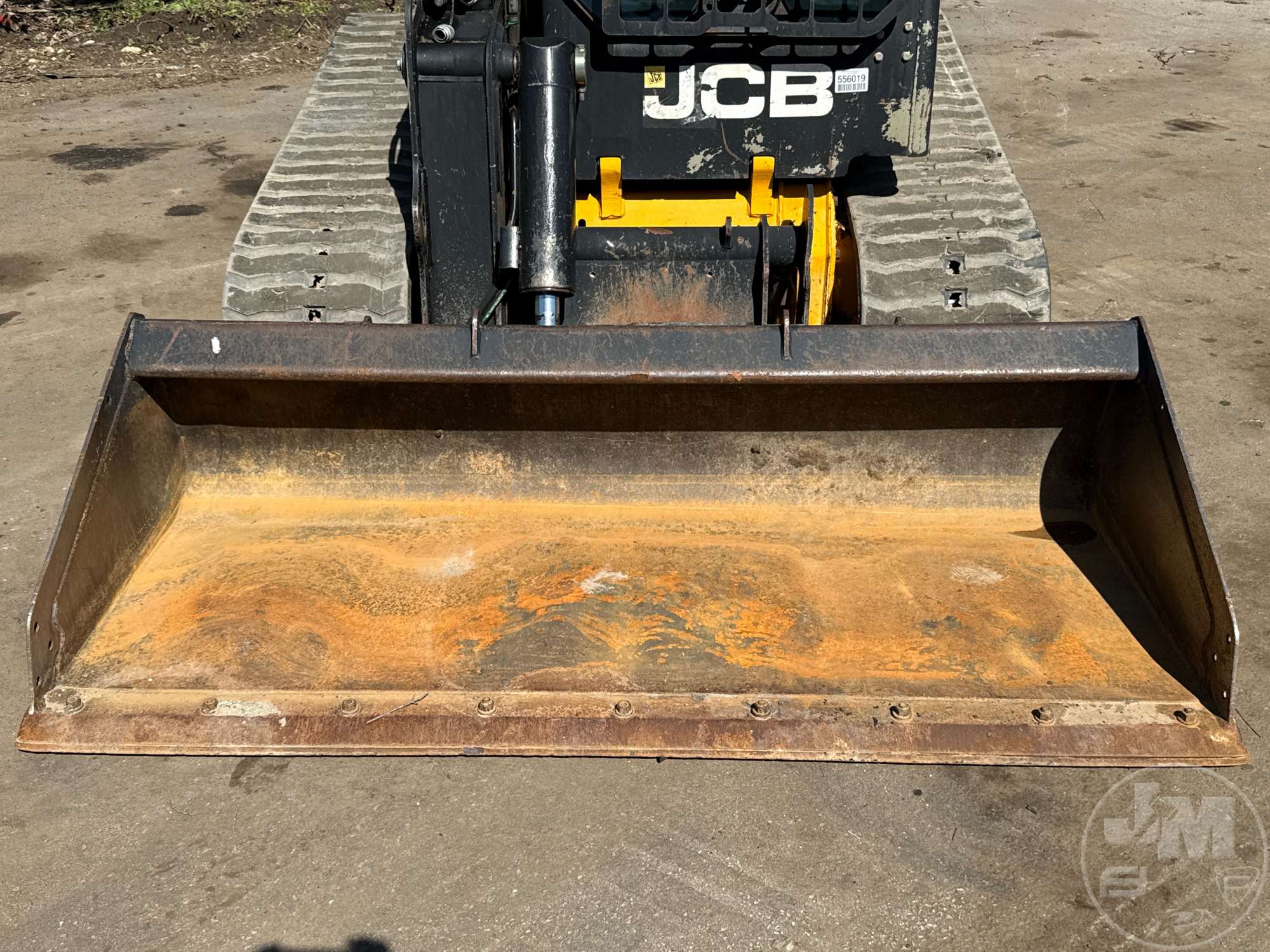

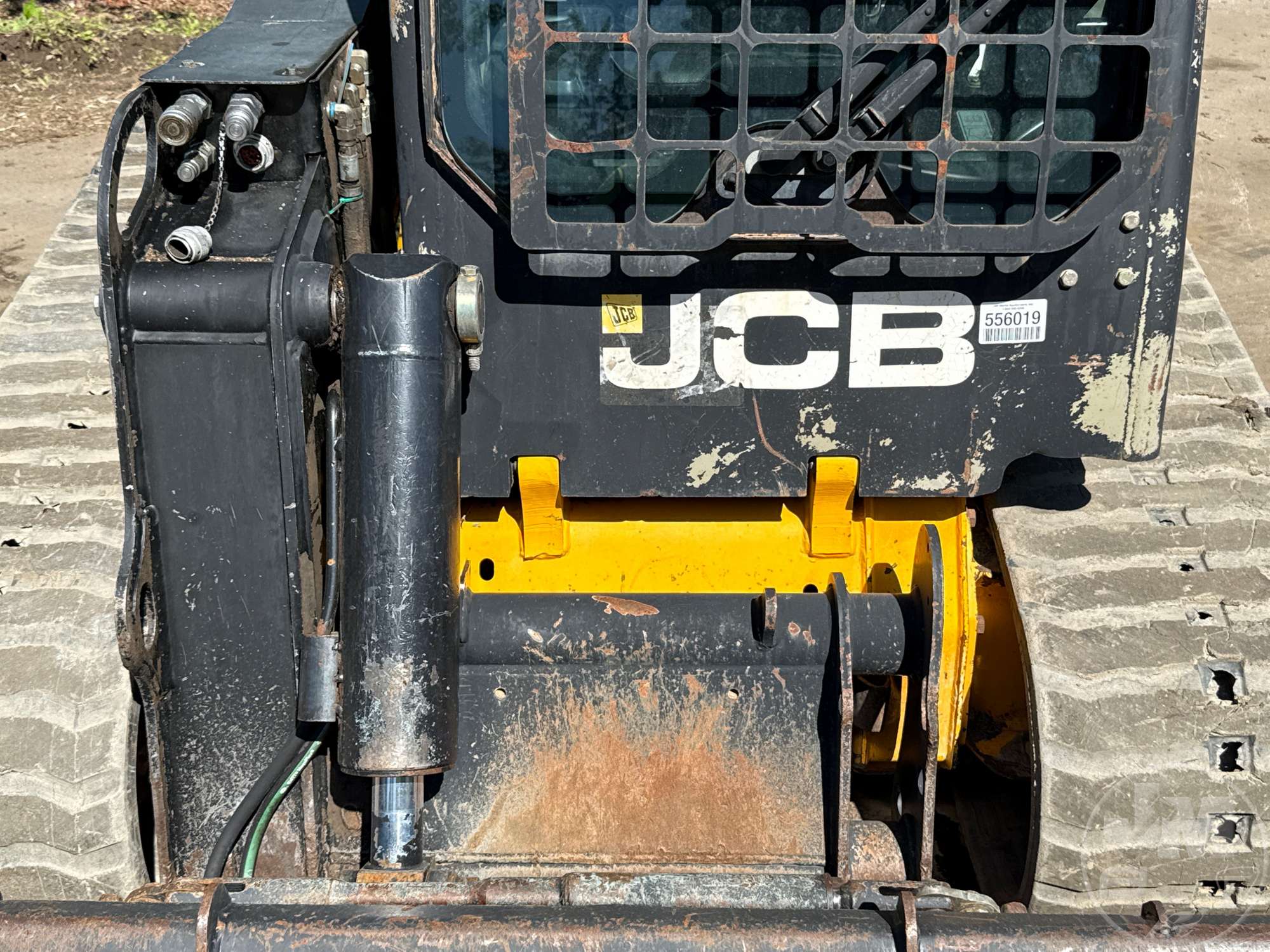

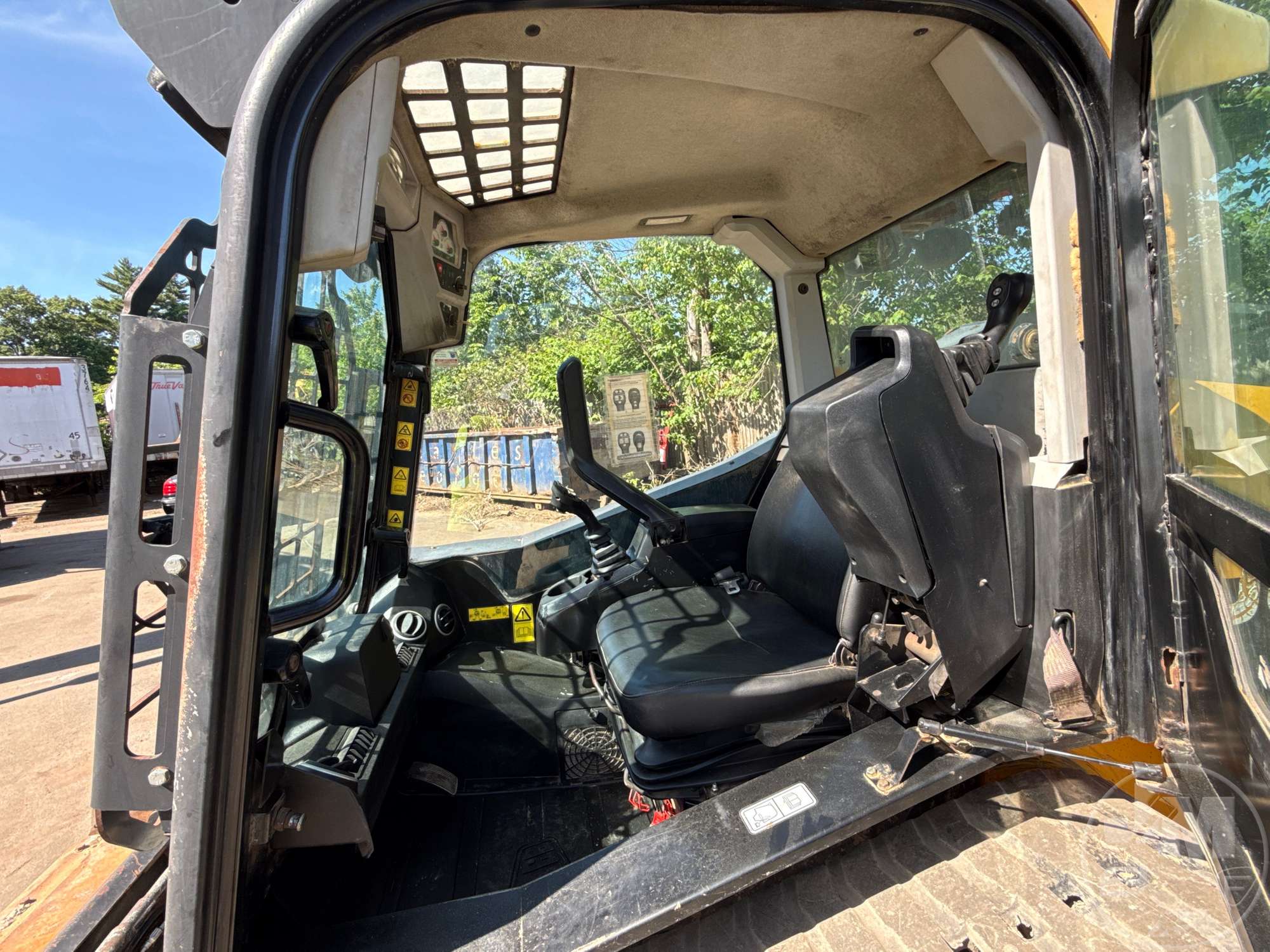

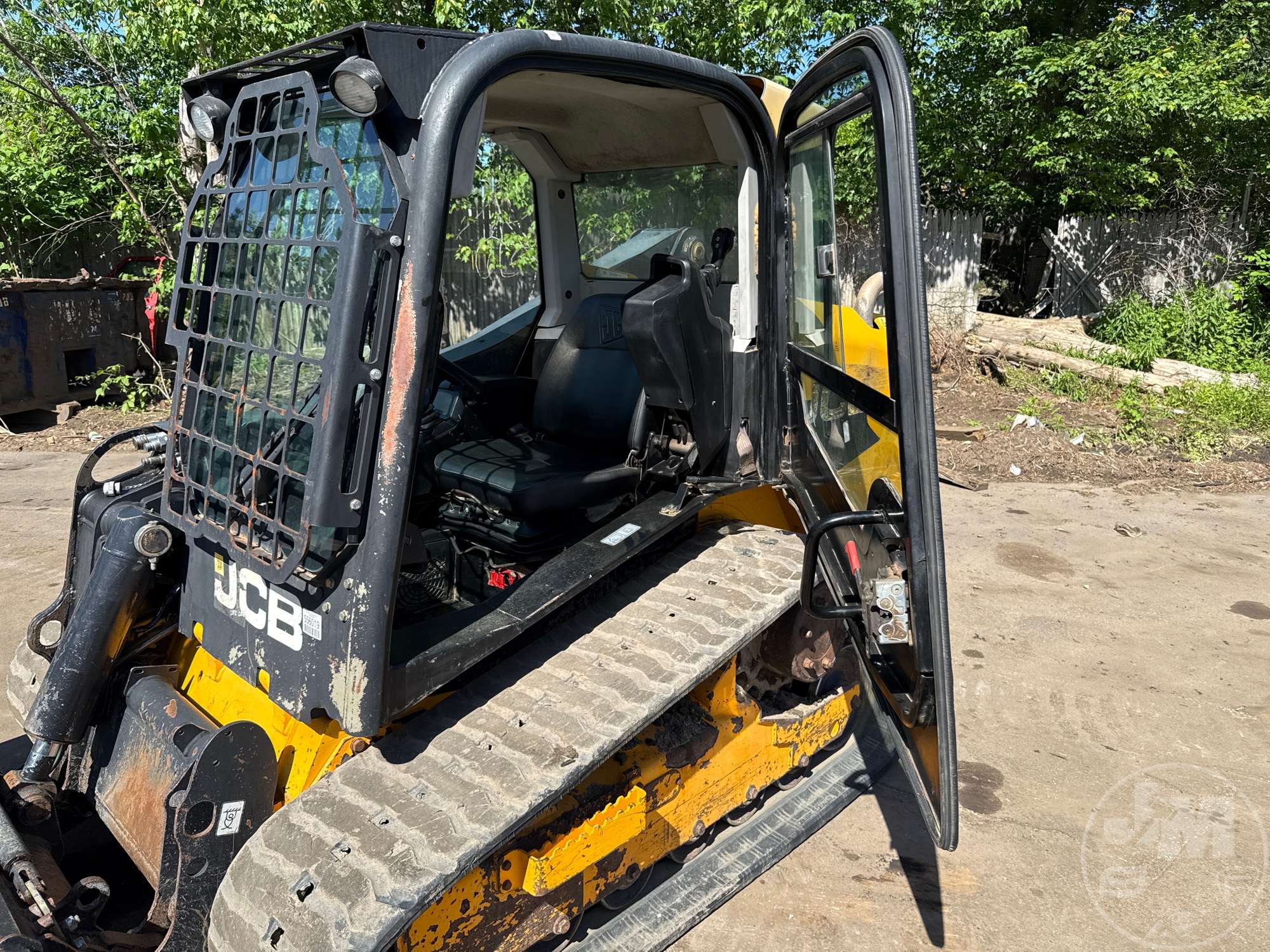

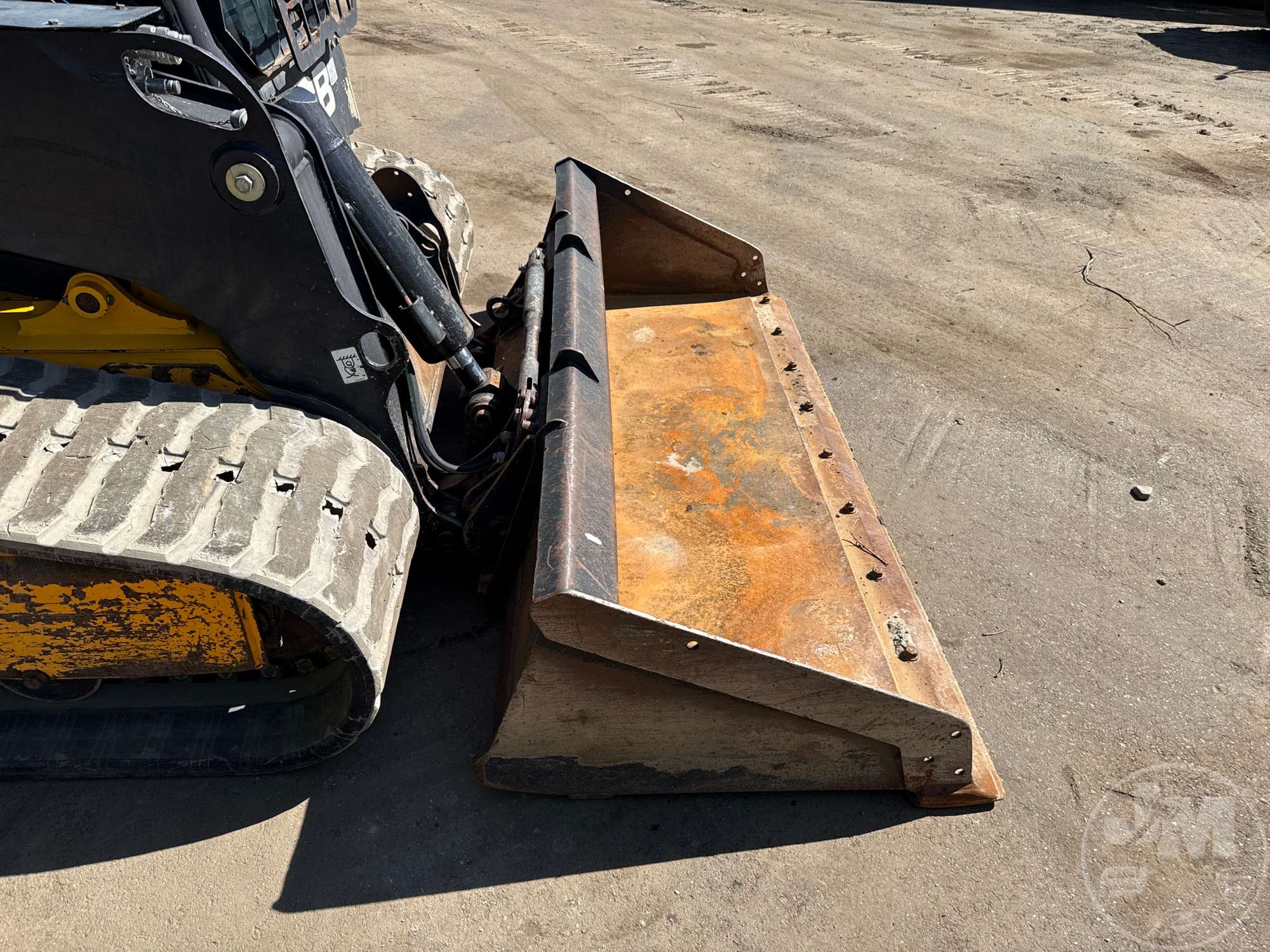

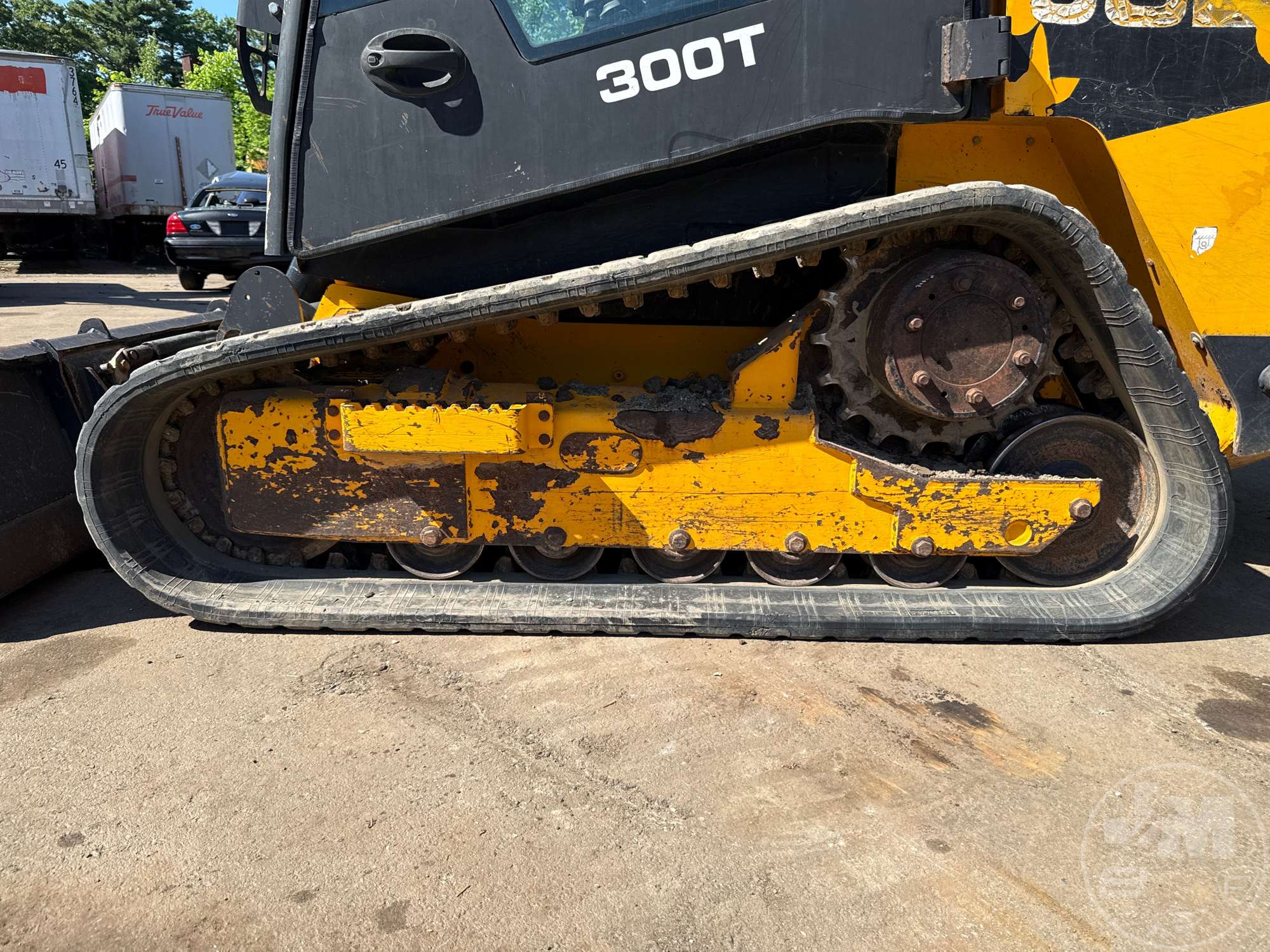

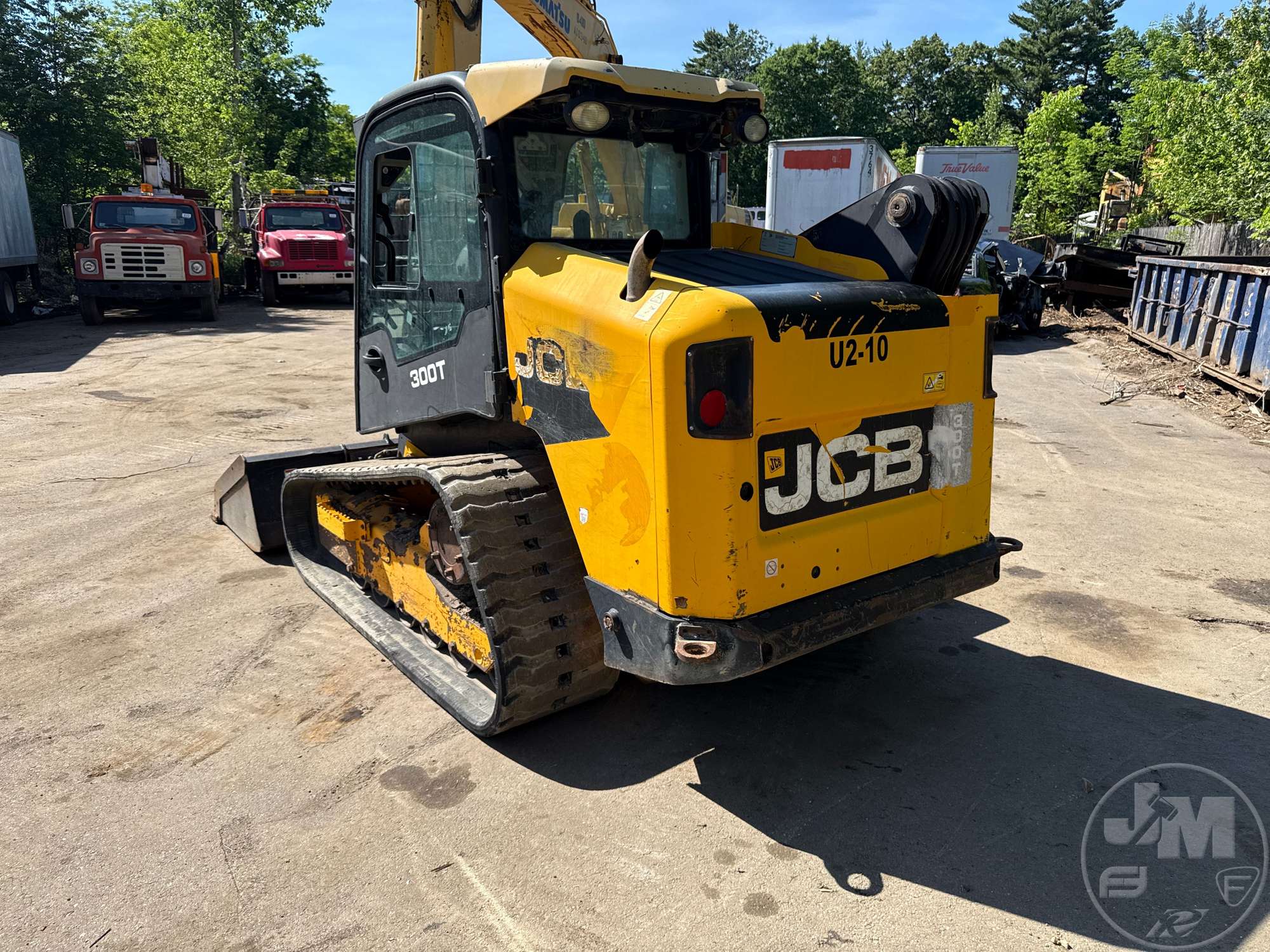

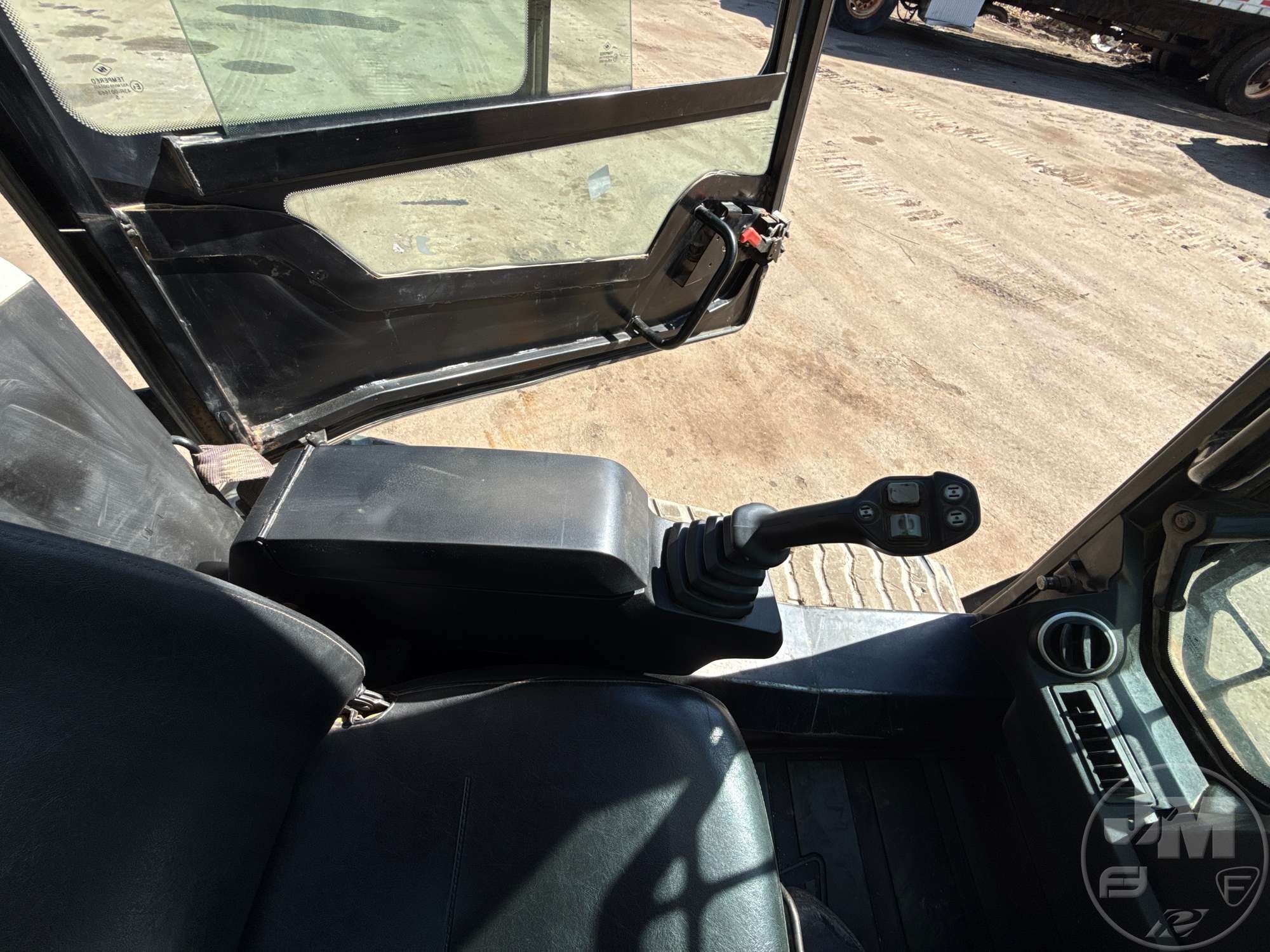

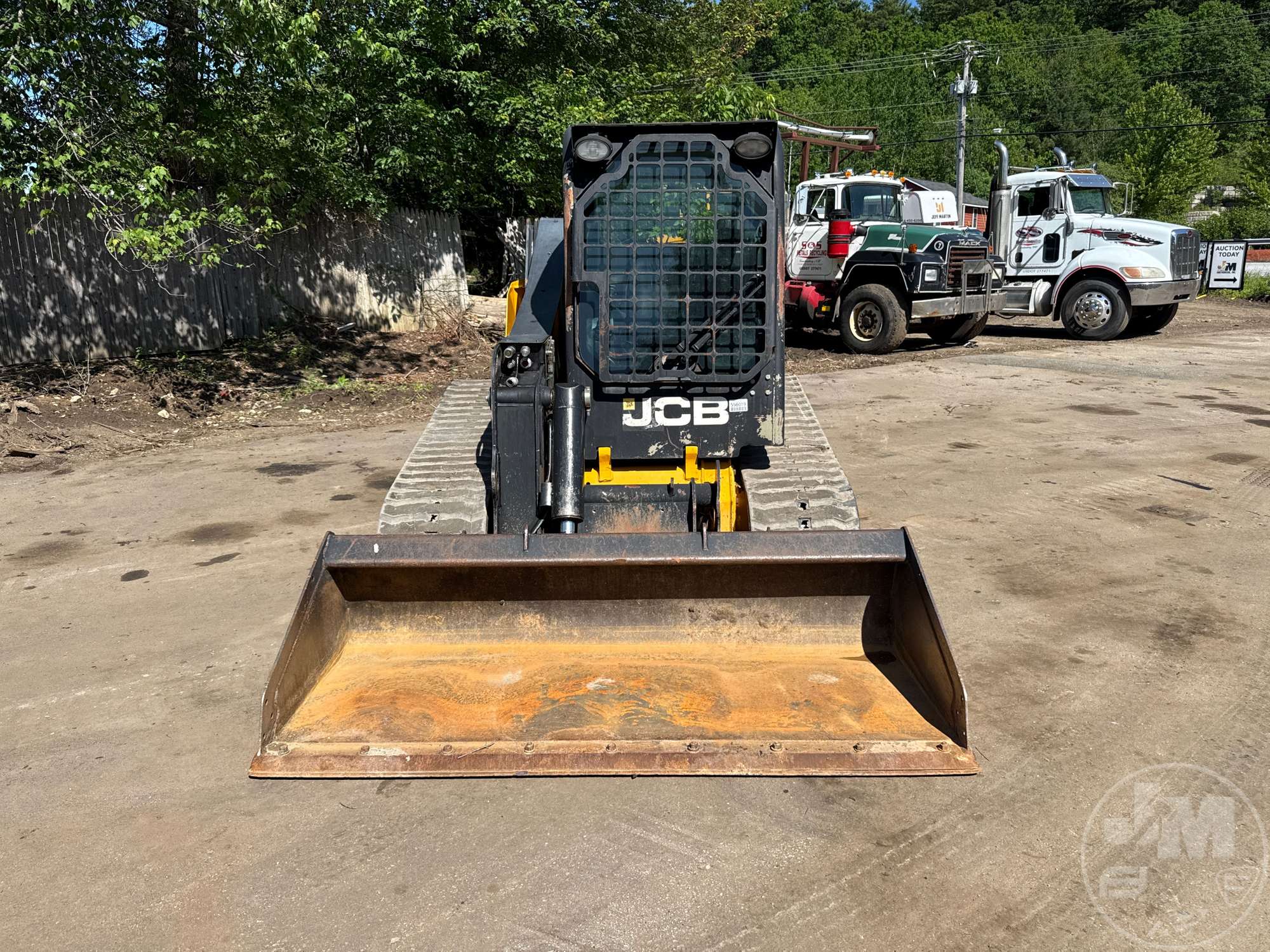

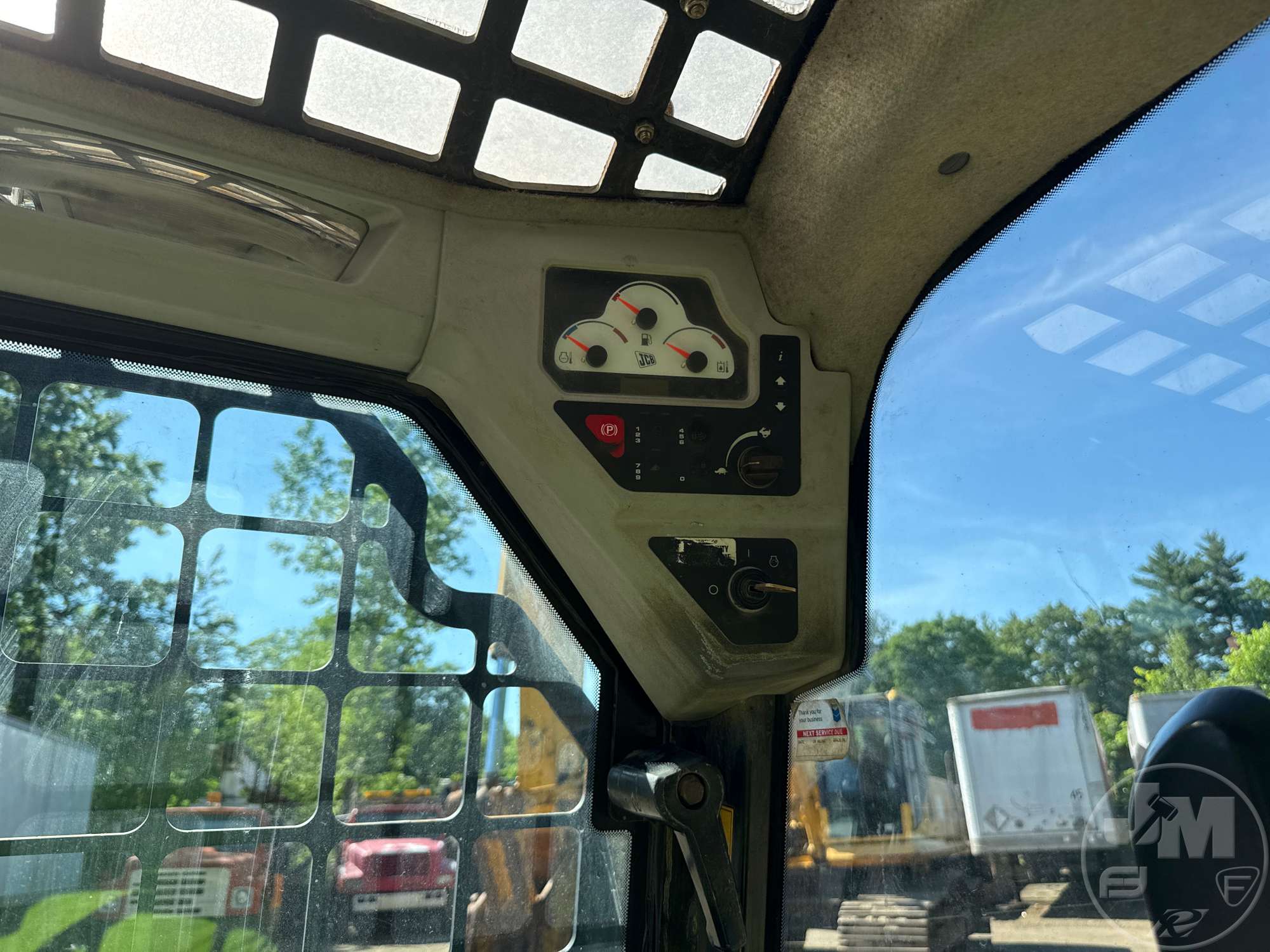

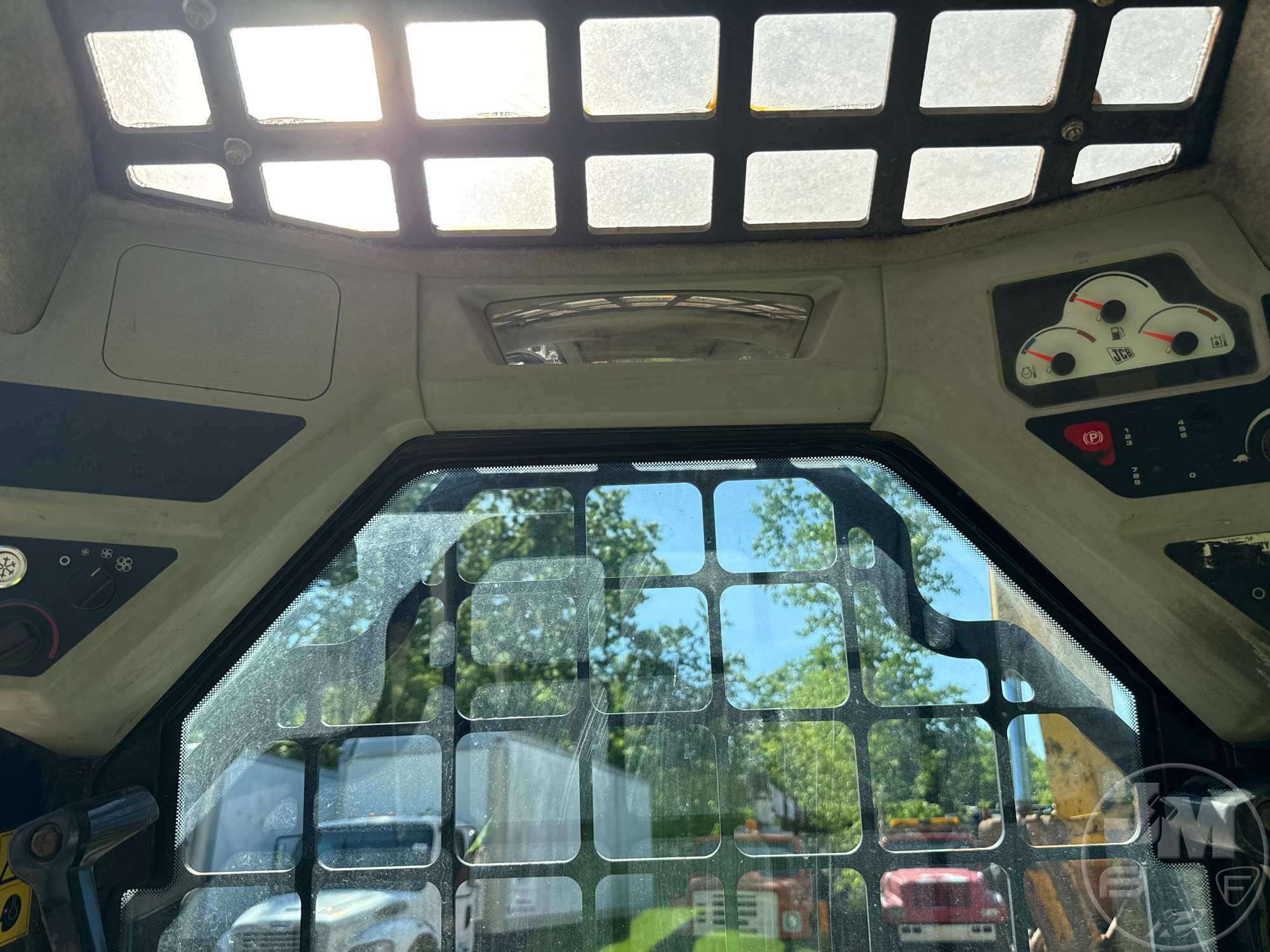

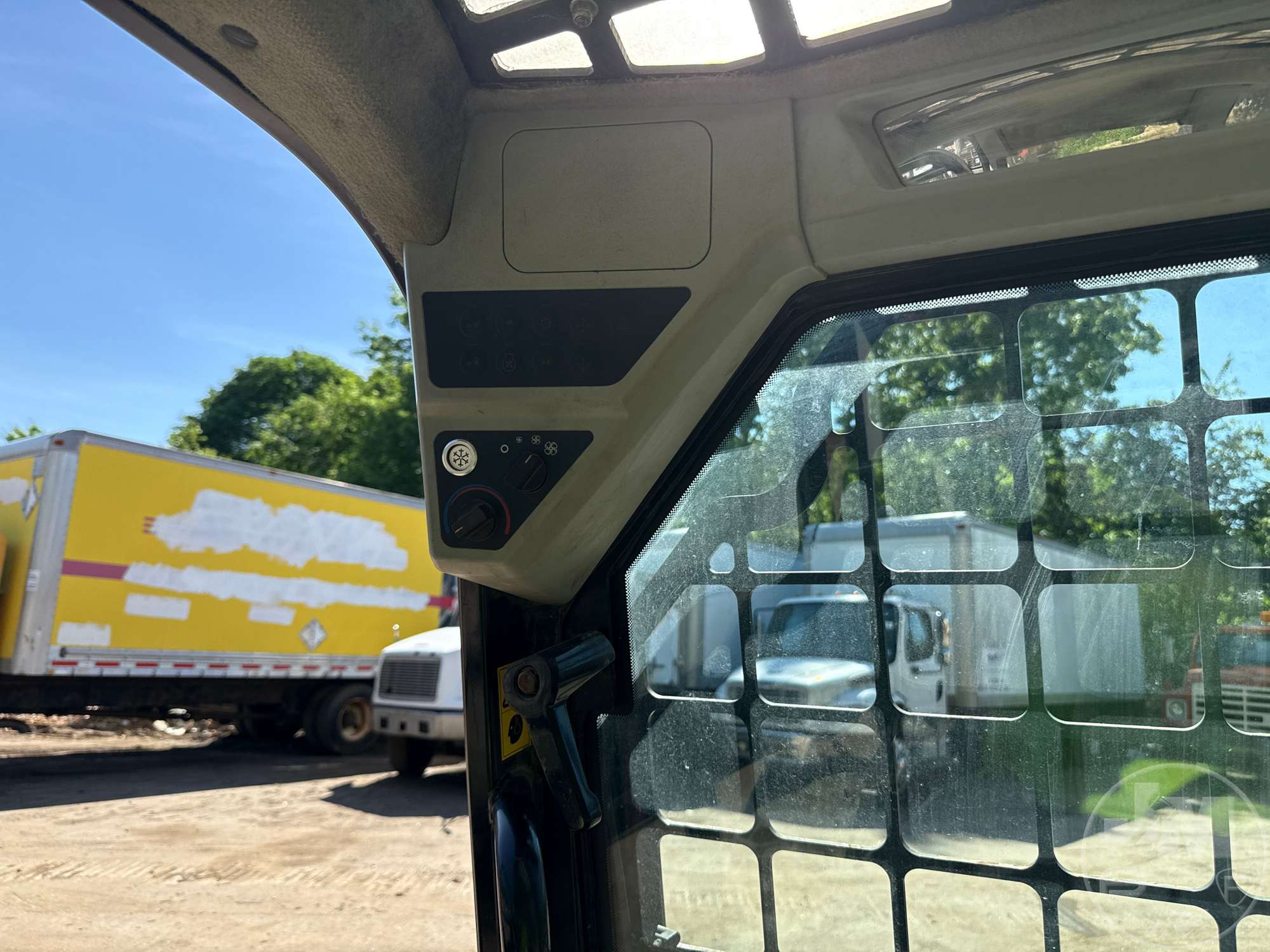

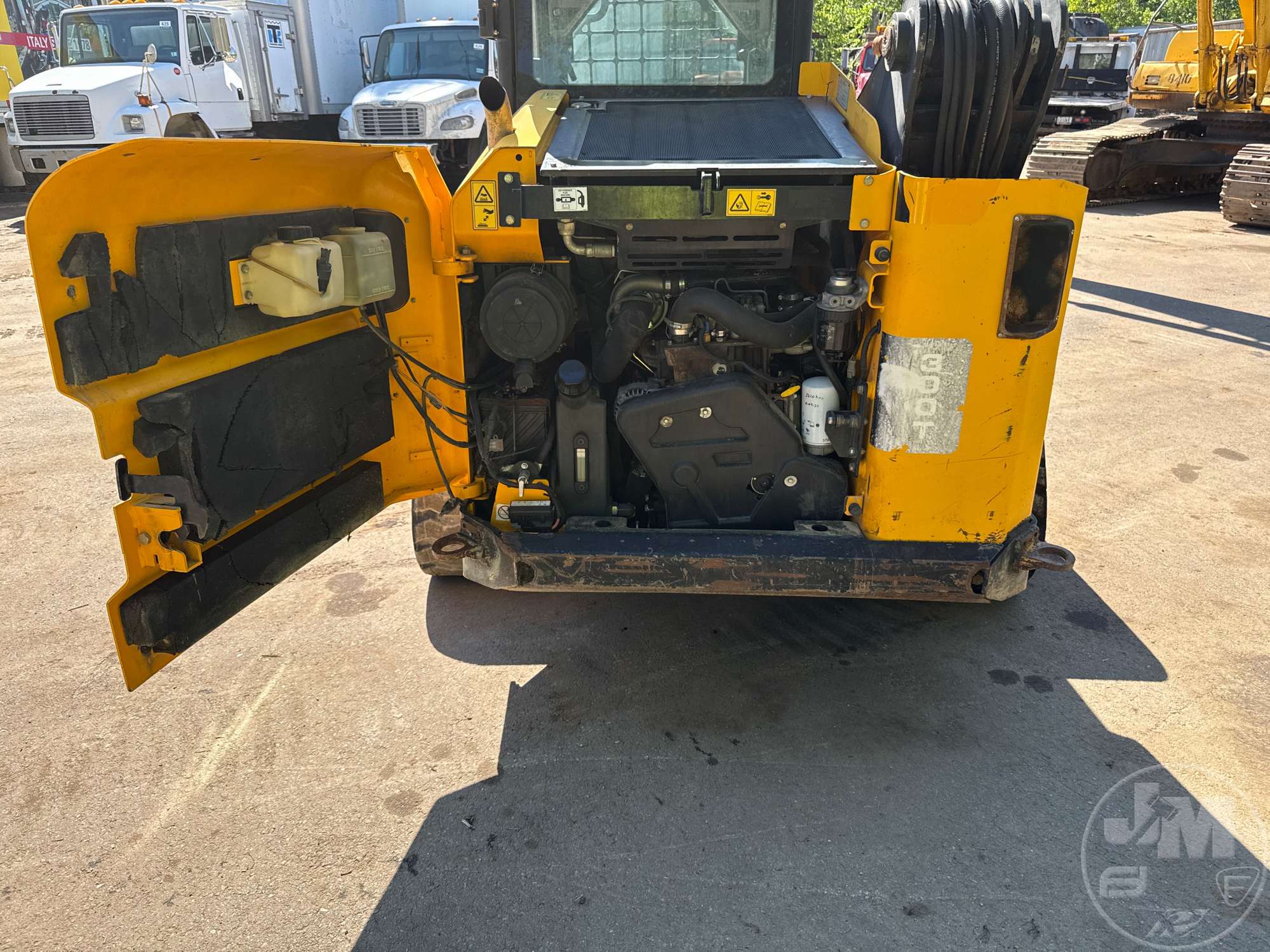

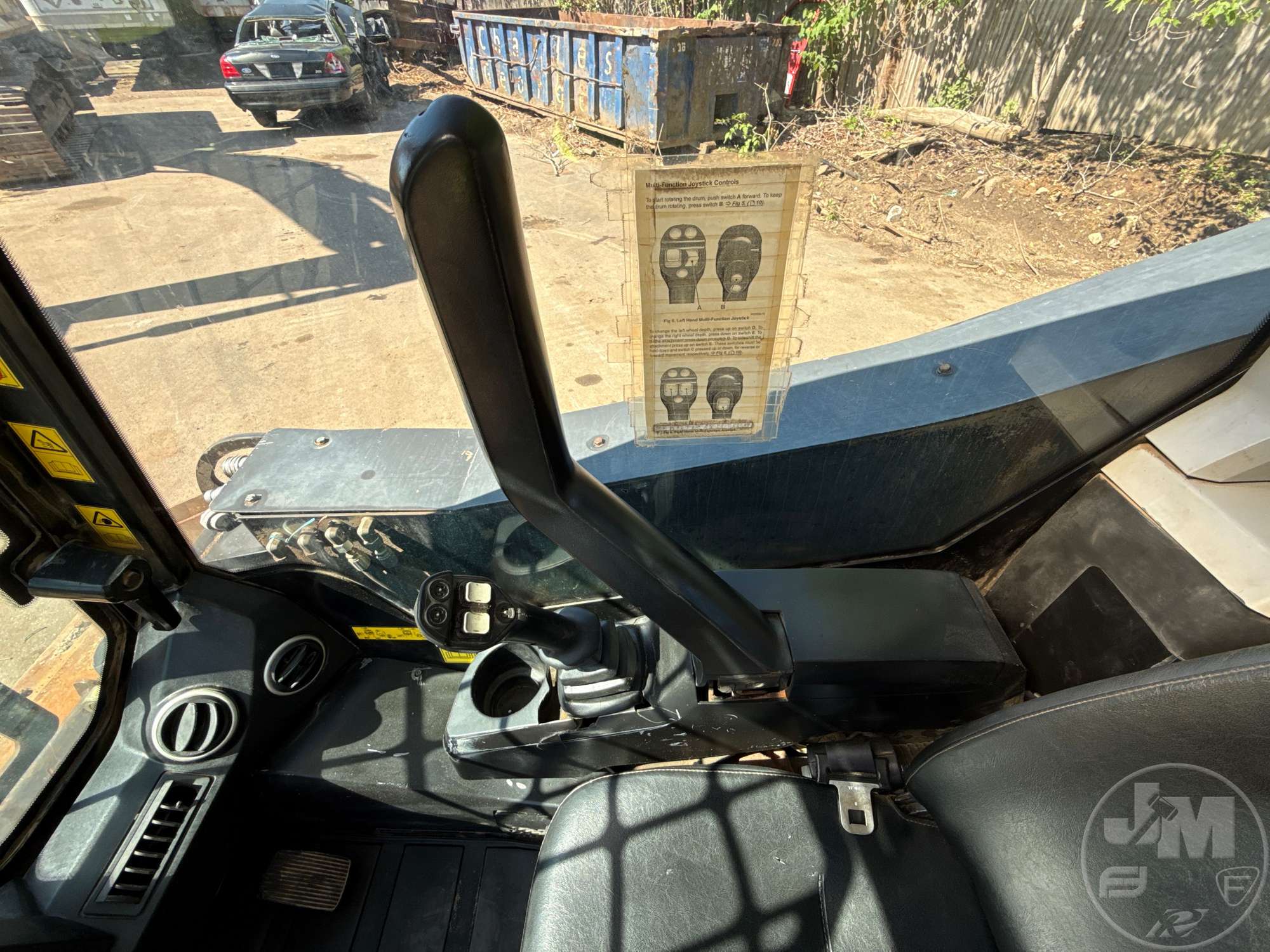

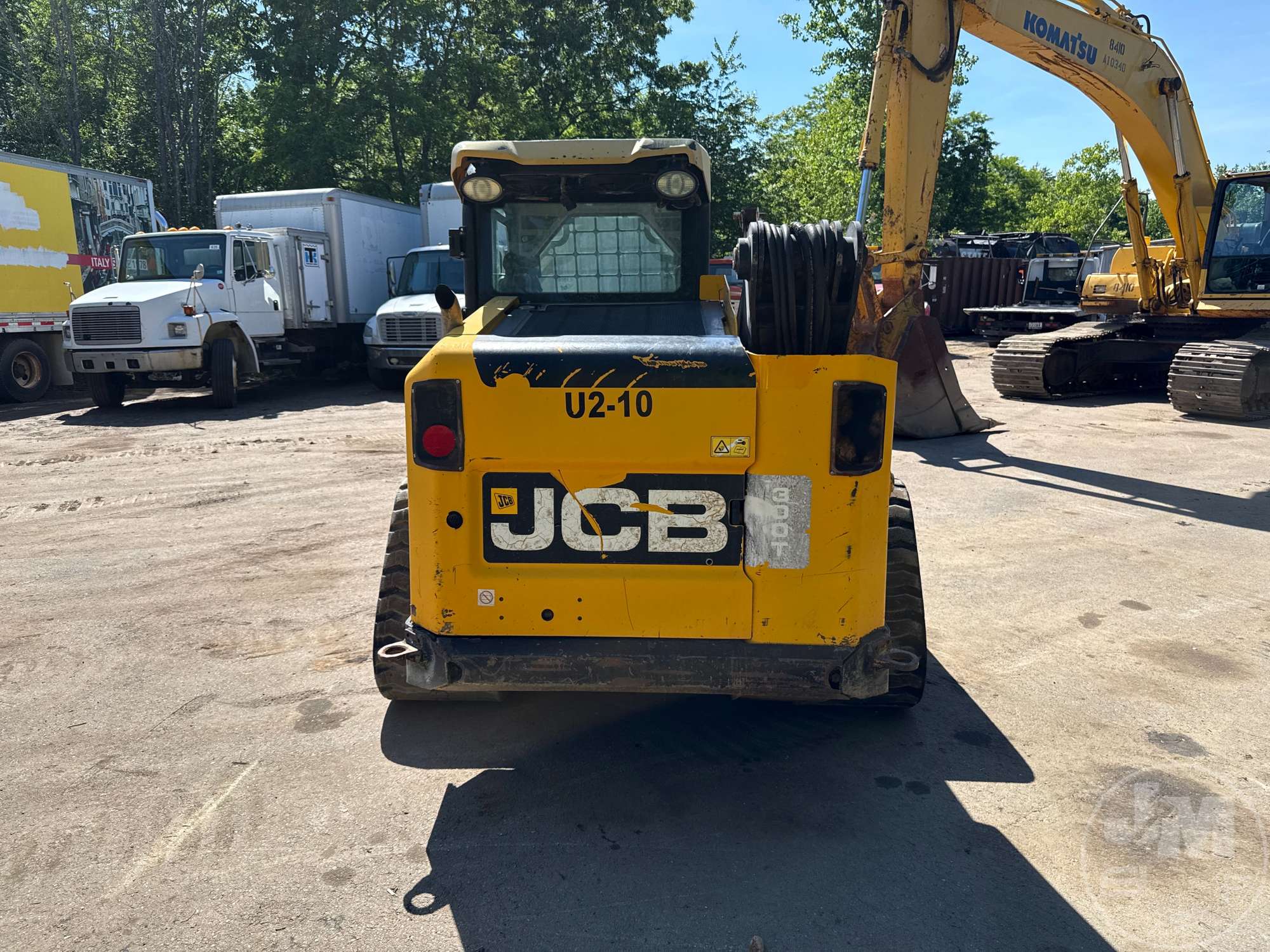

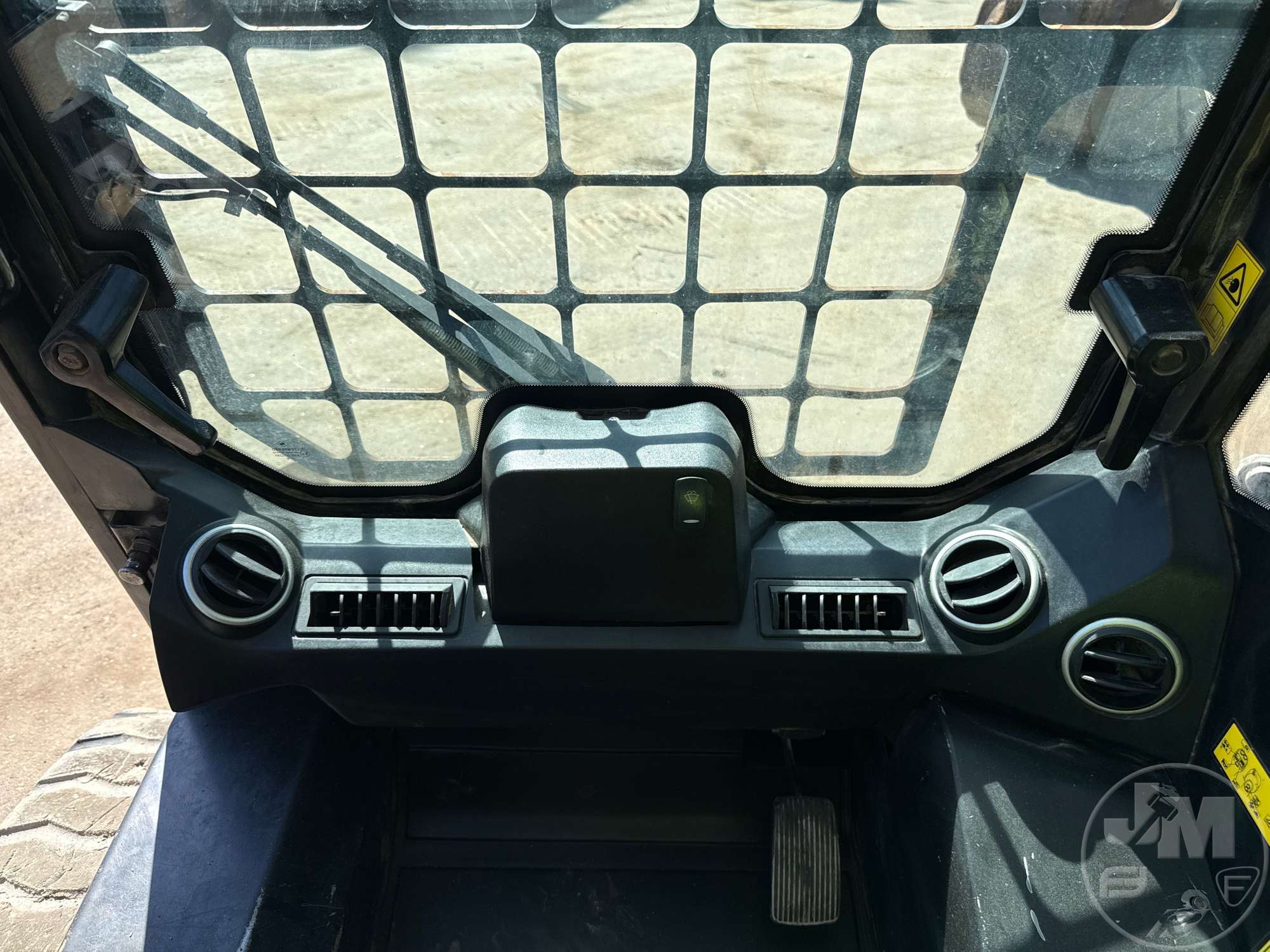

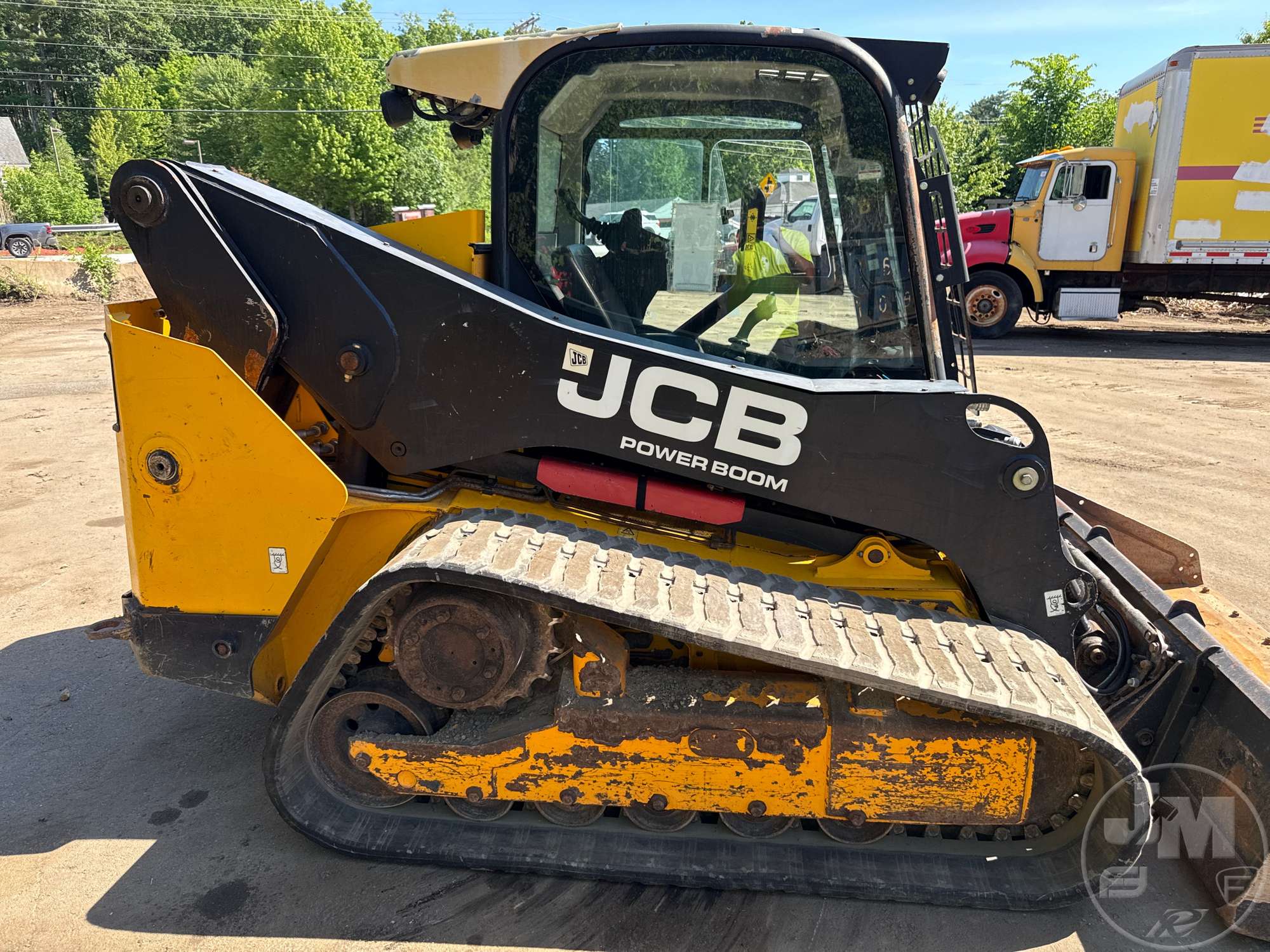

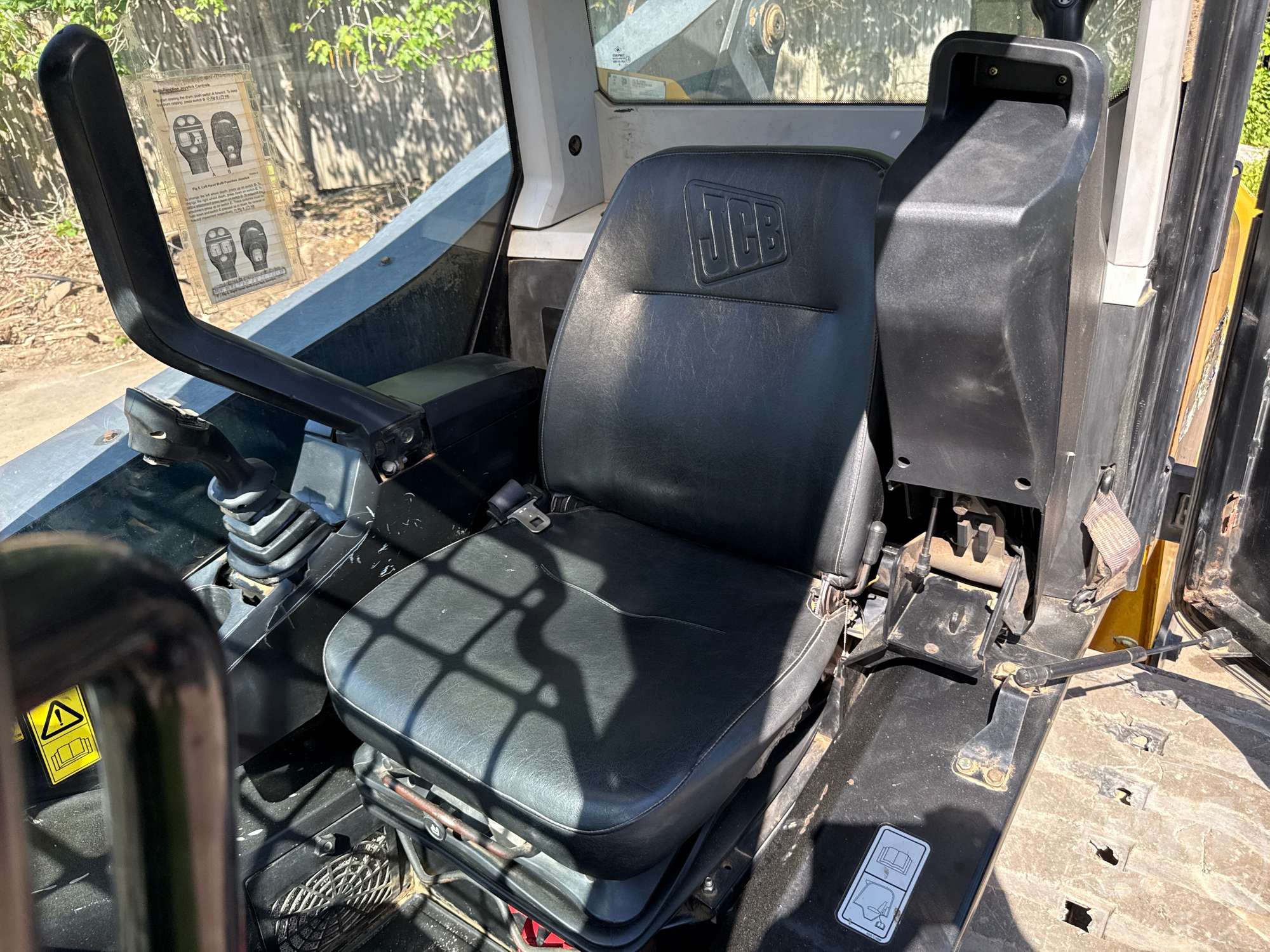

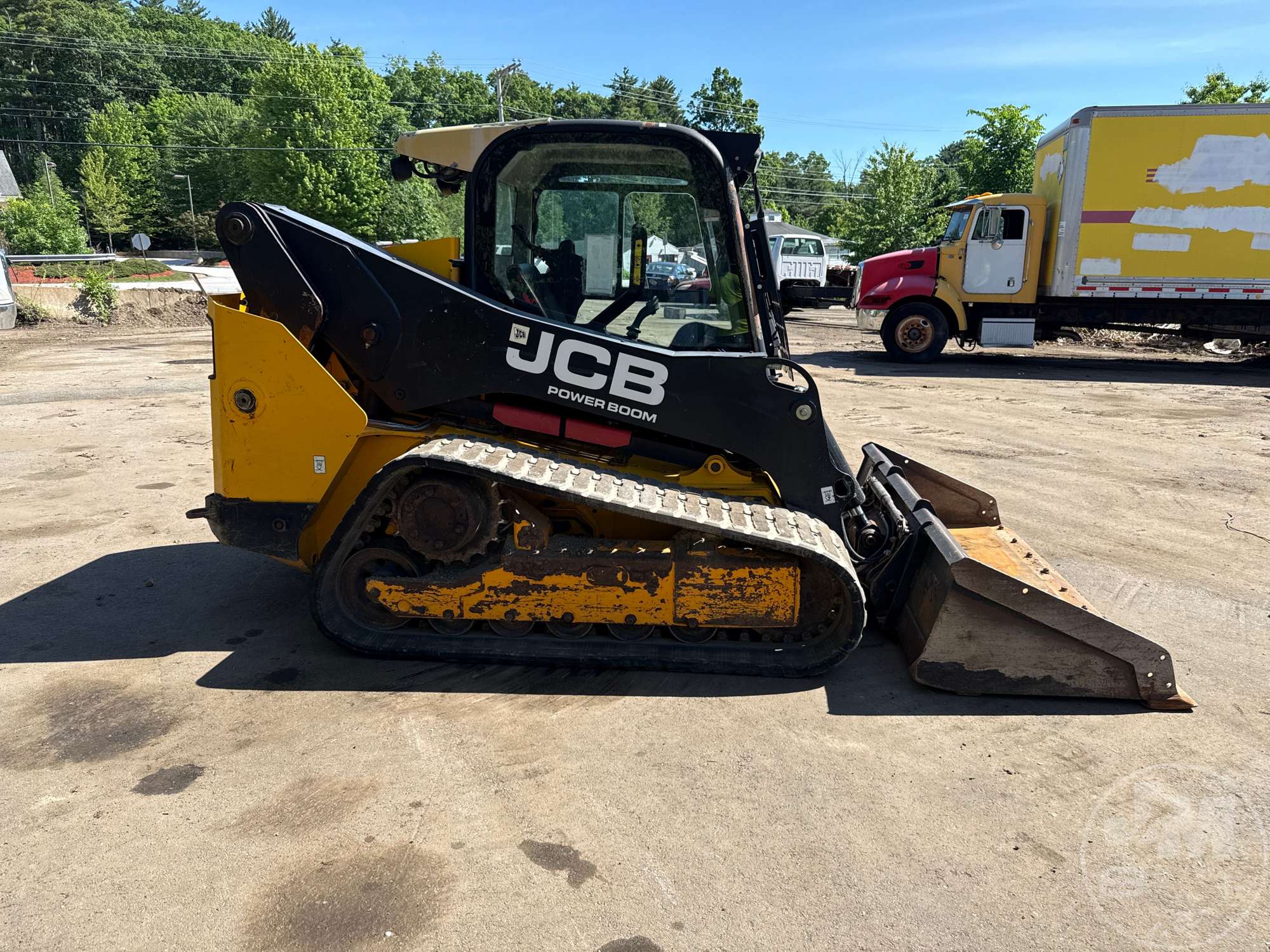

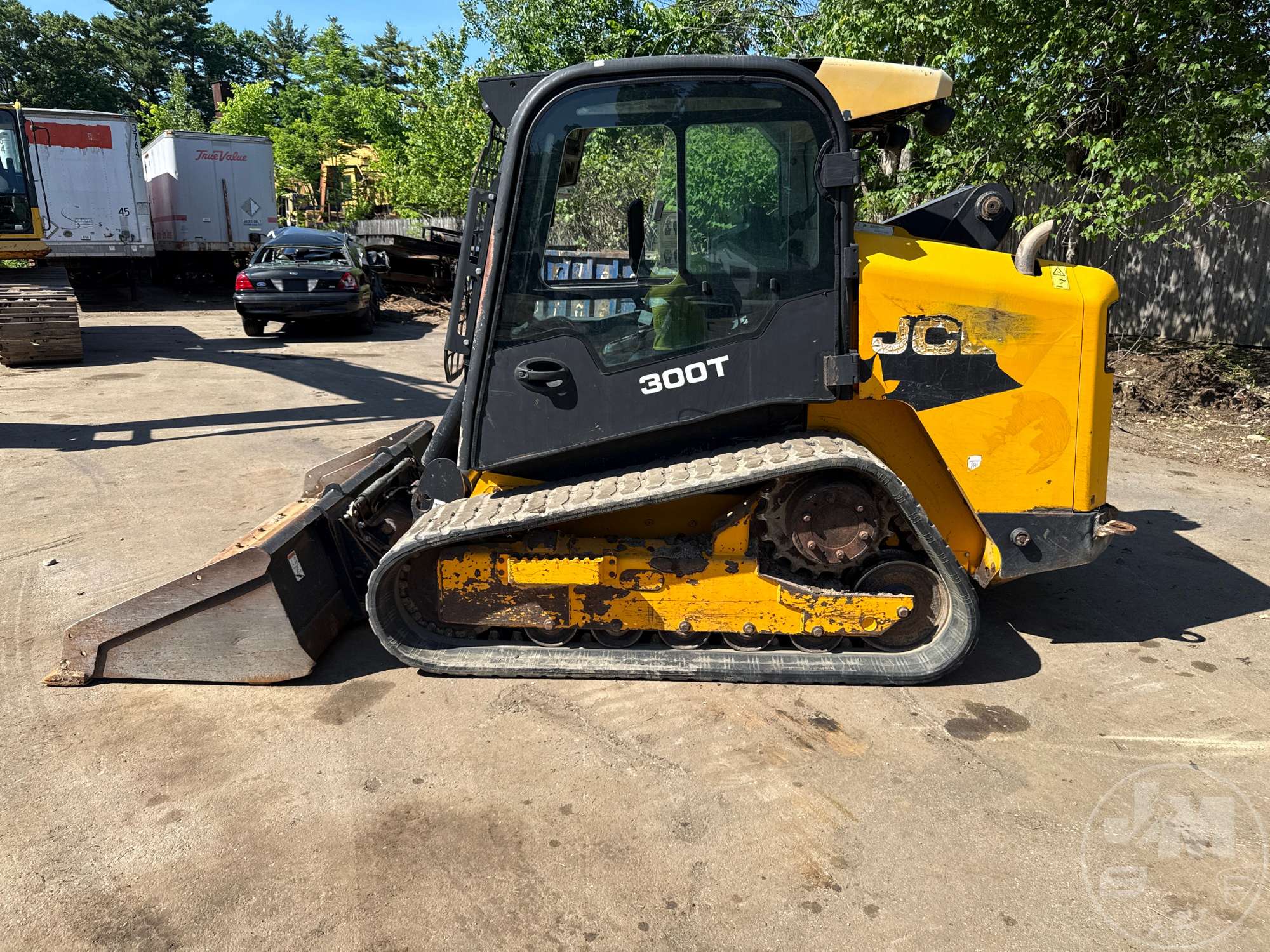

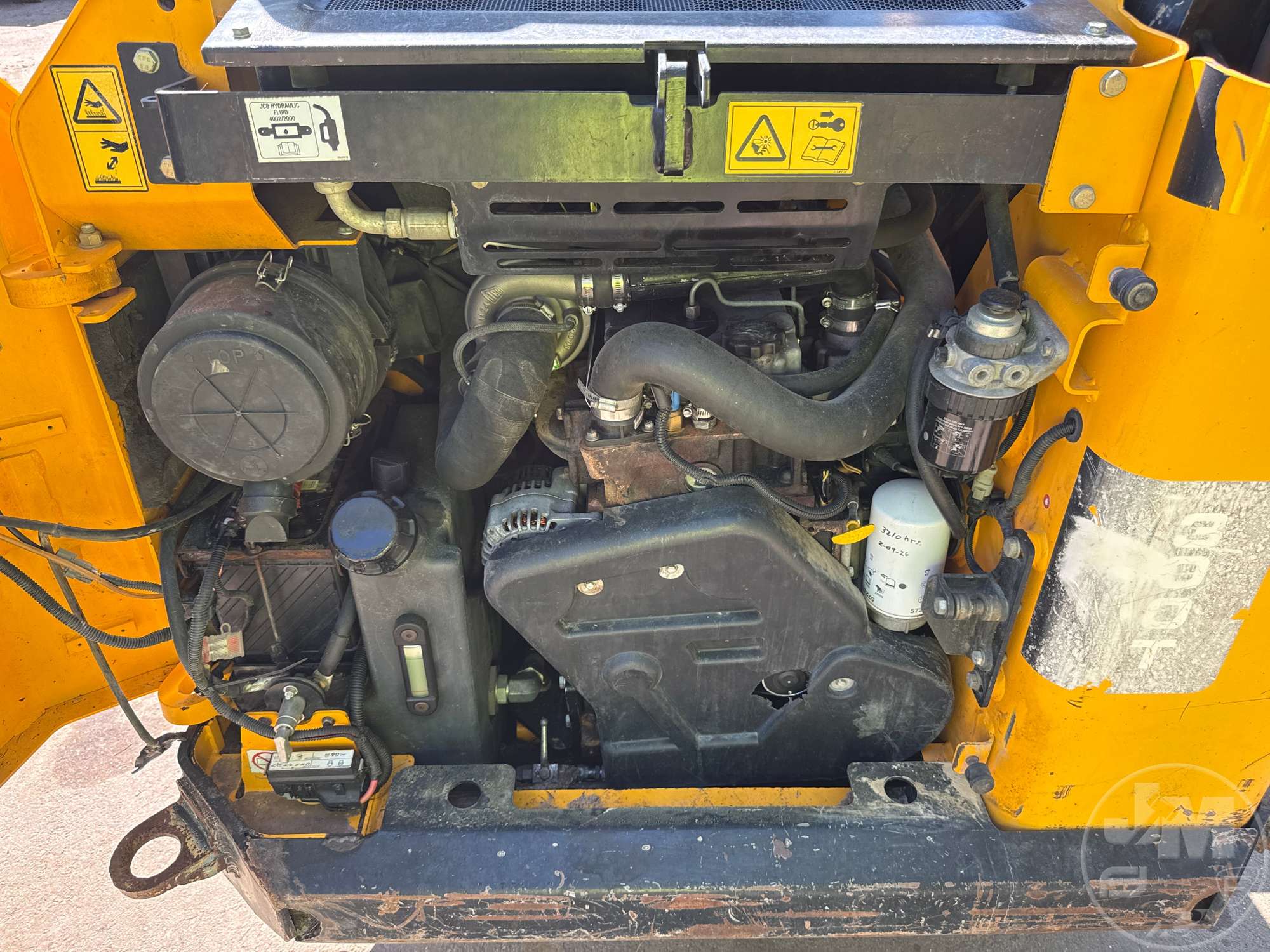

JCB MULTI TERRAIN LOADER, CAB, AC, AUX HYDRAULICS, MANUAL COUPLER, VERTICAL LIFT, 2 SPEED, JOYSTICK CONTROL, 84", SMOOTH BUCKET, 18", RUBBER TRACKS, 74 HP JCB ECOMAX DIESEL

From the manufacturer:

Supplied by HeavyEquipmentData.com →

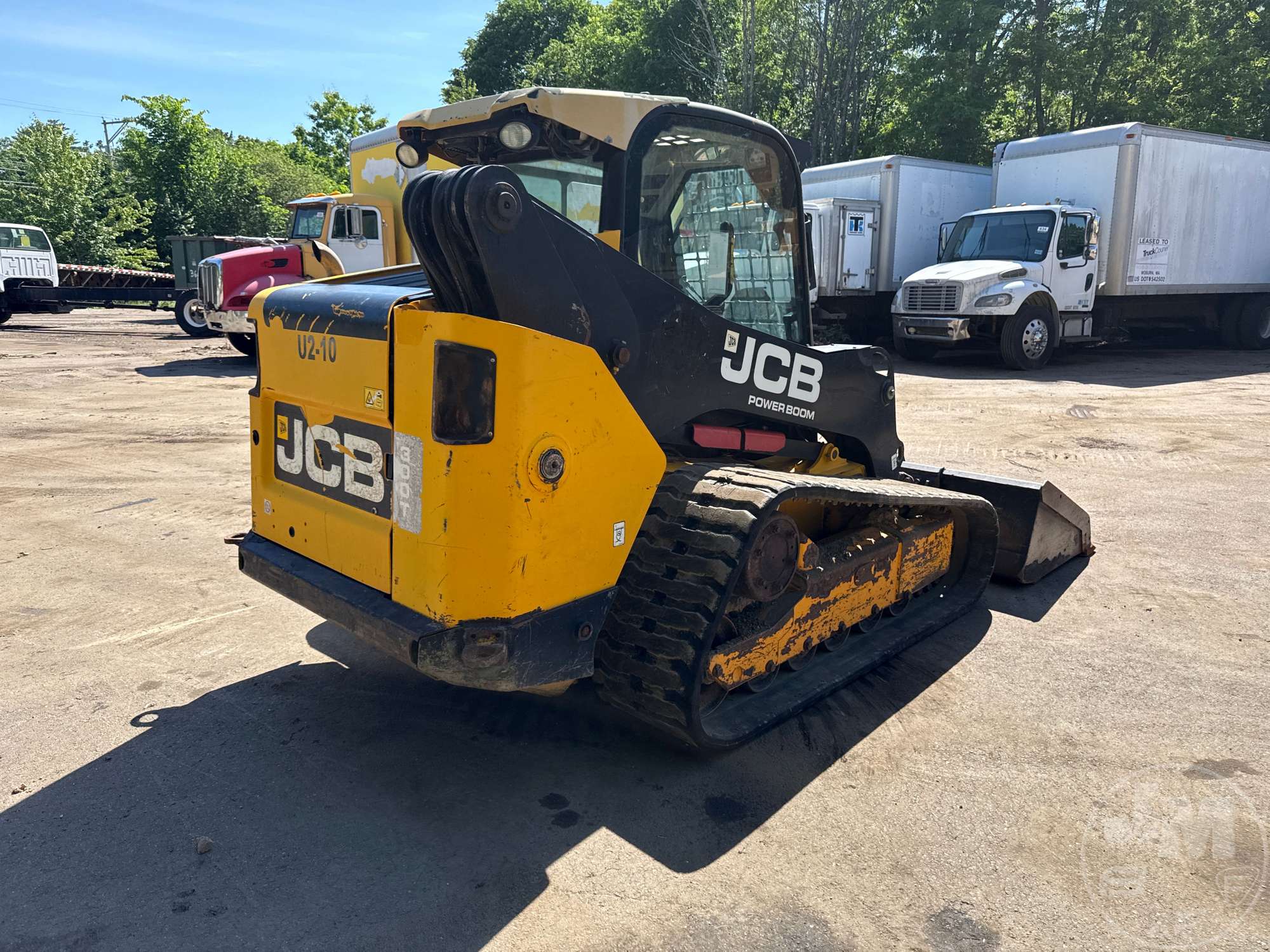

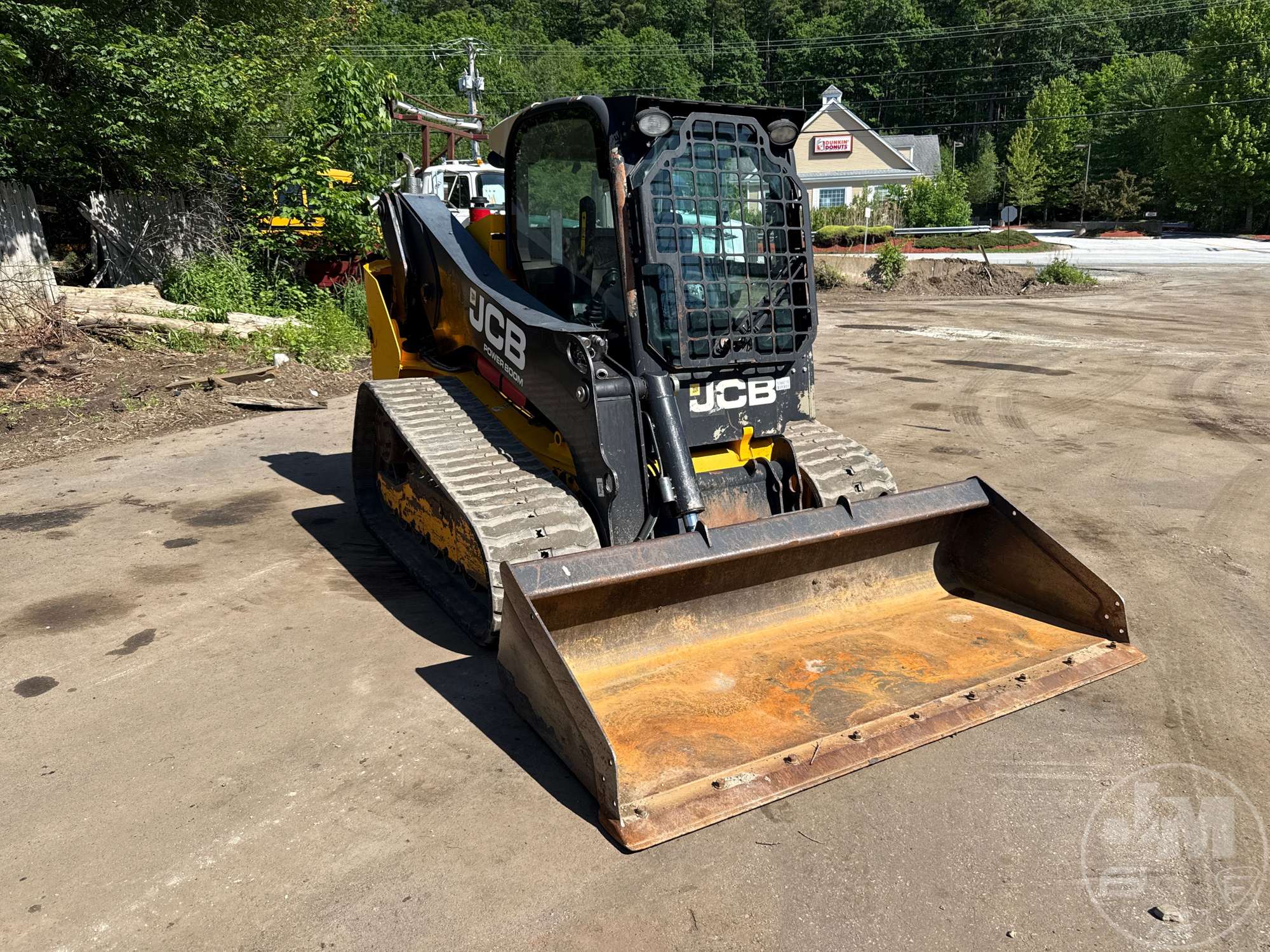

The JCB 300T is a compact track loader designed for material handling, grading, site preparation, and work in soft or uneven ground conditions. It uses a tracked undercarriage to improve flotation, traction, and stability compared with wheeled loaders on challenging terrain. The 300T is commonly used in construction, landscaping, agriculture, and utility work. JCB compact track loaders are typically configured with a vertical lift path for loading applications and support a wide range of attachments through a quick-attach system. The model is part of JCB's compact equipment lineup and is built for maneuverability in confined jobsite environments.

Dimensions
Angle of departure	29 degrees
Clearance at Max Lift and Dump	8 ft (2 m)
Dig Depth	394 in (1,000 cm)
Dump angle	42 degrees
Dump Height	90 in (228 cm)
Ground Clearance	9 in (23 cm)
Height - Top of Cab	7 ft (2 m)
Length - with Bucket	13 ft (4 m)
Loadover height	10 ft (3 m)
Max. reach @ full height	4 ft (1 m)
Pin height	11 ft (3 m)
Reach @ ground level	4 ft (1 m)
Reach at Max Lift and Dump	3 ft (1 m)
Rollback @ ground	30 degrees
Wheelbase	7 ft (2 m)
Width Over Tracks	6 ft (2 m)
Engine
Alternator	95 amps
Aspiration	Turbo
Battery	12V
Cooling system	Liquid
Displacement	269 cu in (4,400 cu cm)
Emissions Certification	EPA-T4F (EU St3B)
Engine Model	EcoMAX TCAE-55
Engine oil service interval hours	500
Fuel	Diesel
Gross Power	74 hp (55 kw)
Peak Torque	295 lbs ft (400 nm)
Power Measured @	2,400 rpm
Torque Measured @	1,200 rpm
General Specifications
ENGINE POWER HP (KW) (Since 2020)	74 (55)
Engine Power HP (KW) (Since 2021)	74 (55)
Engine Power HP (KW) (2022)	74 (55)
Engine Power HP (KW) (2023)	74 (55)
Engine Power HP (KW) (2024)	74 (55)
Engine Power HP (KW) (2025)	74 (55)
MODEL (Since 2020)	300T
OPERATING WIDTH IN. (CM) (Since 2020)	75 (190)
Operating Width IN. (CM) (Since 2021)	75 (190)
Operating Width IN. (CM) (2022)	75 (190)
Operating Width IN. (CM) (2023)	75 (190)
Operating Width IN. (CM) (2024)	75 (190)
Operating Width IN. (CM) (2025)	75 (190)
Rated Operating Capacity LBS. (KG) (Since 2025)	3,000 (1,361)
RATED OPERATING CAPACITY LBS. (KG) (50%) (Since 2020)	3,000 (1361)
Rated Operating Capacity LBS. (KG) 50% (Since 2021)	3,000 (1361)
Rated Operating Capacity LBS. (KG) 50% (2022)	3,000 (1361)
Rated Operating Capacity LBS. (KG) 50% (Since 2023)	3,000 (1,361)
Rated Operating Capacity LBS. (KG) 50% (2024)	3,000 (1,361)
Hydraulic System
Pump Flow	23 gpm (87 lpm)
Relief Valve Pressure	3,335 psi
Loader
Bucket Capacity	1 cu yd (0 cu m)
Bucket Width	75 in (190 cm)
Operating Load	11,219 lbs (5,089 kg)
Tipping Angle	8,628 degrees
Operating Specifications
Cooling System Fluid Capacity	4 gal (16 l)
Engine Oil Capacity	4 gal (15 l)
Fuel Capacity	27 gal (103 l)
Hydraulic System Fluid Capacity	15 gal (55 l)
Max Speed - low range	6 mph (9 kph)
Operating Voltage	12 volts
Operating Weight	11,219 lbs (5,089 kg)

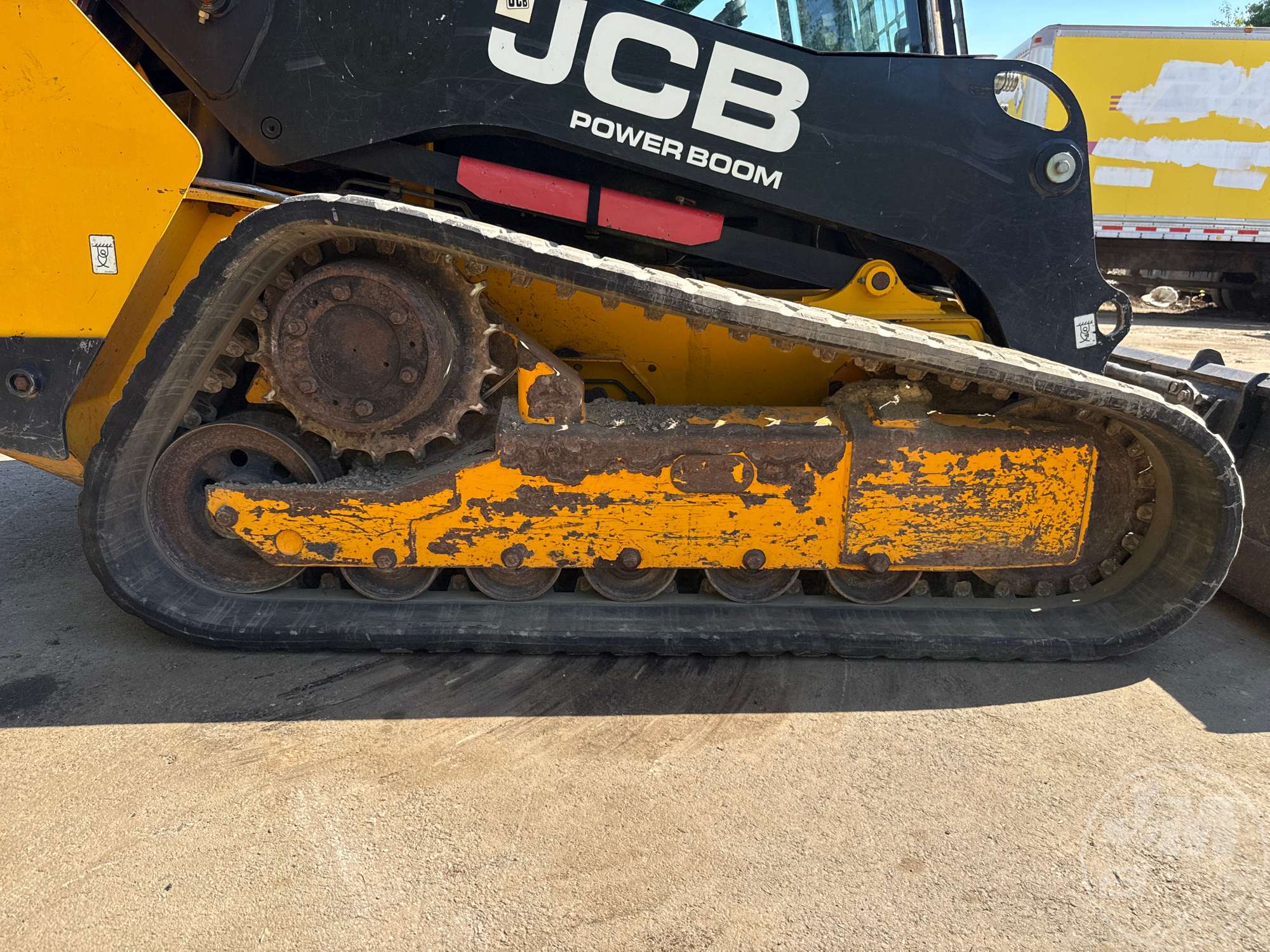

Undercarriage
Ground Pressure	5 psi
Width of Track	18 in (45 cm)
