Equipment ↠ JCB ↠ Mini Excavators ↠ 2019 JCB 16C-1

2019 JCB 16C-1 For Sale in Maltby, Gbr

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-24 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

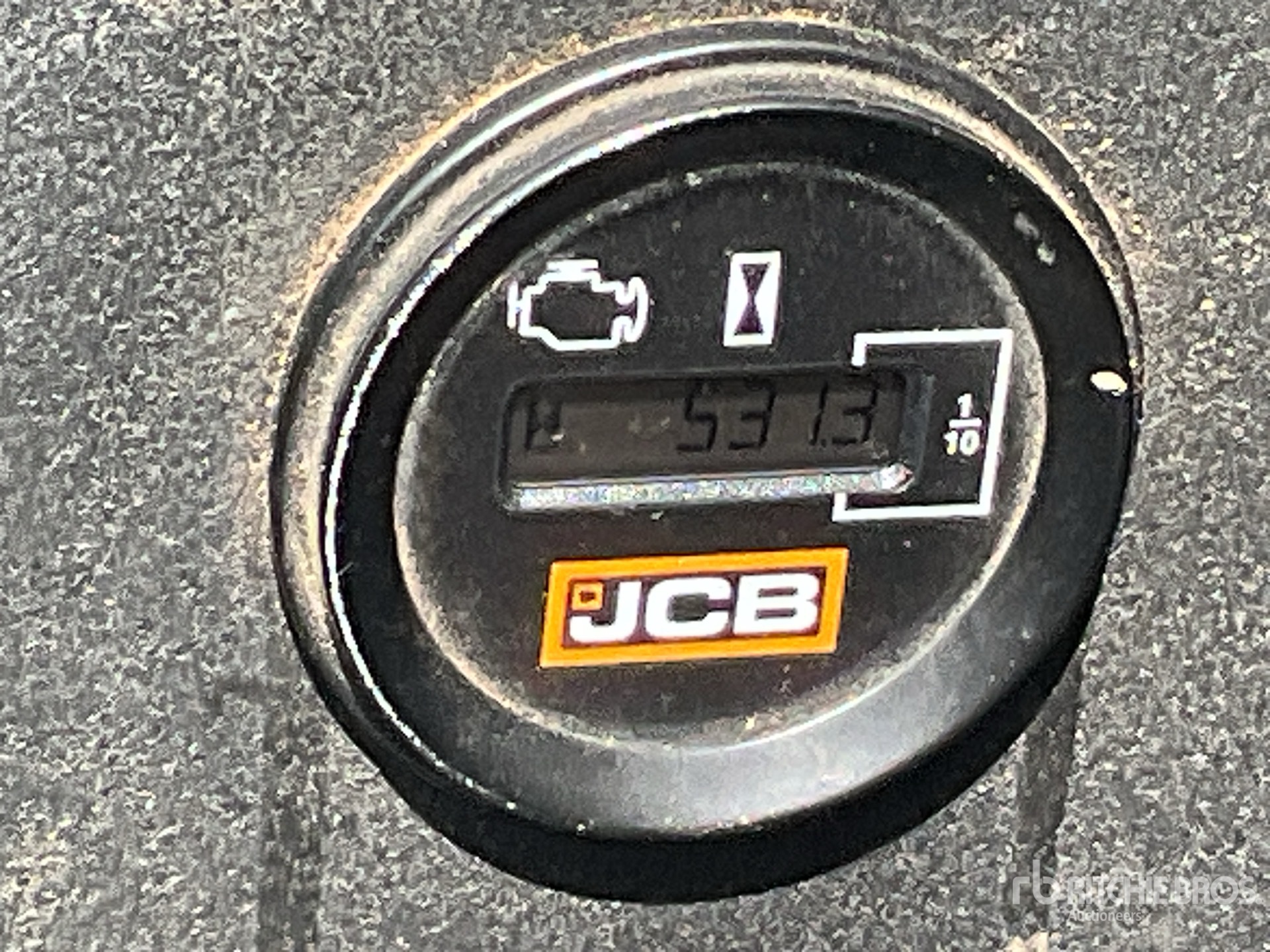

Hours:	531

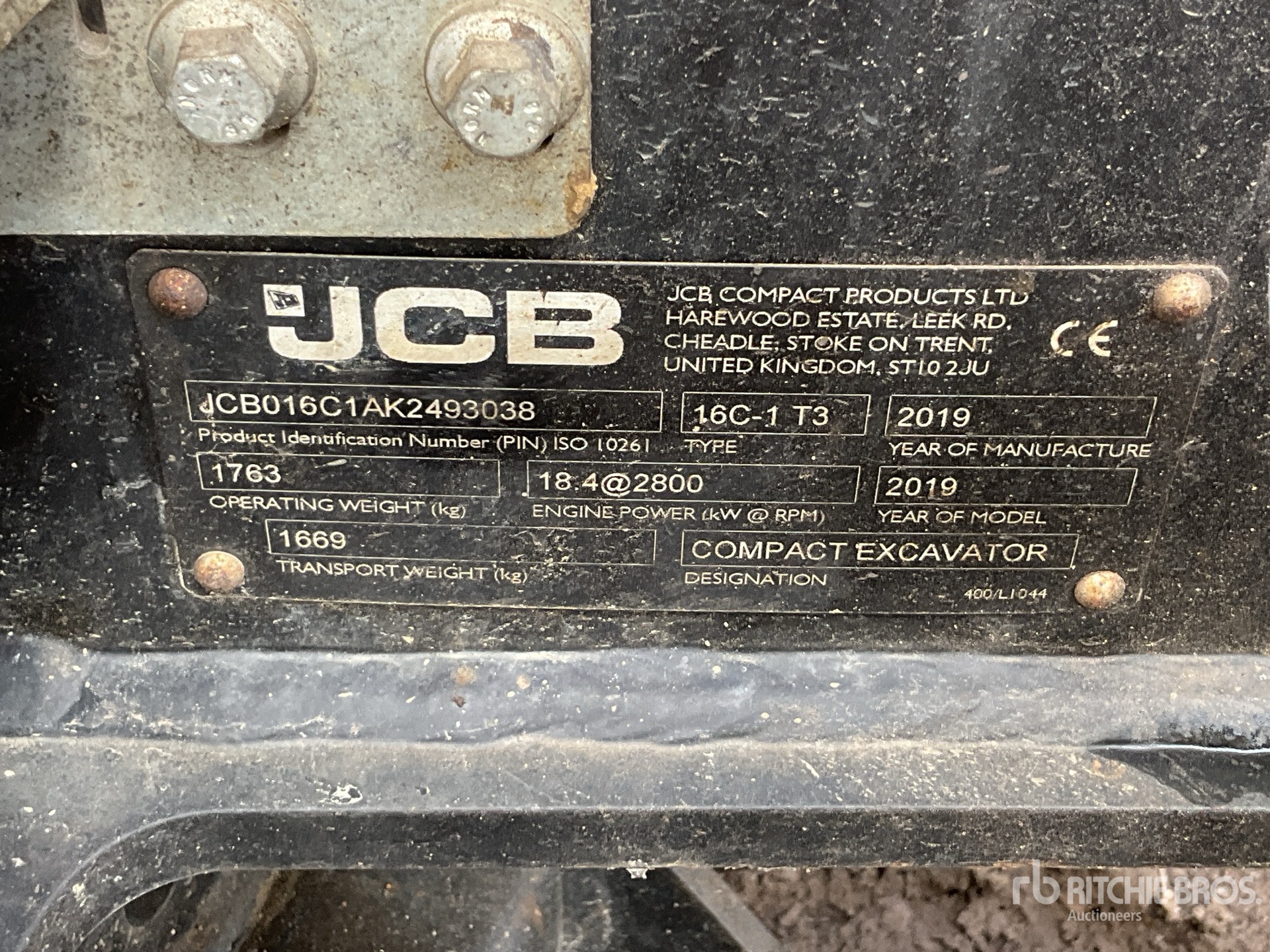

Serial Number:	JCB016C1AK2493038
Machine Location:	MALTBY, GBR

Description:

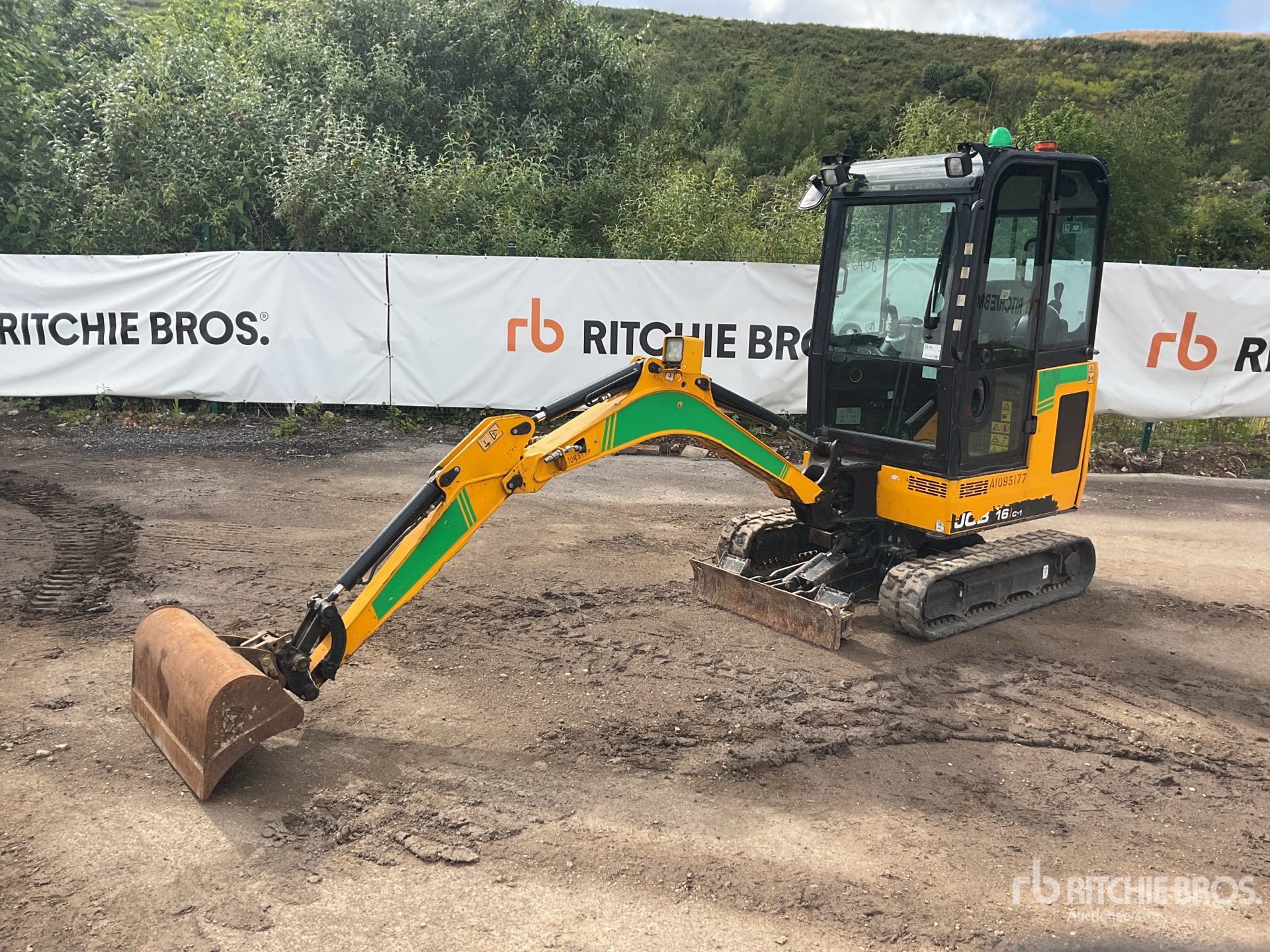

Enclosed Cab, Swing Boom, 1100 mm Stick, Auxiliary Hydraulic Plumbing, Backfill Blade, 230 mm Rubber Tracks, Expandable Width Tracks, Manual Quick Coupler, 900 mm Cleanup Bucket

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The JCB 16C-1 is a compact mini excavator designed for small-scale excavation, trenching, landscaping, and utility work in confined spaces. It is part of JCB's 1.6-ton class and is commonly used on residential, commercial, and municipal job sites where maneuverability and low ground disturbance are important. The machine typically features a zero tail swing design, hydraulic controls, and a compact undercarriage for stable operation in restricted areas. The JCB 16C-1 is suited to digging, grading, and material handling tasks, and is often selected for projects requiring transportability, efficiency, and access to narrow work zones.

Blades
Approach angle	25 degrees
Blade Height	9 in (24 cm)
Blade Width	3 ft (1 m)
Dig depth (below ground)	1 ft (0 m)
Maximum height	1 ft (0 m)
Boom
Boom swing left	75 degrees
Boom swing right	55 degrees
Bucket rotation	201 degrees
Bucket tearout	3,507 lbs (1,591 kg)
Dipper rotation	126 degrees
Dipper tearout	1,978 lbs (897 kg)
Slew speed	8 rpm
Boom/Stick Excavator Option 1
Max Digging Depth	8 ft (2 m)
Max Digging Height	12 ft (4 m)
Max Digging Reach	13 ft (4 m)
Max Digging Reach on Ground	13 ft (4 m)
Max.Dumping Height	9 ft (3 m)
Maximum digging depth - dozer down	9 ft (3 m)
Maximum digging depth - dozer up	8 ft (2 m)
Maximum height to dipper nose pivot pin	10 ft (3 m)
Maximum vertical wallcut depth	7 ft (2 m)
Minimum front swing radius (no offset)	5 ft (2 m)
Capacities
Engine coolant	1 gal (5 l)
Engine Oil	1 gal (3 l)
Fuel Tank	5 gal (19 l)
Hydraulic system	7 gal (28 l)
Hydraulic Tank	4 gal (15 l)
Dimensions
Cab length	360 gal (1,364 l)
Cab width	39 in (98 cm)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	8 ft (2 m)
Overall width of superstructure	3 ft (1 m)
Tail Swing Radius	4 ft (1 m)
Track Gauge	3 ft (1 m)
Transport length	152 in (386 cm)
Undercarriage Overall Length	5 ft (2 m)
Width Over Tracks	3 ft (1 m)
Engine
Alternator	60 amps
Cooling system	Water cooled
Displacement	22 cu in (361 cu cm)
Engine Model	403D-07
Fuel	Diesel
Gross Power	16 hp (12 kw)
Max Torque	34 lbs ft (46 nm)
Net Power	15 hp (11 kw)
Hydraulic System
Excavator/track main relief	205 bar
Nominal output	7 gpm (25 lpm)
Slew main relief	205 bar
Operating Specifications
Operating Voltage	12 V
Operating Weight	3,426 lbs (1,554 kg)
Performance
Gradeability	35%
Travel speed low	1 mph (2 kph)
Undercarriage
Number of bottom rollers per side	3
Tractive Effort	25 lbs (12 kg)
Weights
Shipping	3,219 lbs (1,460 kg)
