Equipment ↠ JCB ↠ Mini Excavators ↠ 2019 JCB 19C-1

2019 JCB 19C-1 For Sale in Meppen, Deu

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-24 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

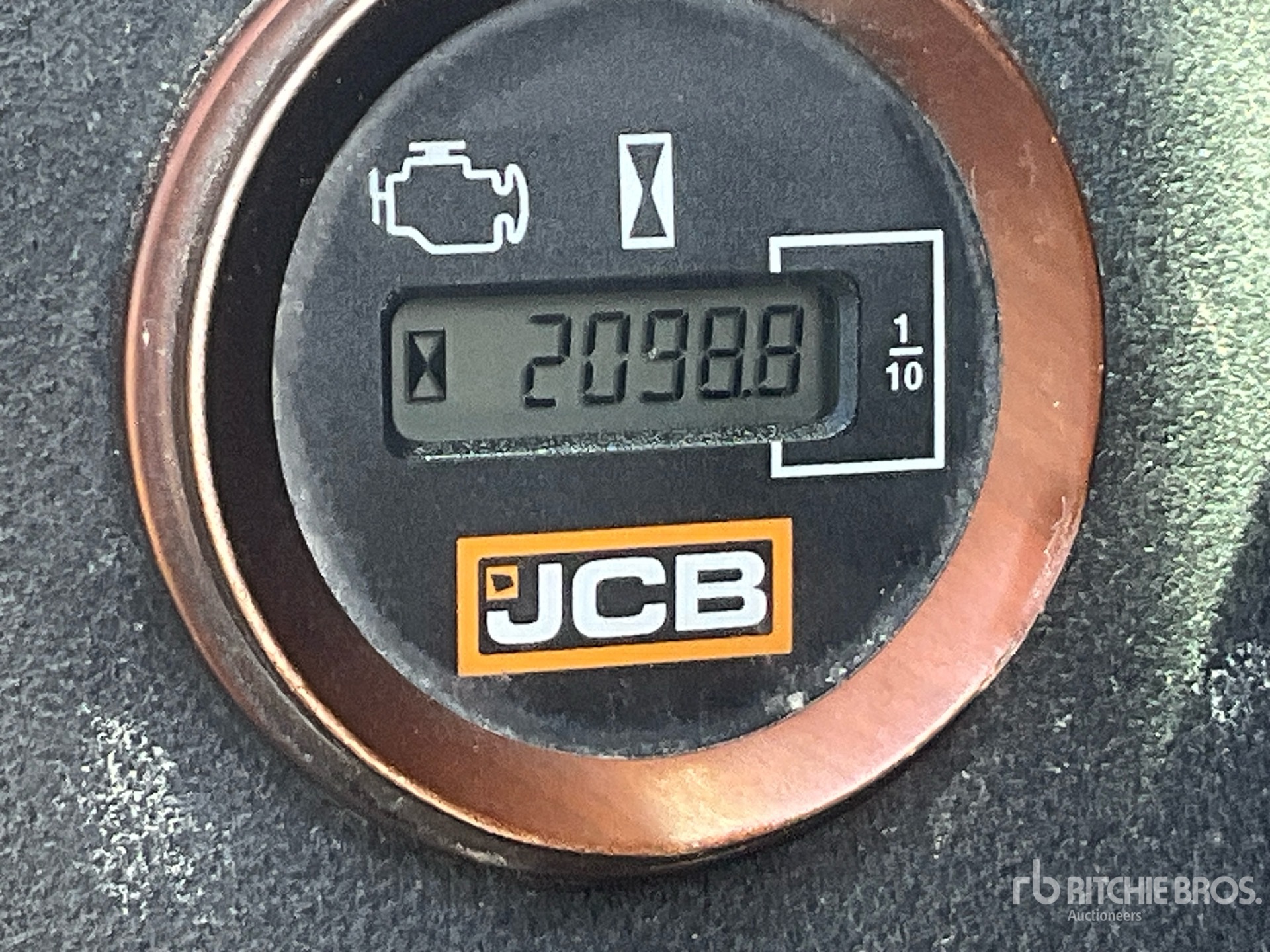

Hours:	2099

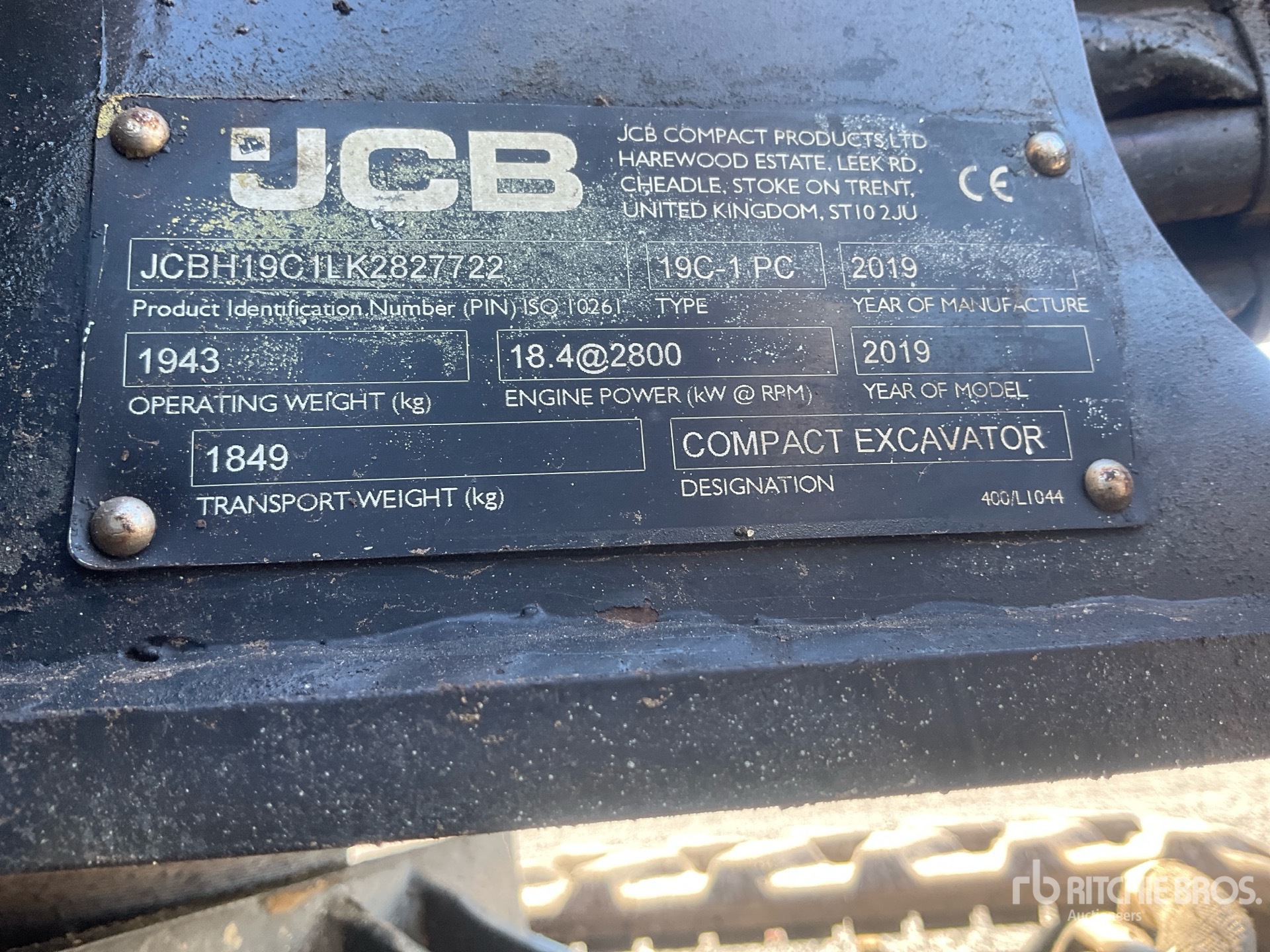

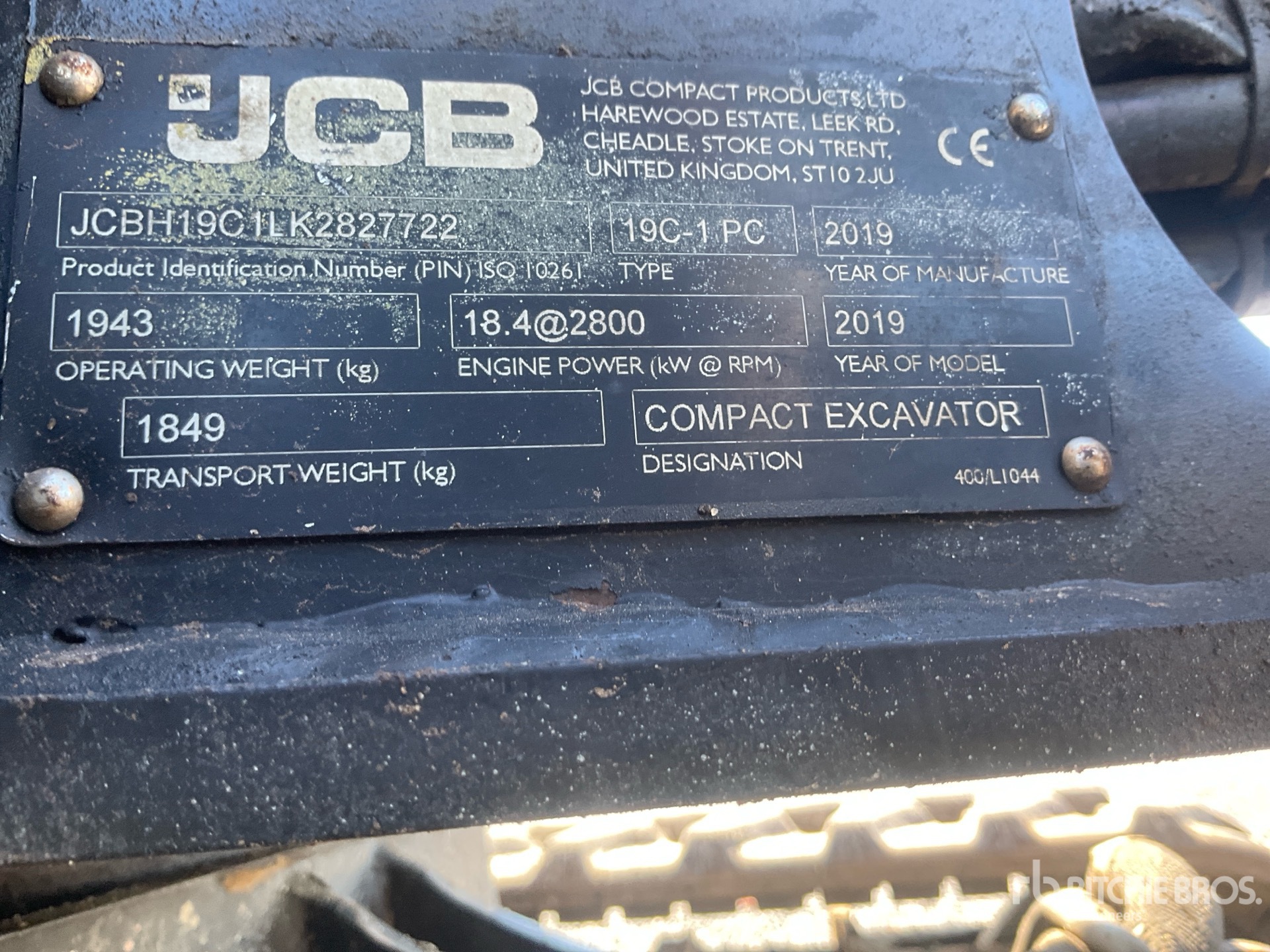

Serial Number:	JCBH19C1LK2827722
Machine Location:	MEPPEN, DEU

Description:

Enclosed Cab, Swing Boom, 1100 mm Stick, Auxiliary Hydraulic Plumbing, Backfill Blade, 230 mm Rubber Tracks, Expandable Width Tracks Closing Time: 2026-06-24 10:19:20 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The JCB 19C-1 is a compact mini excavator designed for construction, landscaping, utility, and site preparation work in confined spaces. It is part of JCB's 1.9-ton class and is commonly used for digging, trenching, grading, and material handling where maneuverability is important. The machine features a zero tail swing design, a narrow transport width, and a conventional excavator layout for operator familiarity. Typical applications include residential projects, small demolition tasks, and municipal maintenance. The JCB 19C-1 is valued for its small footprint, ease of transport, and suitability for work sites with limited access.

Blades
Approach angle	25 degrees
Blade Height	9 in (24 cm)
Blade Width	3 ft (1 m)
Dig depth (below ground)	1 ft (0 m)
Maximum height	1 ft (0 m)
Boom
Boom swing left	75 degrees
Boom swing right	55 degrees
Bucket rotation	201 degrees
Bucket tearout	3,507 lbs (1,591 kg)
Dipper rotation	126 degrees
Dipper tearout	1,978 lbs (897 kg)
Slew speed	8 rpm
Boom/Stick Excavator Option 1
Max Digging Depth	8 ft (2 m)
Max Digging Height	12 ft (4 m)
Max Digging Reach	13 ft (4 m)
Max Digging Reach on Ground	13 ft (4 m)
Max.Dumping Height	9 ft (3 m)
Maximum digging depth - dozer down	8 ft (2 m)
Maximum digging depth - dozer up	8 ft (2 m)
Maximum height to dipper nose pivot pin	10 ft (3 m)
Maximum vertical wallcut depth	6 ft (2 m)
Minimum front swing radius (no offset)	5 ft (1 m)
Capacities
Engine coolant	1 gal (5 l)
Engine Oil	1 gal (3 l)
Fuel Tank	6 gal (21 l)
Hydraulic system	7 gal (28 l)
Hydraulic Tank	4 gal (15 l)
Dimensions
Cab length	318 gal (1,202 l)
Cab width	39 in (98 cm)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	8 ft (2 m)
Overall width of superstructure	3 ft (1 m)
Tail Swing Radius	4 ft (1 m)
Track Gauge	3 ft (1 m)
Transport length	140 in (355 cm)
Undercarriage Overall Length	5 ft (2 m)
Width Over Tracks	3 ft (1 m)
Engine
Alternator	60 amps
Cooling system	Water cooled
Displacement	22 cu in (361 cu cm)
Engine Model	403D-07
Fuel	Diesel
Gross Power	16 hp (12 kw)
Max Torque	34 lbs ft (46 nm)
Net Power	15 hp (11 kw)
Hydraulic System
Auxiliary hydraulic flow	9 gpm (32 lpm)
Excavator/track main relief	235 bar
Nominal output	10 gpm (36 lpm)
Slew main relief	167 bar
Operating Specifications
Operating Voltage	12 V
Operating Weight	3,856 lbs (1,749 kg)
Performance
Gradeability	35%
Travel speed low	1 mph (2 kph)
Undercarriage
Number of bottom rollers per side	3
Tractive Effort	29 lbs (13 kg)
Weights
Shipping	3,219 lbs (1,460 kg)
