2018 JCB 48Z-1 For Sale in Maltby, Gbr

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-24 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

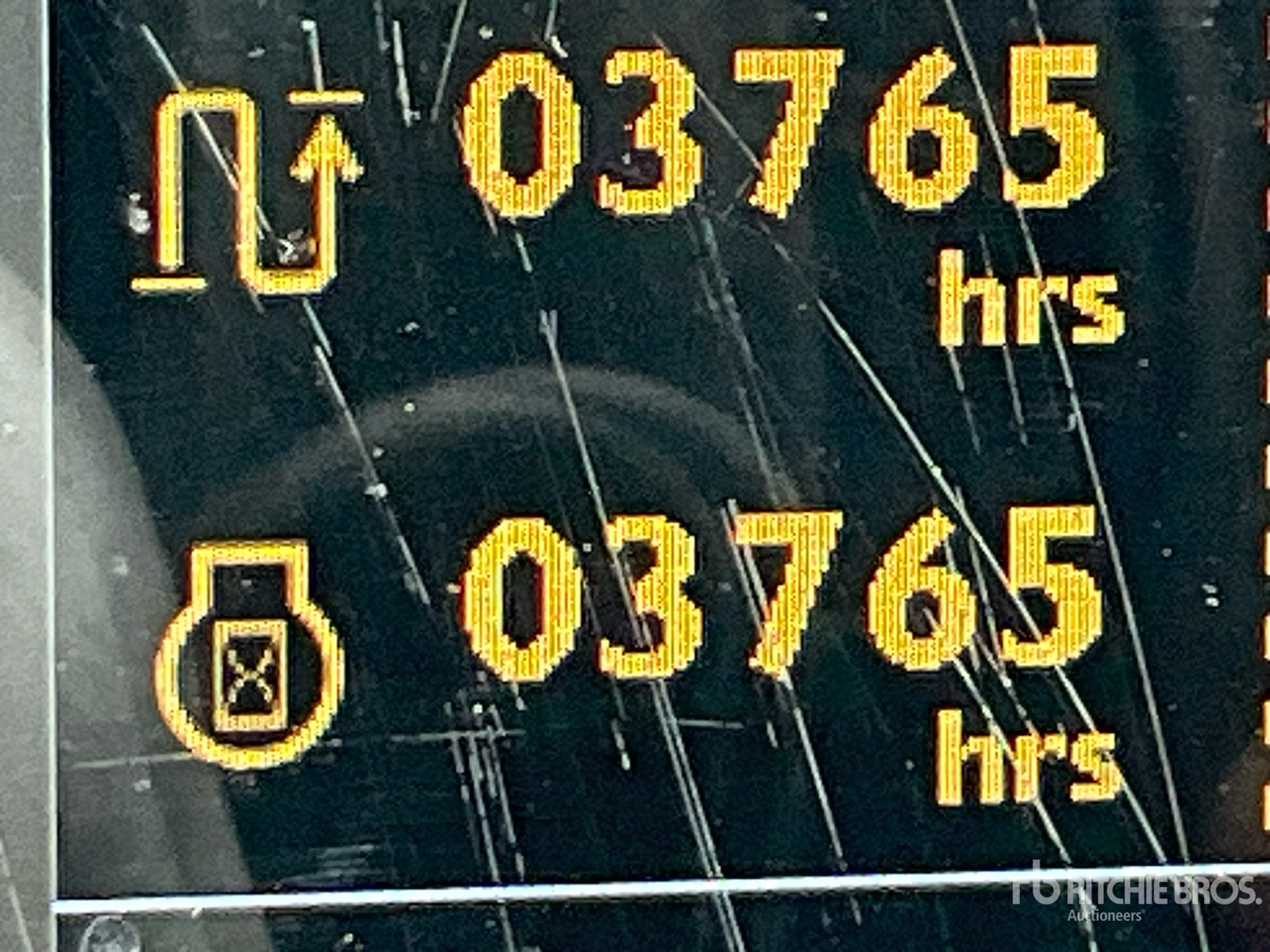

Hours:	3765

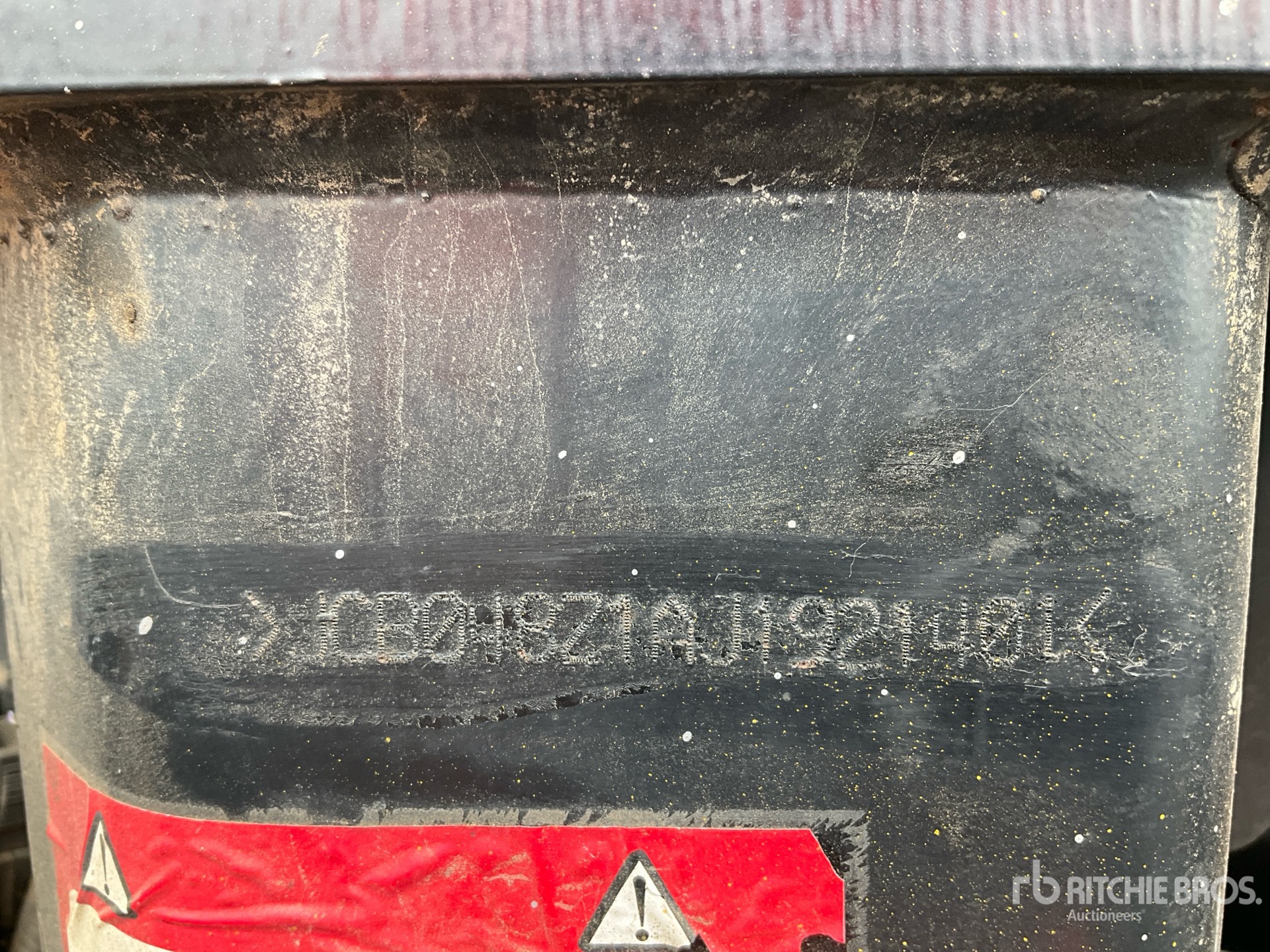

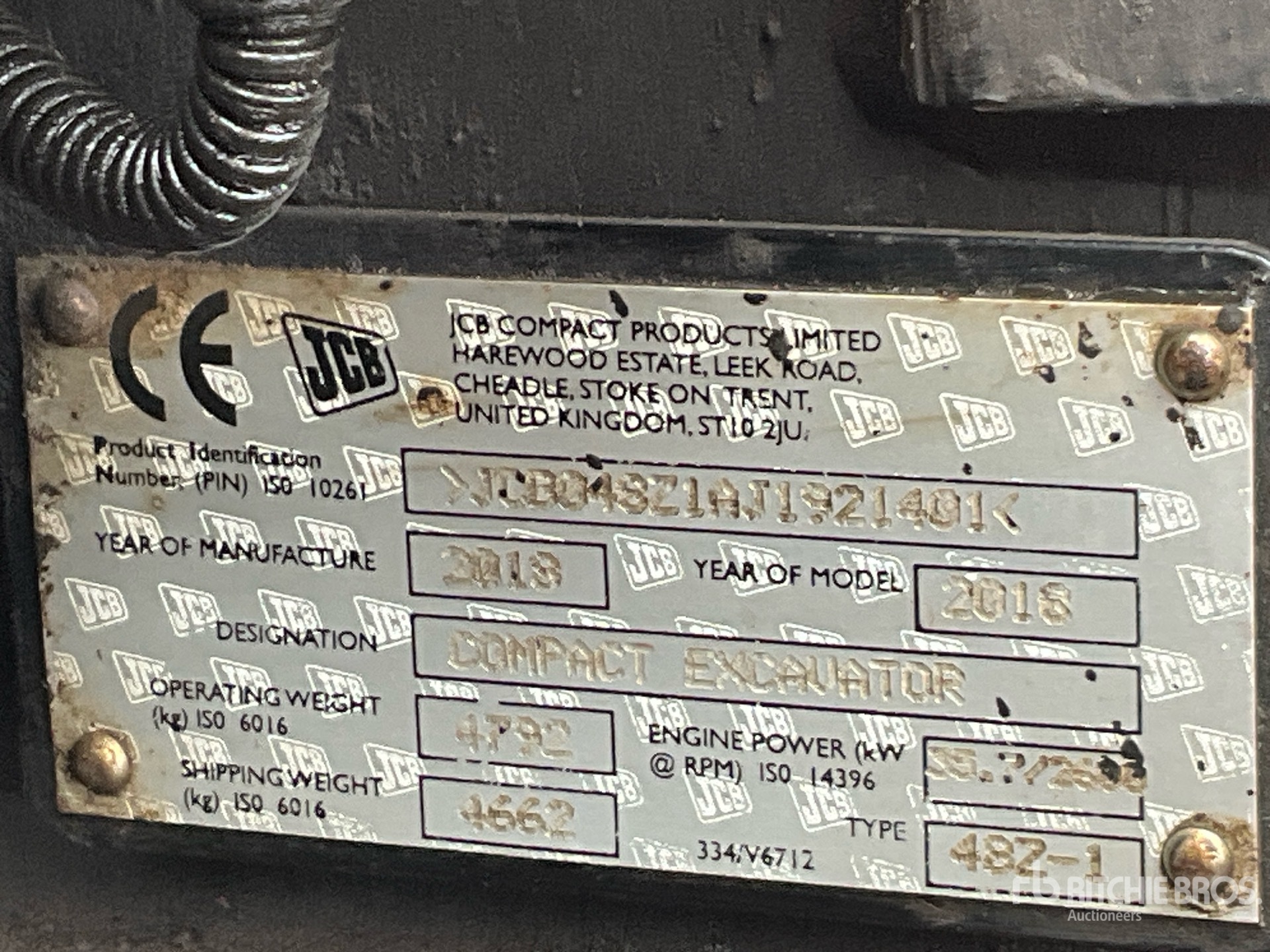

Serial Number:	JCB048Z1AJ1921401
Machine Location:	MALTBY, GBR

Description:

Enclosed Cab, Tier 4, Swing Boom, 1450 mm Stick, Auxiliary Hydraulic Plumbing, Stick Check Valve, Boom Check Valves, Backfill Blade, 400 mm Rubber Tracks, Hydraulic Quick Coupler, 1530 mm Cleanup Bucket

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The JCB 48Z-1 is a compact mini excavator designed for construction, utility, landscaping, and site preparation work. It features a zero tailswing design for improved maneuverability in confined spaces and is commonly used where access is limited. The 48Z-1 is part of JCB's mini excavator range and is typically selected for trenching, digging, grading, and material handling tasks. Its compact size supports transportability and operation on smaller job sites. The model is known for combining reduced rear overhang with stable performance, making it suitable for urban projects, residential work, and general earthmoving applications.

Blades
Approach angle	31 degrees
Blade Height	16 in (40 cm)
Blade Width	7 ft (2 m)
Dig depth (below ground)	2 ft (0 m)
Maximum height	2 ft (0 m)
Boom
Boom swing left	75 degrees
Boom swing right	55 degrees
Bucket rotation	201 degrees
Bucket tearout	3,507 lbs (1,591 kg)
Dipper rotation	126 degrees
Dipper tearout	1,978 lbs (897 kg)
Slew speed	8 rpm
Boom/Stick Excavator Option 1
Max Digging Depth	8 ft (2 m)
Max Digging Height	18 ft (5 m)
Max Digging Reach	19 ft (6 m)
Max Digging Reach on Ground	19 ft (6 m)
Max.Dumping Height	13 ft (4 m)
Maximum digging depth - dozer down	12 ft (4 m)
Maximum digging depth - dozer up	11 ft (3 m)
Maximum height to dipper nose pivot pin	15 ft (5 m)
Maximum vertical wallcut depth	7 ft (2 m)
Minimum front swing radius (no offset)	9 ft (3 m)
Capacities
Engine coolant	3 gal (12 l)
Engine Oil	3 gal (9 l)
Fuel Tank	20 gal (76 l)
Hydraulic system	27 gal (100 l)
Hydraulic Tank	15 gal (55 l)
Dimensions
Cab height	2,551 mm (100 in)
Cab length	341 gal (1,291 l)
Cab width	40 in (102 cm)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	8 ft (3 m)
Overall width of superstructure	6 ft (2 m)
Tail Swing Radius	3 ft (1 m)
Track Gauge	5 ft (2 m)
Transport length	140 in (355 cm)
Undercarriage Overall Length	8 ft (3 m)
Width Over Tracks	3 ft (1 m)
Engine
Alternator	85 amps
Cooling system	Water cooled
Displacement	132,971 cu in (2,179,006 cu cm)
Engine Model	Stage 3A 404D-22
Fuel	Diesel
Gross Power	36 hp (27 kw)
Net Power	15 hp (11 kw)
Hydraulic System
Auxiliary hydraulic flow	24 gpm (90 lpm)
Excavator/track main relief	240 bar
Nominal output	33 gpm (126 lpm)
Slew main relief	216 bar
Operating Specifications
Operating Voltage	12 V
Operating Weight	10,565 lbs (4,792 kg)
Performance
Travel speed low	2 mph (3 kph)
Travel Speed - High	3 mph (5 kph)
Undercarriage
Number of bottom rollers per side	4
Track tension	Grease
Tractive Effort	29 lbs (13 kg)
Weights
Shipping	10,278 lbs (4,662 kg)
