2019 JCB 85Z-1 For Sale in Fort Worth, Tx

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-17 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

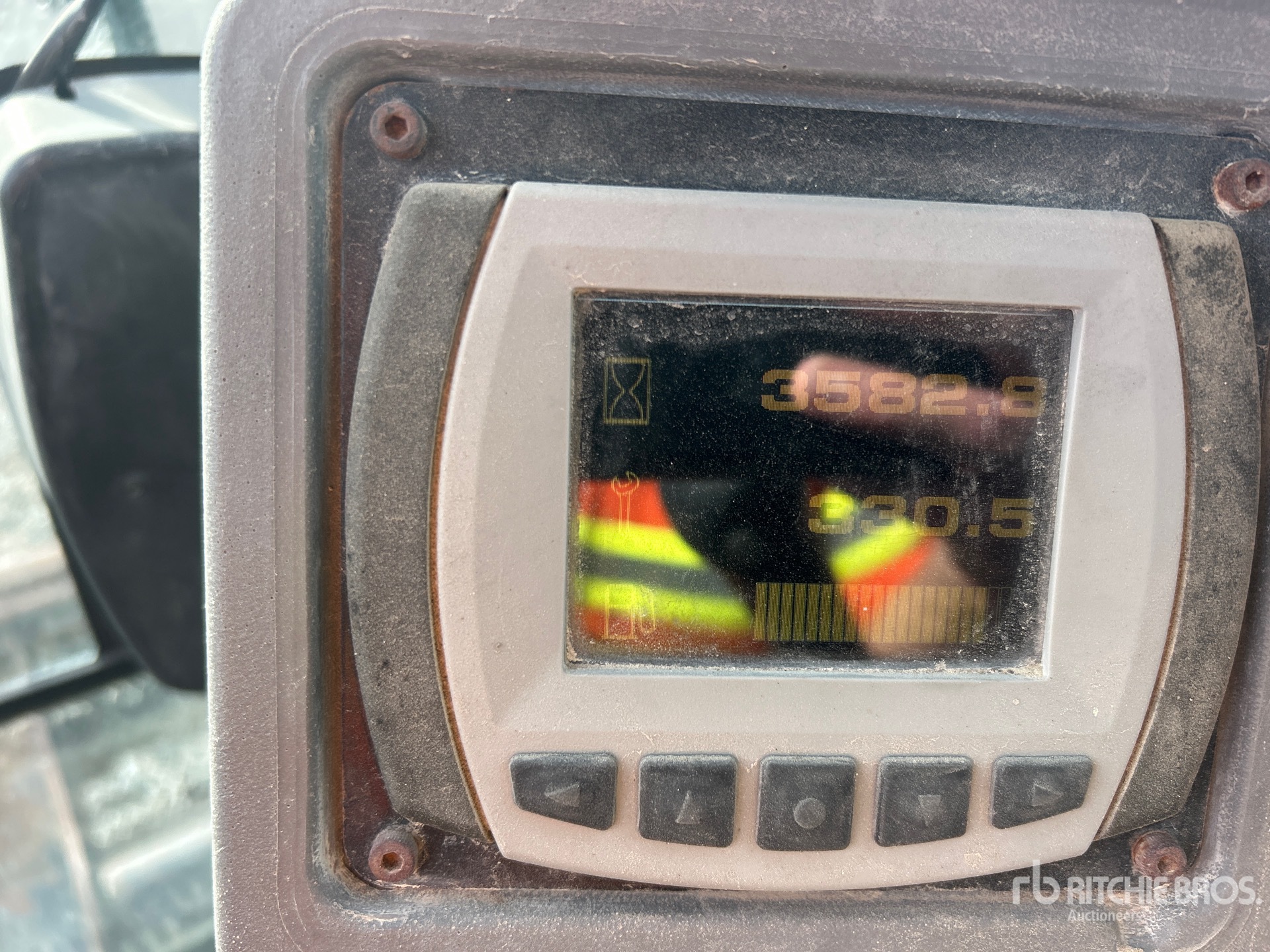

Hours:	3582

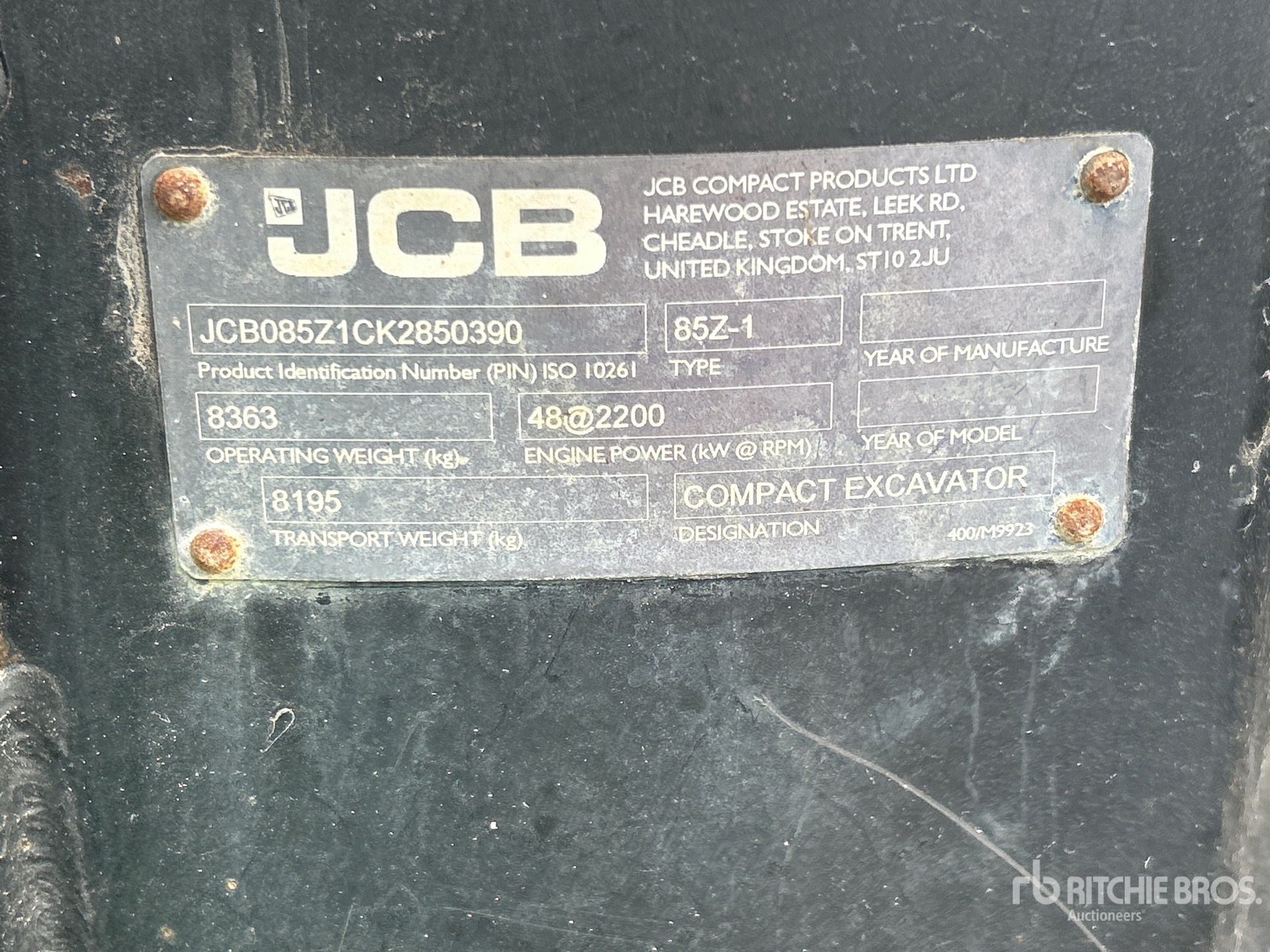

Serial Number:	JCB085Z1CK2850390
Machine Location:	FORT WORTH, TX

Description:

Located in Lane 3 Spot 23, Air Conditioner, Control Pattern Changer, 2019 US EPA Label, Swing Boom, 7 ft Stick, Auxiliary Hydraulic Plumbing, Backfill Blade, 17.5 in Rubber Tracks, Manual Quick Coupler, 24 in Bucket, Equipment-from-Sunbelt-Rentals The closing times of lots 659 thru 661 are tied together. If a bid is received, then a time extension will be applied to all lots. Once the time closes, the high bidder on each piece will be the winner.

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The JCB 85Z-1 is a compact zero-tail-swing mini excavator designed for construction, utility, landscaping, and site preparation work. It is part of JCB's 8-ton class and is commonly used where maneuverability and reduced rear overhang are important. The 85Z-1 typically features a conventional excavator boom and arm arrangement, hydraulic auxiliary circuits for attachments, and a tracked undercarriage for stability on uneven ground. Its size allows operation in confined job sites while still providing digging depth, lifting capability, and transportability. The model is used in trenching, grading, demolition, and general earthmoving applications.

Blades
Approach angle	28 degrees
Blade Height	19 in (48 cm)
Blade width	2,320 mm (91 in)
Dig depth (below ground)	2 ft (0 m)
Maximum height	2 ft (0 m)
Reach in front of tracks	2 ft (1 m)
Boom
Boom swing left	55 degrees
Boom swing right	60 degrees
Bucket rotation	188 degrees
Bucket tearout	12,837 lbs (5,823 kg)
Dipper rotation	114 degrees
Dipper tearout	11,218 lbs (5,088 kg)
Slew speed	10 rpm
Boom/Stick Excavator Option 1
Max Digging Reach	23 ft (7 m)
Max Reach Along Ground	23 ft (7 m)
Max.Dumping Height	17 ft (5 m)
Maximum digging depth - dozer down	12 ft (4 m)
Maximum digging depth - dozer up	7 ft (2 m)
Maximum height to dipper nose pivot pin	19 ft (6 m)
Maximum vertical wallcut depth	10 ft (3 m)
Minimum front swing radius (fully offset)	9 ft (3 m)
Minimum front swing radius (no offset)	10 ft (3 m)
Dimensions
Cab height	61 in (155 cm)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Length of Track on Ground	8 ft (2 m)
Overall width of superstructure	7 ft (2 m)
Removal Counterweight Clearance	3 ft (1 m)
Tail Swing Radius	4 ft (1 m)
Track Gauge	6 ft (2 m)
Transport Height- Minimum	8,878 ft (2,706 m)
Transport Length, Minimum	19,137 ft (5,833 m)
Width Over Tracks	8 ft (2 m)
Engine
Alternator	100 amps
Cooling system	Water cooled
Displacement	152,559 cu in (2,500,006 cu cm)
Engine Model	KDI 2504 TCR
Fuel	Diesel
Gross Power	48 hp (36 kw)
Net Power	45 hp (34 kw)
Power Measured @	2,200 rpm
Starter Motor	2 KW hp (1 kw)
Torque Measured @	1,500 rpm
Hydraulic System
Auxiliary hydraulic flow	50 gpm (190 lpm)
Excavator/track main relief	300 bar
Nominal output	42 gpm (159 lpm)
Slew main relief	226 lpm
Operating Specifications
Cooling System Fluid Capacity	3 gal (12 l)
Engine Oil Capacity	3 gal (11 l)
Fuel Capacity	30 gal (115 l)
Hydraulic Pump Flow Capacity	18 gpm (66 lpm)
Hydraulic System Fluid Capacity	31 gal (118 l)
Operating Voltage	12 V
Operating Weight	14,553 lbs (6,601 kg)
Performance
Gradeability	30%
Travel speed low	2 mph (3 kph)
Travel Speed - High	3 mph (5 kph)
Swing Mechanism
Swing Speed	10 rpm
Undercarriage
Number of Track Rollers per Side	5
Track tension	Grease
Tractive Effort	135 lbs (61 kg)
