Equipment ↠ JCB ↠ Off-Highway Trucks ↠ 2005 JCB 718

2005 JCB 718 For Sale in North East, Md

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-23 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

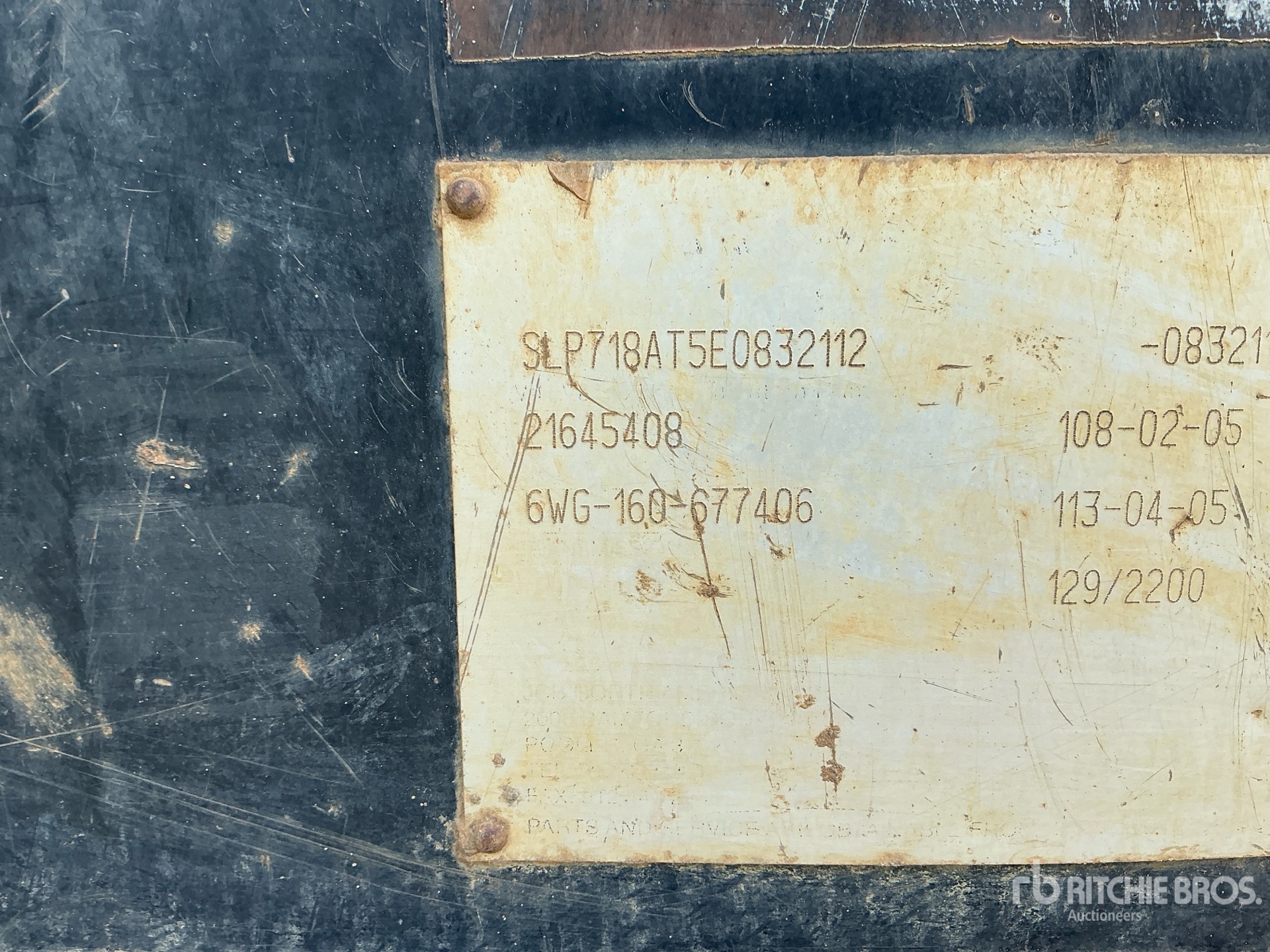

Serial Number:	SLP718AT5E0832112
Machine Location:	NORTH EAST, MD

Description:

Closing Time: 2026-06-23 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

JCB 718 is an off-highway truck designed for material transport in construction, quarrying, and earthmoving applications. It is part of JCB's articulated dump truck range and is used to move loose aggregate, soil, rock, and other bulk materials across rough terrain. The model is built for site mobility, load carrying, and operation in demanding off-road conditions. Typical features associated with this class include articulated steering, high ground clearance, and a dump body for rapid unloading. JCB 718 is commonly referenced in equipment listings, fleet records, and heavy machinery databases as a compact off-highway haul truck.

Articulating/Rigid
Articulating/Rigid	Articulated
Dimensions
Dump Ground Clearance	2 ft (0 m)
Dump Height	15 ft (5 m)
Ground Clearance	1 ft (0 m)
Overall Height	12 ft (4 m)
Overall Length	25 ft (8 m)
Overall Width	9 ft (3 m)
Wheelbase	14 ft (4 m)
DRIVE SYSTEM
Drive Config	4x4
Dump
Capacity - Heaped	13 cu yd (10 cu m)
Dump Angle	84 degrees
Lower Time	8 seconds
Raise Time	12 seconds
Rated Payload	36,000 lbs (16,329 kg)
Engine
Aspiration	Turbocharged/charge cooled
Displacement	360 cu in (5,901 cu cm)
Engine Model	6BTAA
Gross Power	173 hp (129 kw)
Make	Cummins
Max Torque	580 lbs ft (786 nm)
Net Power	168 hp (125 kw)
Number of Cylinders	6
Power Measured @	2,200 rpm
Torque Measured @	1,300 rpm
Operating Specifications
Alternator Supplied Amperage	70 amps
Cooling System Fluid Capacity	9 gal (33 l)
Engine Oil Capacity	4 gal (16 l)
Fuel Capacity	56 gal (210 l)
Hydraulic System Fluid Capacity	42 gal (160 l)
Operating Voltage	24 volts
Tire Size	650/65R25
Transmission Fluid Capacity	9 gal (35 l)
Transmission
Max Speed	31 mph (50 kph)
Number of Forward Gears	6
Number of Reverse Gears	3
Transmission Type	Smoothshift
Weights
Front Axle - empty	16,799 lbs (7,620 kg)
Front Axle - loaded	24,361 lbs (11,050 kg)
Operating Weight	28,572 lbs (12,960 kg)
Rear Axle - empty	10,648 lbs (4,830 kg)
Rear Axle - loaded	39,088 lbs (17,730 kg)
Total Empty	27,448 lbs (12,450 kg)
Total Loaded	63,449 lbs (28,780 kg)
