Equipment ↠ JCB ↠ Wheel Loaders ↠ 2005 JCB 436HT

2005 JCB 436HT For Sale in Maltby, Gbr

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-08-12 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

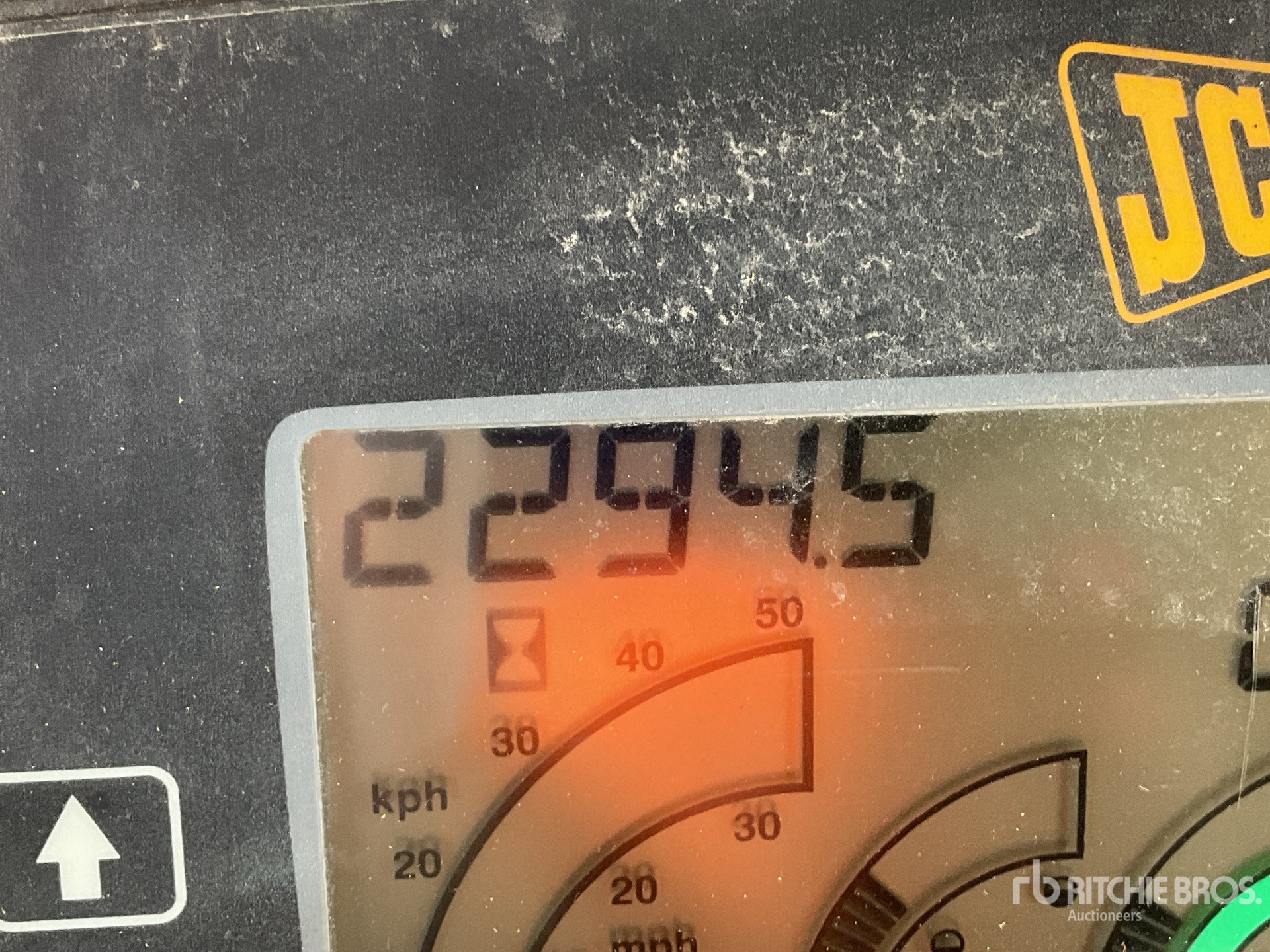

Hours:	2294

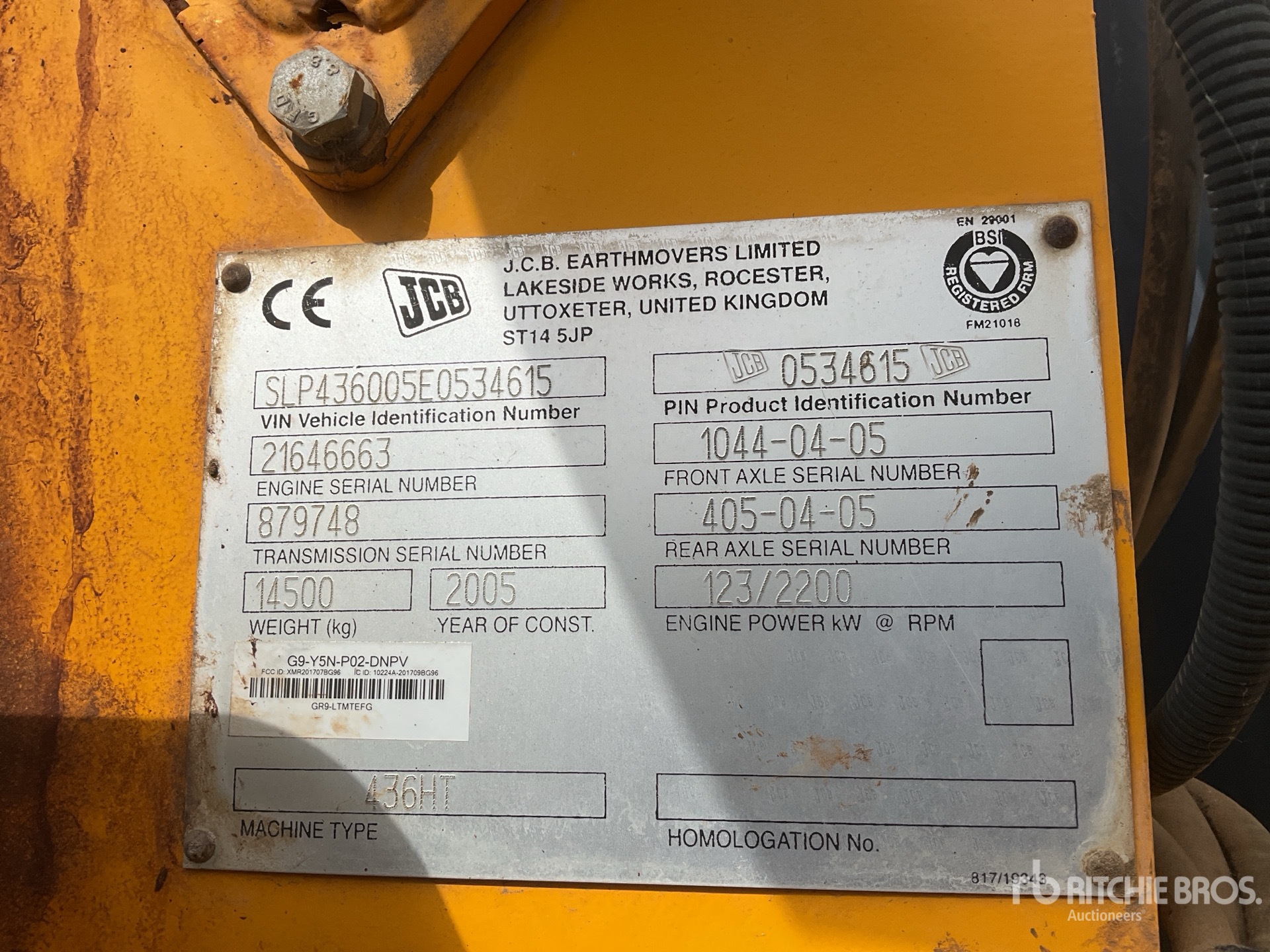

Serial Number:	SLP436005E0534615
Machine Location:	MALTBY, GBR

Description:

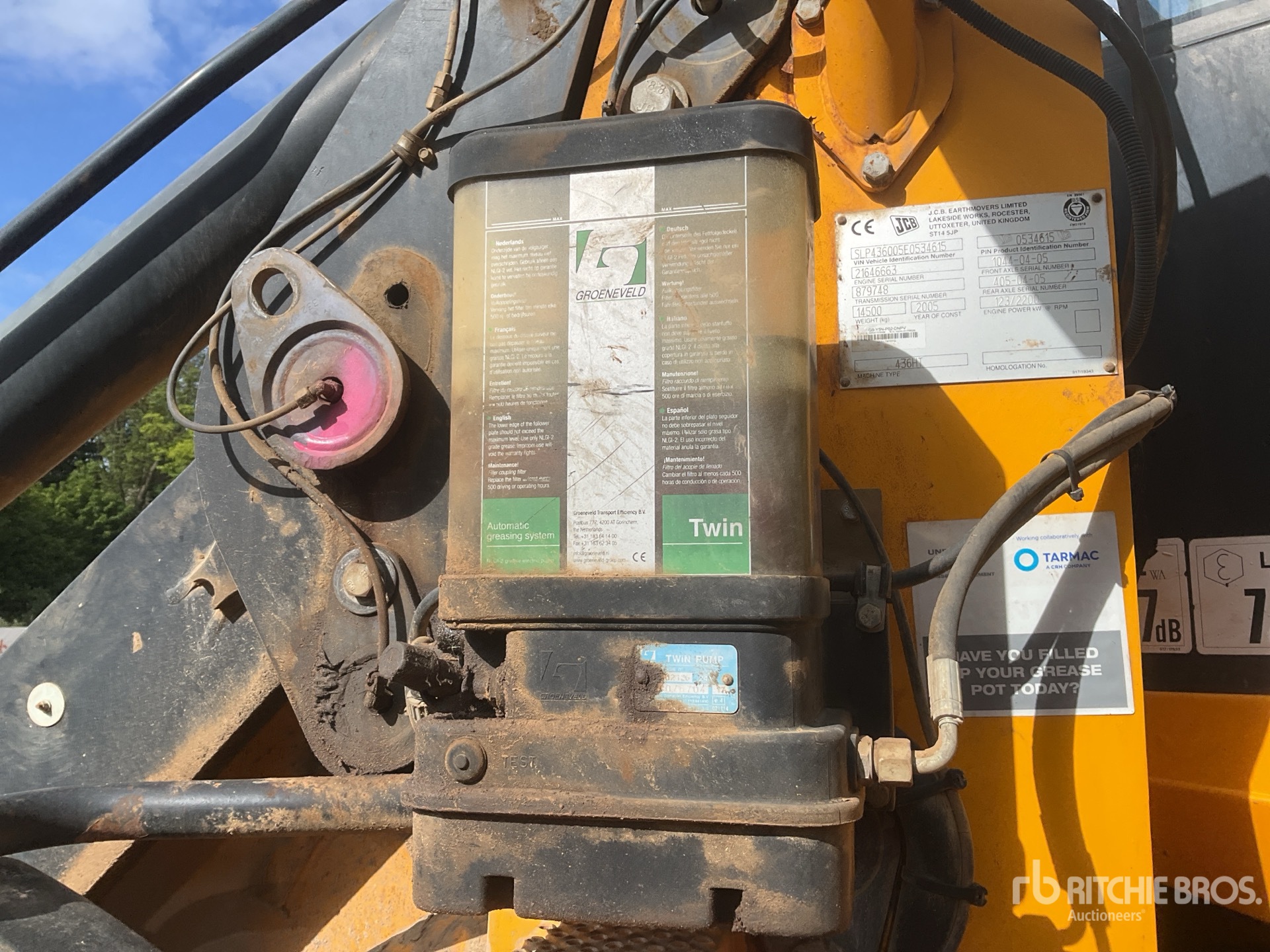

Enclosed Cab, Air Conditioner, Rear View Camera, 2700 mm Bucket, Auto Lube, 20.5R25 Tires Closing Time: 2026-08-12 07:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Bucket
Breakout Force	33,047 lbs (14,990 kg)
Bucket Capacity - heaped	3 cu yd (2 cu m)
Bucket Width	9 ft (3 m)
Dump Clearance at Max Raise	9 ft (3 m)
Dimensions
Dump Clearance at Max Lift	10 ft (3 m)
Fork Tine Length	4 ft (1 m)
Ground Clearance	2 ft (0 m)
Hinge Pin - Max Height	12 ft (4 m)
Hinge Pin Max Height	13 ft (4 m)
Length w/ Bucket on Ground	23 ft (7 m)
Length with Bucket on Ground	23 ft (7 m)
Max Lift Height	13 ft (4 m)
Reach at Max Height and Dump	4 ft (1 m)
Reach at Max Lift and Dump	4 ft (1 m)
Wheelbase	10 ft (3 m)
Width Over Tires	9 ft (3 m)
Engine
Aspiration	Turbocharged
Displacement	360 cu in (5,901 cu cm)
Engine Model	BTAA 5.9C
Gross Power	177 hp (132 kw)
Max Torque	580 lbs ft (786 nm)
Number of Cylinders	6
Power Measured @	2,200 rpm
Torque Measured @	1,300 rpm
Hydraulic System
Dump Time	1 seconds
Lower Time	3 seconds
Pump Type	Twin variable displacement piston pumps
Raise Time	6 seconds
Relief Valve Setting	3,625 psi
Operating Specifications
Alternator Supplied Amperage	70 amps
Cooling System Fluid Capacity	9 gal (35 l)
Engine Oil Capacity	4 gal (14 l)
Engine Oil Fluid Capacity	4 gal (14 l)
Front Axle/Diff Fluid Capacity	10 gal (39 l)
Front Diff Fluid Capacity	10 gal (39 l)
Fuel Capacity	61 gal (230 l)
Hydraulic System Fluid Capacity	56 gal (210 l)
Operating Voltage	24 volts
Rear Axle Oscillation	21 degrees
Rear Axle/Diff Fluid Capacity	10 gal (39 l)
Rear Diff Fluid Capacity	10 gal (39 l)
Static Tipping Load - Bucket	26,780 lbs (12,147 kg)
Static Tipping Load - Forks	16,907 lbs (7,669 kg)
Static Tipping Weight	22,573 lbs (10,239 kg)
Turning Radius	19 ft (6 m)
Transmission
Max Speed - Forward	24 mph (39 kph)
Max Speed - Reverse	17 mph (27 kph)
Max Speed Forward	24 mph (38 kph)
Max Speed Reverse	17 mph (27 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	Smooth shift powershift
