2021 JCB 437 ZX T4F For Sale in North East, Md

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-23 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

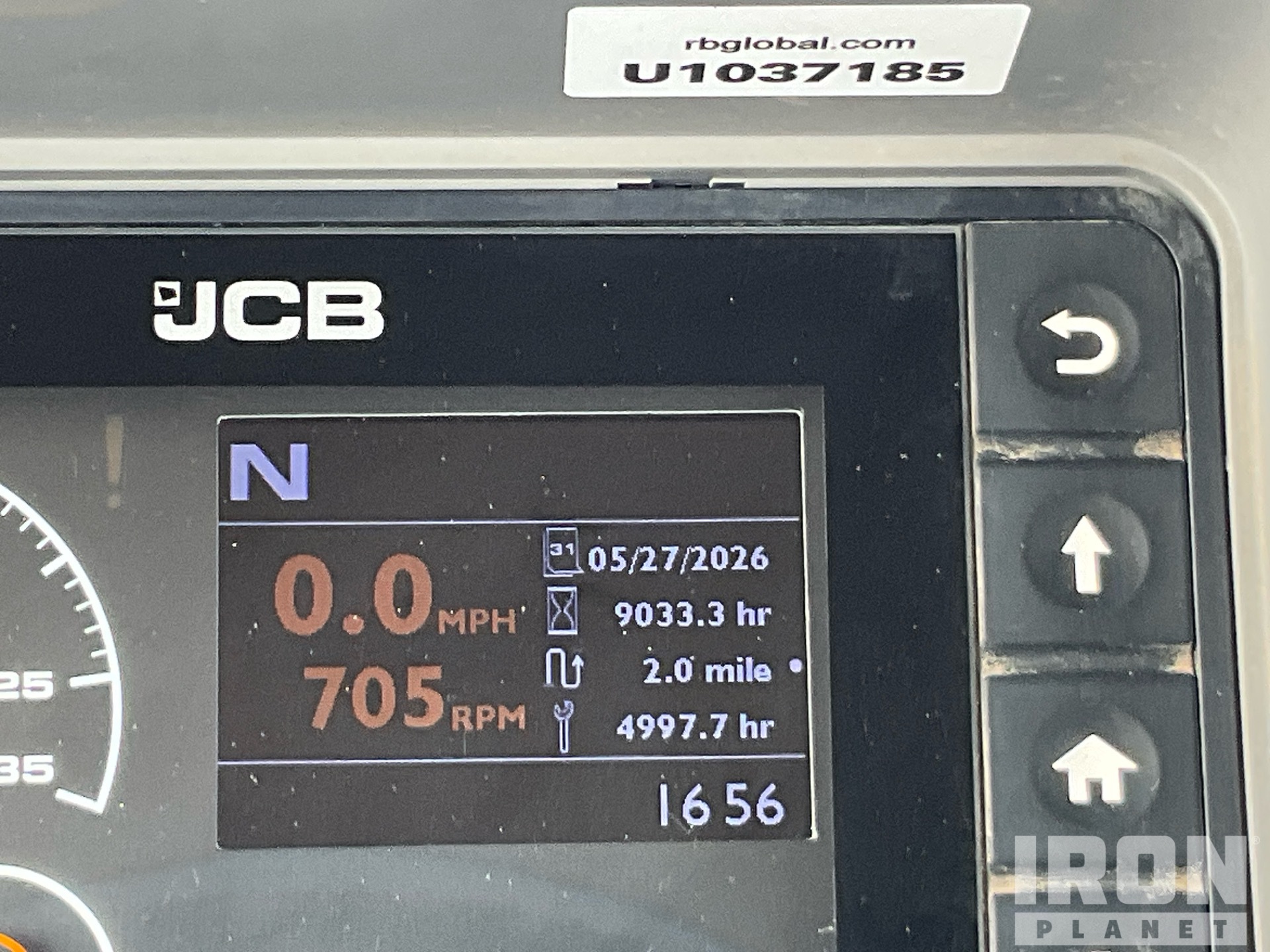

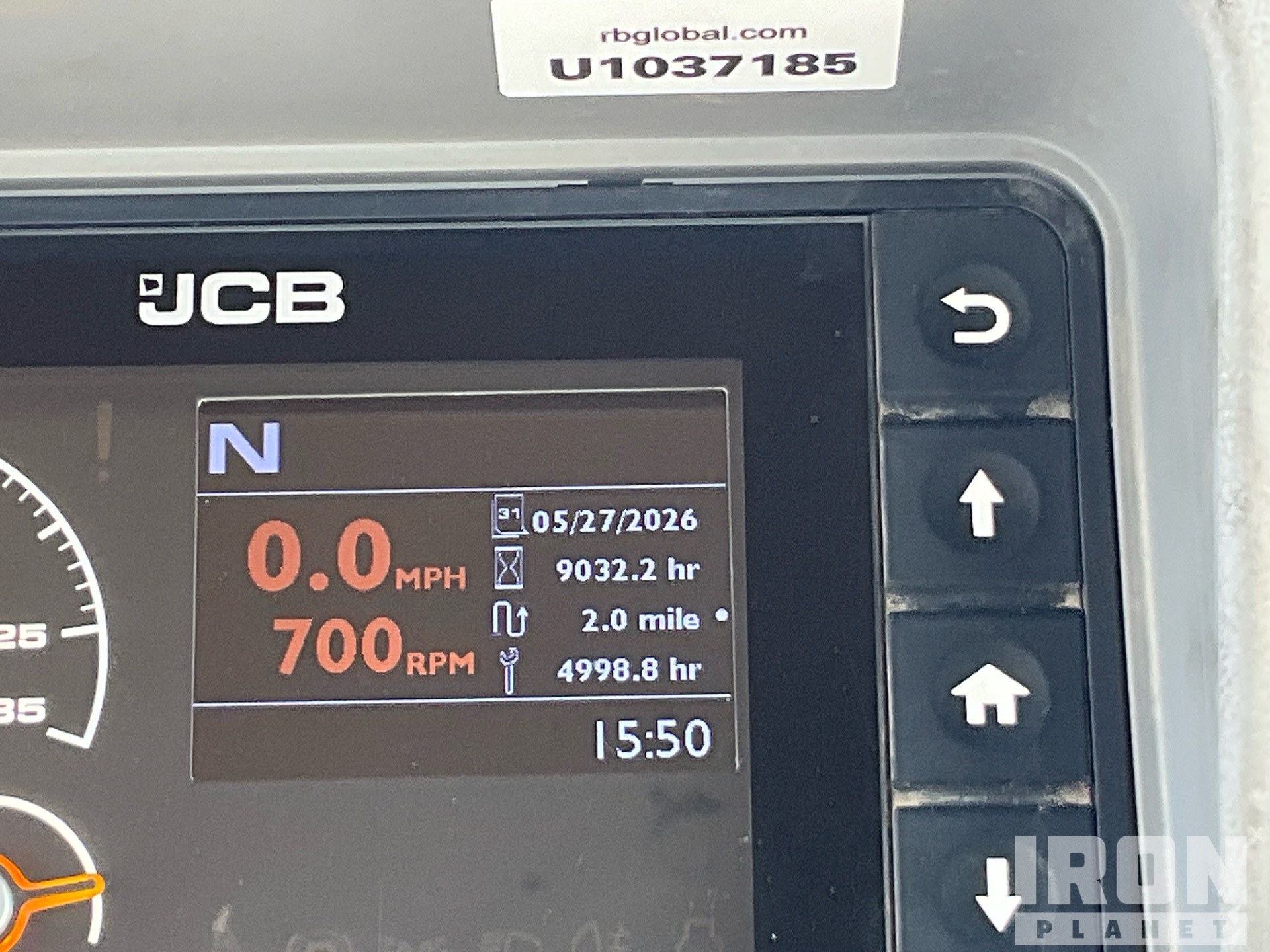

Hours:	9033

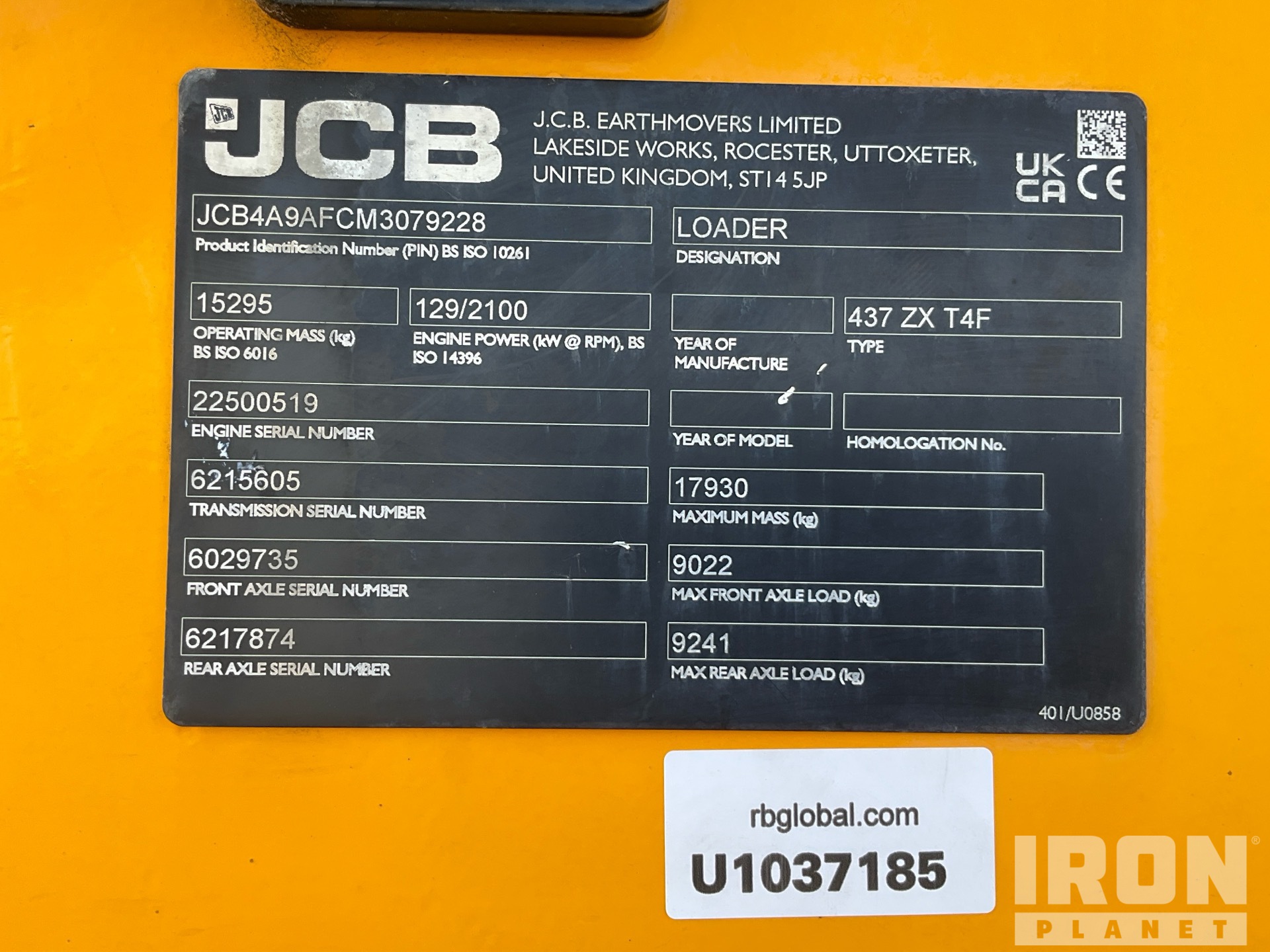

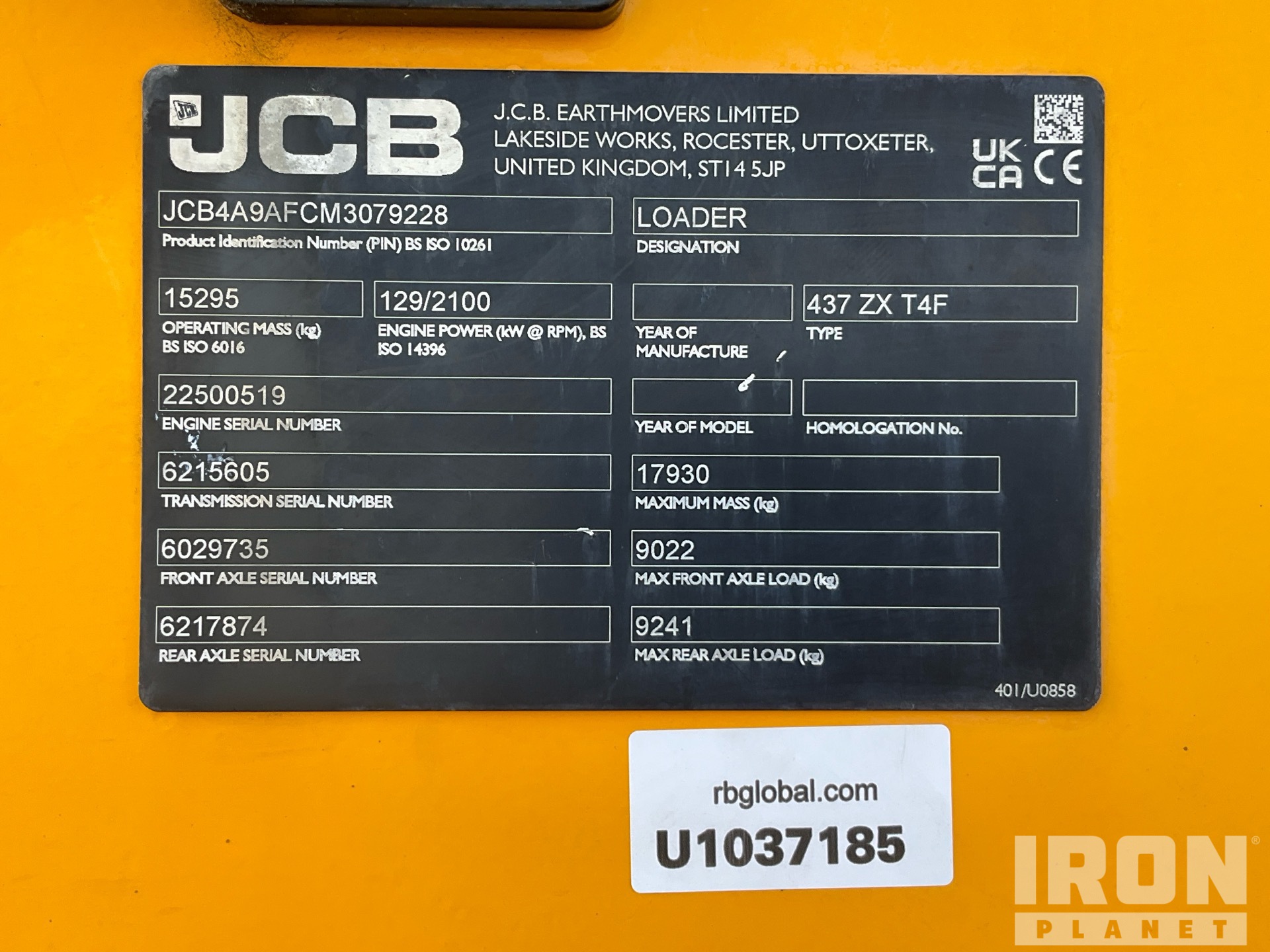

Serial Number:	JCB4A9AFCM3079228
Machine Location:	NORTH EAST, MD

Description:

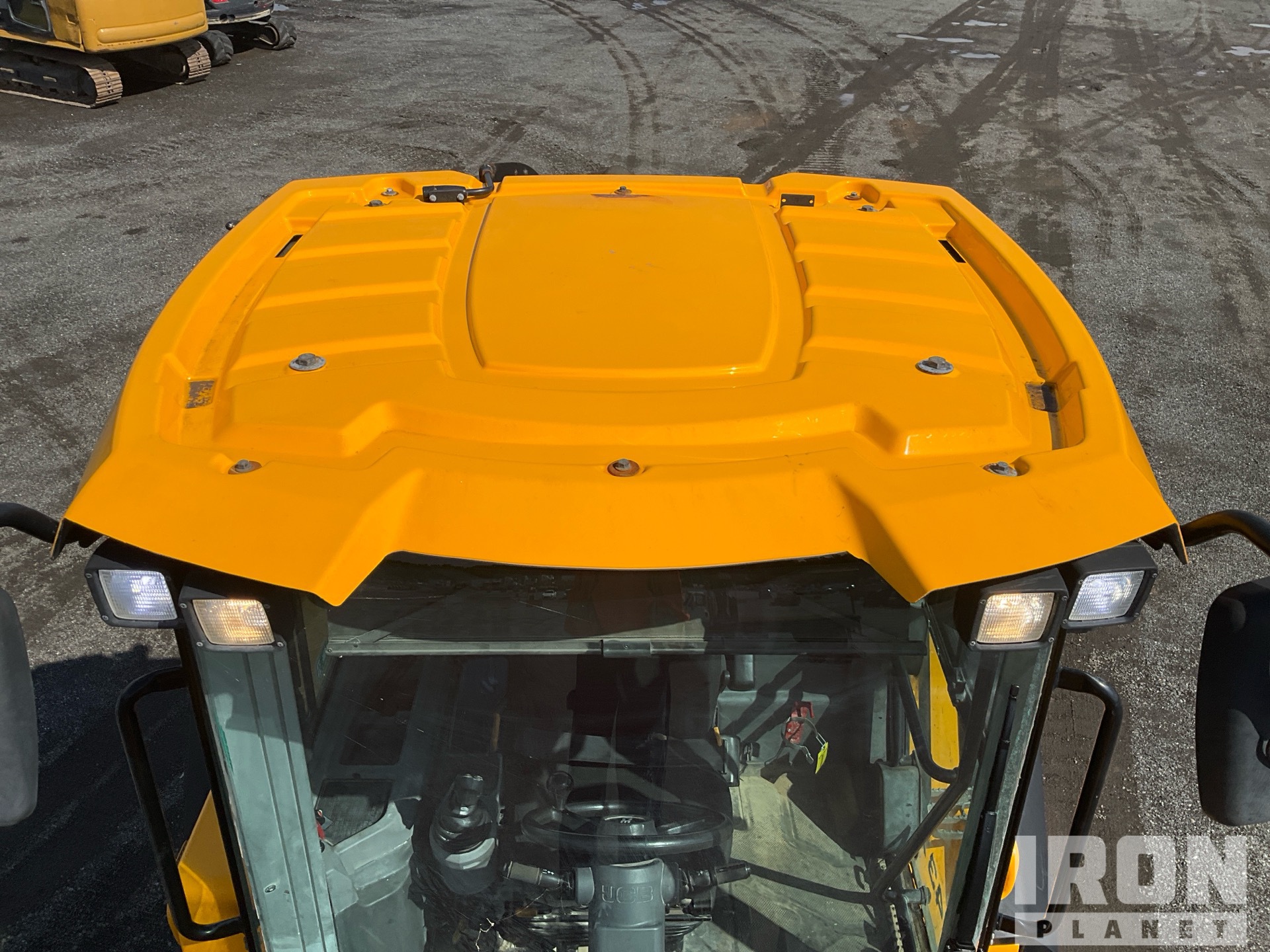

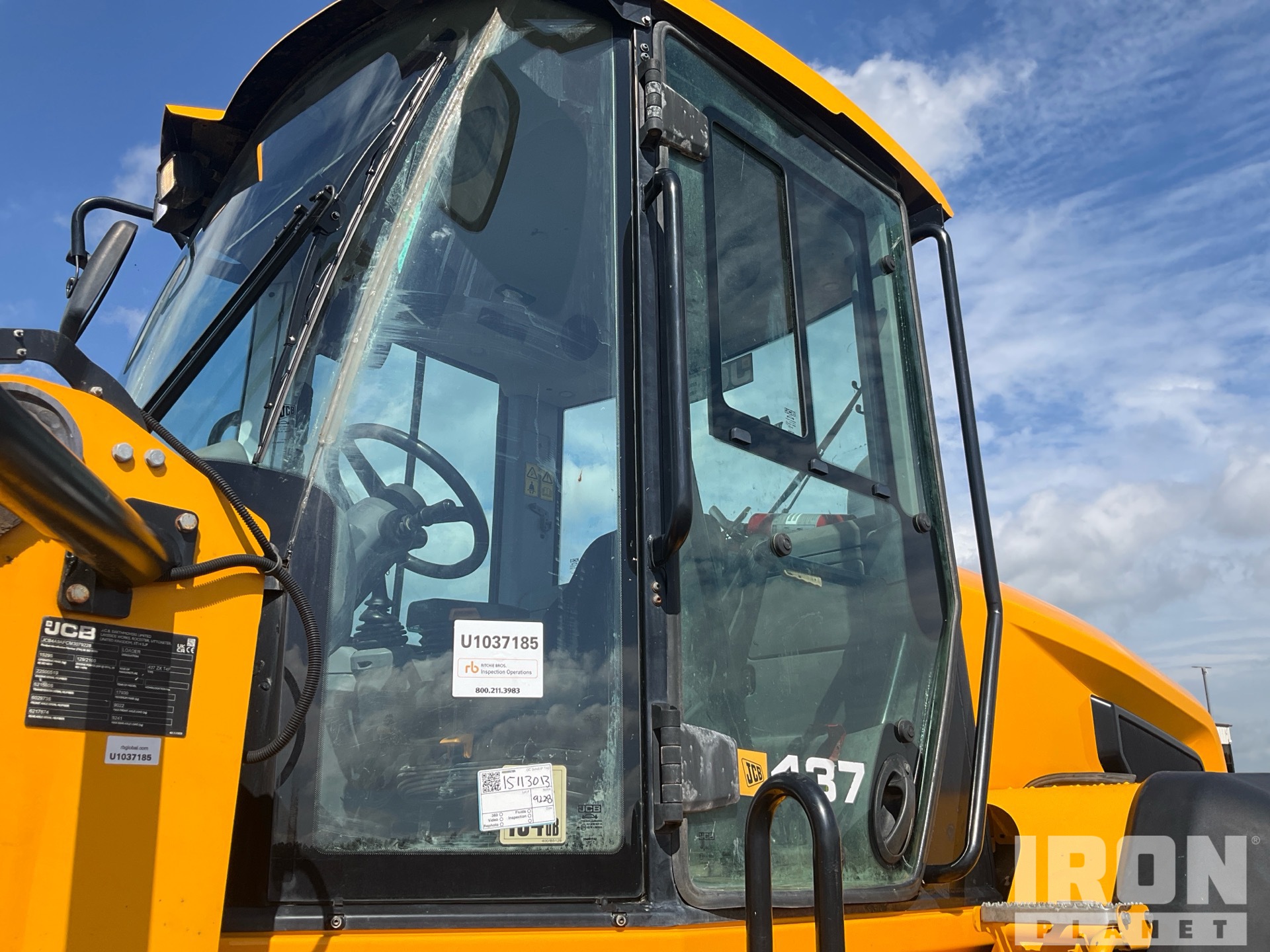

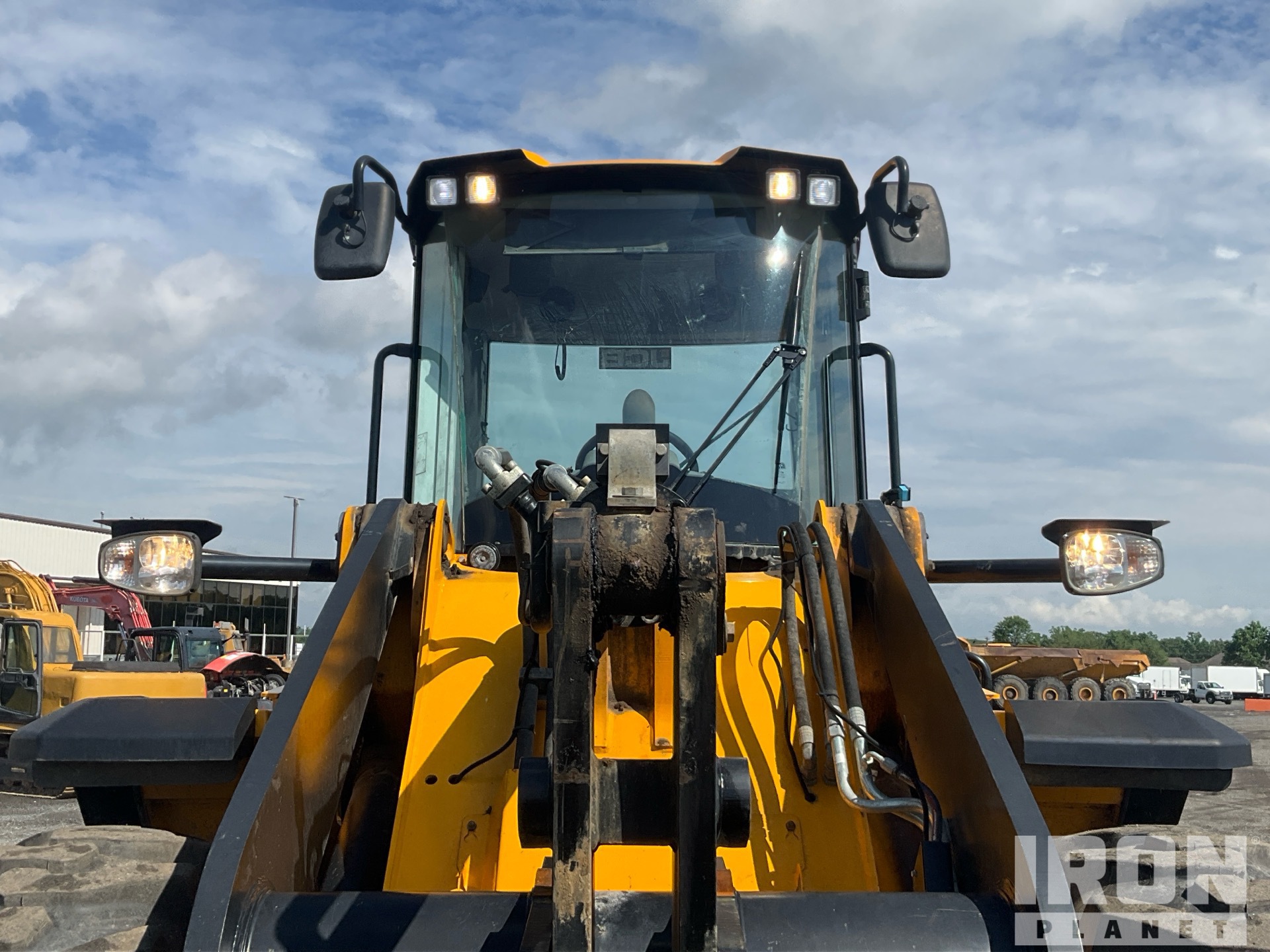

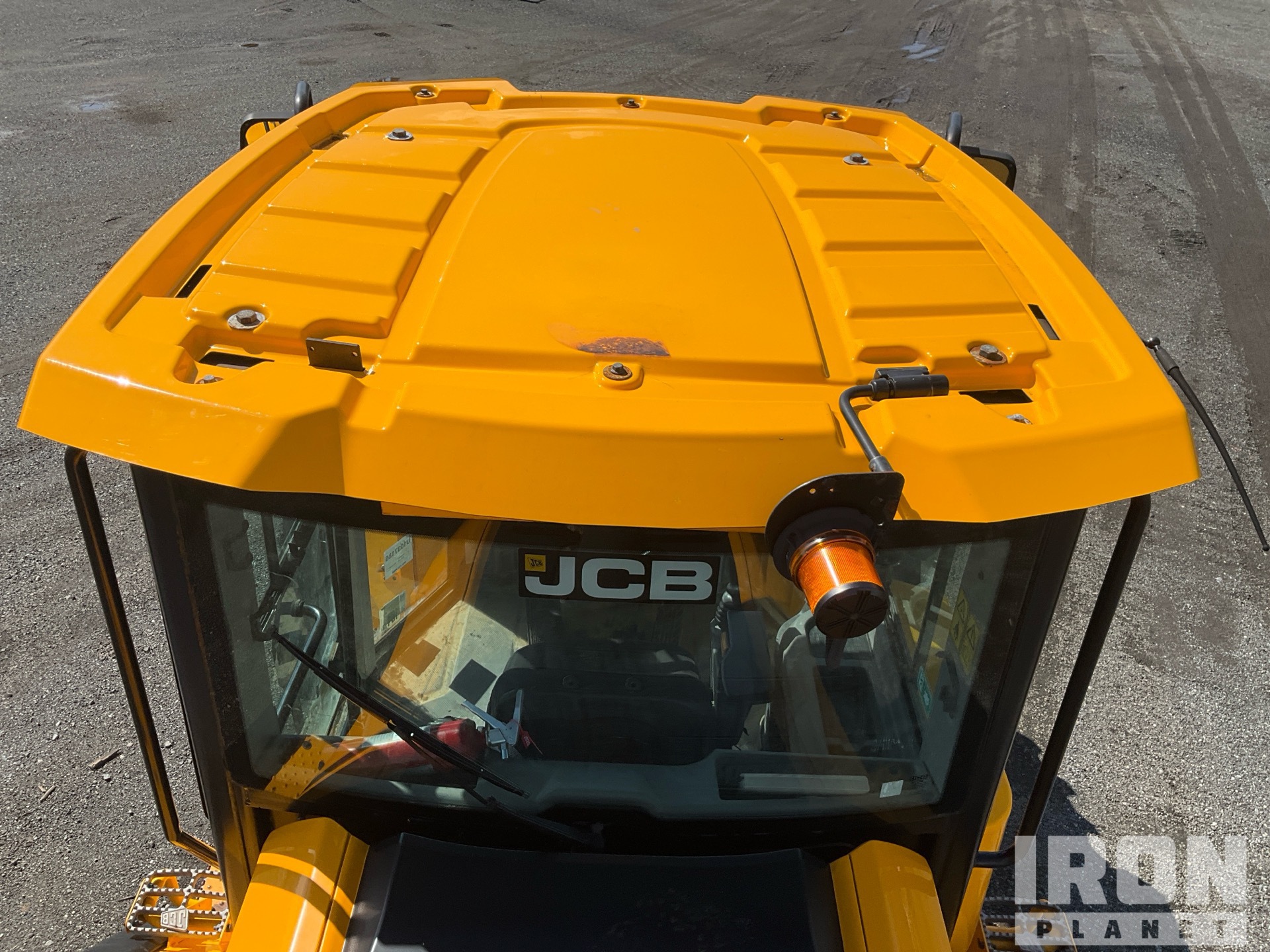

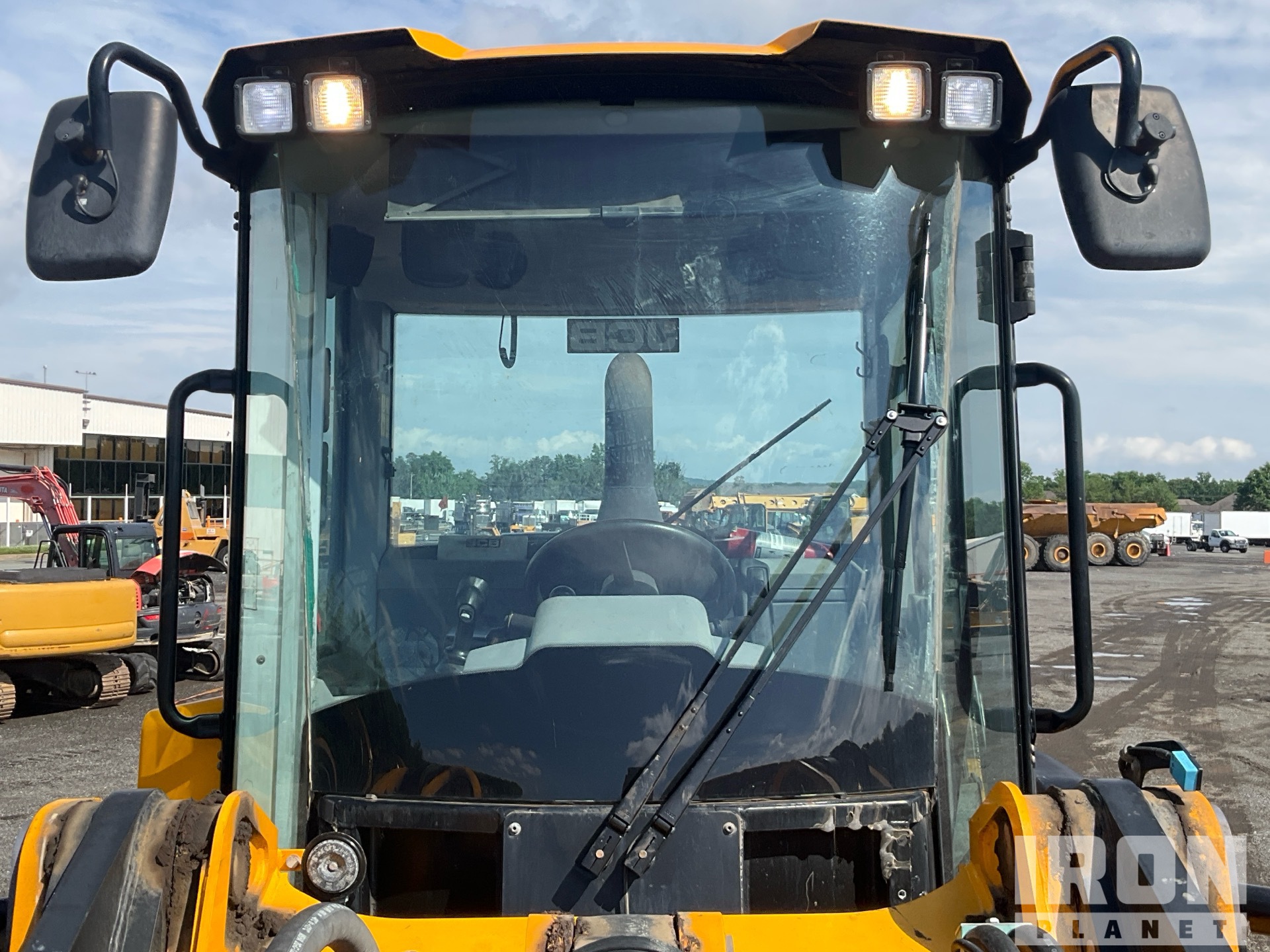

Enclosed Cab, Air Conditioner, Autoshift, 2021 US EPA Label, Requires Diesel Exhaust Fluid, 20.5-25 Tires, Auxiliary Hydraulics, Hydraulic Coupler, 101 in Bucket Closing Time: 2026-06-23 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The JCB 437 ZX is a wheel loader designed for material handling, aggregate work, and general construction applications. It is part of JCB's 437 series and is commonly used in quarrying, recycling, agriculture, and bulk loading operations. The machine features a Z-bar linkage for efficient bucket breakout force and loading performance. Typical configurations include a diesel engine, hydrostatic or powershift transmission depending on market specification, and articulated steering for maneuverability. The 437 ZX is built for productivity, operator visibility, and durability in demanding site conditions. Exact specifications vary by year, region, and equipment package.

Bucket
Breakout Force	39,566 lbs (17,947 kg)
Bucket Capacity - heaped	3 cu yd (2 cu m)
Bucket Capacity - struck	3 cu yd (2 cu m)
Bucket Width	9 ft (3 m)
Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Length with Bucket on Ground	24 ft (7 m)
Reach at Max Lift and Dump	4 ft (1 m)
Wheelbase	10 ft (3 m)
Width Over Tires	9 ft (3 m)
Engine
Air cleaner	Cyclonic pre filter with engine fan scavenge system
Aspiration	Turbo Charged
Displacement	409 cu in (6,701 cu cm)
Emission Tier Level	EU Stage IV US EPA Tier 4F
Engine Model	QSB
Engine Type	Cummins
Fan drive type	Hydraulically driven cooling fan
Gross Power	183 hp (136 kw)
No. of Valves	4
Number of Cylinders	6
Power Measured @	2,100 rpm
Torque Measured @	1,500 rpm
Hydraulic System
3626	250 bar psi
Dump Time	2 seconds
Lower Time	5 seconds
Pump Flow Capacity	33 gpm (126 lpm)
Pump Type	Variable displacement
Raise Time	6 seconds
Relief Valve Setting	3,190 psi
Total cycle	13 seconds
Operating Specifications
Alternator Supplied Amperage	120 amps
Articulation Angle	40 degrees
DEF tank capacity	11 gal (40 l)
Fuel Capacity	71 gal (270 l)
Full turn tipping load	20,078 lbs (9,107 kg)
Hydraulic System Fluid Capacity	56 gal (210 l)
Operating Voltage	24 volts
Operating Weight	33,570 lbs (15,227 kg)
Payload	10,040 lbs (4,554 kg)
Rated Bucket Capacity	4 cu yd (3 cu m)
Rear Axle Oscillation	11 degrees
Turning Radius	20 ft (6 m)
Transmission
Max Speed - Forward	24 mph (38 kph)
Max Speed - Reverse	16 mph (26 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	4 speed non-lock up converter 4WG
Weights
Operational Weight	39,663 lbs (17,991 kg)
