Equipment ↠ JCB ↠ Wheel Loaders ↠ 2017 JCB 457ZX

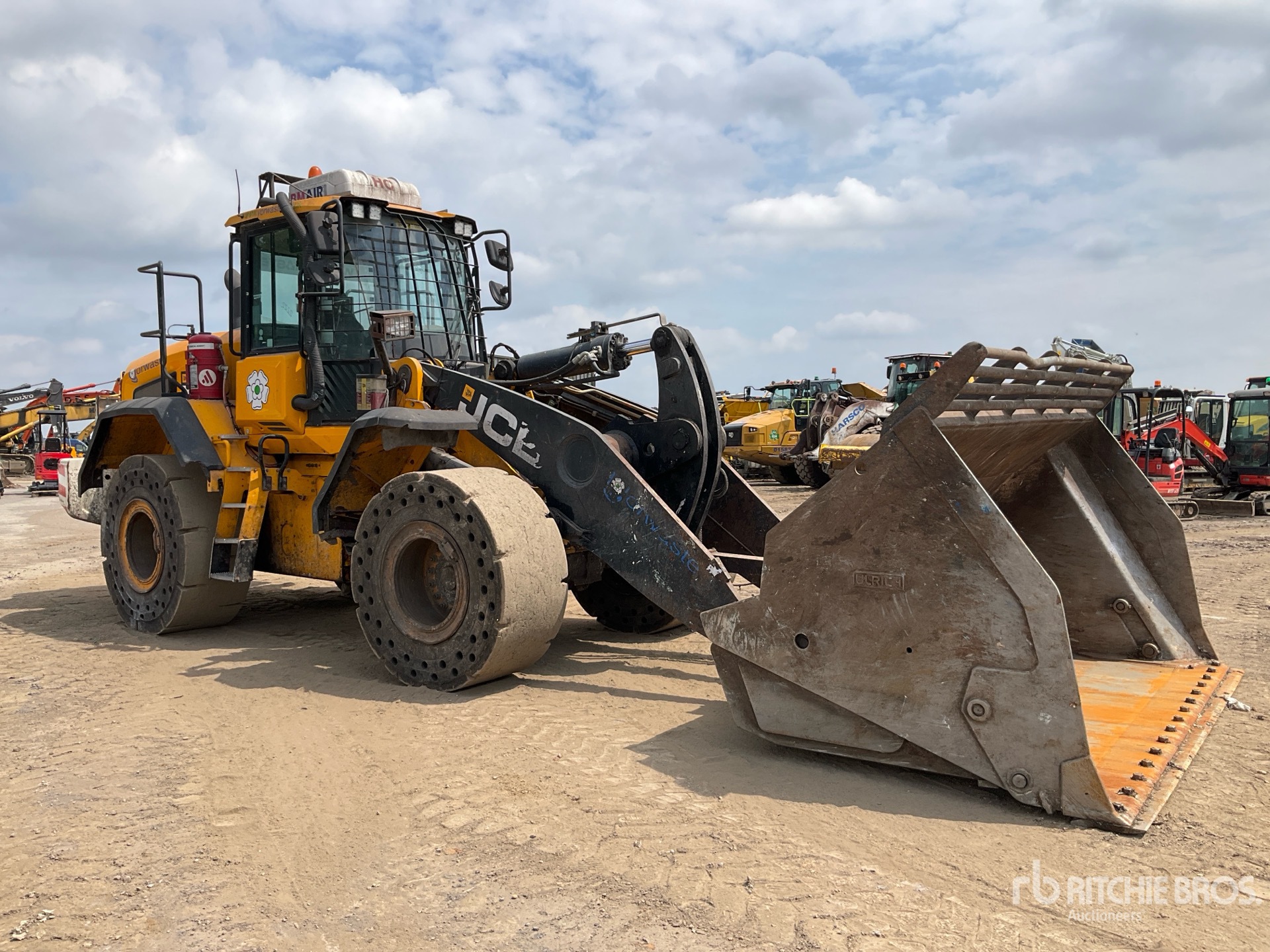

2017 JCB 457ZX For Sale in Maltby, Gbr

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-08-12 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

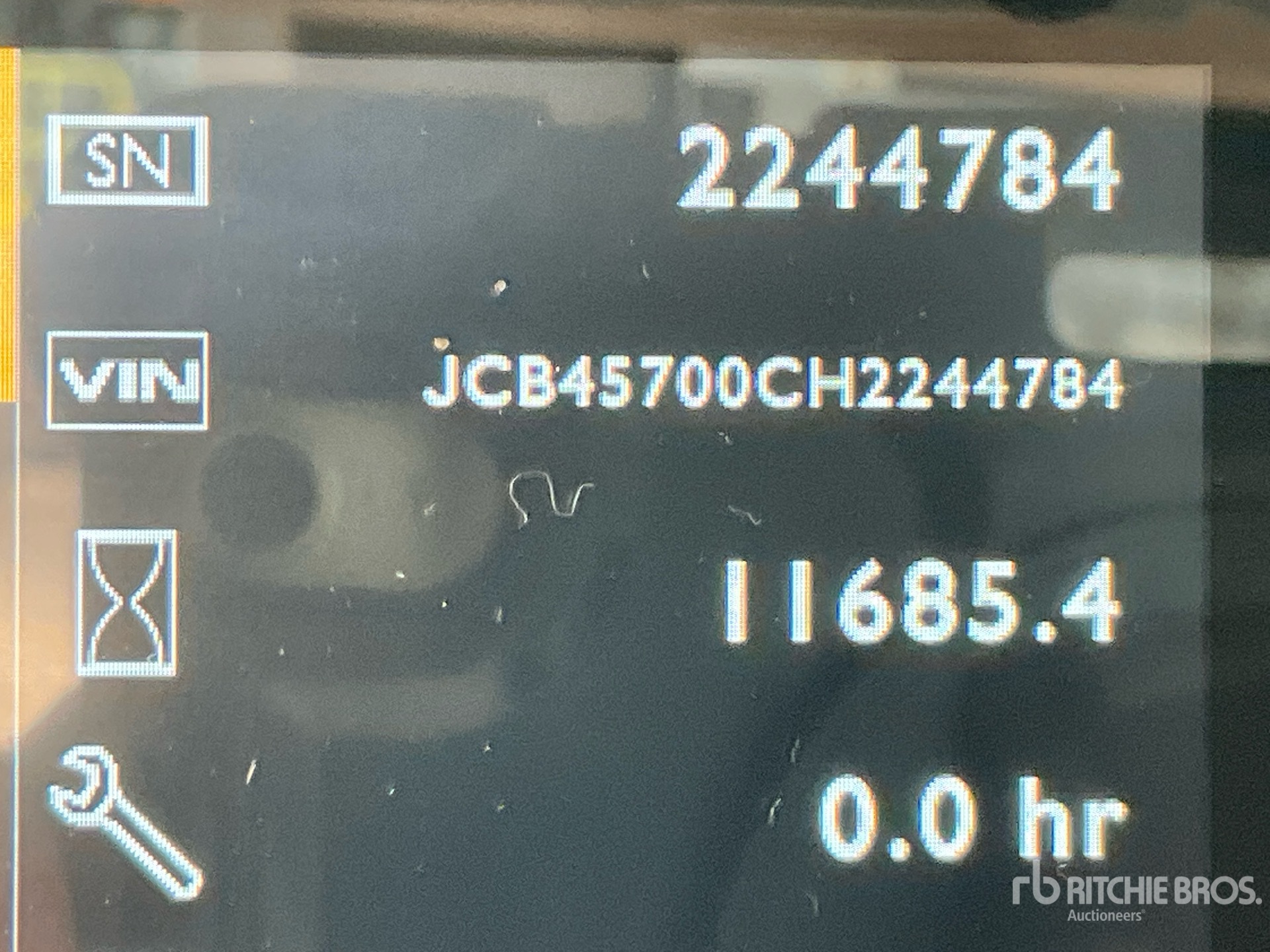

Hours:	11685

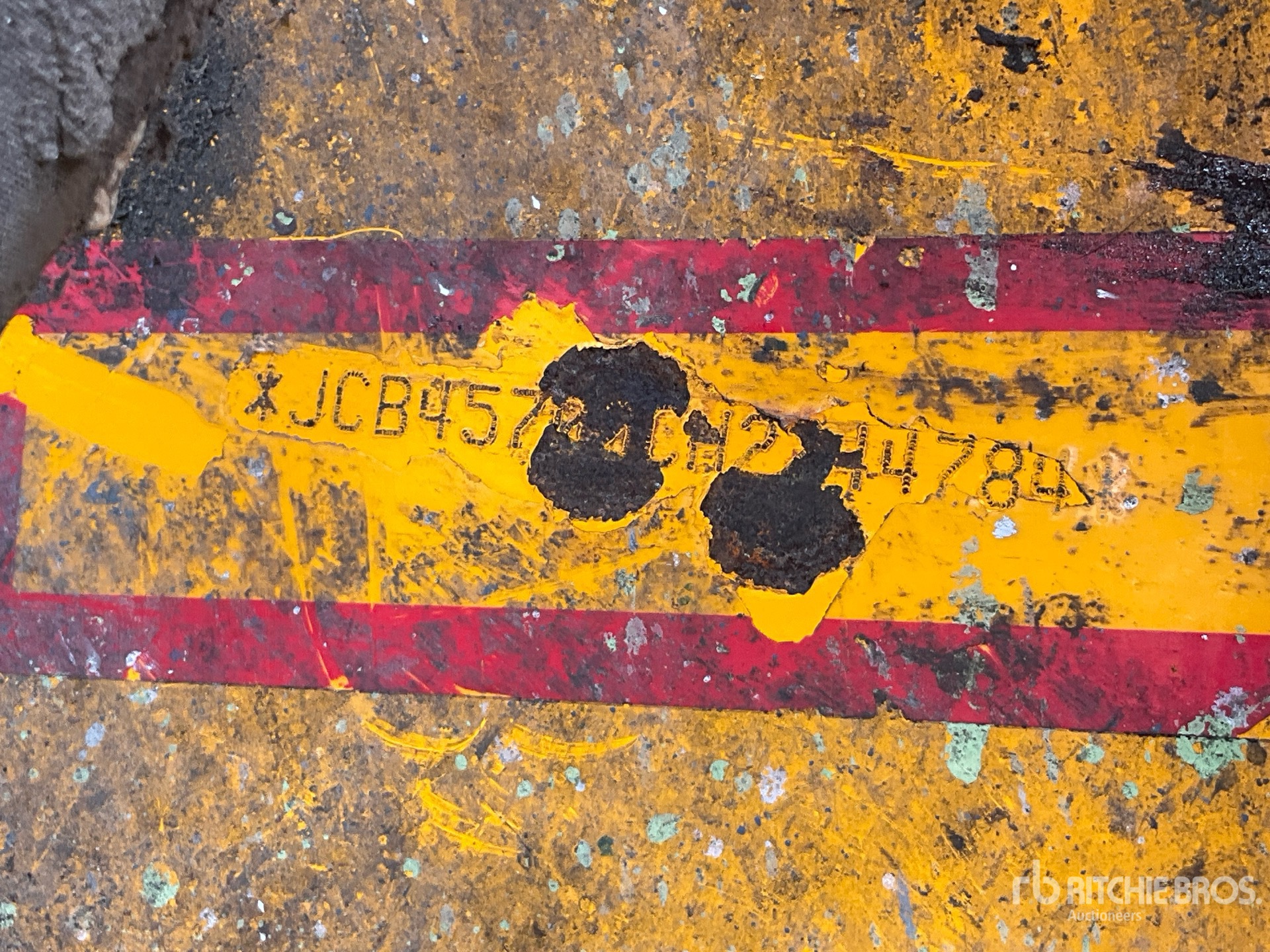

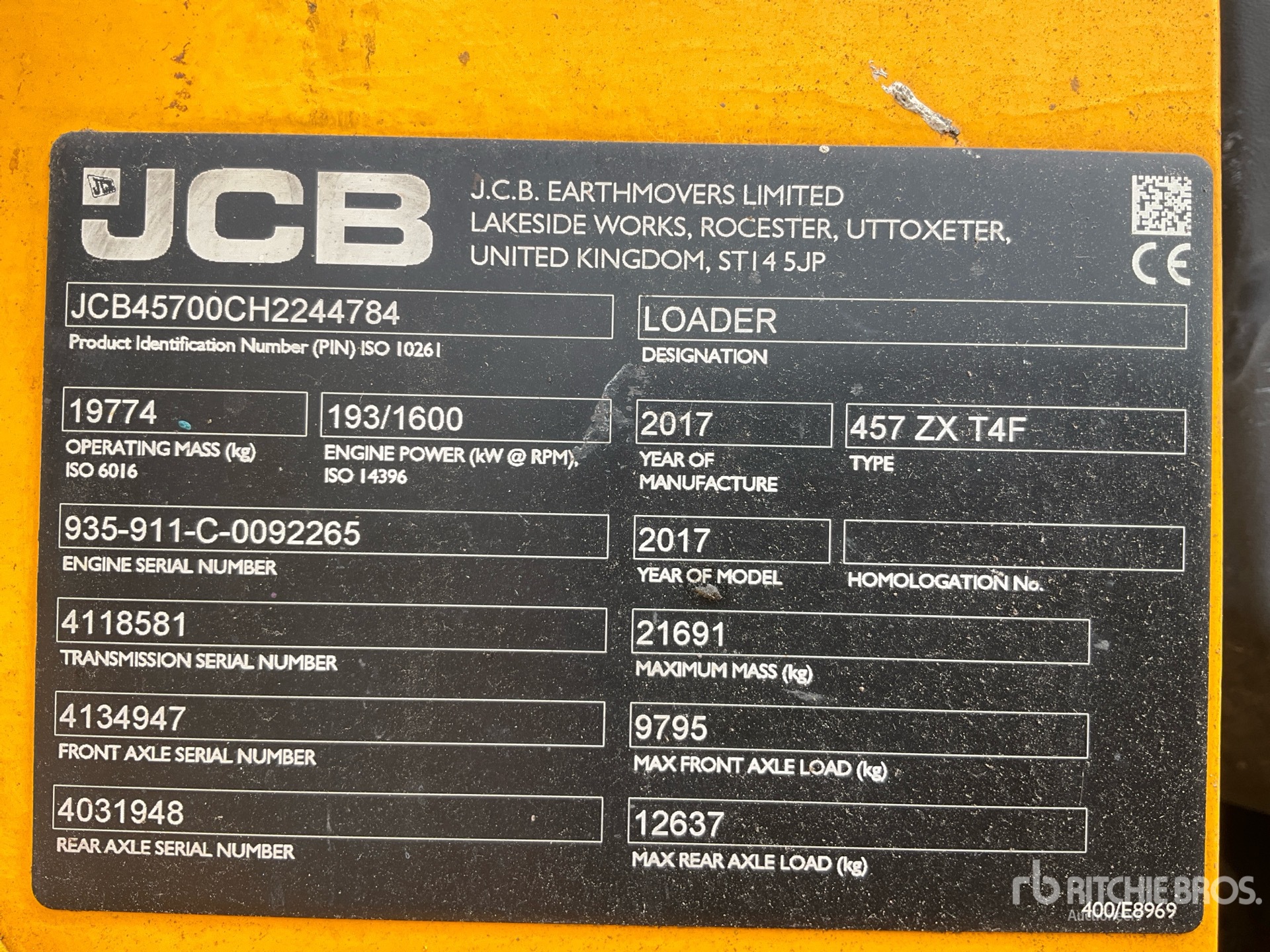

Serial Number:	JCB45700CH2244784
Machine Location:	MALTBY, GBR

Description:

Enclosed Cab, Air Conditioner, Rear View Camera, Air Ride Seat, Ride Control, Autoshift, Loadmaster 100 On-Board Scale, Fire Suppression System, Requires AdBlue, Auxiliary Hydraulics, 3000 mm High Tip bucket, Auto Lube, 23.5R25 Industrial cushion tyre Tires Closing Time: 2026-08-12 07:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The JCB 457 ZX is a heavy-duty wheel loader designed for material handling, aggregate, quarry, and construction applications. It is part of JCB's large wheel loader range and is built for high productivity, strong breakout force, and efficient cycle times. The machine typically features a powerful diesel engine, hydrostatic or torque-converter driveline depending on specification, and a reinforced loader arm and chassis for demanding site conditions. The 457 ZX is commonly used for loading trucks, stockpiling, and bulk material movement. Operator comfort, visibility, and service access are key design elements. Specifications vary by market and configuration.

Bucket
Breakout Force	38,667 lbs (17,539 kg)
Bucket Capacity - heaped	4 cu yd (3 cu m)
Bucket Capacity - struck	4 cu yd (3 cu m)
Bucket Width	9 ft (3 m)
Dump Clearance at Max Raise	9 ft (3 m)
Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin - Max Height	14 ft (4 m)
Length with Bucket on Ground	26 ft (8 m)
Reach at Max Lift and Dump	4 ft (1 m)
Wheelbase	11 ft (3 m)
Width Over Tires	9 ft (3 m)
Engine
Air cleaner	Intergrated pre-cleaner scavenged
Aspiration	Turbo Charged
Displacement	470 cu in (7,700 cu cm)
Emission Tier Level	EPA 40 CFR 89 / Tier 4 Final EU 97/68/EC/STAGE IV
Engine Model	6R1000
Engine Type	MTU
Fan drive type	Hydraulic
Gross Power	258 hp (192 kw)
No. of Valves	4
Number of Cylinders	6
Power Measured @	1,600 rpm
Torque Measured @	1,600 rpm
General Specifications
Bucket Capacity cu. yd. (cu m) (Since 2026)	4.6 (3.5)
Engine Power Gross hp (kW) (Since 2026)	282 (210)
Engine type (Since 2026)	Cummins B Series
Max Dump Height ft. (m) (Since 2026)	9' 4" (2848)
OperatingWeight lbs. (kg) (Since 2026)	43,982 ( 19,950)
Hydraulic System
3190.8	220 bar psi
Dump Time	1 seconds
Lower Time	4 seconds
Pump Flow Capacity	41 gpm (153 lpm)
Pump Type	Variable displacement
Raise Time	6 seconds
Relief Valve Setting	3,190 psi
Total cycle	11 seconds
Operating Specifications
Alternator Supplied Amperage	100 amps
Articulation Angle	40 degrees
Cooling System Fluid Capacity	11 gal (42 l)
DEF tank capacity	11 gal (42 l)
Engine Oil Fluid Capacity	7 gal (25 l)
Front Axle/Diff Fluid Capacity	9 gal (35 l)
Fuel Capacity	79 gal (300 l)
Full turn tipping load	30,717 lbs (13,933 kg)
Hydraulic System Fluid Capacity	36 gal (135 l)
Operating Voltage	24 volts
Operating Weight	43,594 lbs (19,774 kg)
Payload	15,360 lbs (6,967 kg)
Rated Bucket Capacity	4 cu yd (3 cu m)
Rear Axle Oscillation	12 degrees
Rear Axle/Diff Fluid Capacity	9 gal (35 l)
Transmission Fluid Capacity	11 gal (41 l)
Turning Radius	22 ft (7 m)
Transmission
Max Speed - Forward	23 mph (36 kph)
Max Speed - Reverse	15 mph (24 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	4 speed non-lock up converter ZF 4WG210
Weights
Operational Weight	42,289 lbs (19,182 kg)
