Equipment ↠ JLG ↠ Aerial Lifts ↠ 2002 JLG 2632ES

2002 JLG 2632ES For Sale in Chicago, Il

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-25 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

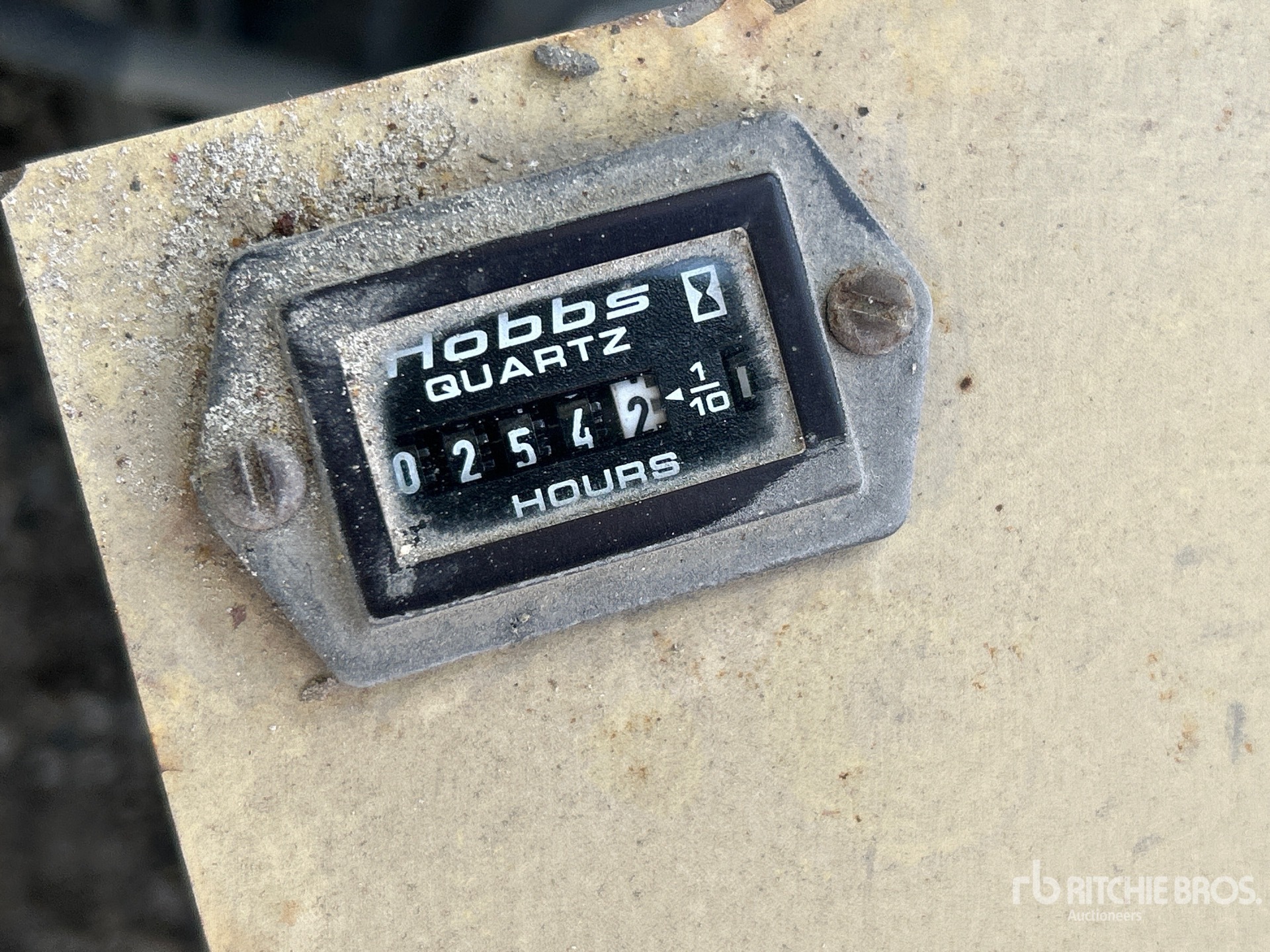

Hours:	254

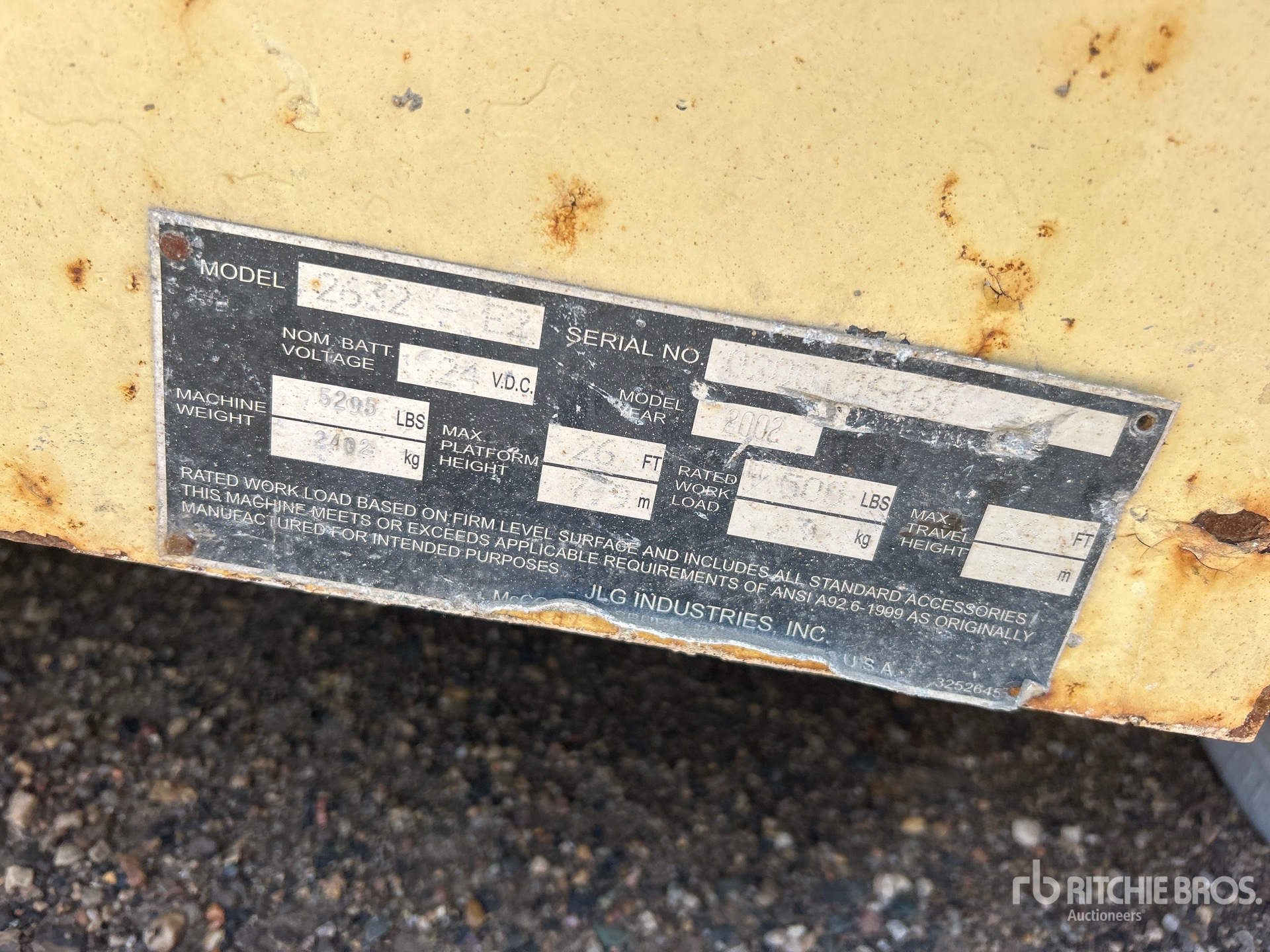

Serial Number:	0200106760
Machine Location:	CHICAGO, IL

Description:

Located in Lane 4 Spot 11, 26 ft Max Platform Height, 500 lb Max Weight Capacity, Platform Extension, Power Inverter, Solid Non-Marking Tires, Upper Control Box Closing Time: 2026-06-25 10:37:45 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The JLG 2632ES is an electric scissor lift in the aerial lifts category, designed for indoor and outdoor access applications on firm, level surfaces. It features a 26-foot platform height class, a narrow 32-inch chassis, and an electric drive system suited for low-noise, zero-emission operation. The 2632ES is commonly used for maintenance, installation, warehousing, and construction tasks where compact dimensions and vertical reach are required. Typical specifications include proportional controls, extendable platform options, and a non-marking tire setup. The model is part of JLG's ES series, which emphasizes efficiency, maneuverability, and reduced operating costs.

Brakes
Brakes Type	Electric Friction
Dimensions
Ground Clearance	4 in (10 cm)
Overall Height	8 ft (2 m)
Overall Length	91 in (231 cm)
Overall Width	3 ft (1 m)
Platform Dimension A	3 ft (1 m)
Platform Dimension B	8 ft (2 m)
Turning Radius	7 ft (2 m)
Wheelbase	6 ft (2 m)
Engine
Battery Amp Hours	4 x 6V 220 amp-hour
Charger Amps	20
Maximum Ground Bearing Pressure	90 psi
Performance
Drive Speed - Platform Elevated	1 mph (1 kph)
Drive Speed - Platform Lowered	3 mph (5 kph)
Drive System	24V Electric
Gradeability	25%
Hydraulic Pump Type	Fixed Displacement Gear
Hydraulic System Fluid Capacity	1 gal (5 l)
Maximum Drive Height	20 ft (6 m)
Operating Weight	4,635 lbs (2,102 kg)
Tire Size	16 X 5 in
Platform
Height of Rails	4 ft (1 m)
Lift Time	33 seconds
Lower Time	37 seconds
Max Platform Height	4 ft (1 m)
Max Working Height	32 ft (10 m)
Platform Capacity - Extension	250 lbs (113 kg)
Platform Capacity - Unrestricted	500 lbs (227 kg)
Platform Railing Height	26 ft (8 m)
