1998 John Deere 310SE 4X4 For Sale in Birmingham, AL


/ Save to Watch List

Auction Pricing



   Auction Info: Starting on 2026-07-10



Machine Info:

Hours:2449

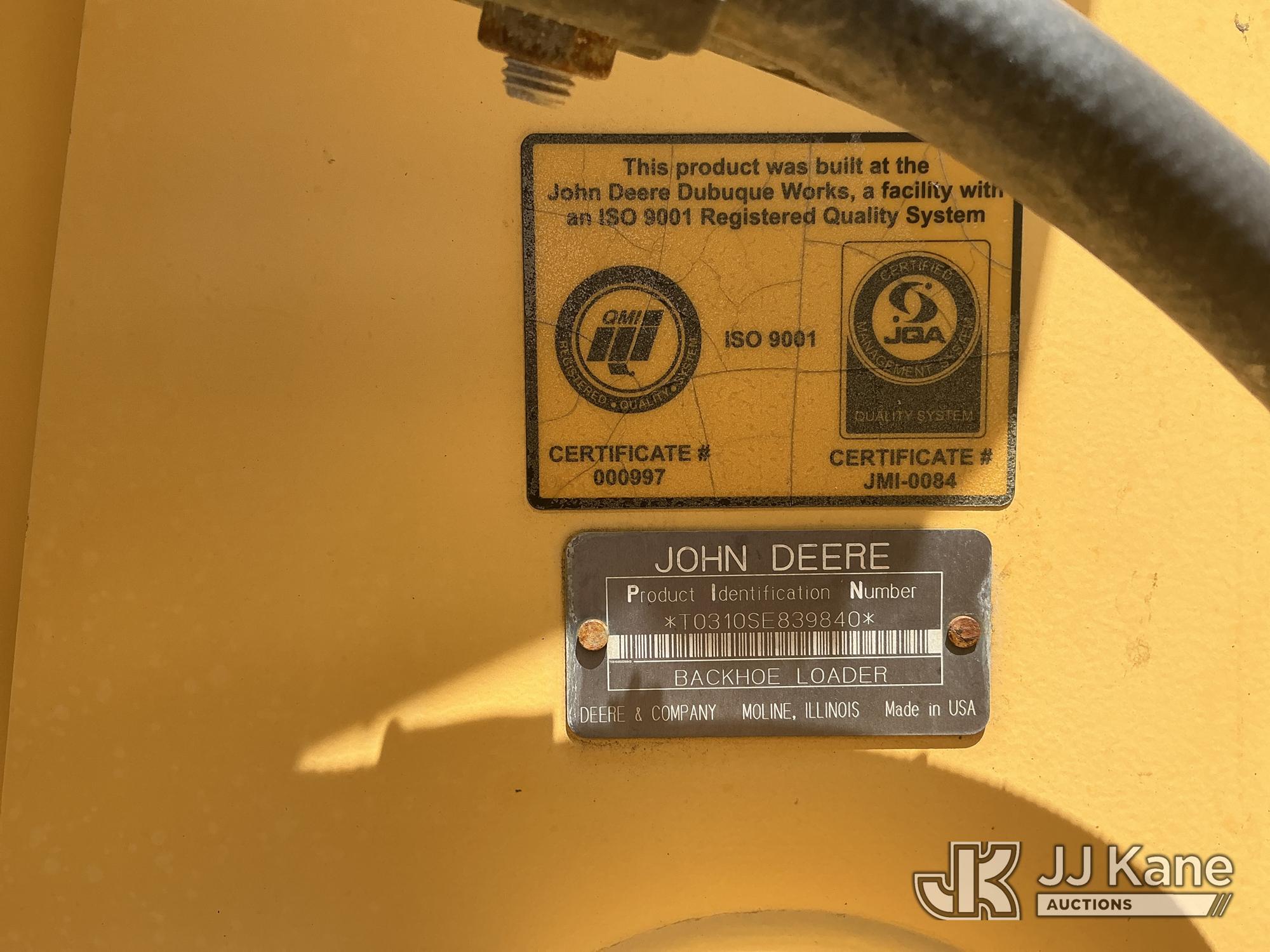

Serial Number:T0310SE839840
Machine Location:BIRMINGHAM, AL

Description:

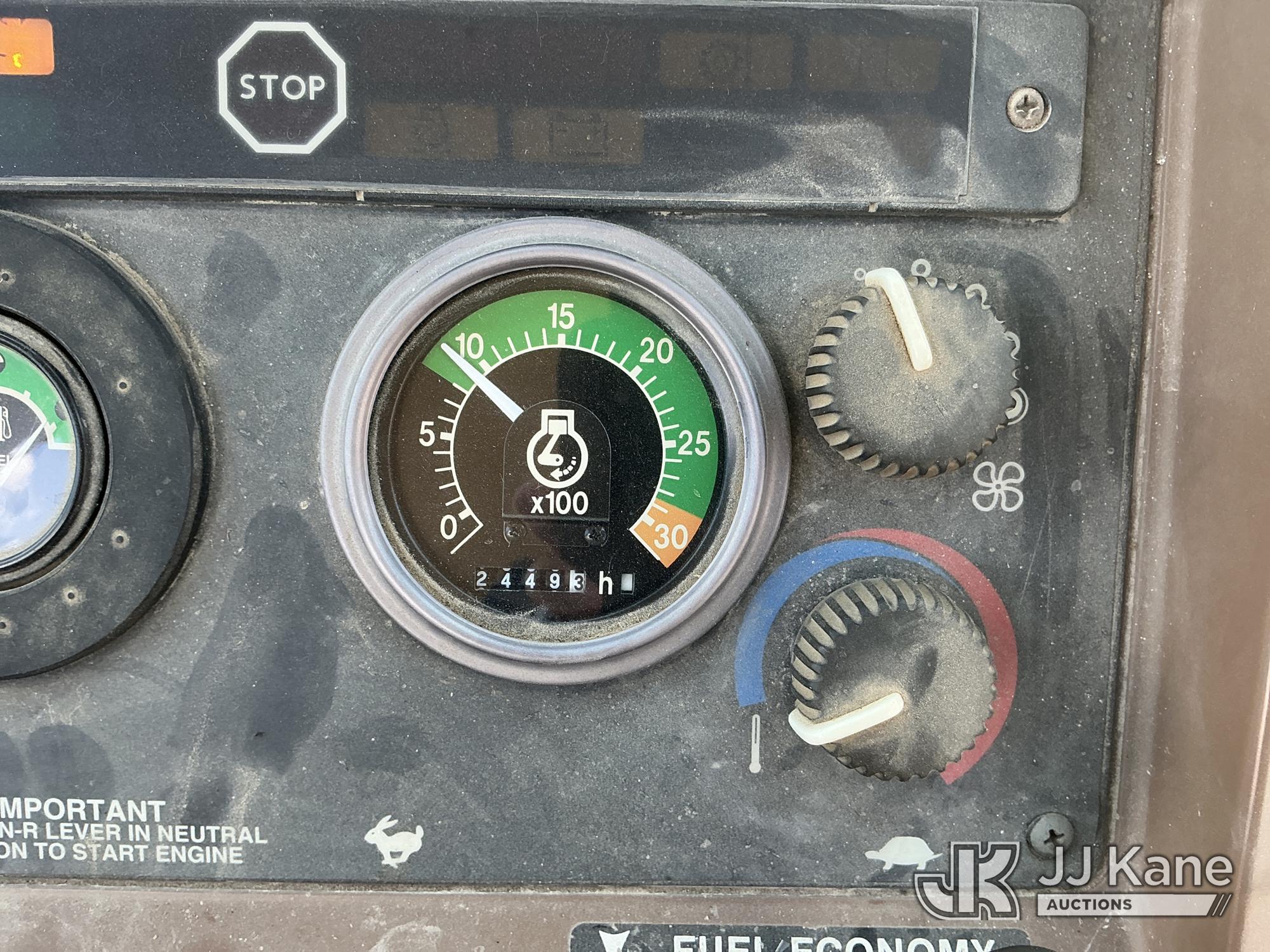

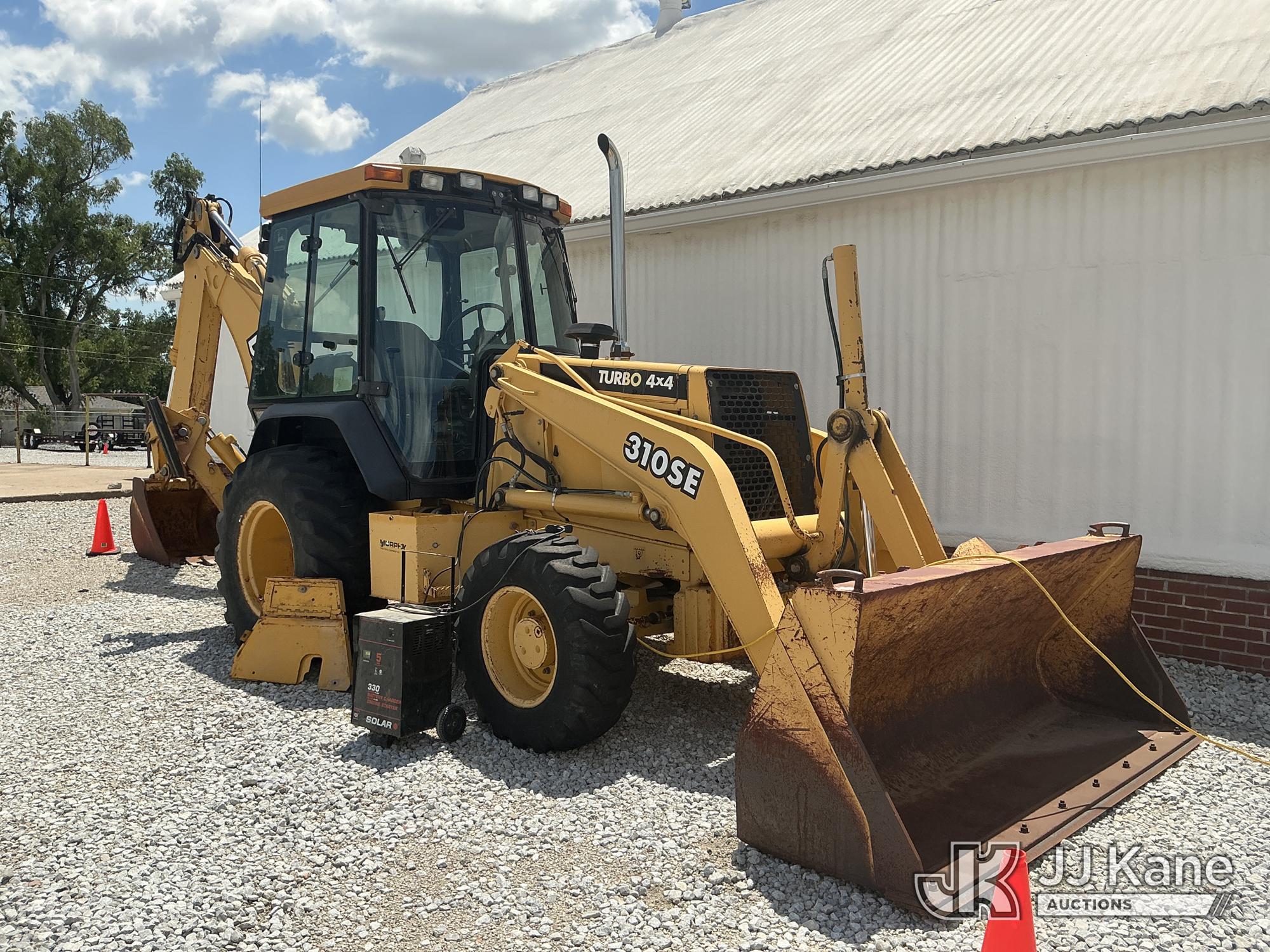

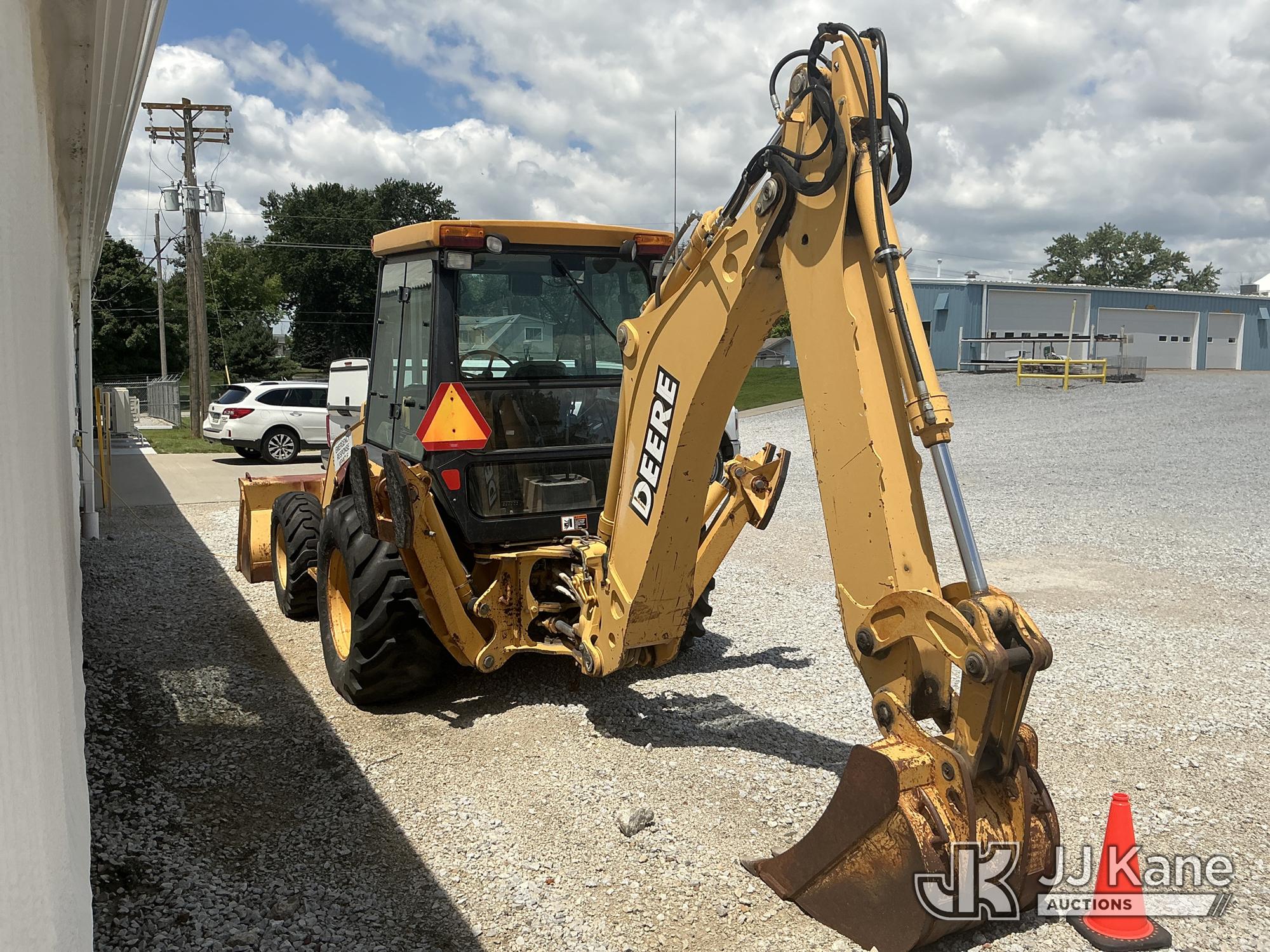

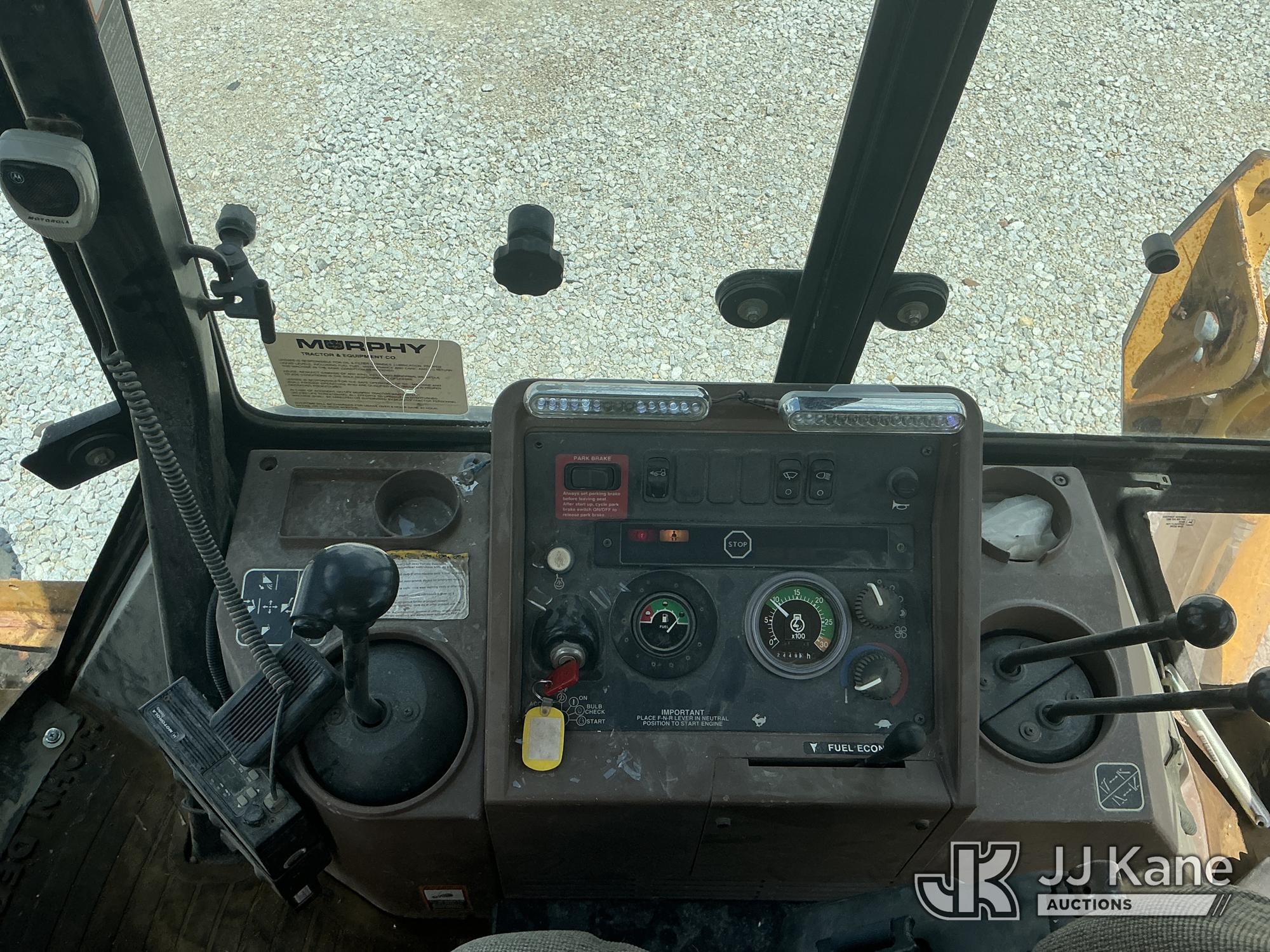

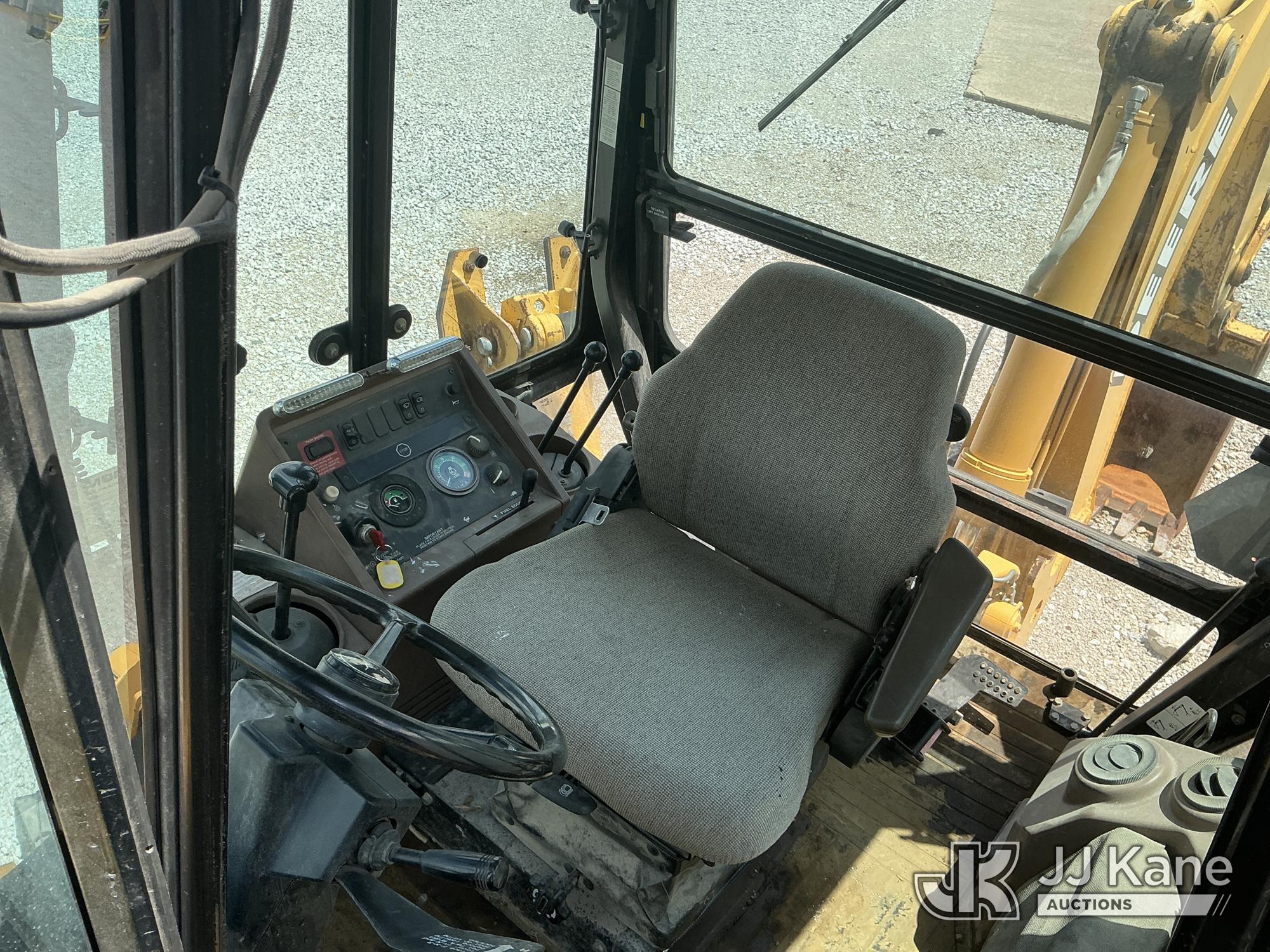

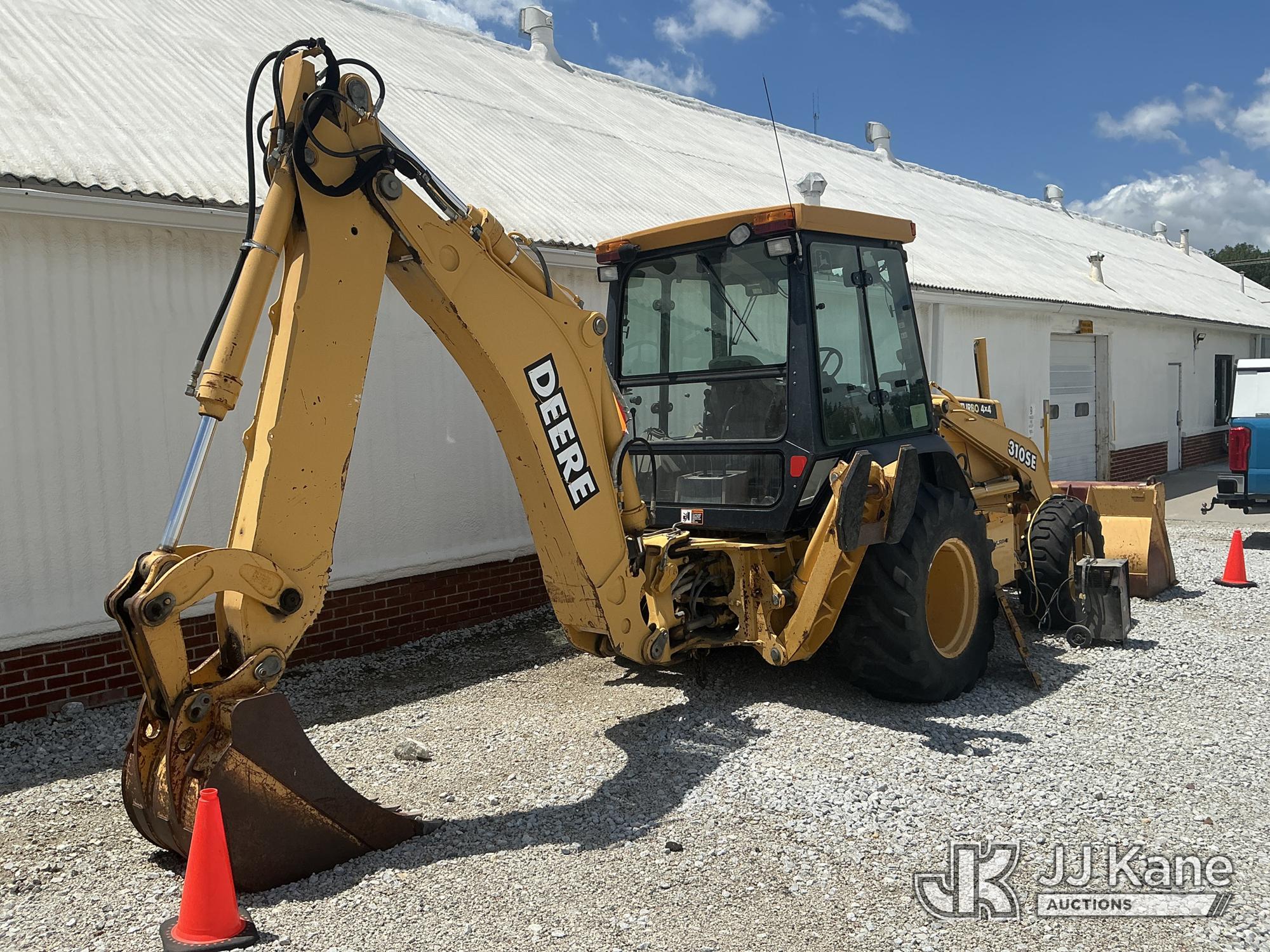

1998 John Deere 310SE 4x4 Tractor Loader Backhoe, s/n T0310SE839840, Diesel, Shuttle, with GP loader bucket, EROPS, (Runs, Moves & Operates) (Electrical Issues Cause Parking Brake To Turn On While Driving) (Reads 2,449 hours) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in Bellevue, NE. For more information contact Austin Scott @ 816-205-2291. Removal by appointment only, Buyer/Hauler must present copy of paid invoice or release form upon arrival. Purchaser acknowledges ALL lots must be removed within 10 business days of Auction, or a storage fee may be incurred. For load out and pick up information, please reference the release form sent out after purchase. (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.) (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)


From the manufacturer:

Supplied by HeavyEquipmentData.com →


John Deere 310SE backhoe loader is a construction machine designed for digging, trenching, loading, and material handling. It is part of John Deere's 310 series and is commonly used in utility work, site preparation, landscaping, and general construction. The 310SE typically features a front loader bucket and a rear backhoe attachment, giving it dual-purpose capability in one machine. Known for its diesel-powered drivetrain, hydraulic system, and operator cab, the 310SE is built for versatility on job sites. It remains a recognized model in the used equipment market for contractors and fleet operators.
Backhoe
Bucket Dig Force 11,990 lbs (5,439 kg)
Bucket Dig Force - Extended 12,158 lbs (5,515 kg)
Dig Depth 15 ft (4 m)
Dig Depth - Extended 19 ft (6 m)
Load Height - Extended 14 ft (4 m)
Reach at Load Height - Extended 25 ft (8 m)
Reach From Swivel 18 ft (6 m)
Reach From Swivel - Extended 22 ft (7 m)
Dimensions
Ground Clearance 1 ft (0 m)
Transport Length 24 ft (7 m)
Transport Width 7 ft (2 m)
Wheelbase 7 ft (2 m)
Engine
Aspiration Turbocharged
Displacement 276 cu in (4,523 cu cm)
Engine Model 4045T
Gross Power 88 hp (66 kw)
Net Max Torque 271 lbs ft (367 nm)
Net Power 80 hp (60 kw)
Net Torque Rise 0
Power Measured @ 2,200 rpm
General Specifications
4th Gear Fwd mph (kmh) (Since 2004) 24 (39)
Breakout Force lbs (kgs) (Since 2004) 8,900 (4,037)
Digging Depth ft (m) (Since 2004) 14.5 (4.42)
Lift Capacity lbs (kgs) (Since 2004) 6,150 (2,790)
Loading Height ft (m) (Since 2004) 11.3 (3.43)
Operating Weight lbs (kg) (Since 2004) 13,500 (6,123)
SAE Net hp (kW) (Since 2004) 80 (60)
Hydraulic System
Pump Flow Capacity 36 gpm (136 lpm)
Pump Type Gear tandem with unloader
Relief Valve Pressure 3,000 psi
Loader
Bucket Breakout Force 8,325 lbs (3,776 kg)
Bucket Capacity 1 cu yd (1 cu m)
Bucket Width 92 in (234 cm)
Clearance at Max Dump Height 11 ft (3 m)
Dig Depth 7 in (19 cm)
Reach at Max Dump Height 3 ft (1 m)
Operating Specifications
Alternator Supplied Amperage 65 amps
Cooling System Fluid Capacity 4 gal (16 l)
Front Axle Fluid Capacity 2 gal (9 l)
Fuel Capacity 36 gal (136 l)
Hydraulic System Fluid Capacity 24 gal (91 l)
Max Weight 13,500 lbs (6,124 kg)
Oil System Fluid Capacity 2 gal (9 l)
Operating Voltage 12 volts
Operating Weight 2wd 13,500 lbs (6,124 kg)
Operating Weight 4wd 13,500 lbs (6,124 kg)
Rear Axle Fluid Capacity 4 gal (13 l)
Tire Size Front - 2wd / 4wd 11L-158PRF3;11L-1612PR F3;12.5/80-1810PR
Transmission Fluid Capacity 4 gal (14 l)
Turning Radius 12 ft (4 m)
Tires
Rear Tires Size 16.9-248PR R4;19.5L-248PR R4
Transmission
Max Speed 24 mph (39 kph)
Max Speed - Reverse 27 mph (44 kph)
Number of Forward Gears 4
Number of Reverse Gears 4
Transmission Type 4-speed helical cut gear collar shift transmission synchronized in all gears with hydraulic reverser
