1988 John Deere 670B For Sale in Fort Worth, Tx

Name: 1988 John Deere 670B
Brand: John Deere
SKU: 88682394
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-07-15 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

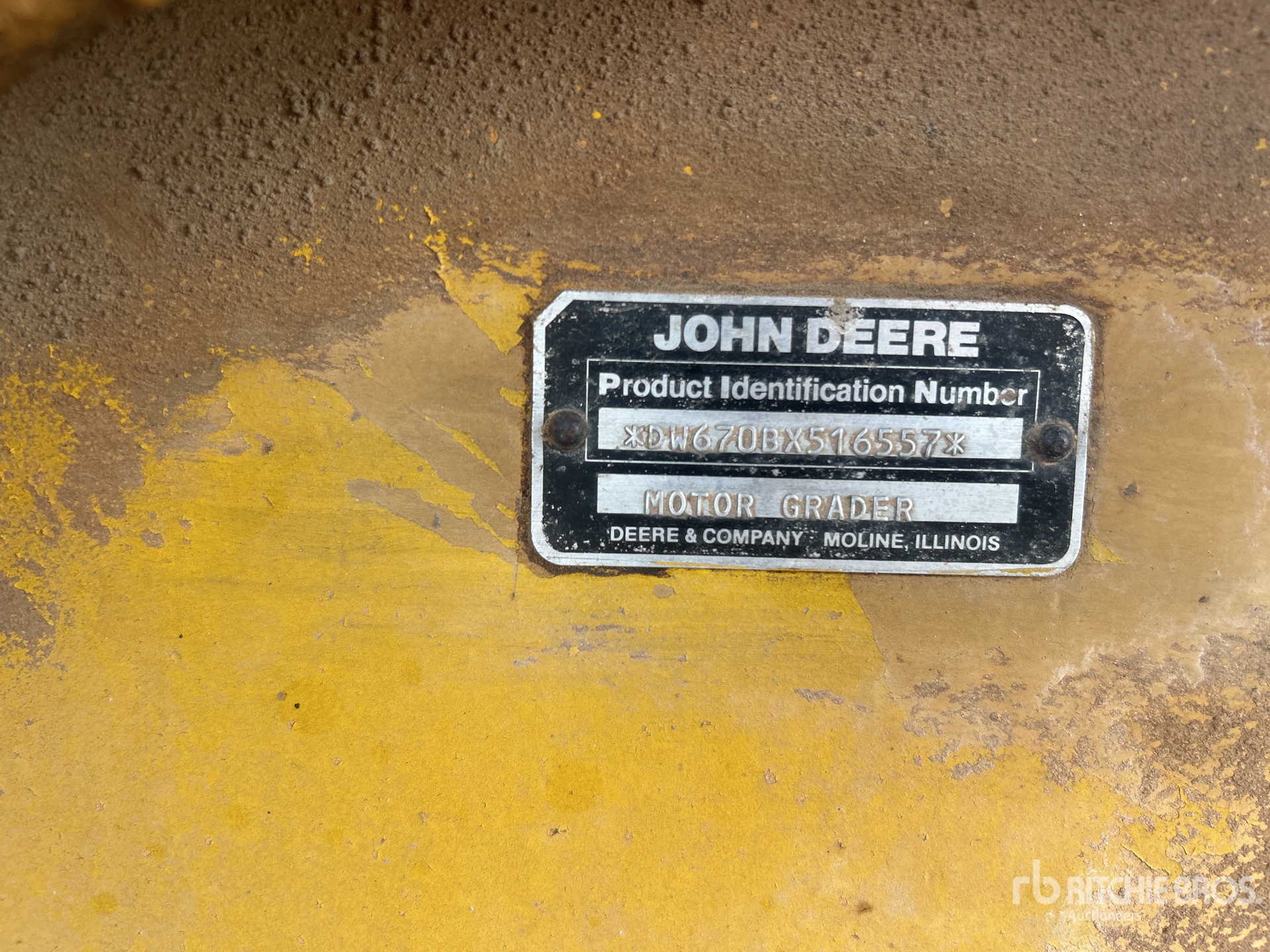

Serial Number:	DW670BX516557
Machine Location:	FORT WORTH, TX

Description:

Located in Lane 8 Spot 11, Enclosed Cab, 14 ft / 4.27 m Moldboard, Lift Group, 14.00R24 Tires Closing Time: 2026-07-15 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

John Deere 670B motor grader is a heavy equipment machine used for road construction, grading, ditching, and surface finishing. Built for municipal, highway, and site preparation work, the 670B is designed to shape and maintain gravel roads, prepare subgrades, and perform fine grading tasks. It typically features a moldboard, articulated frame, and operator controls suited to precision blade positioning. As part of John Deere's motor grader lineup, the 670B is recognized for utility in earthmoving and maintenance applications. This model is commonly referenced in used equipment, parts, and service contexts for grading operations.

Circle
Blade Tip Angle - Front	49 degrees
Blade Tip Angle - Rear	5 degrees
Diameter	60 in (152 cm)
Max Lift Above Ground	18 in (44 cm)
Max Reach Outside Tires - Left	85 in (216 cm)
Max Reach Outside Tires - Right	83 in (211 cm)
Rotation	360 degrees
Shift Left	31 in (79 cm)
Shift Right	29 in (73 cm)
Dimensions
Blade Base	9 ft (3 m)
Front Ground Clearance	2 ft (1 m)
Height to Top of Isomount Cab	10 ft (3 m)
Overall Length	27 ft (8 m)
Tandem Axle Wheelbase	5 ft (2 m)
Wheelbase	20 ft (6 m)
Width Over Tires	8 ft (2 m)
Engine
Aspiration	Turbocharged
Displacement	414 cu in (6,784 cu cm)
Engine Model	6068T
Max Power	135 hp (101 kw)
Net Power Gears 7-8	135 hp (101 kw)
Net Torque Gears 7-8	460 lbs ft (624 nm)
Number of Cylinders	6
Power Measured @	2,300 rpm
Torque Measured @	1,300 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	32 degrees
Wheel Lean	20 degrees
Hydraulic System
Pump Flow	38 gpm (142 lpm)
Pump Type	variable displacement single hydraulic pump
Moldboard
Moldboard Height	24 in (61 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	27 in (68 cm)
Side Shift Right	27 in (68 cm)
Operating Specifications
Alternator Supplied Amperage	42 amps
Circle Gearbox Fluid Capacity	3 gal (11 l)
Cooling System Fluid Capacity	7 gal (27 l)
Fuel Capacity	70 gal (265 l)
Hydraulic System Fluid Capacity	14 gal (53 l)
Max Operation Weight - Front Axle	9,870 lbs (4,477 kg)
Max Operation Weight - Rear Axle	23,440 lbs (10,632 kg)
Max Operation Weight - Total	33,310 lbs (15,109 kg)
Oil System Fluid Capacity	5 gal (19 l)
Operating Voltage	24 volts
Std Operation Weight - Front Axle	8,620 lbs (3,910 kg)
Std Operation Weight - Rear Axle	20,410 lbs (9,258 kg)
Std Operation Weight - Total	29,030 lbs (13,168 kg)
Tandem Case Fluid Capacity (each)	5 gal (19 l)
Tire Size	13.00-25
Steering System
Articulation Angle	25 degrees
Turning Radius	22 ft (7 m)
Transmission
Max Speed - Forward	24 mph (39 kph)
Max Speed - Reverse	8 mph (13 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	4
Transmission Type	Power Shift
