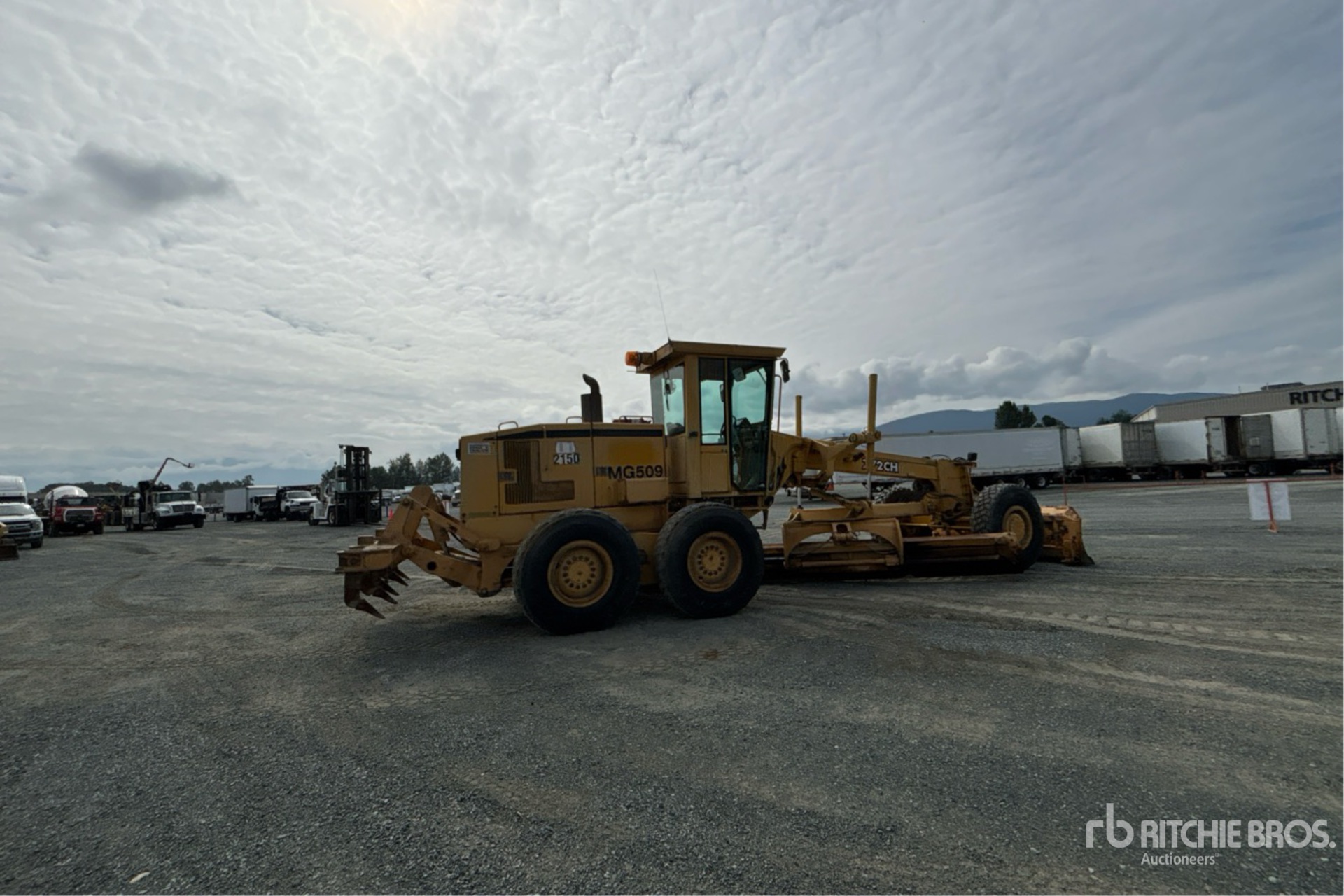

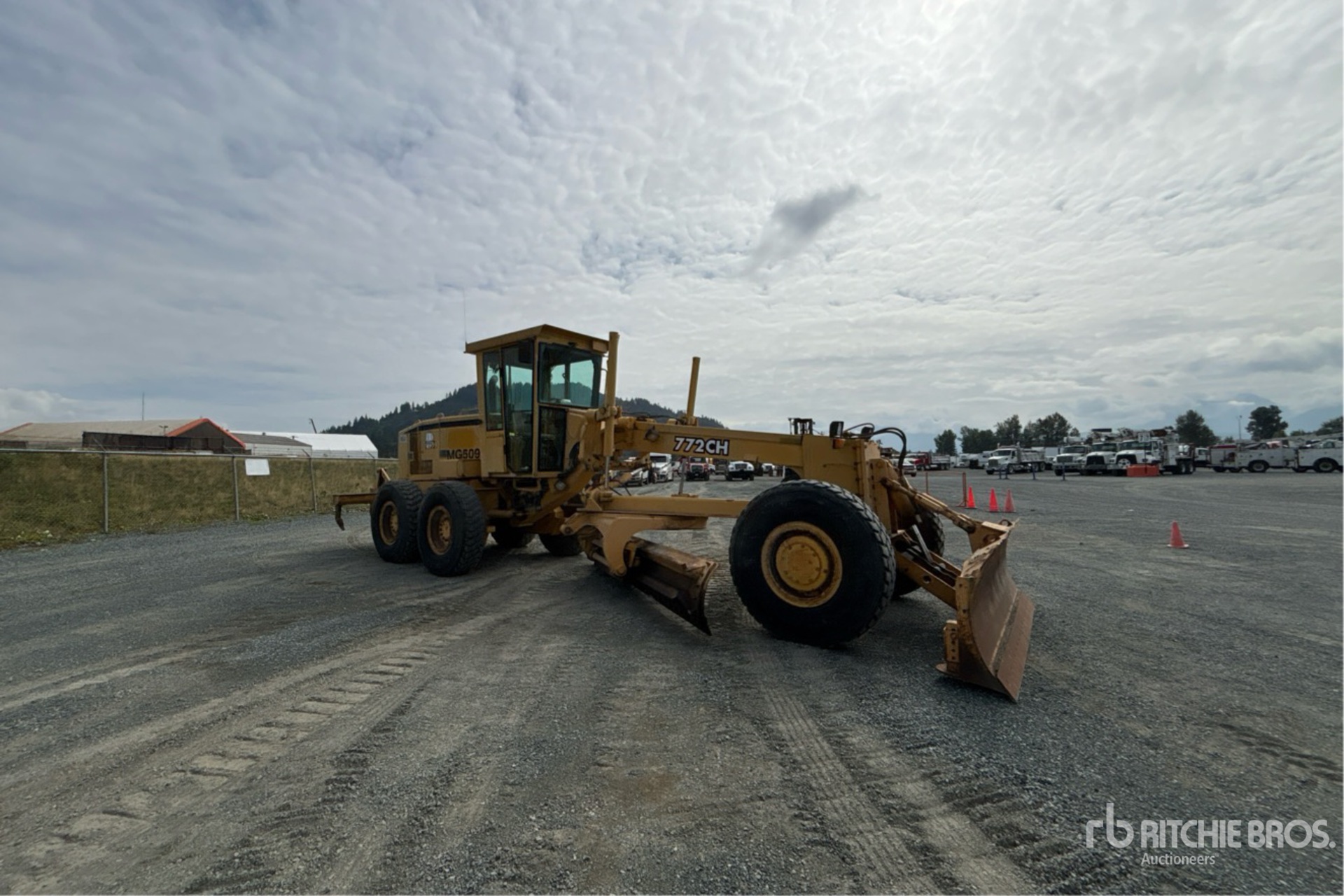

2001 John Deere 772CH For Sale in Chilliwack, Bc

Name: 2001 John Deere 772CH
Brand: John Deere
SKU: 88691020
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-07-30 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

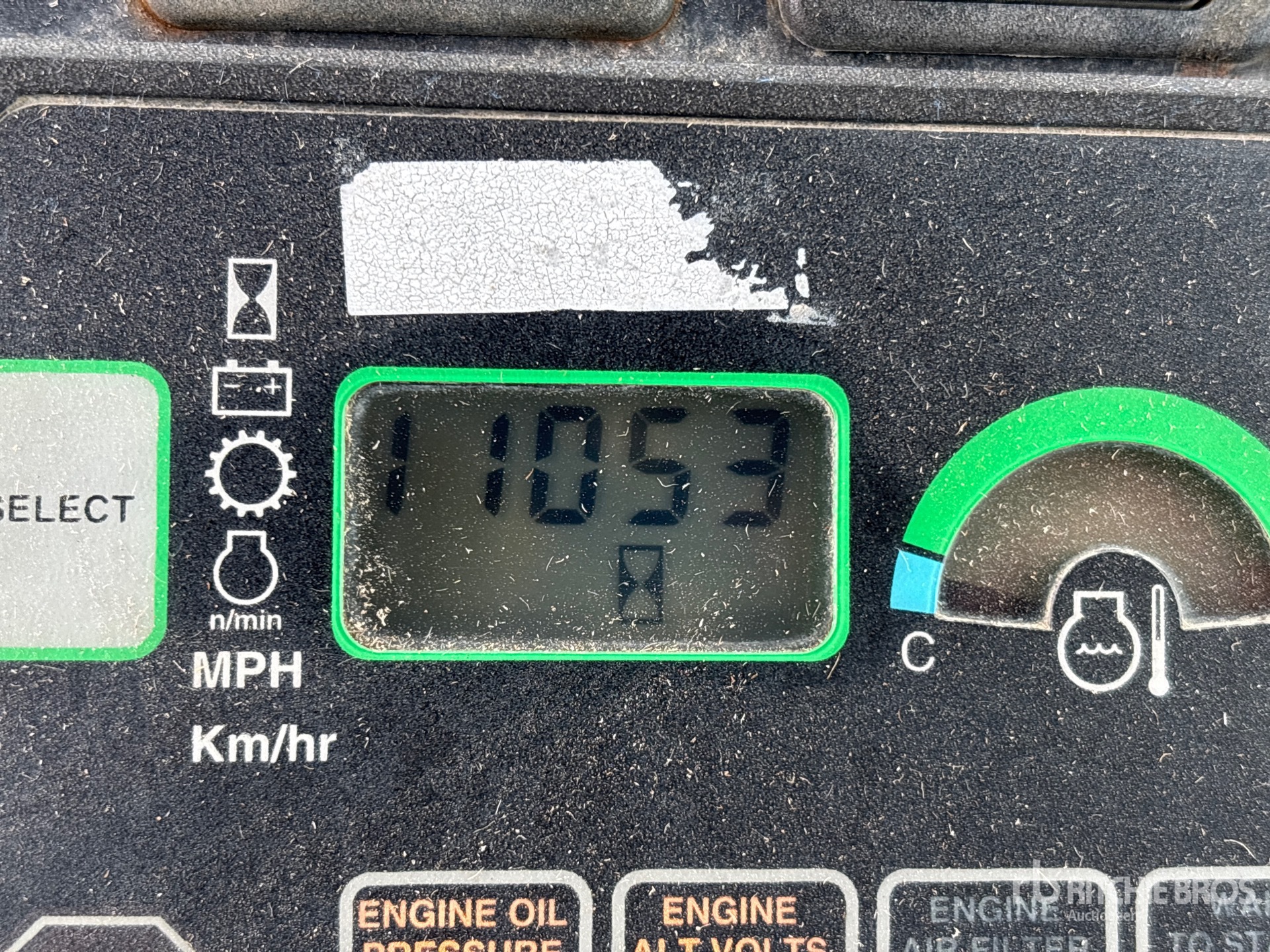

Hours:	11053
Serial Number:	DW772CH579017
Machine Location:	CHILLIWACK, BC

Description:

Enclosed Cab, 14 ft / 4.27 m Moldboard, Front Auxiliary Hydraulics, Front Mounted Snow Plow, Combination Ripper/Scarifier, 14.00-24 Tires Closing Time: 2026-07-30 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The John Deere 772CH is a motor grader designed for road construction, maintenance, and earthmoving applications. It is part of John Deere's 772 series and is used for grading, leveling, ditching, and shaping surfaces on job sites, highways, and rural roads. The machine typically features a front-mounted blade, articulated frame, and rear tandem drive for controlled material handling and traction. The 772CH is commonly associated with heavy-duty grading work in construction and municipal fleets. As a motor grader, it is built to support precision surface finishing, road base preparation, and general site grading operations.

Circle
Blade Tip Angle - Front	49 degrees
Blade Tip Angle - Rear	5 degrees
Diameter	60 in (152 cm)
Max Lift Above Ground	19 in (47 cm)
Max Reach Outside Tires - Left	85 in (216 cm)
Max Reach Outside Tires - Right	83 in (211 cm)
Rotation	360 degrees
Shift Left	31 in (79 cm)
Shift Right	29 in (73 cm)
Dimensions
Blade Base	9 ft (3 m)
Front Ground Clearance	2 ft (1 m)
Height to Top of Isomount Cab	10 ft (3 m)
Overall Length	28 ft (9 m)
Tandem Axle Wheelbase	5 ft (2 m)
Wheelbase	20 ft (6 m)
Width Over Tires	8 ft (3 m)
Engine
Aspiration	Turbocharged with Aftercooler
Displacement	494 cu in (8,095 cu cm)
Engine Model	6081H
Max Power	210 hp (157 kw)
Net Power Gear 1-2	180 hp (134 kw)
Net Power Gear 4-6	200 hp (149 kw)
Net Power Gear 5-6	210 hp (157 kw)
Net Power Gears 7-8	210 hp (157 kw)
Net Torque Gears 1-2	625 lbs ft (847 nm)
Net Torque Gears 3-4	735 lbs ft (997 nm)
Net Torque Gears 5-6	756 lbs ft (1,025 nm)
Net Torque Gears 7-8	756 lbs ft (1,025 nm)
Number of Cylinders	6
Power Measured @	1,900 rpm
Torque Measured @	900 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	32 degrees
Wheel Lean	20 degrees
Hydraulic System
Pump Flow	55 gpm (207 lpm)
Pump Type	Closed Center Variable displacement
Relief Valve Pressure	2,550 psi
Moldboard
Blade Pull at Max Weight	43,860 lbs (19,895 kg)
Moldboard Height	24 in (61 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	27 in (68 cm)
Side Shift Right	27 in (68 cm)
Operating Specifications
Alternator Supplied Amperage	55 amps
Circle Gearbox Fluid Capacity	1 gal (4 l)
Cooling System Fluid Capacity	12 gal (45 l)
Fuel Capacity	106 gal (401 l)
Hydraulic System Fluid Capacity	16 gal (59 l)
Max Operation Weight - Front Axle	11,330 lbs (5,139 kg)
Max Operation Weight - Rear Axle	26,520 lbs (12,029 kg)
Max Operation Weight - Total	37,850 lbs (17,168 kg)
Oil System Fluid Capacity	8 gal (29 l)
Operating Voltage	24 volts
Rear Diff/Final Drive Fluid Capacity	10 gal (36 l)
Std Operation Weight - Front Axle	10,210 lbs (4,631 kg)
Std Operation Weight - Rear Axle	22,910 lbs (10,392 kg)
Std Operation Weight - Total	33,120 lbs (15,023 kg)
Tandem Case Fluid Capacity (each)	20 gal (75 l)
Tire Size	14.00-24
Transmission Fluid Capacity	10 gal (38 l)
Steering System
Articulation Angle	25 degrees
Turning Radius	22 ft (7 m)
Transmission
Max Speed - Forward	26 mph (42 kph)
Max Speed - Reverse	26 mph (42 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	8
Transmission Type	Power Shift
