Equipment ↠ John Deere ↠ Off-Highway Trucks ↠ 2004 John Deere 250D

2004 John Deere 250D For Sale in Orlando, Fl

Name: 2004 John Deere 250D
Brand: John Deere
SKU: 88736084
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-07-09 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

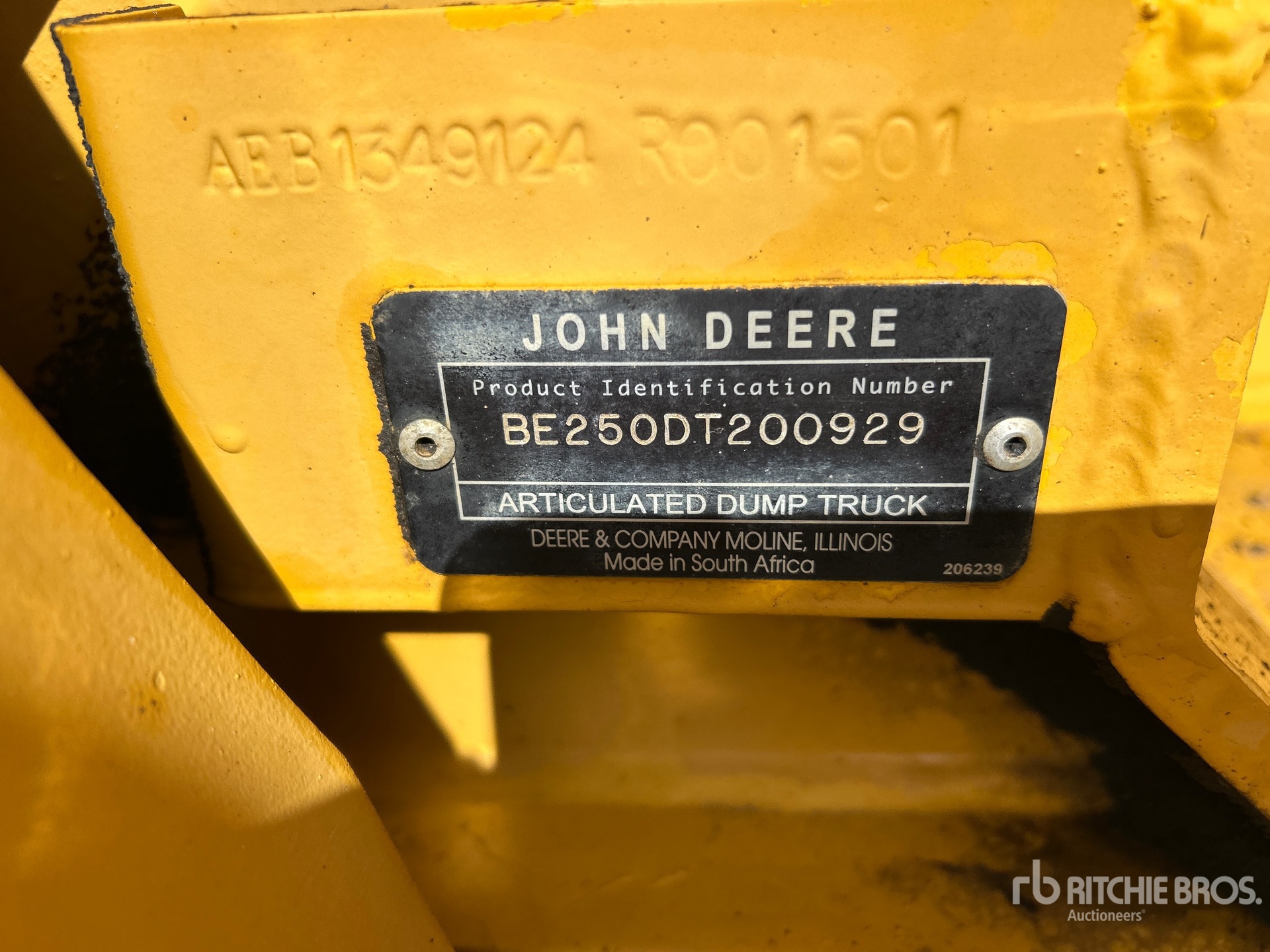

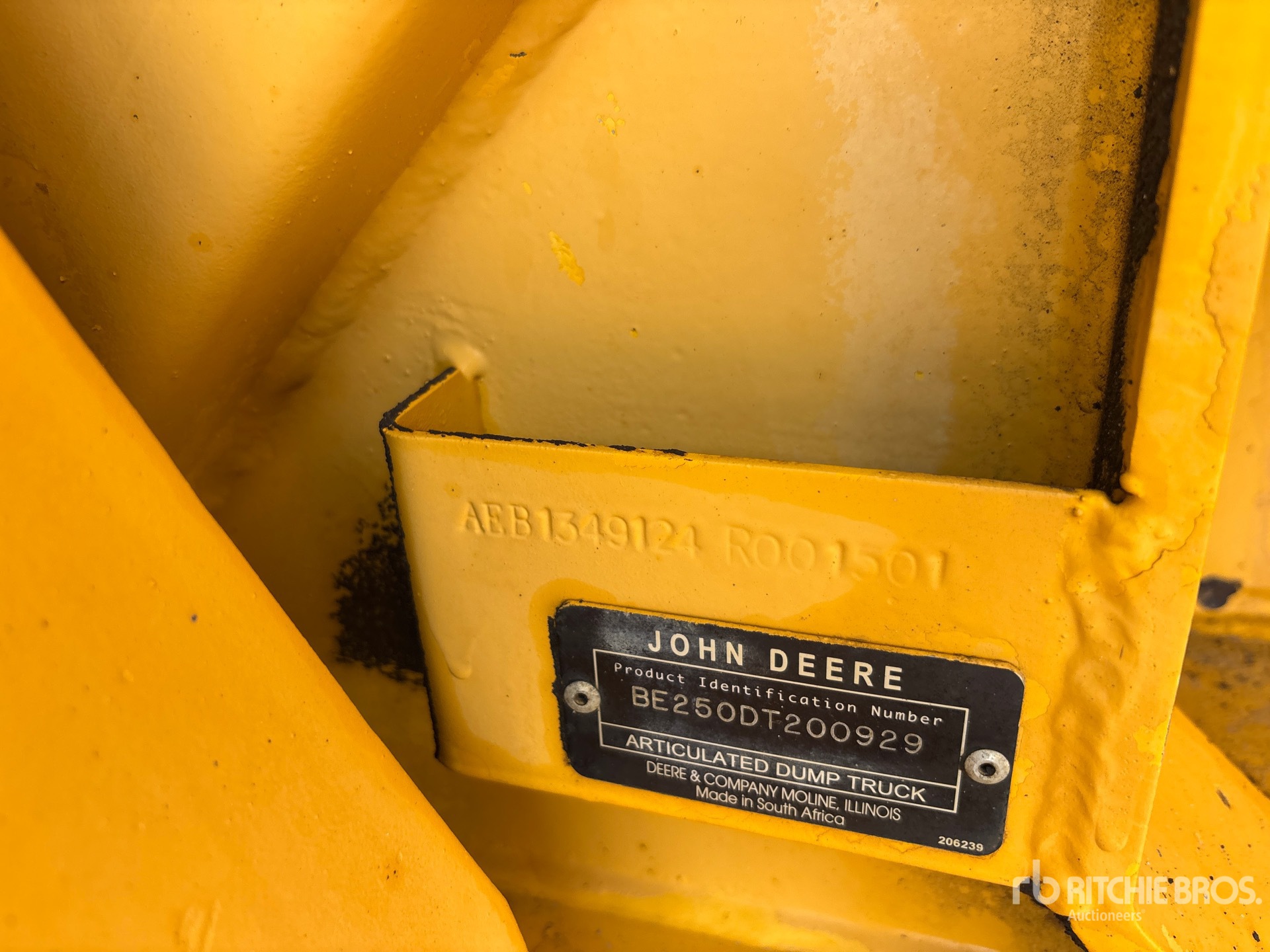

Serial Number:	BE250DT200929
Machine Location:	ORLANDO, FL

Description:

From the manufacturer:

Supplied by HeavyEquipmentData.com →

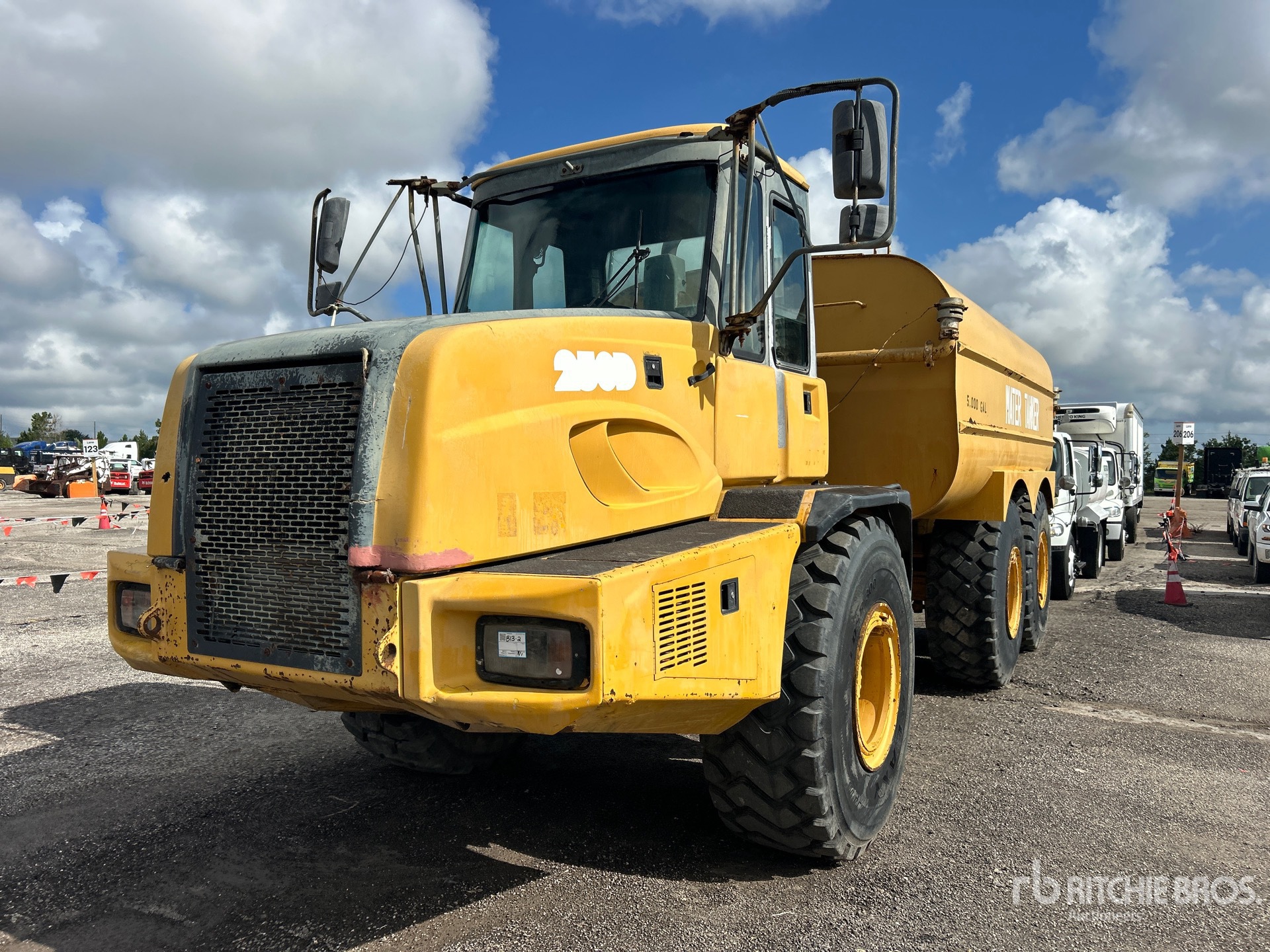

John Deere 250D is an off-highway articulated dump truck designed for hauling material in construction, quarry, and earthmoving applications. It is part of John Deere's D-Series truck line and is used for transporting loose aggregate, soil, rock, and demolition debris over rough terrain. The 250D features a rear dump body, articulated steering, and all-wheel drive for off-road mobility. Typical applications include site development, road building, mining support, and large-scale grading projects. As an off-highway truck, the John Deere 250D is built for high-capacity material transport in demanding jobsite conditions where traction, stability, and durability are required.

Articulating/Rigid
Articulating/Rigid	Articulated
Dimensions
Dump Ground Clearance	2 ft (1 m)
Dump Height	20 ft (6 m)
Ground Clearance	2 ft (0 m)
Overall Height	12 ft (4 m)
Overall Length	31 ft (10 m)
Overall Width	9 ft (3 m)
Wheelbase	17 ft (5 m)
DRIVE SYSTEM
Drive Config	6x6
Dump
Capacity - Heaped	18 cu yd (14 cu m)
Capacity - Struck	14 cu yd (10 cu m)
Dump Angle	70 degrees
Lower Time	6 seconds
Raise Time	12 seconds
Rated Payload	51,150 lbs (23,201 kg)
Engine
Aspiration	Turbocharger charge air cooled
Displacement	549 cu in (8,997 cu cm)
Engine Model	6,090
Make	Deere
Max Torque	789 lbs ft (1,070 nm)
Net Power	265 hp (198 kw)
Number of Cylinders	6
Power Measured @	2,000 rpm
Torque Measured @	1,400 rpm
Operating Specifications
Alternator Supplied Amperage	80 amps
Cooling System Fluid Capacity	9 gal (33 l)
Engine Oil Capacity	7 gal (25 l)
Fuel Capacity	90 gal (341 l)
Hydraulic System Fluid Capacity	21 gal (79 l)
Operating Voltage	24 volts
Tire Size	23.5R25
Transmission Fluid Capacity	6 gal (22 l)
Transmission
Max Speed	31 mph (50 kph)
Number of Forward Gears	6
Number of Reverse Gears	1
Transmission Type	ZF 6HP592C fully automatic
Weights
Center Axle - empty	8,995 lbs (4,080 kg)
Center Axle - loaded	31,394 lbs (14,240 kg)
Front Axle - empty	22,355 lbs (10,140 kg)
Front Axle - loaded	29,013 lbs (13,160 kg)
Operating Weight	91,490 lbs (41,499 kg)
Rear Axle - empty	8,973 lbs (4,070 kg)
Rear Axle - loaded	31,085 lbs (14,100 kg)
Total Empty	40,345 lbs (18,300 kg)
Total Loaded	91,492 lbs (41,500 kg)
