2013 John Deere 328D For Sale in Birmingham, AL


/ Save to Watch List

Auction Pricing



   Auction Info: Starting on 2026-06-10



Machine Info:

Hours:2417

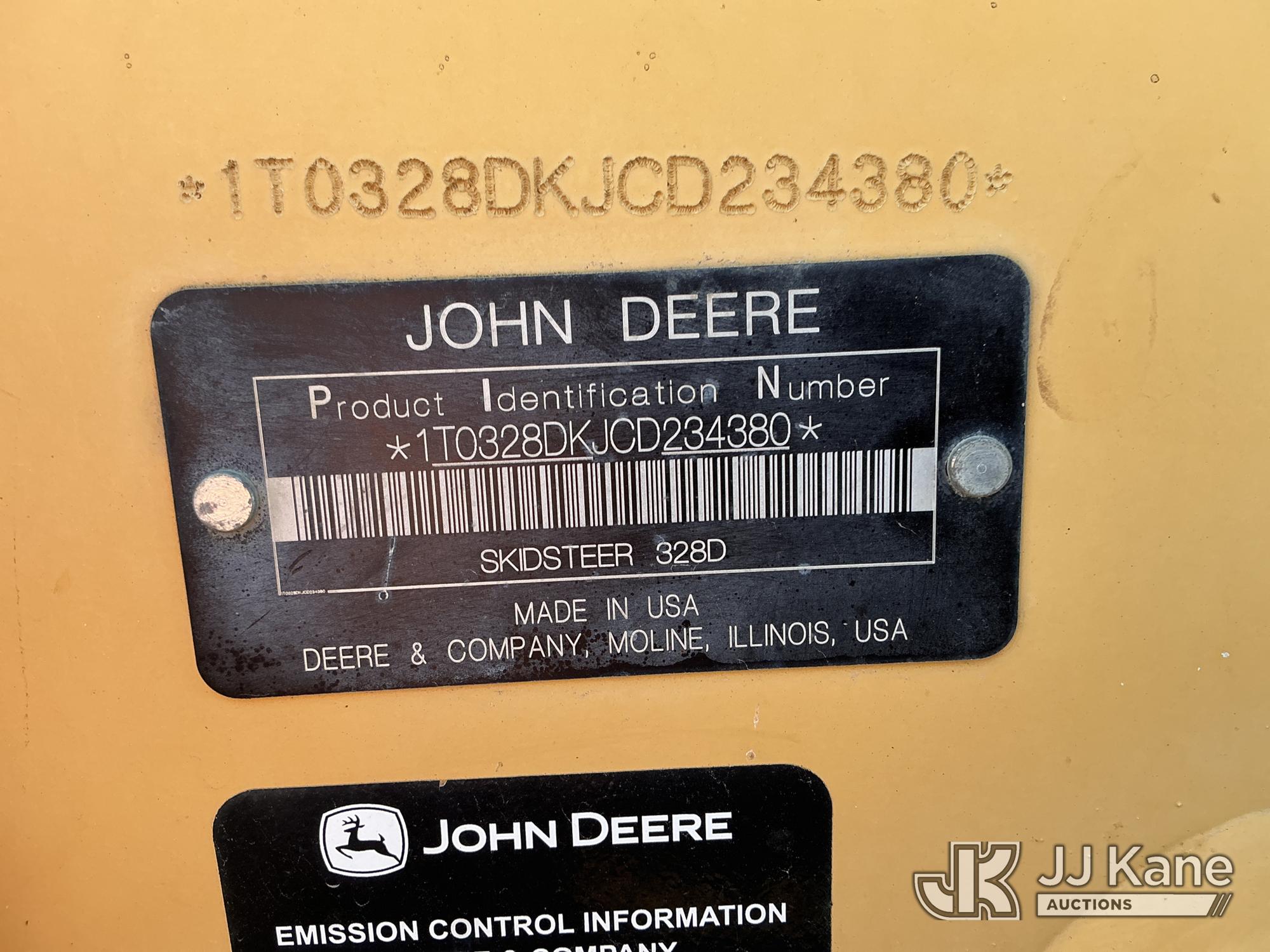

Serial Number:1T0328DKJCD234380
Machine Location:BIRMINGHAM, AL

Description:

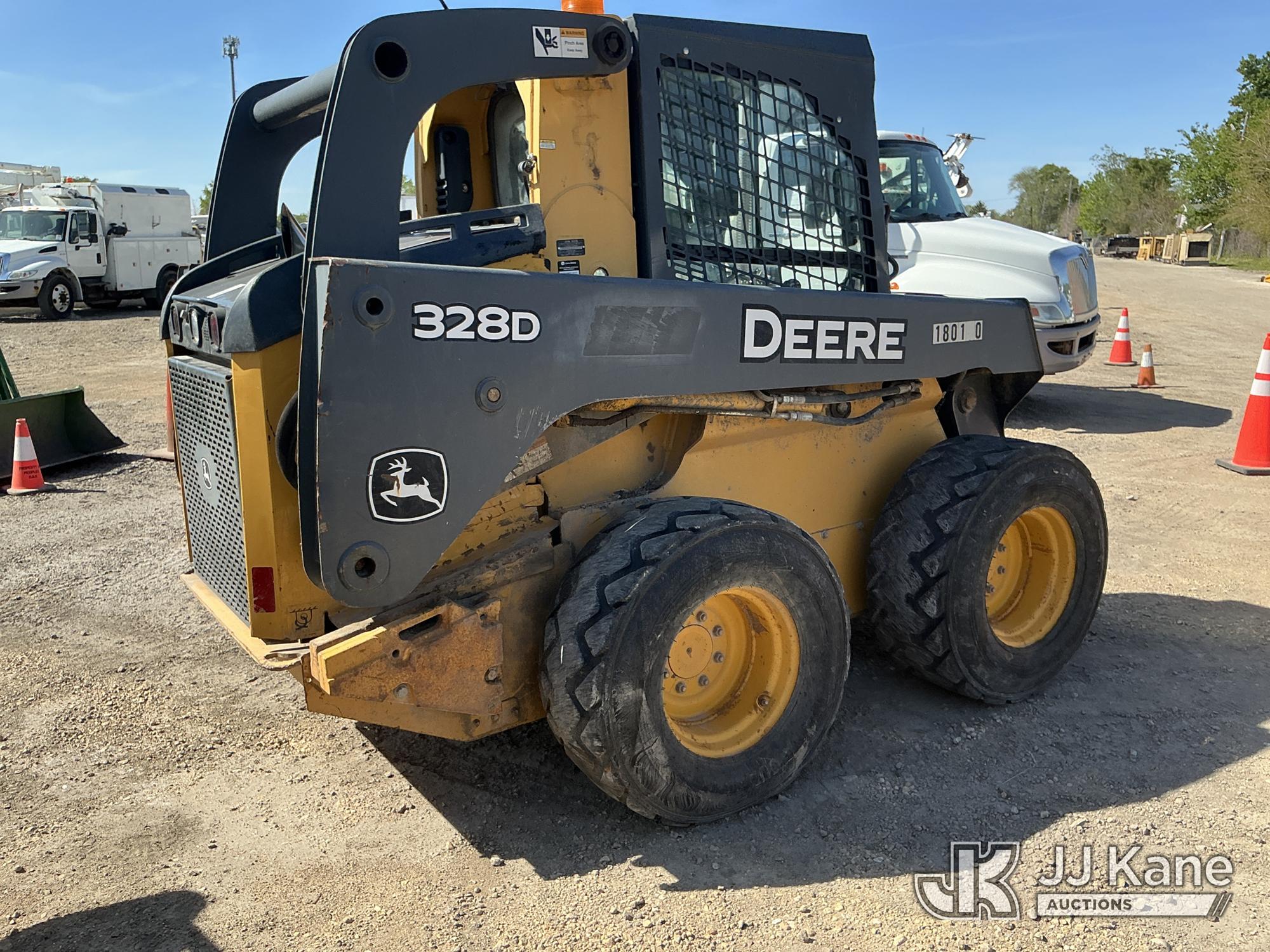

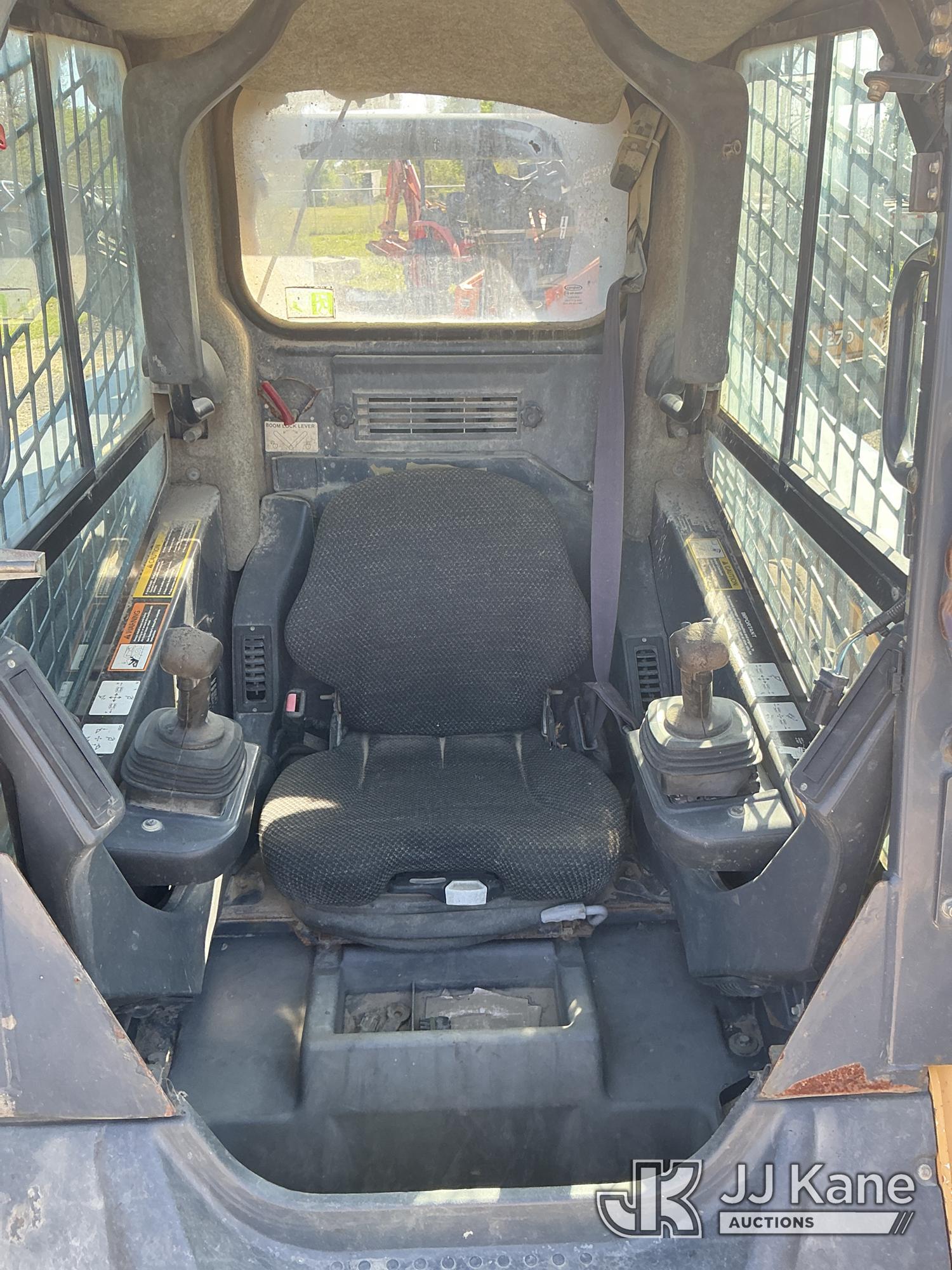

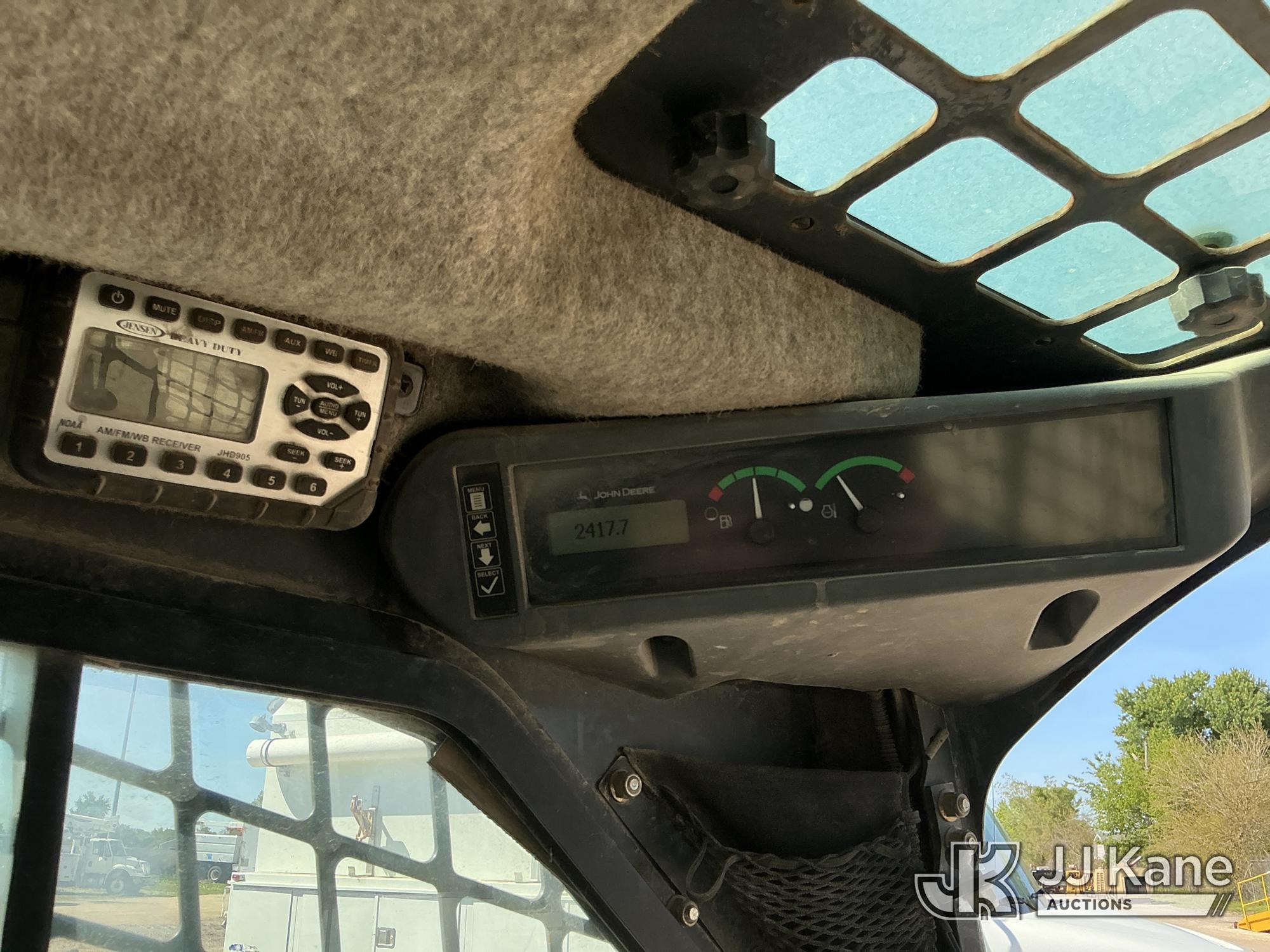

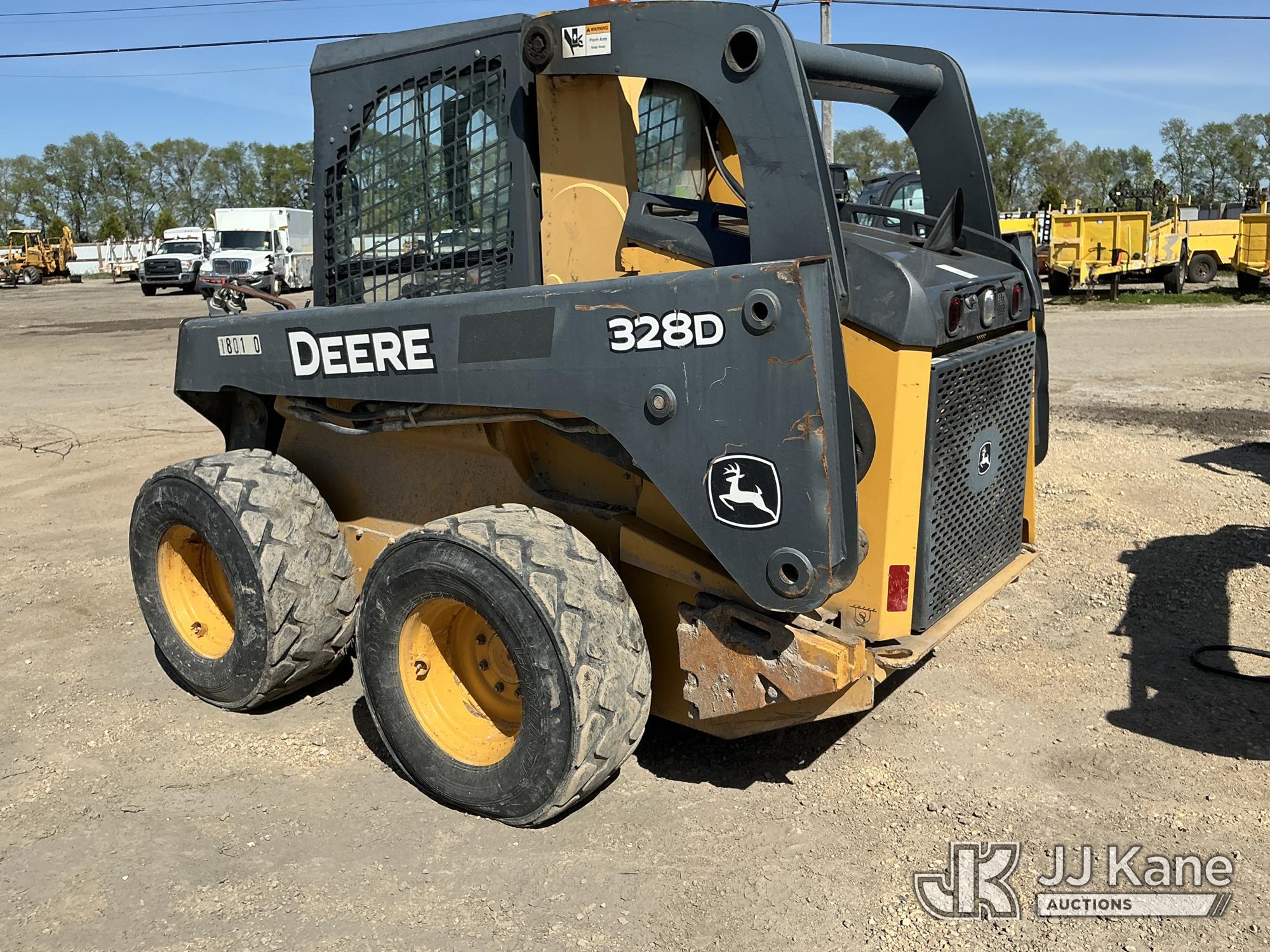

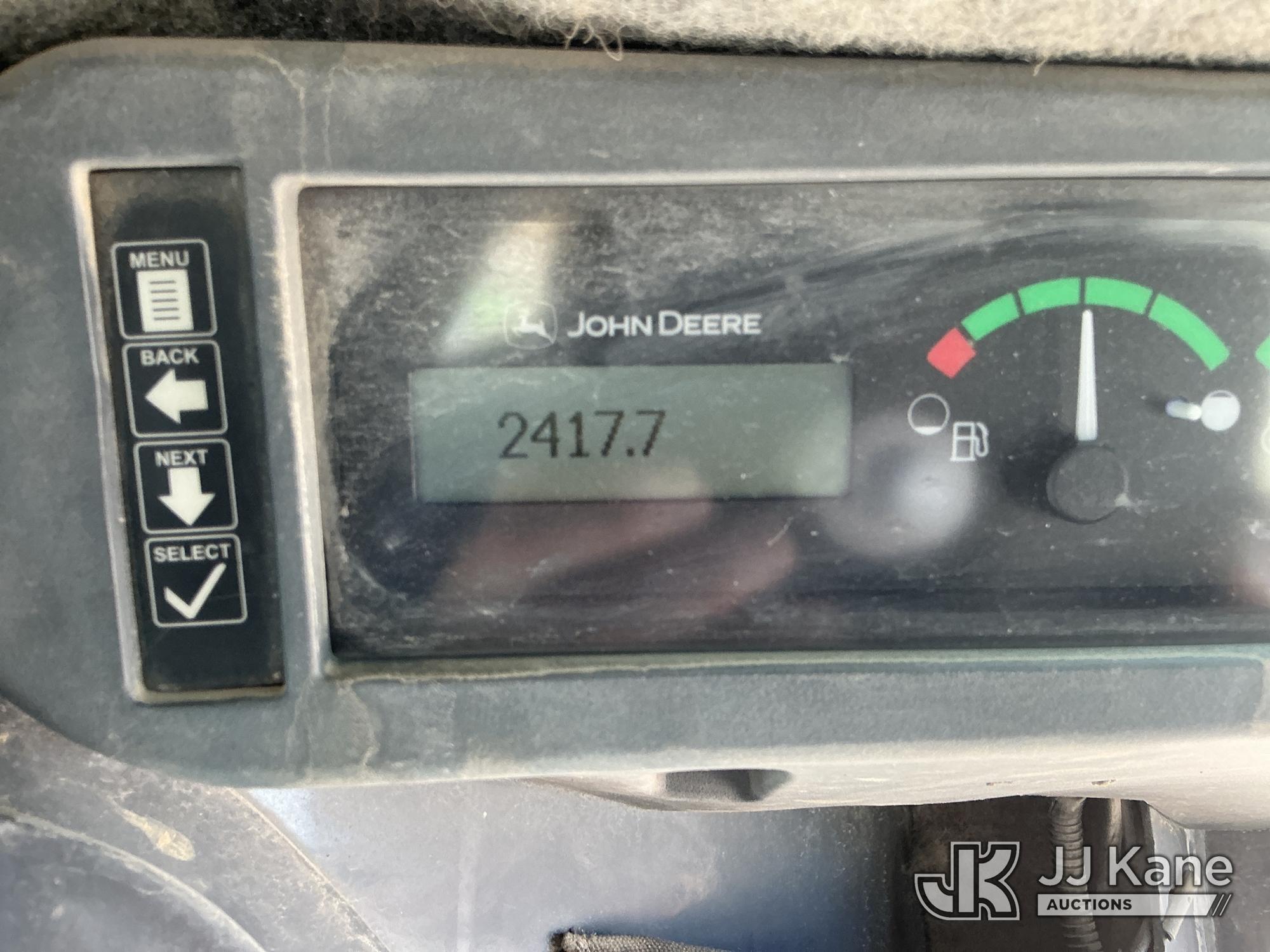

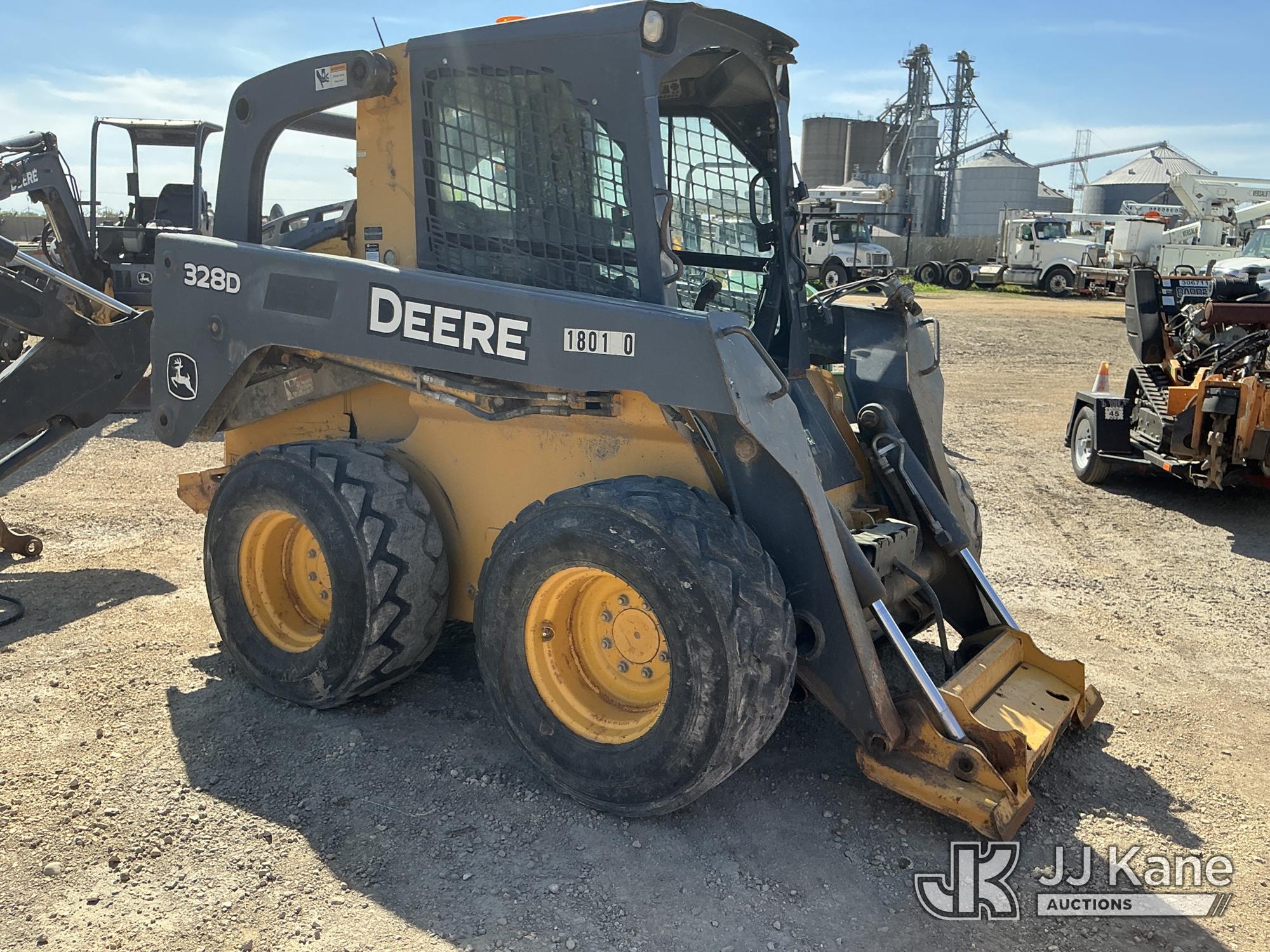

2013 John Deere 328D Rubber Tired Skid Steer Loader, s/n 1T0328DKJCD234380, J.D. diesel, Hydrostatic, with aux hydraulics, EROPS w/ AC, **Buyer Must Load**No Loading Assistance Available ((Runs & Does Not Move, Does Not Operate) (Seller States: Bad Hyd. Pump.) (**Buyer Must Load**No Loading Assistance Available)) (Reads 2,417 hours) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in South Beloit, IL. Inspection & preview days for this unit are the 2 business days prior to the first day of items closing for this auction, item is located at 14354 Dearborn Ave South Beloit, IL and hours of operations are 8a-4p. For pre-sale questions, please contact Derek Eklund at (608) 904-0618 or ([email protected]). (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The John Deere 328D is a skid steer loader designed for construction, landscaping, agriculture, and material handling applications. It is part of John Deere's D-Series lineup and is known for its compact frame, vertical lift path, and compatibility with a wide range of attachments. The 328D is commonly used for loading, grading, digging, and site cleanup in confined work areas. Typical features include a diesel engine, hydraulic attachment capability, and operator-focused controls. As a skid steer loader, the John Deere 328D is suited for tasks requiring maneuverability, lifting performance, and versatile jobsite operation.
Axles
Maximum Axle Torque 6,235 lbs ft (8,453 nm)
Tractive Effort 8,610 lbs ft (11,673 nm)
Dimensions
Angle of departure 31 degrees
Ground Clearance 12 in (30 cm)
Height - Top of ROPS/FOPS 85 in (215 cm)
Hinge pin height, maximum height 127 in (322 cm)
Length 142 in (360 cm)
Length w/o Bucket 10 ft (3 m)
Reach at Max Lift and Dump 31 in (80 cm)
Turning Radius - TTS870 7 ft (2 m)
Engine
Air cleaner Dry dual element
Aspiration Turbocharged and intercooled
Displacement 183 cu in (3,000 cu cm)
Emissions Certification EPA Tier 3/EU Stage IIIA
Engine Make John Deere PowerTech
Engine Model E 5030HT
Net Torque 221 lbs ft (300 nm)
Net Torque Rise 43%
Number of Cylinders 5
Power Measured @ 2,800 rpm
Torque Measured @ 2,000 rpm
Hydraulic System
Hydraulic Horsepower-Standard Flow 46 hp (34 kw)
Hydraulic Horsepower_High Flow 77 hp (57 kw)
Pump Flow Capacity 32 gpm (122 lpm)
System Pressure at Couplers 3,450 psi
Loader
Boom breakout force 5,000 lbs (2,268 kg)
bucket breakout force (ISO 14397) 7,750 lbs (3,515 kg)
Dump angle @ max. height 45 degrees
Dump height 9 ft (3 m)
Operating Load Rating 2,950 lbs (1,338 kg)
Operating Width 77 in (196 cm)
Rollback - Ground Level 35 degrees
Tipping load (ISO 14397) 5,600 lbs (2,540 kg)
Width without Bucket 6 ft (2 m)
Operating Specifications
Alternator Supplied Amperage 70 amps
Hydraulic System Fluid Capacity 21 gal (80 l)
Max Speed 12 mph (19 kph)
Operating Voltage 12 volts
Operational Weight 8,409 lbs (3,814 kg)
Tire Size 14 x 17.5 12 PR Extra Wall
