2009 Kawasaki 80ZV-2 For Sale in Birmingham, AL


/ Save to Watch List

Auction Pricing



   Auction Info: Starting on 2026-06-17



Machine Info:

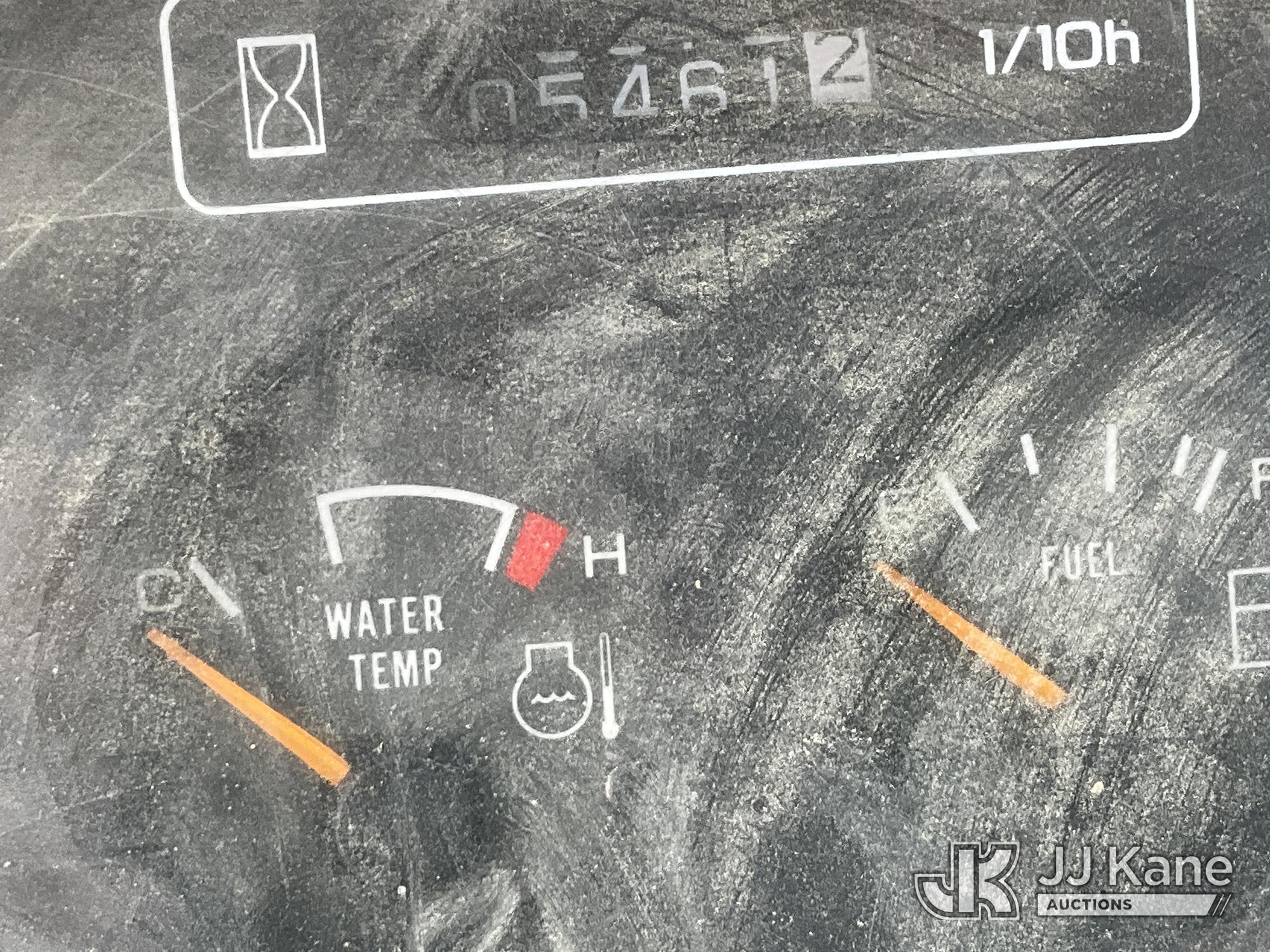

Hours:5461

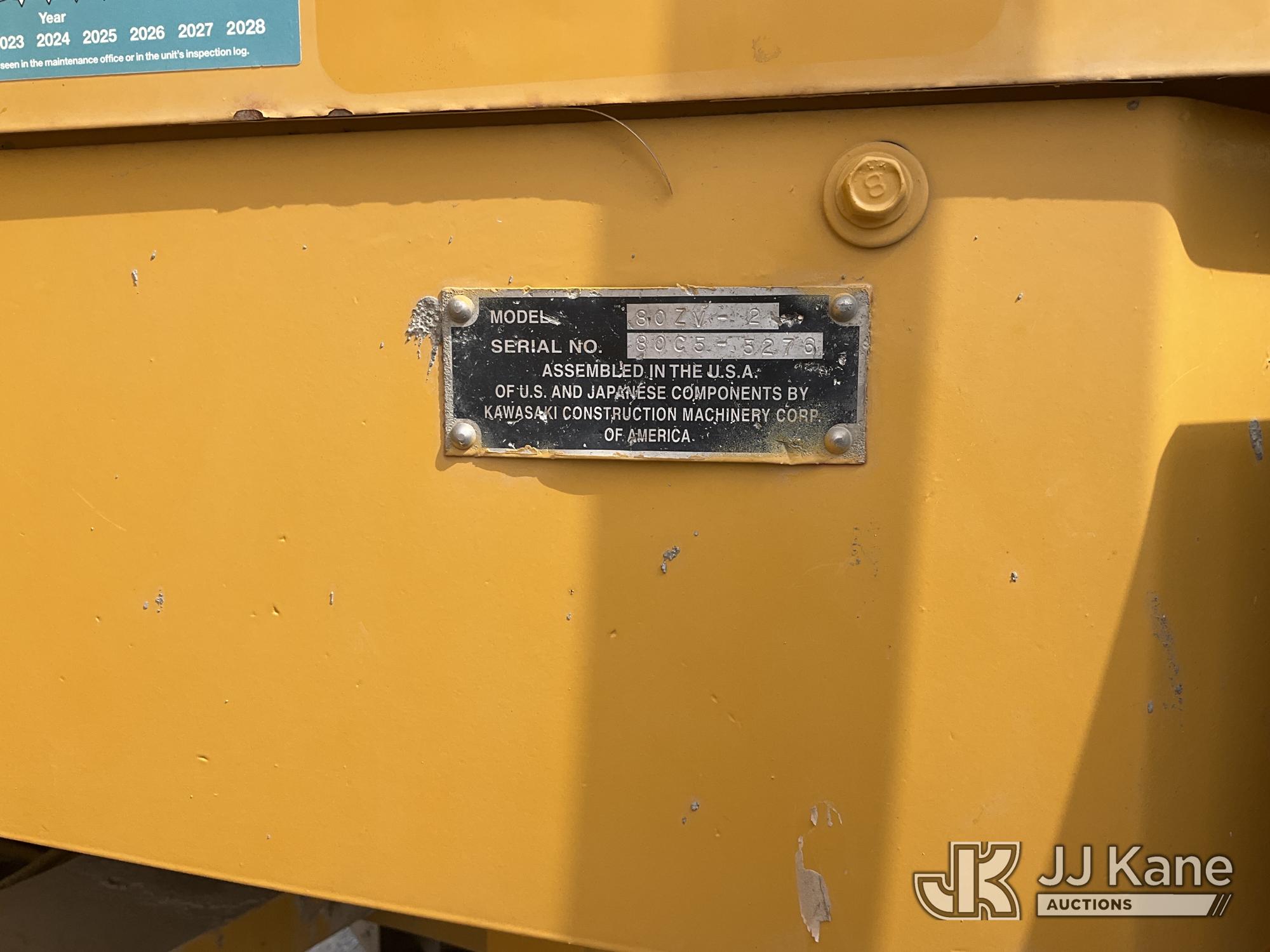

Serial Number:80C5-5276
Machine Location:BIRMINGHAM, AL

Description:

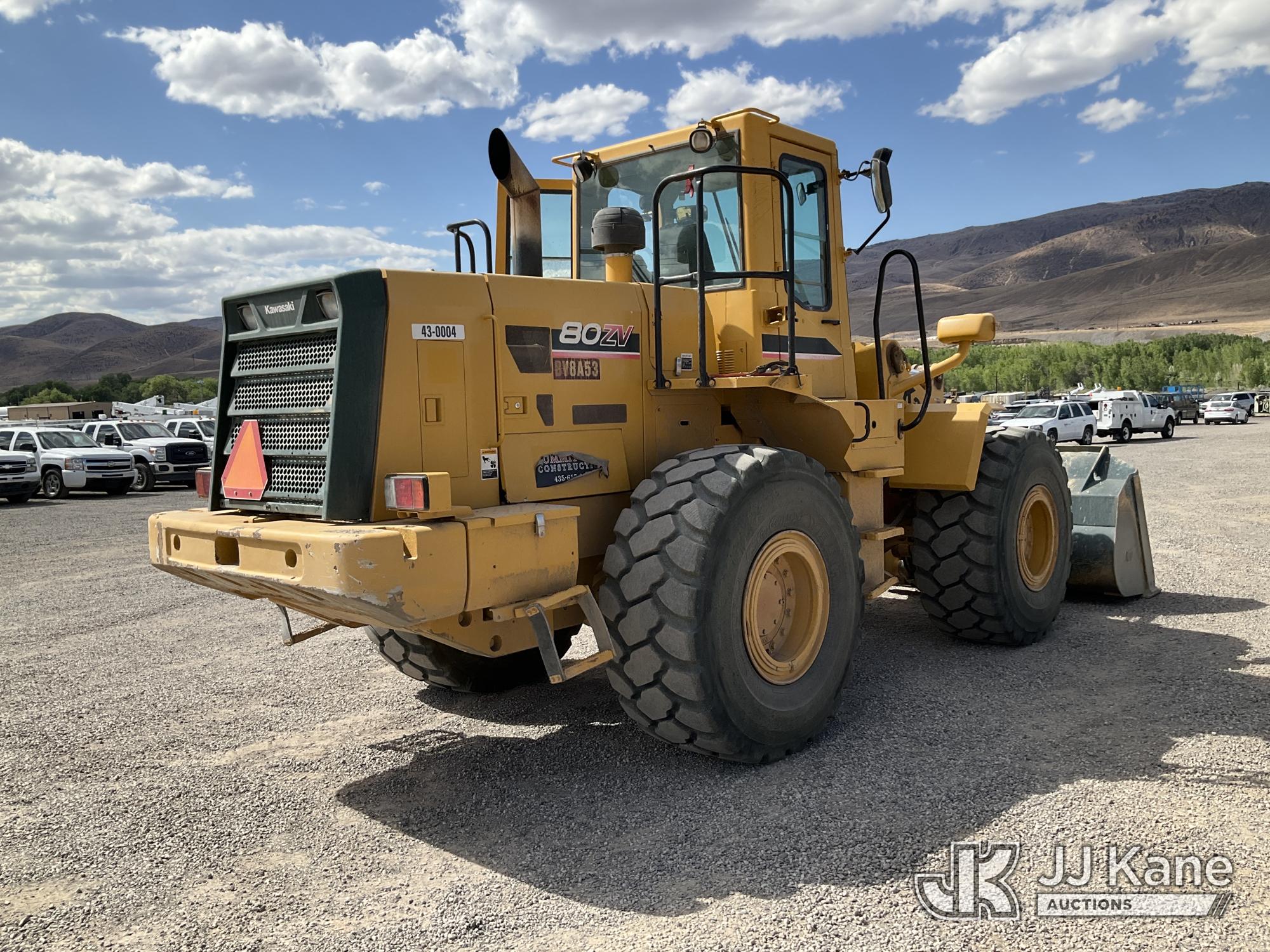

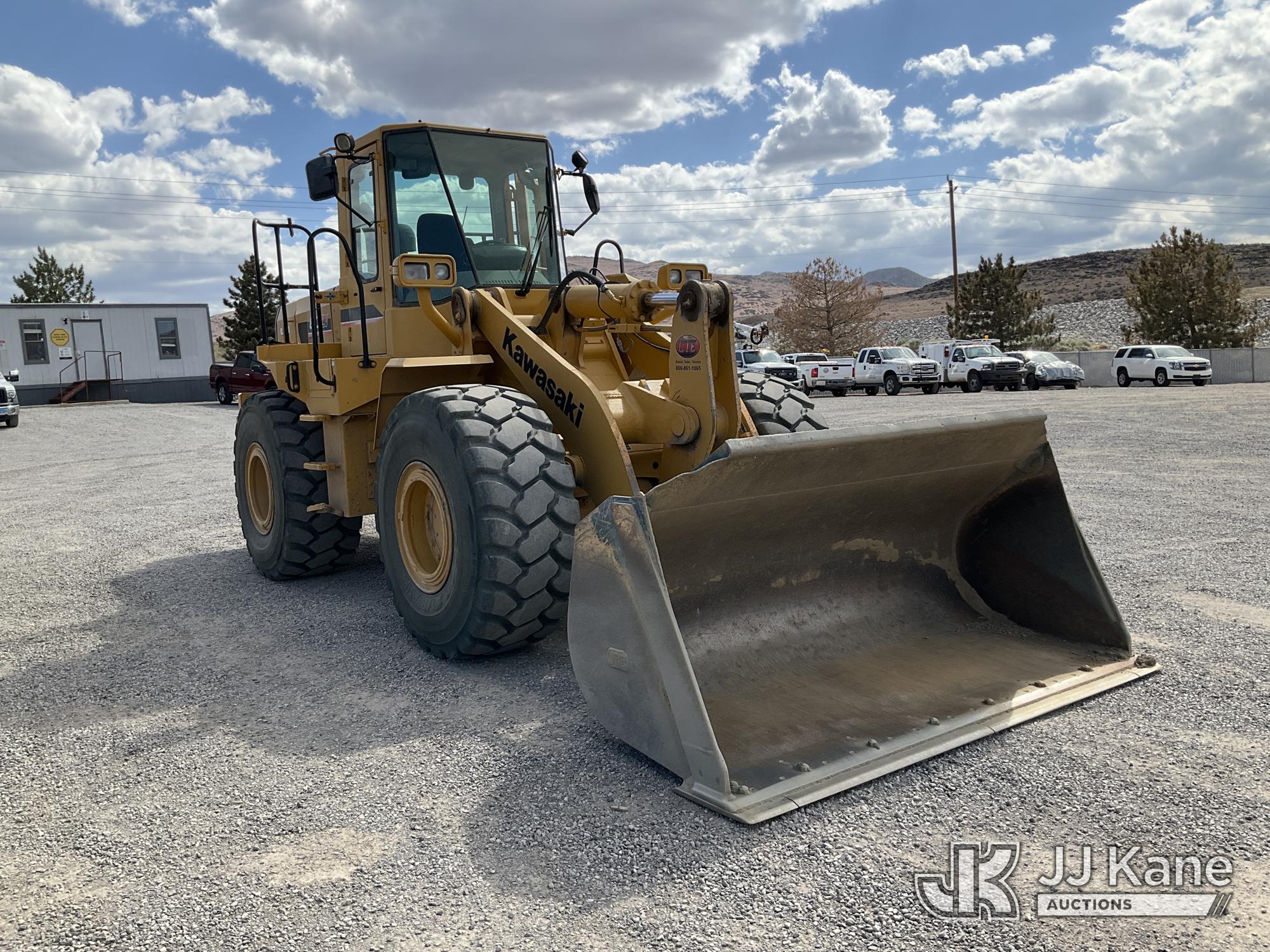

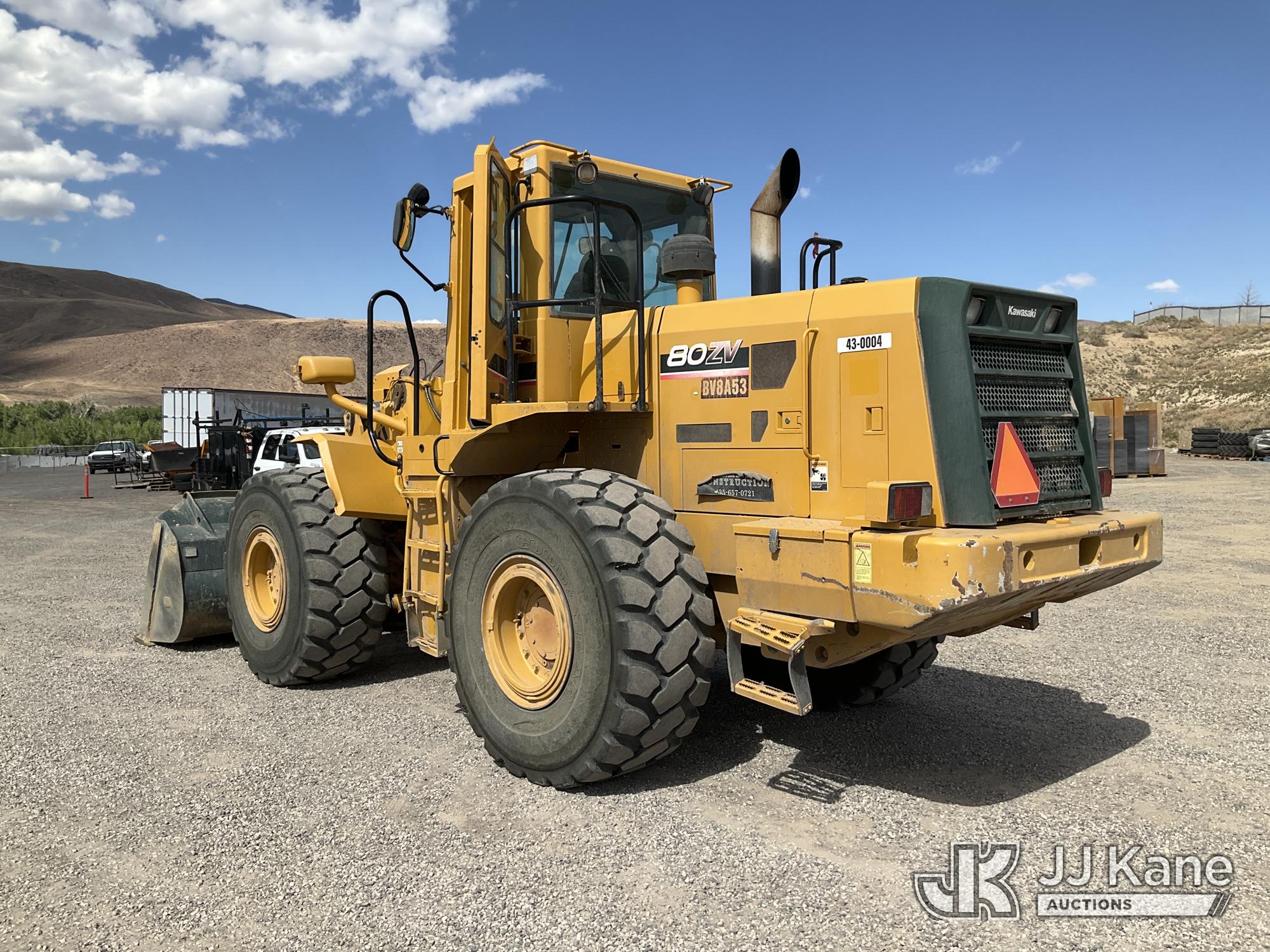

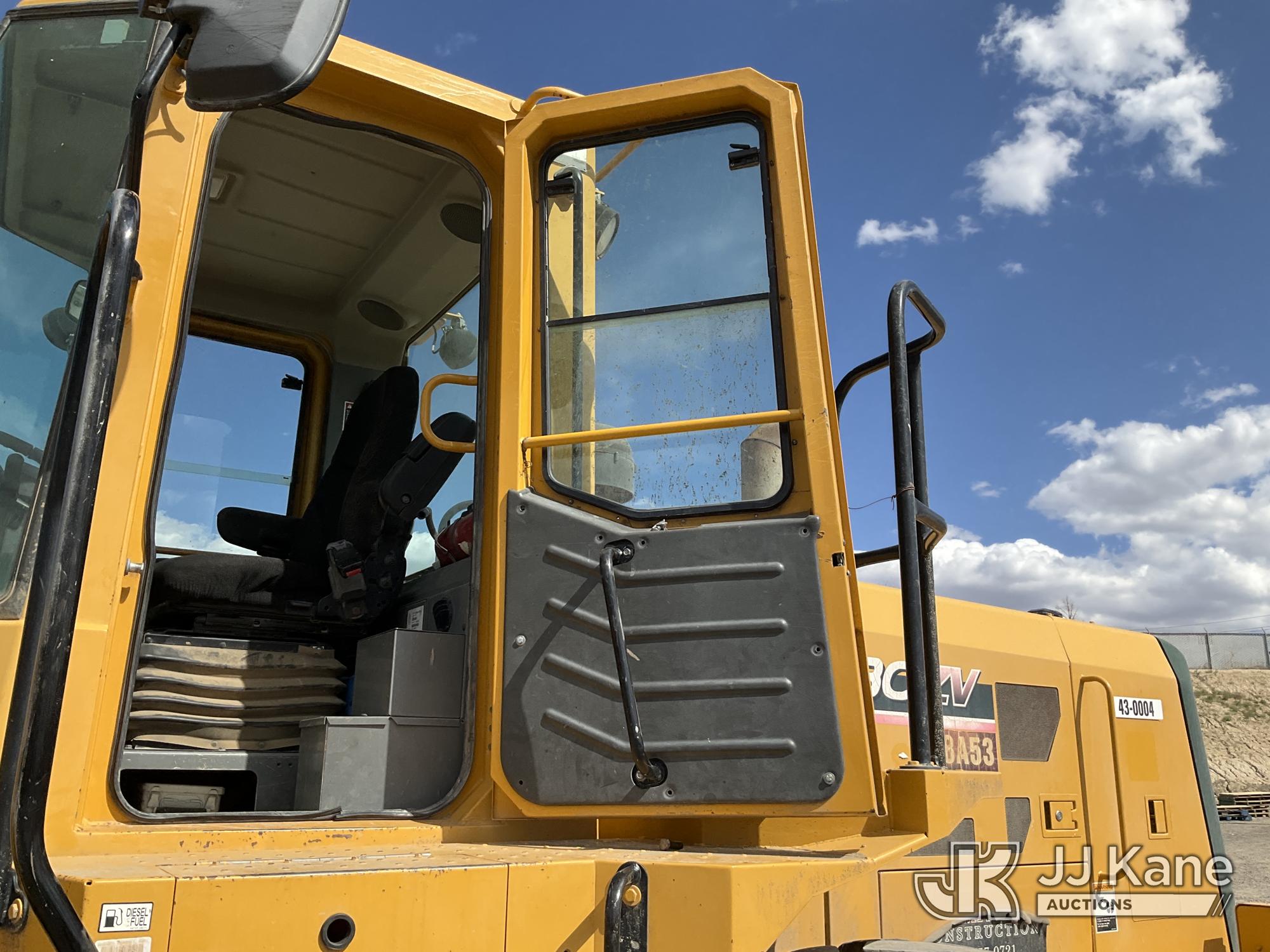

2009 Kawasaki 80ZV-2 Front End Loader, s/n 80C5-5276, Cummins 8.3L 4WD, Diesel, Powershift 4F 4R, with GP loader bucket, EROPS, Operational Capabilities: Operating Weight: 39,308 lbs (17,830 kg), Standard Bucket Capacity (Heaped): 4.19, Breakout Force: 36,193 lbs, Static Tipping Load (Full Turn): 30,600 lbs, Dump Clearance (Max Raise): 9.72 ft Dimensions & Tires: Transport Length: ~26.25 ft, Width over Tires: 8.8 ft, Height to Top of Cab: 11.32 ft, Wheelbase: 10.5 ft, Turning Radius: 21 ft, Standard Tire Size: 23.5x25-16PR (L-3) , Capacities: Fuel Tank: 76.7 gal, Hydraulic System: 42.3 gal, Cooling System: 15.9 gal (Runs, Moves & Operates) (Hydraulic Leak In Drive Line) (Reads 5,461 hours) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in Sparks, NV. Inspection & preview days for this unit are the 2 business days prior to the first day of items closing for this auction, item is located at 601 Britain Dr Sparks, NV 89437 and hours of operations are 8a-4p.


From the manufacturer:

Supplied by HeavyEquipmentData.com →

Bucket
Breakout Force 36,193 lbs (16,417 kg)
Bucket Capacity - heaped 4 cu yd (3 cu m)
Bucket Capacity - struck 4 cu yd (3 cu m)
Bucket Width 9 ft (3 m)
Dump Clearance at Max Raise 10 ft (3 m)
Dimensions
Ground Clearance 2 ft (0 m)
Height - Top of Cab 11 ft (3 m)
Hinge Pin - Max Height 14 ft (4 m)
Length with Bucket on Ground 26 ft (8 m)
Reach at Max Lift and Dump 4 ft (1 m)
Wheelbase 11 ft (3 m)
Width Over Tires 9 ft (3 m)
Engine
Aspiration turbocharged
Displacement 504 cu in (8,259 cu cm)
Engine Model QSC8.3
Make Cummins
Net Power 198 hp (148 kw)
Number of Cylinders 6
Power Measured @ 2,200 rpm
Torque Measured @ 1,500 rpm
Hydraulic System
Dump Time 1 seconds
Lower Time 3 seconds
Pump Flow Capacity 19 gpm (72 lpm)
Pump Type gear type
Raise Time 6 seconds
Relief Valve Setting 3,000 psi
Operating Specifications
Alternator Supplied Amperage 70 amps
Cooling System Fluid Capacity 16 gal (60 l)
Engine Oil Fluid Capacity 8 gal (30 l)
Front Axle/Diff Fluid Capacity 15 gal (55 l)
Fuel Capacity 77 gal (290 l)
Hydraulic System Fluid Capacity 42 gal (160 l)
Operating Voltage 24 volts
Operating Weight 39,308 lbs (17,830 kg)
Rated Bucket Capacity 4 cu yd (3 cu m)
Rear Axle Oscillation 24 degrees
Rear Axle/Diff Fluid Capacity 15 gal (55 l)
Static Tipping Weight 30,600 lbs (13,880 kg)
Tire Size 23.5x25-16PR (L-3)
Transmission Fluid Capacity 12 gal (45 l)
Turning Radius 21 ft (6 m)
Transmission
Max Speed - Forward 23 mph (37 kph)
Max Speed - Reverse 23 mph (37 kph)
Number of Forward Gears 4
Number of Reverse Gears 4
Transmission Type full powershift
Weights
Operational Weight 39,308 lbs (17,830 kg)
