2009 Komatsu PC228USLC-3E0 For Sale in Atlanta, Ga

Name: 2009 Komatsu PC228USLC-3E0
Brand: Komatsu
SKU: 88674795
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-07-14 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

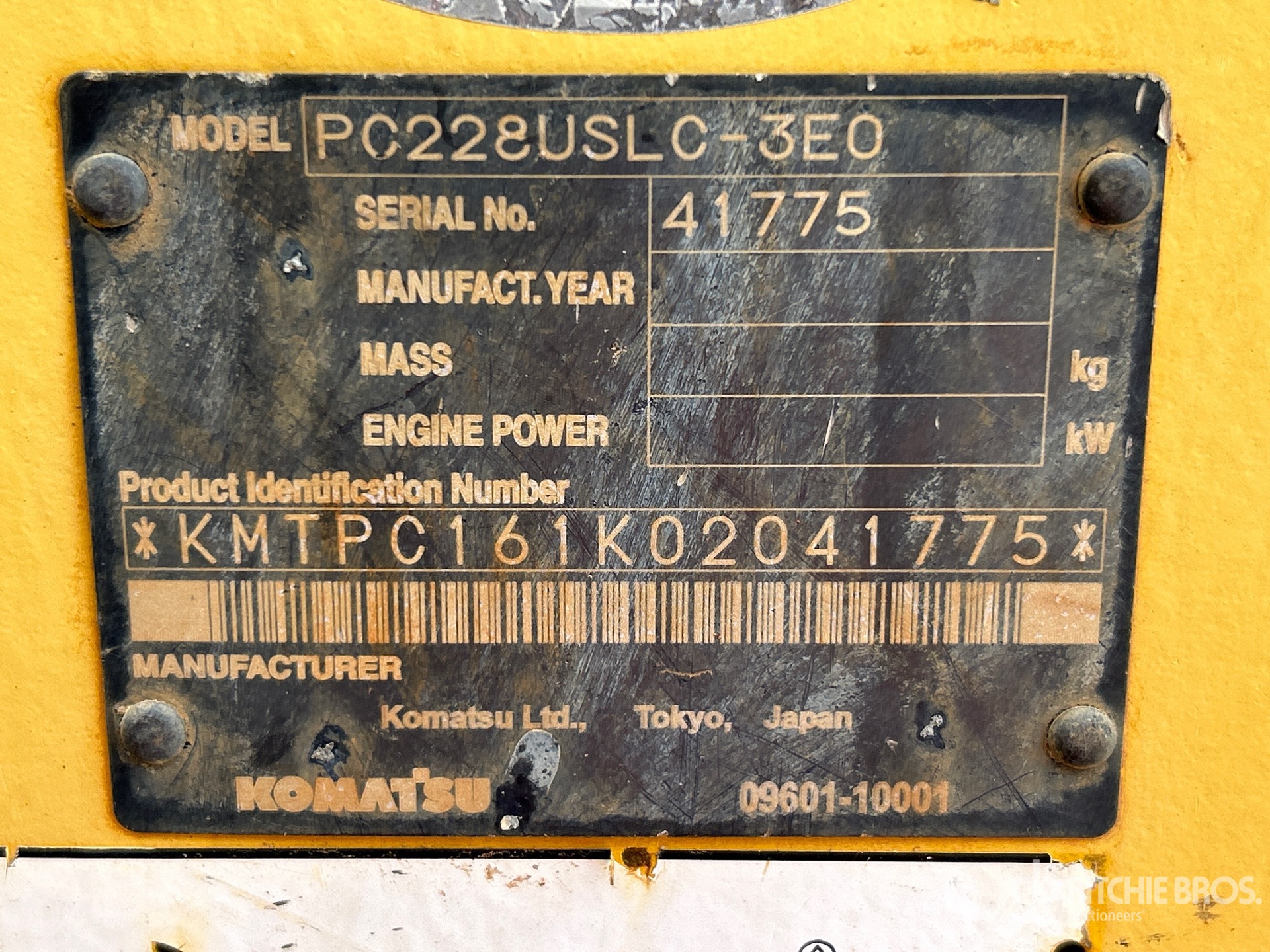

Serial Number:	KMTPC161K02041775
Machine Location:	ATLANTA, GA

Description:

Located in Lane 8 Spot 59, Air Conditioner, 2008 US EPA Label, 9 ft 6 in Stick, 31.5 in Triple Grouser Track Shoes, Rock Guards, 48 in Digging Bucket Closing Time: 2026-07-14 10:36:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Arm Crowd Force - SAE	22,706 lbs (10,299 kg)
Arm Crowd Force-ISO	24,279 lbs (11,013 kg)
Bucket Digging Force - ISO	33,497 lbs (15,194 kg)
Bucket Digging Force - SAE	31,024 lbs (14,072 kg)
Max Digging Depth	22 ft (7 m)
Max Digging Height	35 ft (11 m)
Max Digging Reach	32 ft (10 m)
Max Digging Reach on Ground	32 ft (10 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Max.Dumping Height	26 ft (8 m)
Minimum swing radius	91 in (231 cm)
Capacities
Engine Oil	6 gal (23 l)
Final Drive	1 gal (5 l)
Fuel Tank	85 gal (320 l)
Swing drive	2 gal (7 l)
Dimensions
Cab height	90 in (229 cm)
Ground Clearance	2 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	12 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	6 ft (2 m)
Track Gauge	8 ft (2 m)
Track length	175 in (445 cm)
Width to Outside of Tracks	10 ft (3 m)
Engine
Aspiration	Turbocharged
Bore	4 in (11 cm)
Displacement	408 cu in (6,691 cu cm)
Engine Make	Komatsu
Engine Model	SAA6D107E-1
Gross Power	156 hp (116 kw)
Net Power	148 hp (110 kw)
Power Measured @	2,000 rpm
Stroke	5 in (12 cm)
Operating Specifications
Hydraulic Pump Flow Capacity	113 gpm (428 lpm)
Operating Weight	49,891 lbs (22,630 kg)
Swing Mechanism
Swing Speed	11 rpm
Undercarriage
Drawbar Pull	45,412 lbs (20,598 kg)
Ground Pressure	7 psi
Max Travel Speed	4 mph (6 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	49
Number of Track Rollers per Side	9
Shoe Size	24 in (60 cm)
