Equipment ↠ Komatsu ↠ Excavators ↠ 2022 Komatsu PC290LC11

2022 Komatsu PC290LC11 For Sale in Orlando, Fl

Name: 2022 Komatsu PC290LC11
Brand: Komatsu
SKU: 88897179
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-08-27 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

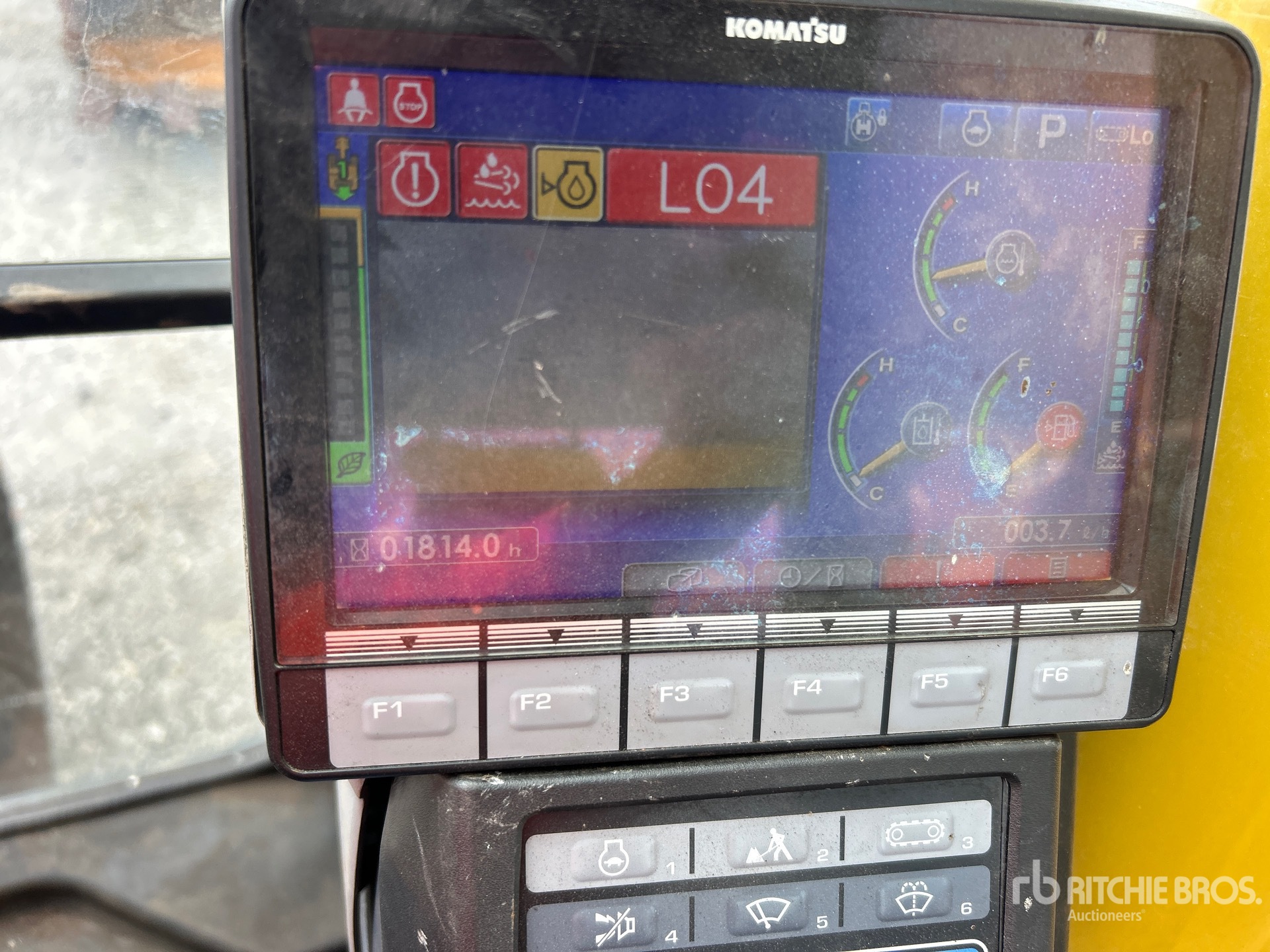

Hours:	1814

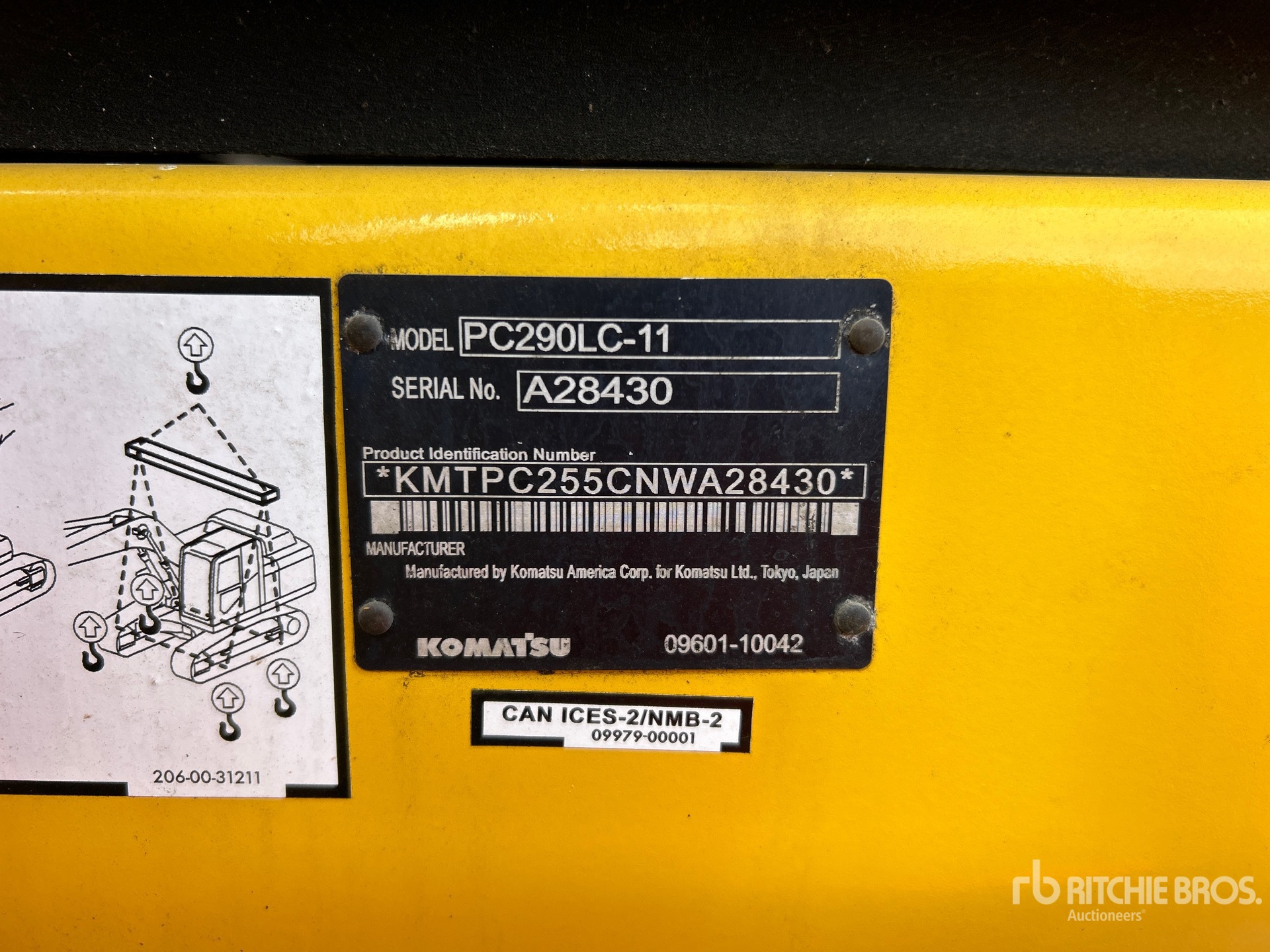

Serial Number:	KMTPC255CNWA28430
Machine Location:	ORLANDO, FL

Description:

Located in Lane 11 Spot 132, Air Conditioner, Control Pattern Changer, Rear View Camera, 2022 US EPA Label, Requires Diesel Exhaust Fluid, 12 ft 3 in Stick, 33.5 in Triple Grouser Track Shoes, 54 in Digging Bucket TODAY'S PRICE: CAD $130,000, CAD $140,000, 7.14% OFF, Click here to shop for more discounted items, Closing Time: 2026-08-27 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

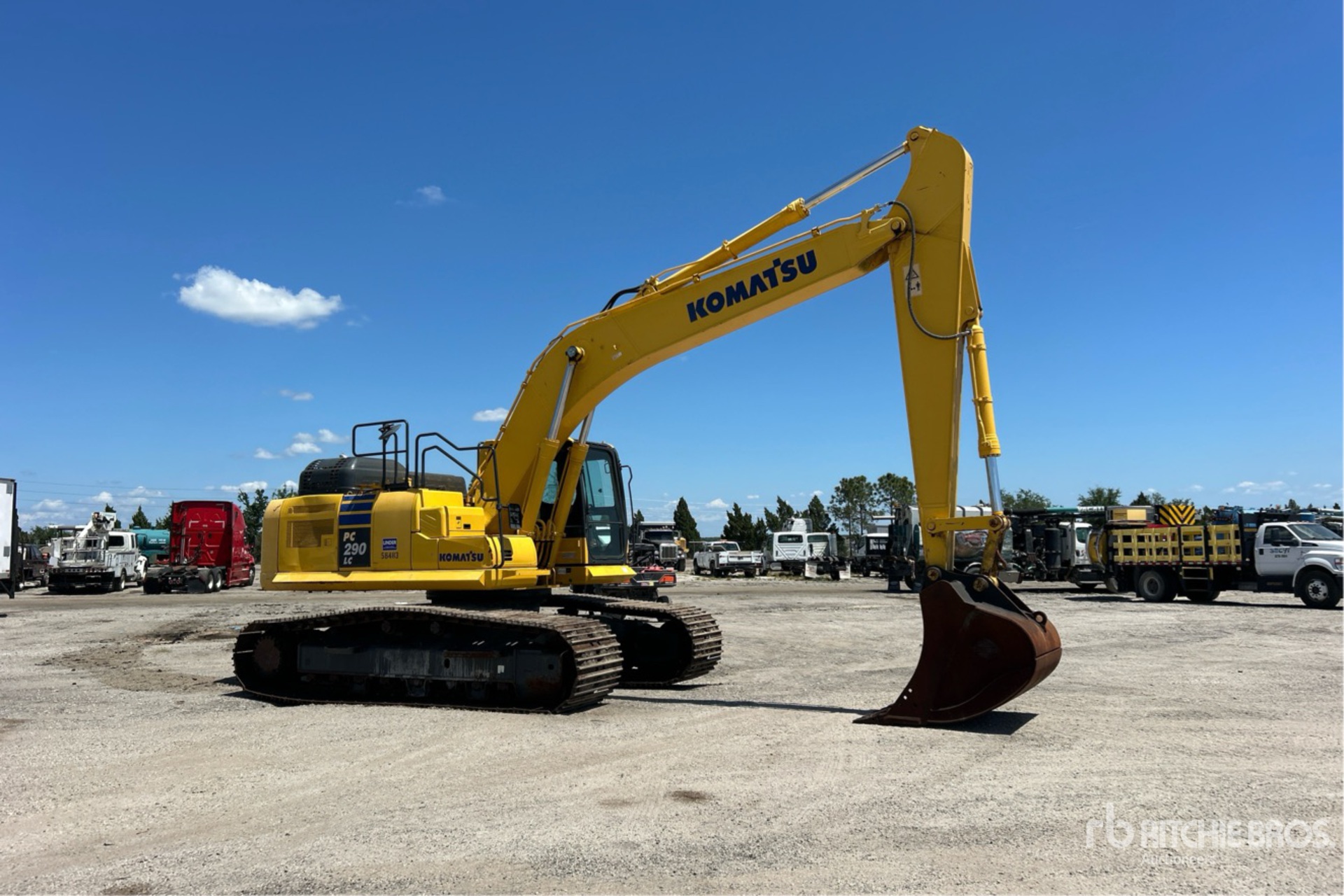

Komatsu PC290LC-11 is a hydraulic crawler excavator in the 30-ton class, designed for general excavation, trenching, site development, and material handling. The PC290LC-11 uses Komatsu's low-emission engine and hydraulic system to support efficient digging performance, smooth control, and fuel economy. The LC undercarriage provides a long track frame for improved stability and lifting capability. Common applications include utility work, road construction, earthmoving, and quarry support. The cab is configured for operator visibility, comfort, and control layout suited to extended work cycles. The PC290LC-11 is part of Komatsu's PC-series excavator lineup for medium-duty construction operations.

Boom/Stick Excavator Option 1
Arm Crowd Force - SAE	29,000 lbs (13,154 kg)
Arm Crowd Force-ISO	30,124 lbs (13,664 kg)
Bucket Digging Force - ISO	44,512 lbs (20,190 kg)
Bucket Digging Force - SAE	39,566 lbs (17,947 kg)
Max Digging Depth	23 ft (7 m)
Max Digging Height	34 ft (10 m)
Max Digging Reach	35 ft (11 m)
Max Digging Reach on Ground	34 ft (10 m)
Max Reach Along Ground	36 ft (11 m)
Max Vertical Wall Digging Depth	19 ft (6 m)
Max.Dumping Height	24 ft (7 m)
Minimum swing radius	152 in (386 cm)
Boom/Stick Excavator Option 2
Arm Crowd Force-ISO	28,101 lbs (12,747 kg)
Arm Crowd Force-SAE	27,202 lbs (12,339 kg)
Bucket Digging Force - ISO	44,512 lbs (20,190 kg)
Bucket Digging Force - SAE	39,566 lbs (17,947 kg)
Max Digging Depth	24 ft (7 m)
Max Digging Reach	36 ft (11 m)
Max Reach Along Ground	35 ft (11 m)
Max Vertical Wall Digging Depth	19 ft (6 m)
Max. digging height	34 ft (10 m)
Max.Dumping Height	24 ft (7 m)
Minimum swing radius	147 in (374 cm)
Capacities
Engine Oil	6 gal (23 l)
Final Drive	2 gal (8 l)
Fuel Tank	106 gal (400 l)
Swing drive	2 gal (8 l)
Dimensions
Ground Clearance	2 ft (1 m)
Height - Top of Cab	11 ft (3 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	10 ft (3 m)
Track Gauge	9 ft (3 m)
Track length	195 in (496 cm)
Width to Outside of Tracks	11 ft (3 m)
Engine
Aspiration	Turbocharged
Bore	4 in (11 cm)
Displacement	408 cu in (6,691 cu cm)
Engine Make	Komatsu
Engine Model	SAA6D107E-3
Gross Power	213 hp (159 kw)
Net Power	197 hp (147 kw)
Power Measured @	2,050 rpm
Stroke	5 in (12 cm)
General Specifications
Digging Depth ft. (m) (Since 2025)	23.4 (7.07)
Digging Reach ft. (m) (Since 2025)	35.8 (10.8)
Engine hp (kW) (Since 2025)	196 (147)
Operating Weight lbs. (kg) (Since 2025)	72,091 (32,700)
Operating Specifications
Hydraulic Pump Flow Capacity	127 gpm (479 lpm)
Operating Weight	70,702 lbs (32,070 kg)
Swing Mechanism
Swing Speed	11 rpm
Undercarriage
Drawbar Pull	56 lbs (25 kg)
Ground Pressure	8 psi
Max Travel Speed	4 mph (6 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	48
Number of Track Rollers per Side	8
Shoe Size	28 in (70 cm)
