2018 Kubota U35-4 For Sale in Birmingham, AL


/ Save to Watch List

Auction Pricing



   Auction Info: Starting on 2026-07-29



Machine Info:

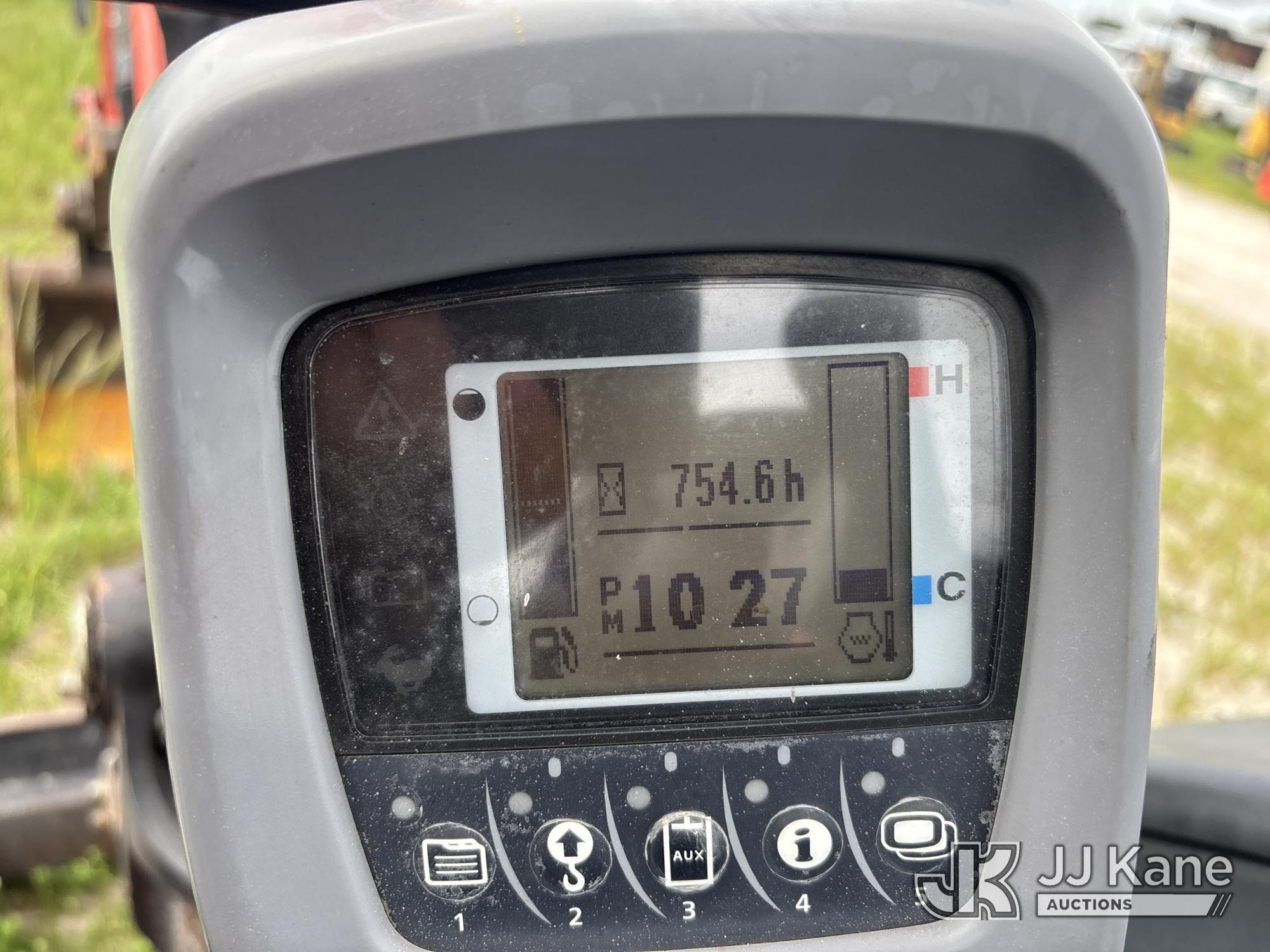

Hours:754

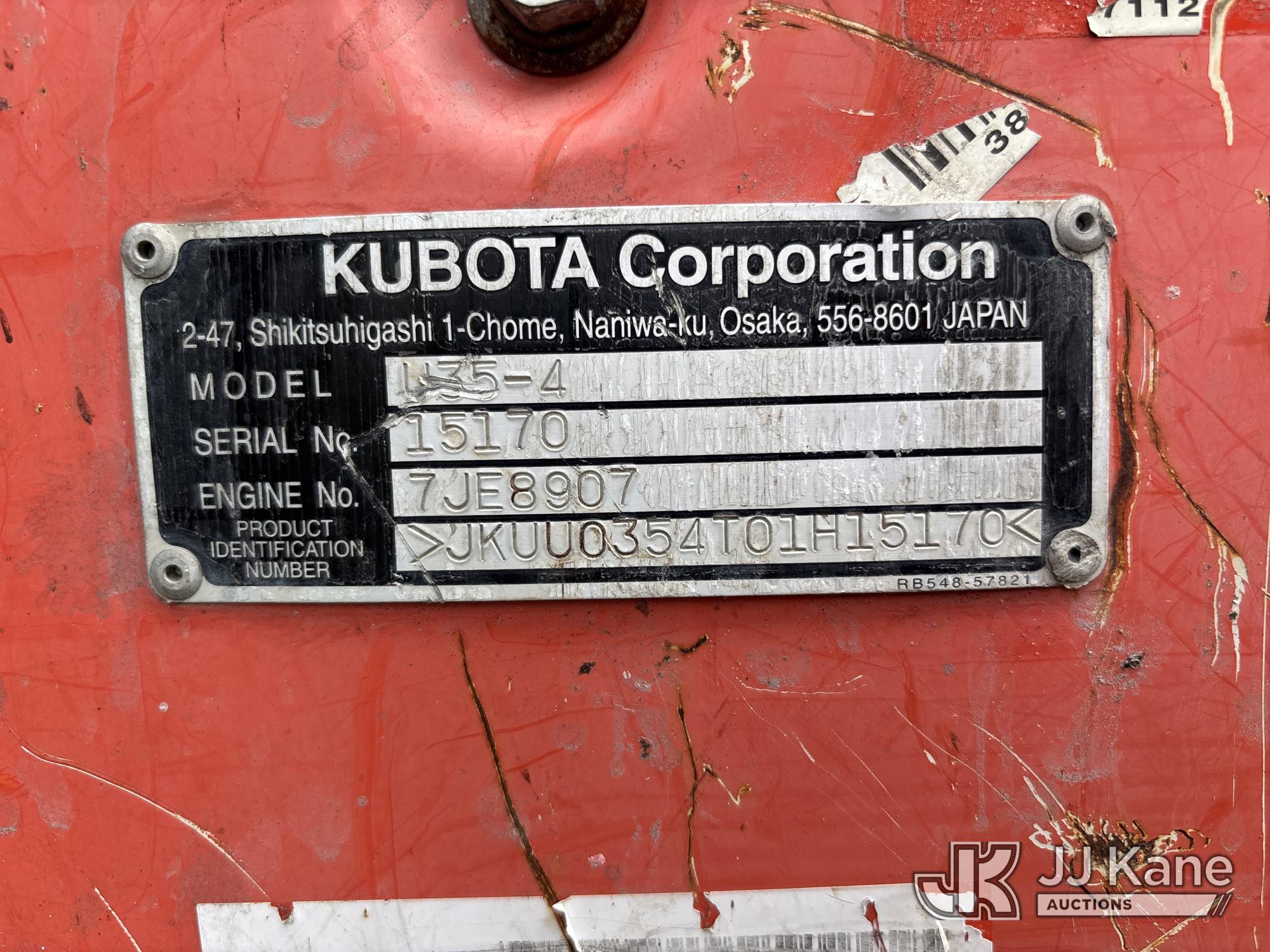

Serial Number:1H15170
Machine Location:BIRMINGHAM, AL

Description:

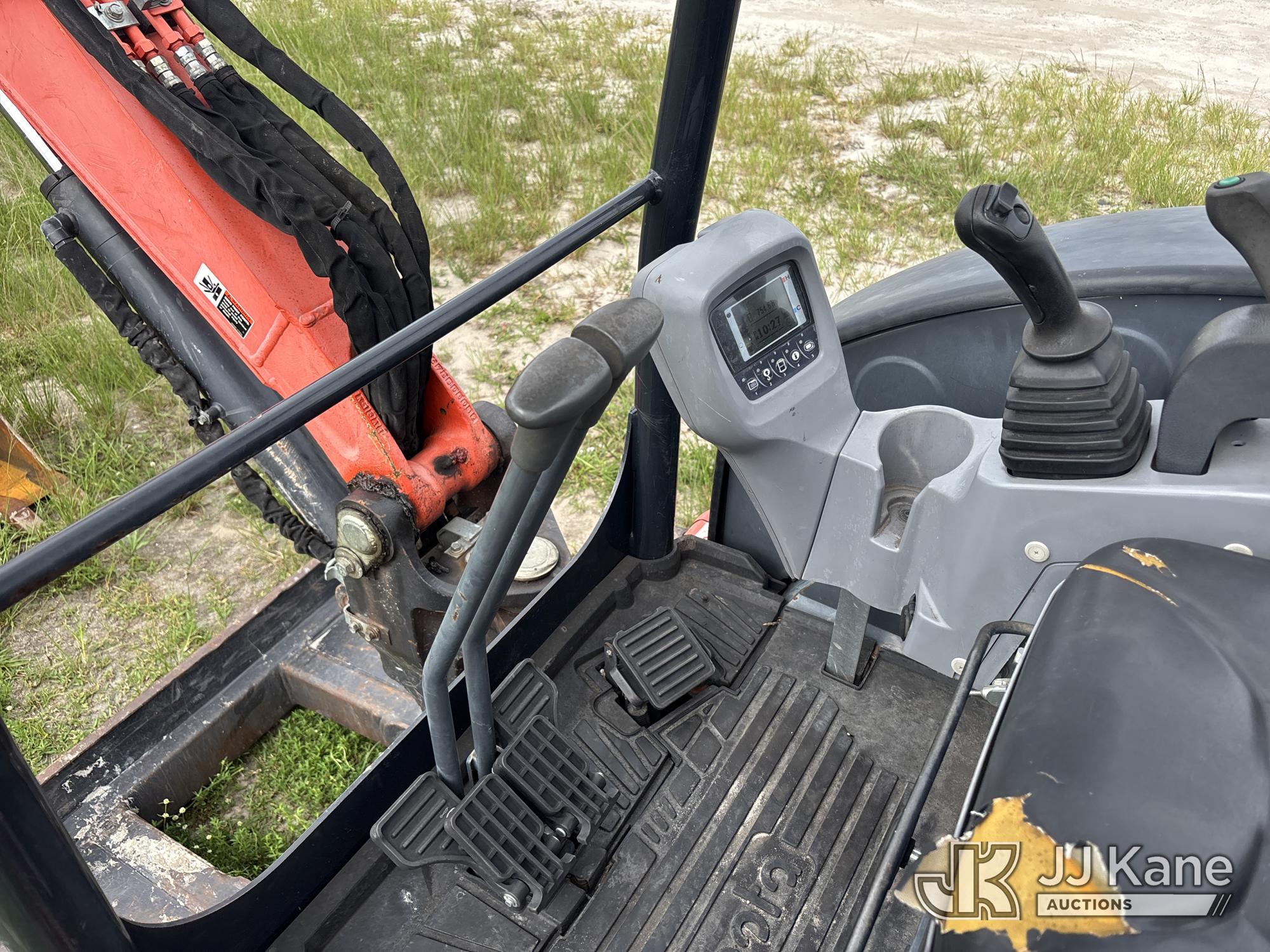

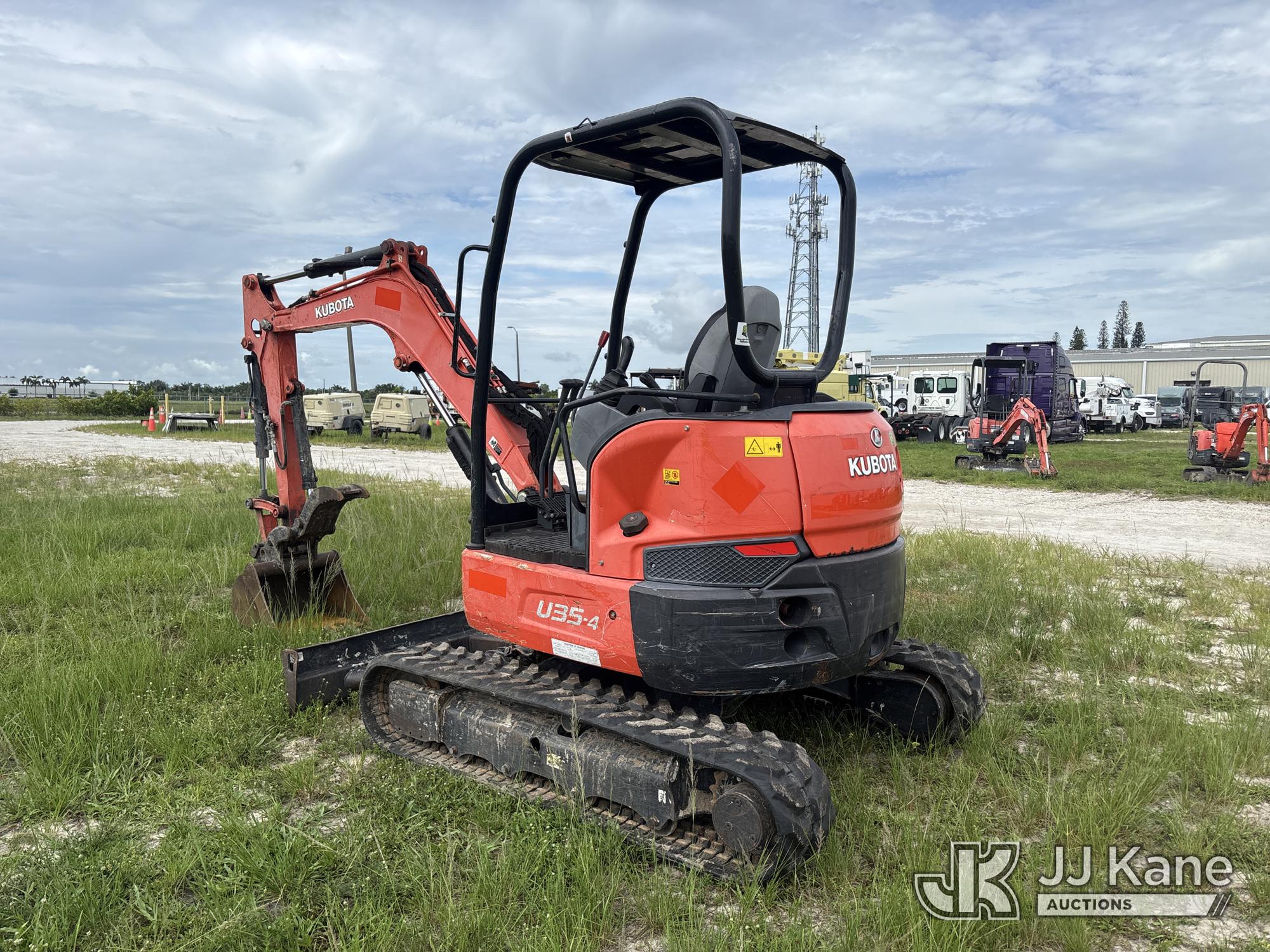

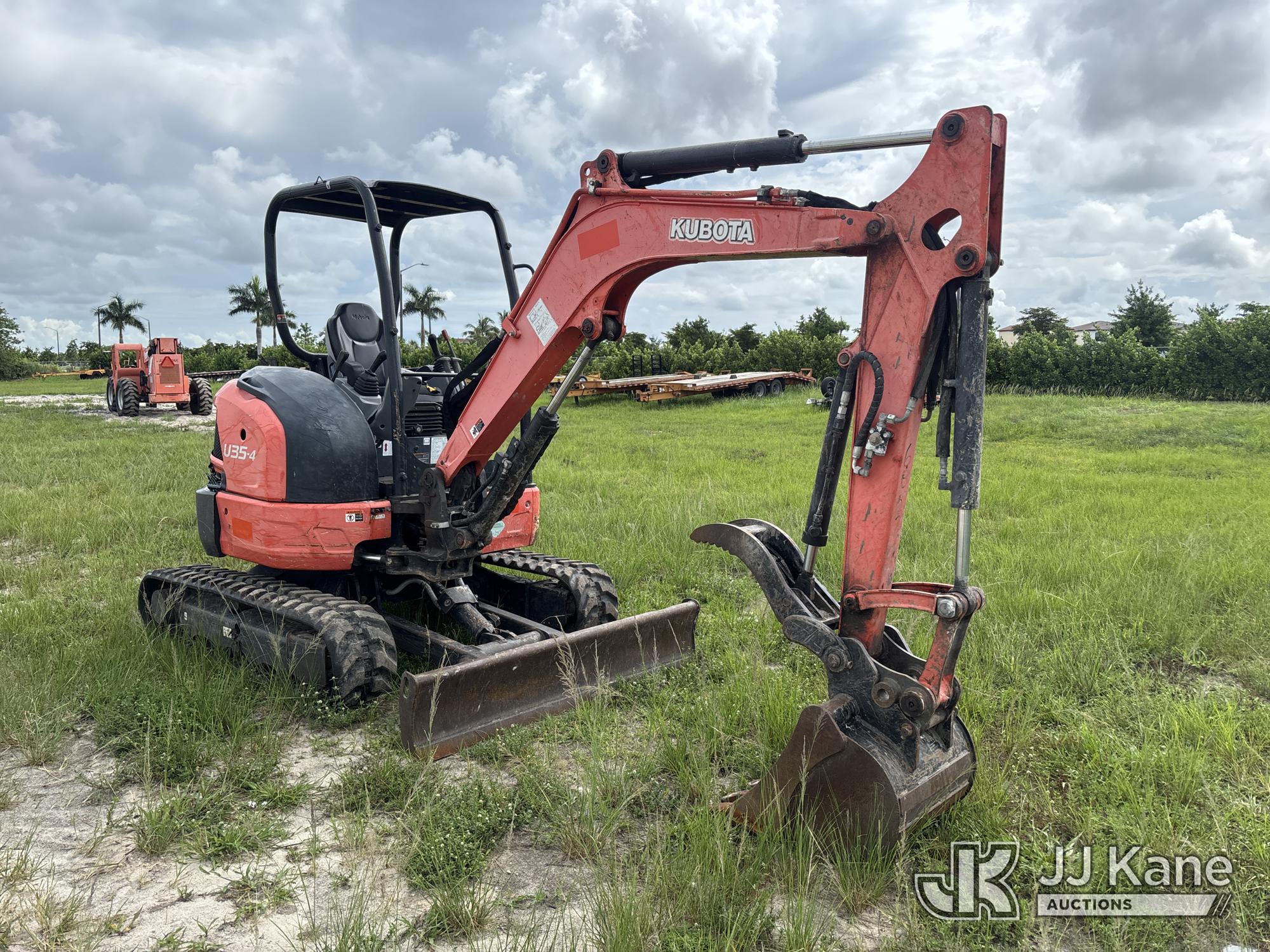

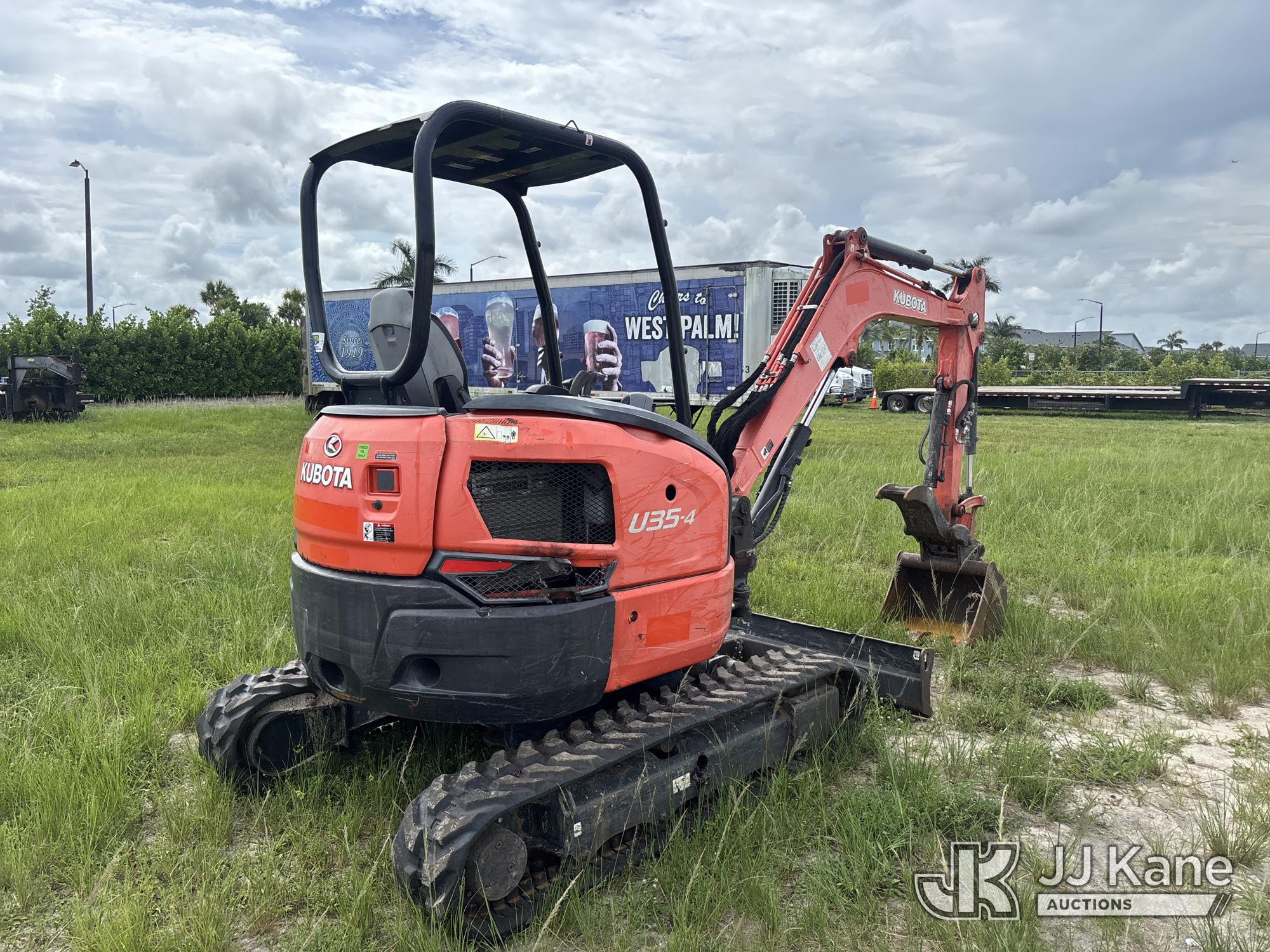

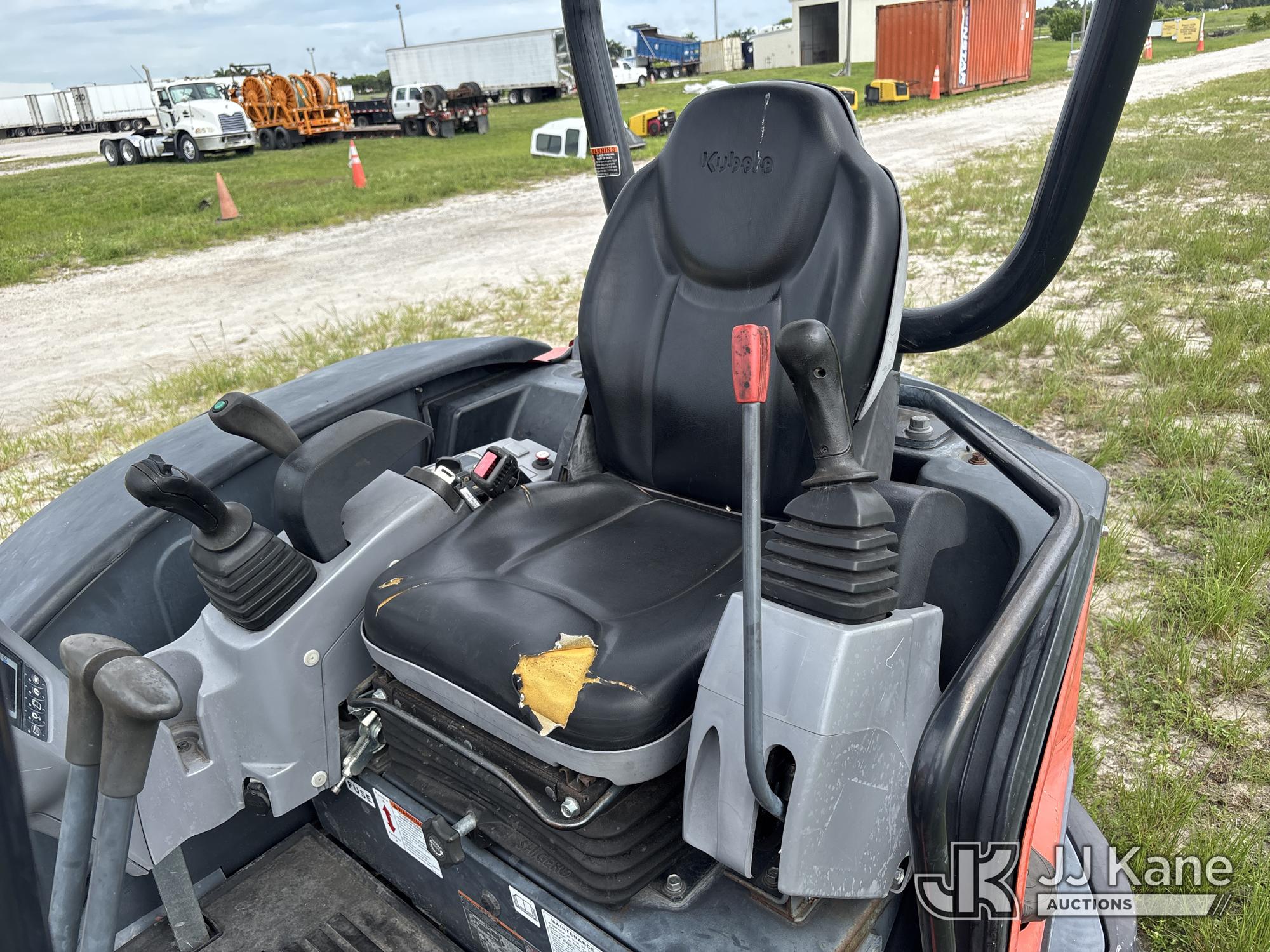

2018 Kubota U35-4 Mini Hydraulic Excavator, s/n 1H15170, Kubota DIESEL, Hydraulic Drive, with 24 Inch Bucket, 5 Ft Backfill Blade, ROPS, Hydraulic Thumb, (Runs, Moves & Operates) (Exterior Defects - See Pictures) (Reads 754 hours) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in Westlake, FL. Inspection & preview days for this unit are the 2 business days prior to the first day of items closing for this auction, item is located at 4003 Seminole Pratt Whitney Rd Westlake, FL 33470 and hours of operations are 8a-4p. For pre-sale questions, please contact: Matt Johnson @ (205) 847-9106. (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)


From the manufacturer:

Supplied by HeavyEquipmentData.com →


Kubota U35-4 is a compact mini excavator designed for digging, trenching, grading, and utility work in confined job sites. It is part of Kubota's U-series zero-tail-swing class, allowing operation close to walls, fences, and other obstacles with reduced rear overhang. The U35-4 is commonly used in landscaping, construction, municipal maintenance, and site preparation. Typical features include a hydraulic thumb-ready auxiliary circuit, adjustable track width, and a canopy or cab configuration depending on market. Its size and maneuverability make it suitable for access-restricted areas where larger excavators cannot operate efficiently.
Blades
Blade Lift Height 14 in (36 cm)
Maximum Drop below ground 1 ft (0 m)
Overall Height 8 ft (3 m)
Boom
Boom swing left 75 degrees
Boom swing right 55 degrees
Boom/Stick Excavator Option 1
Max Digging Height 16 ft (5 m)
Max Reach Along Ground 16 ft (5 m)
Max Vertical Wall Digging Depth 7 ft (2 m)
Max.Dumping Height 11 ft (3 m)
Mximum dig radius 208 in (527 cm)
Dimensions
Crawler length 7 ft (2 m)
Ground Clearance 1 ft (0 m)
Overall length 16 ft (5 m)
Overall Width 67 in (170 cm)
Tail Swing Radius 3 ft (1 m)
Engine
Displacement 6,133 cu in (100,500 cu cm)
Engine Make Kubota
Engine Model D1703M-DI-E4
Gross Power 25 hp (18 kw)
Number of Cylinders 3
Power Measured @ 2,200 rpm
General Specifications
Digging Depth ft. (m) (Since 2025) 9.10 (3)
Digging Reach ft. (m) (Since 2025) 16.1 (5.2)
Engine hp (kW) (Since 2025) 23.9 (17.8)
Operating Weight lbs. (kg) (Since 2025) 8,129 (3,687)
Operating Specifications
Auxiliary hydraulic flow 16 gpm (60 lpm)
Fuel Capacity 12 gal (47 l)
Hydraulic Pump Flow Capacity 12 gpm (45 lpm)
Hydraulic System Fluid Capacity 16 gal (61 l)
Operating Weight 8,129 lbs (3,687 kg)
Travel speed, high range 3 mph (5 kph)
Travel speed, low range 2 mph (3 kph)
Swing Mechanism
Swing Speed 9 rpm
Undercarriage
Ground Pressure 5 psi
Shoe Size 12 in (30 cm)
