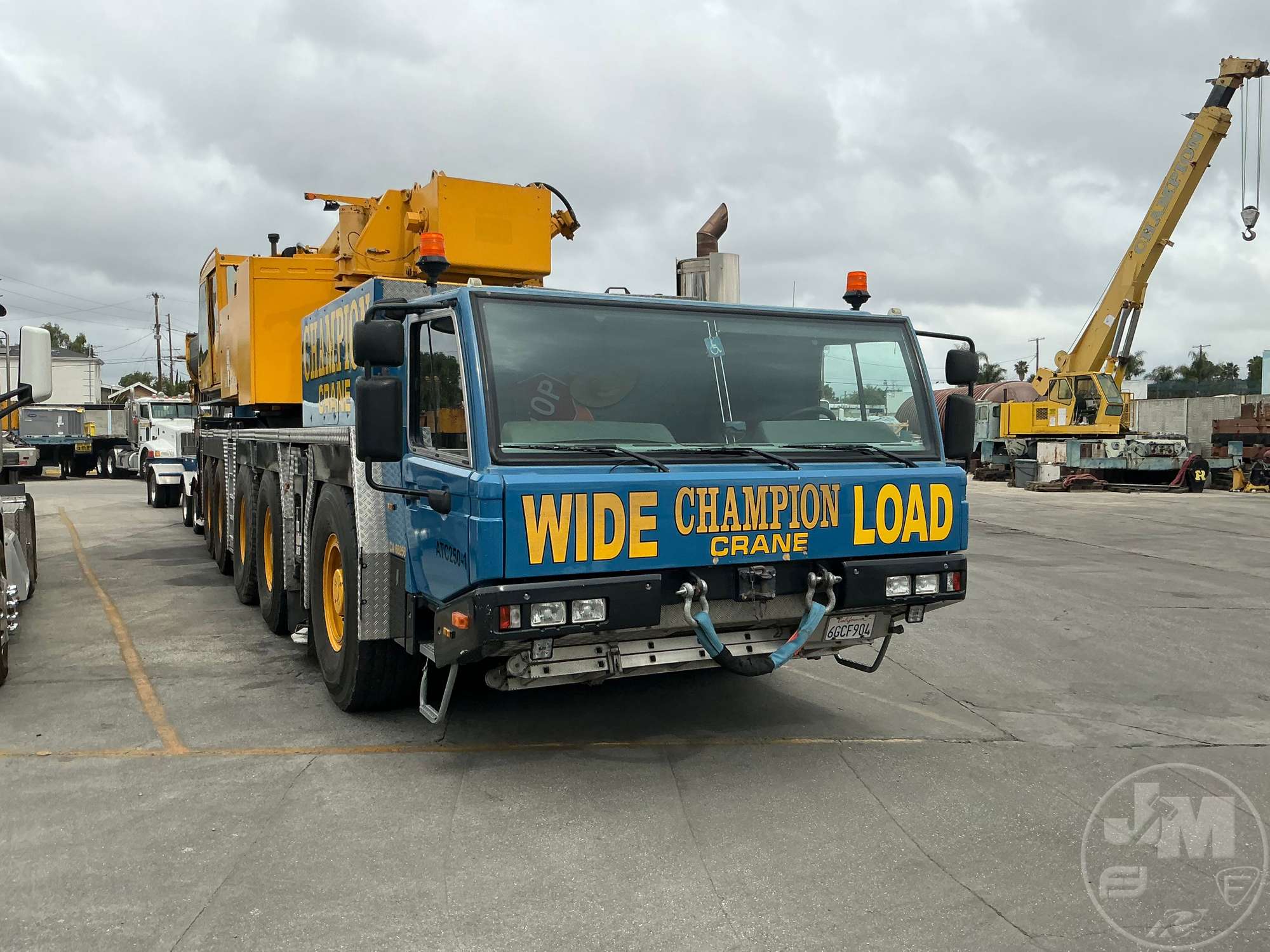

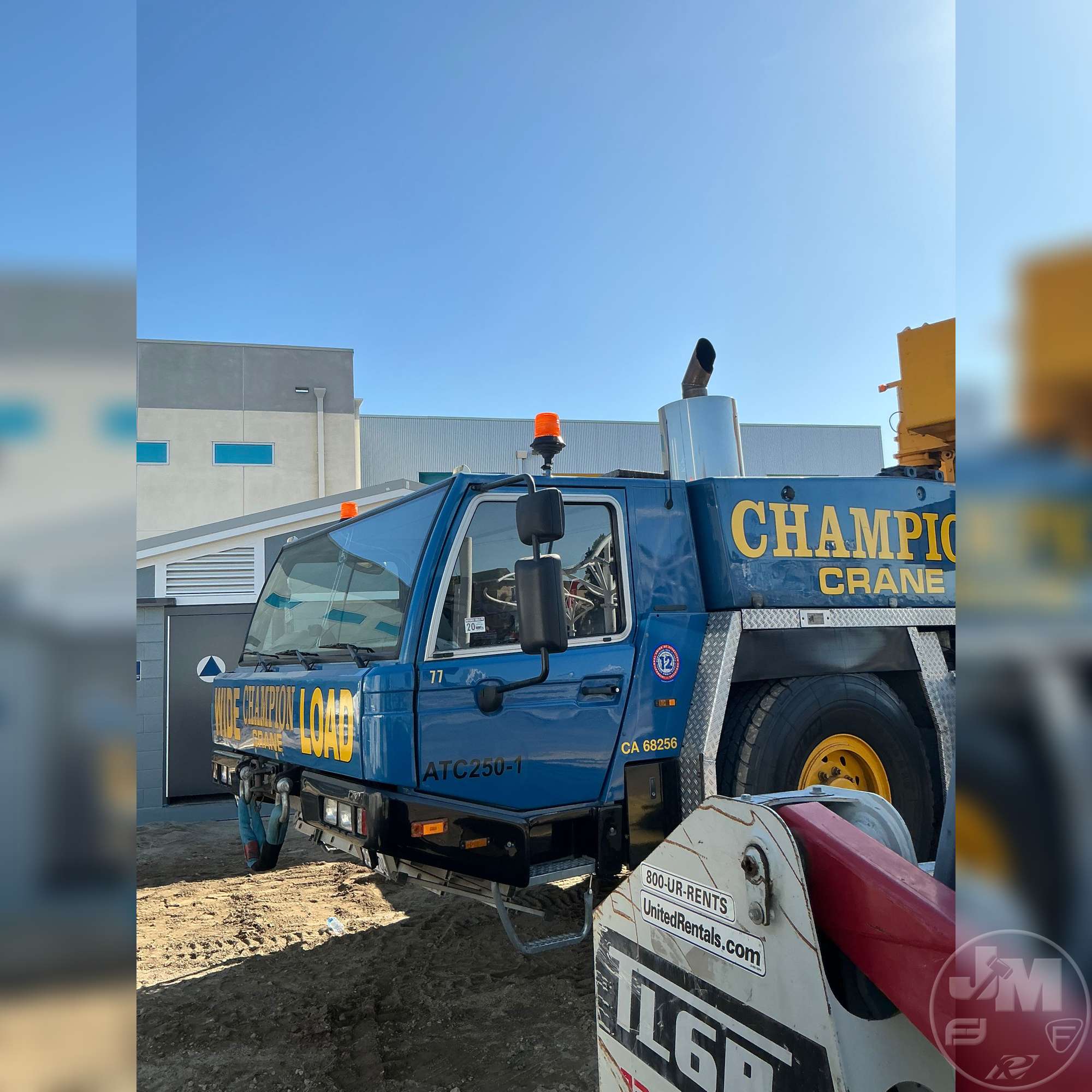

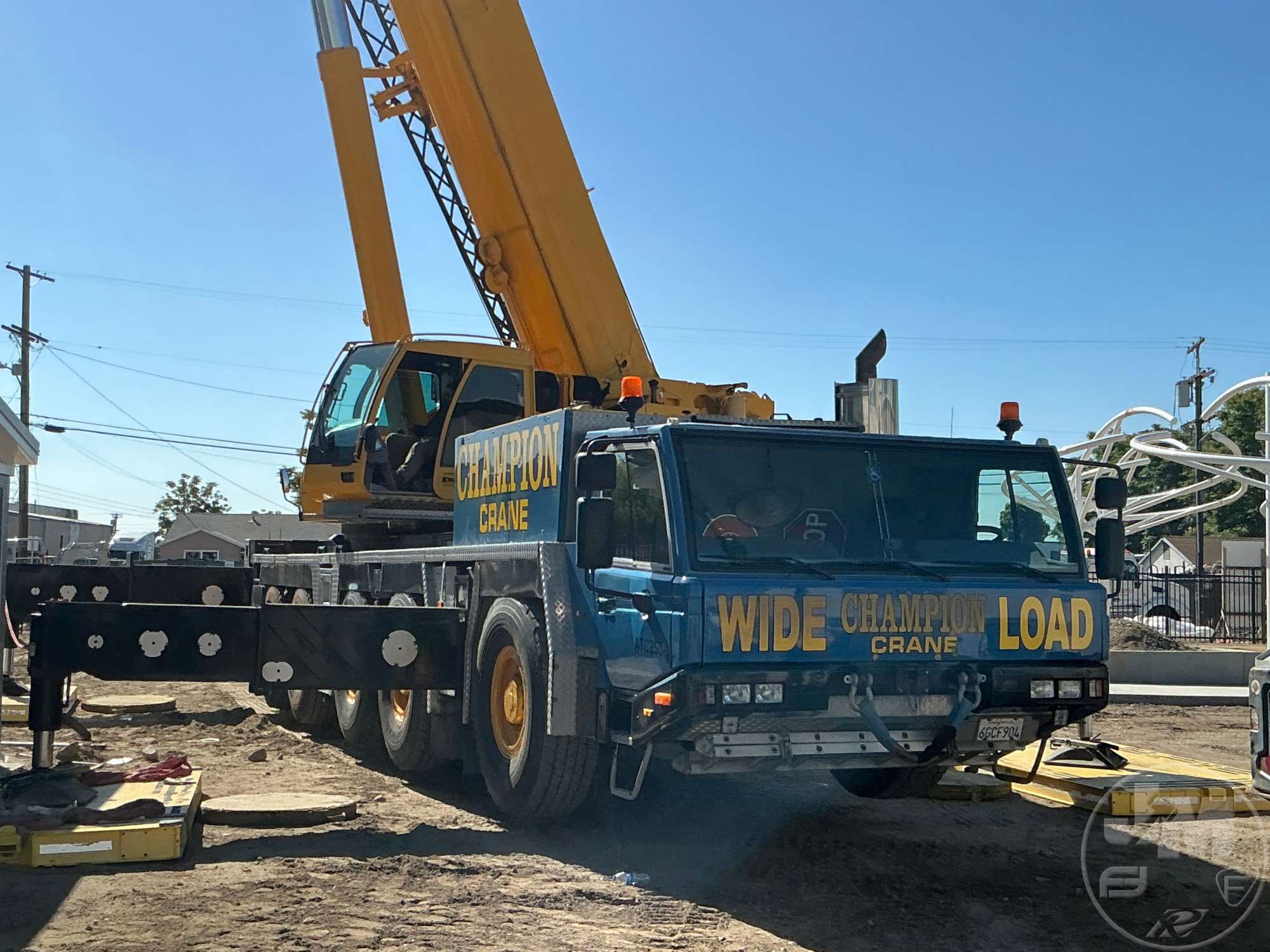

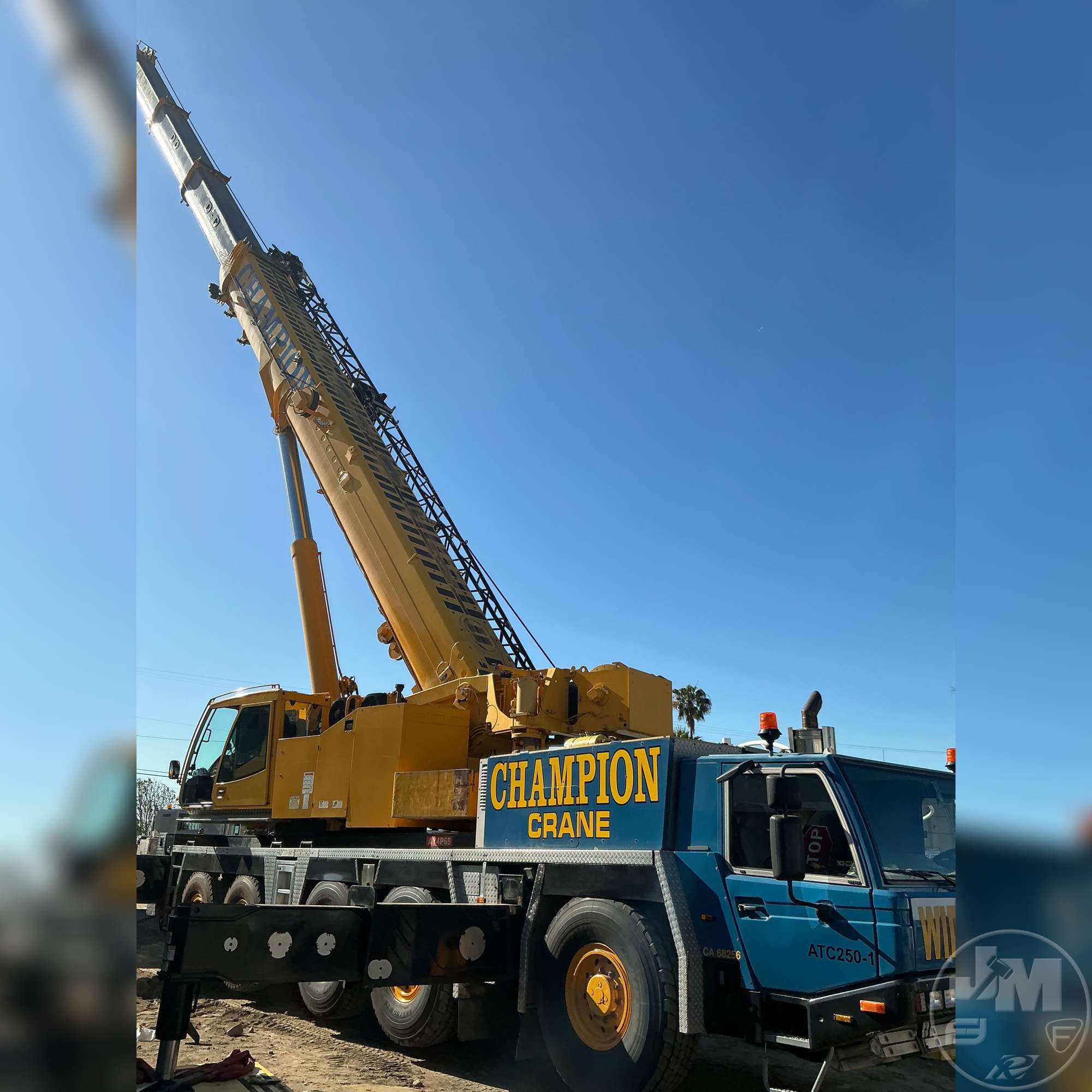

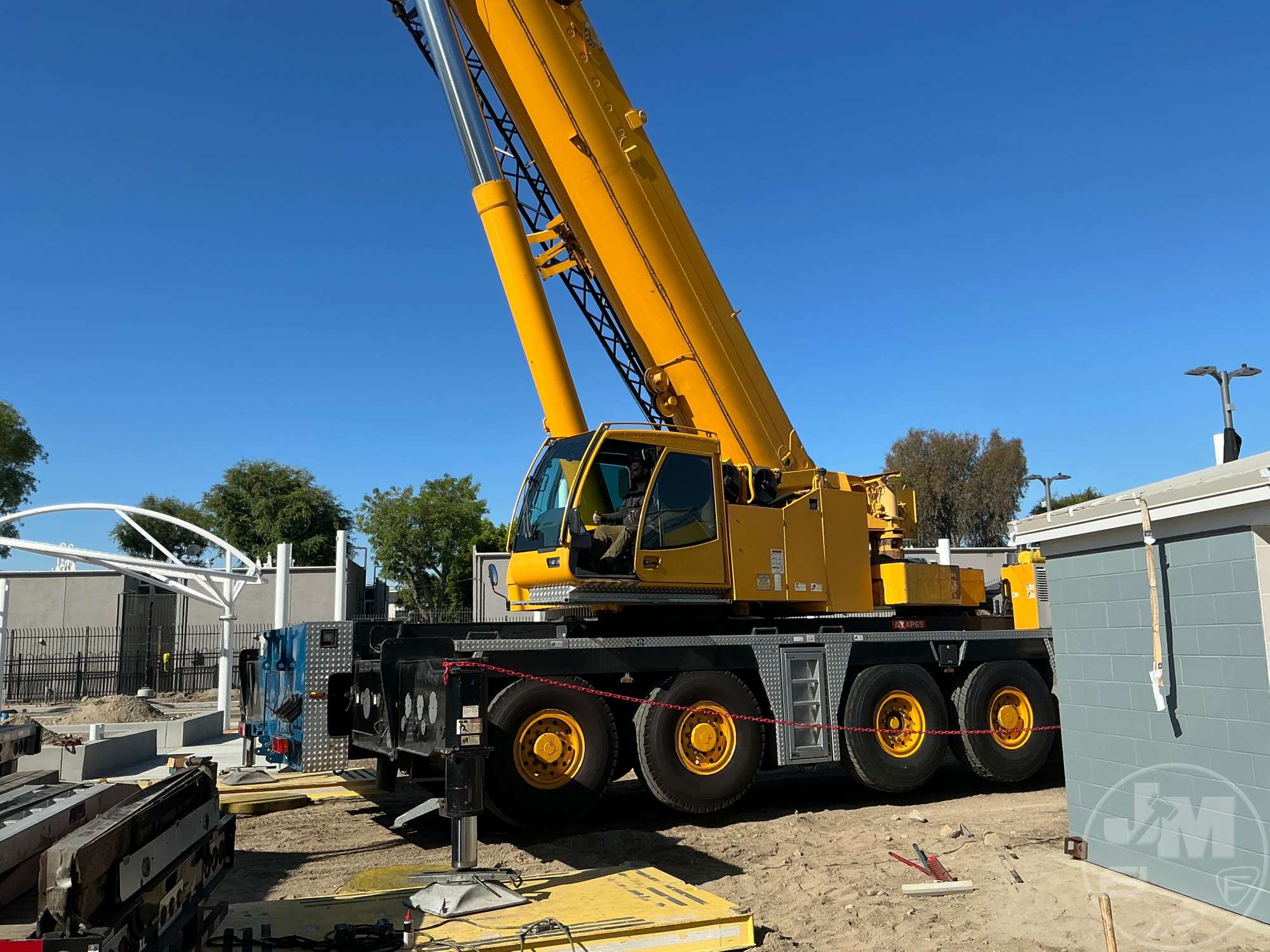

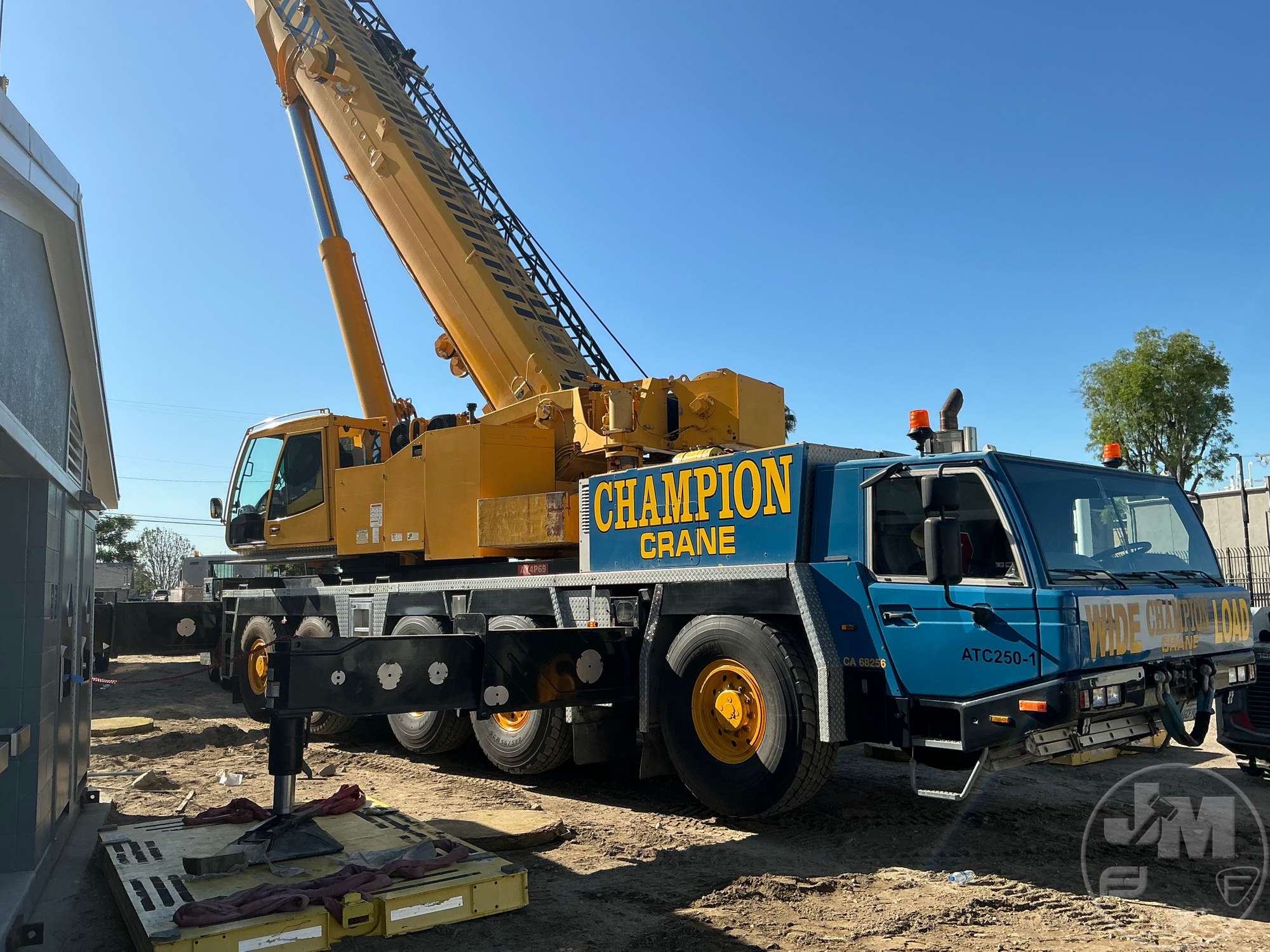

2008 Link-Belt ATC-3250 For Sale in Anaheim, CA

Name: 2008 Link-Belt ATC-3250
Brand: Link-Belt
SKU: 88592105
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-06-16 Click here to place a bid

Jeff Martin Auctioneers, Inc

Jeff Martin Auctioneers, Inc Dealer Info

Jeff Martin Auctioneers, Inc Website

Click here to email Jeff Martin Auctioneers, Inc.

Click for Phone Number

Machine Info:

Serial Number:	R4J8-0388 / WFN5RUGR182036167
Machine Location:	ANAHEIM, CA
More Information:	https://www.jeffmartinauctioneers.com/auctions/1256/lot/328793-2008-LINK-BELT-ATC-3250-ALL-TERRAIN-CRANE-SN%3A-R4J8-0388-%2F-WFN5RUGR182036167

Description:

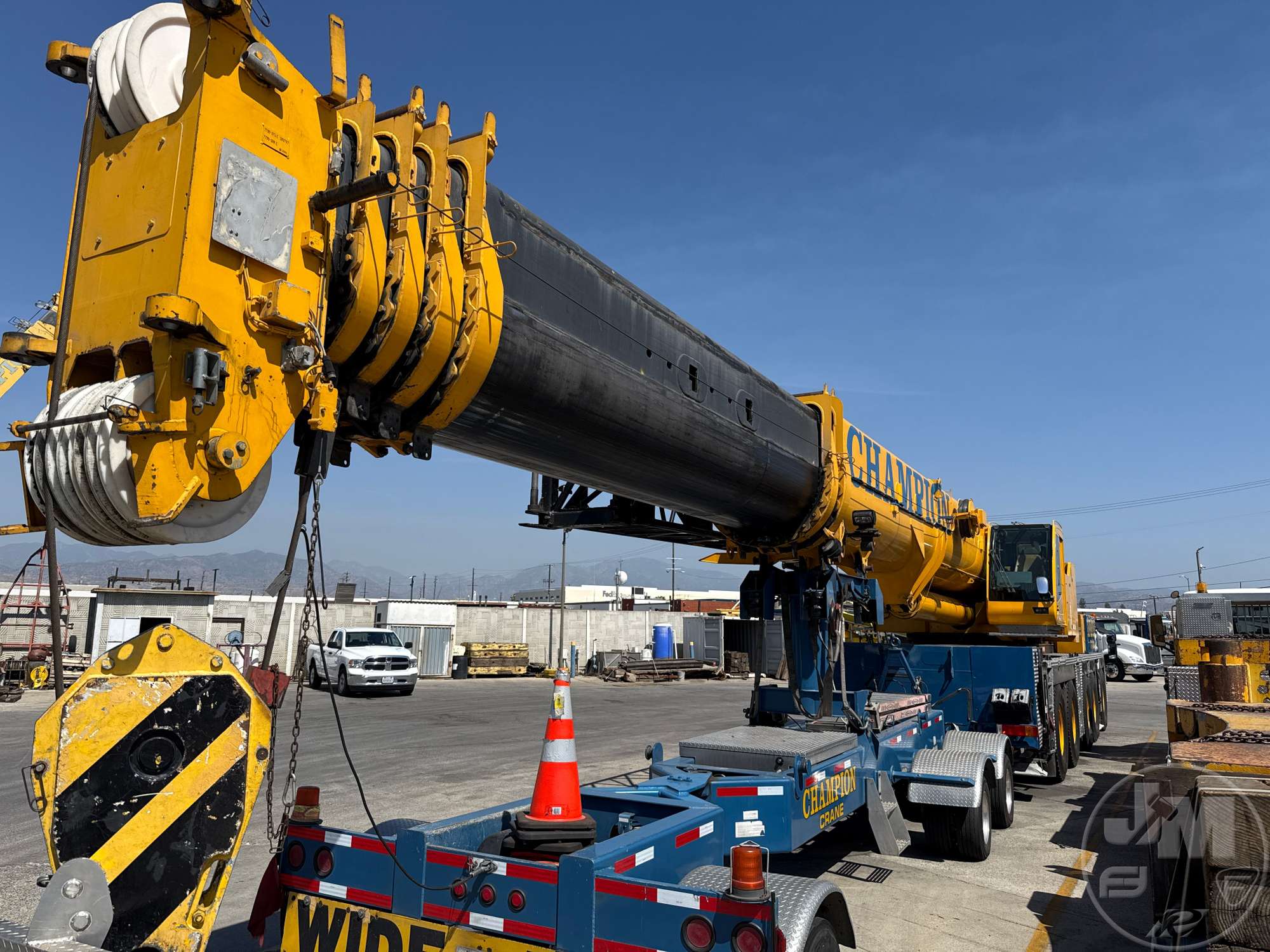

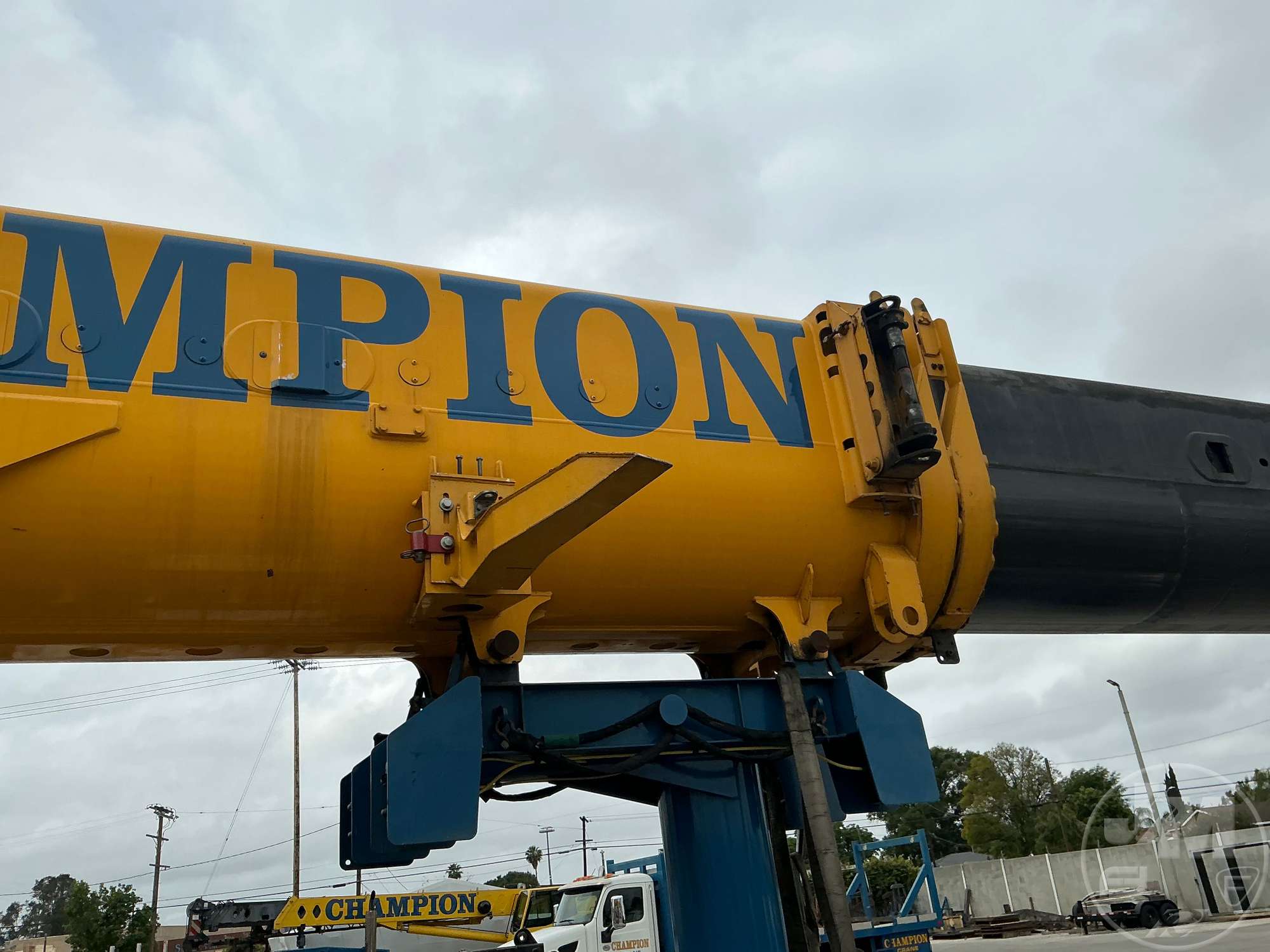

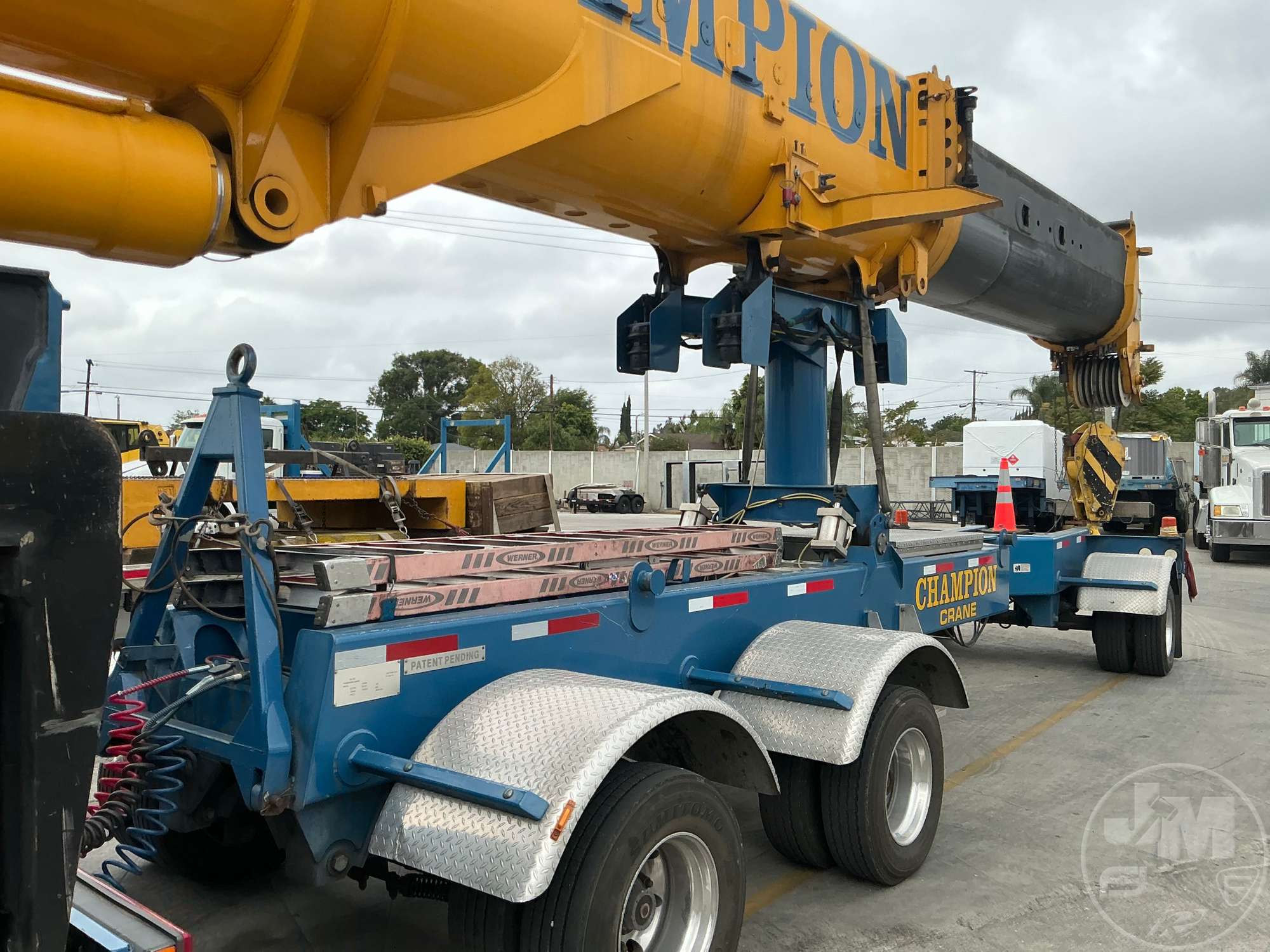

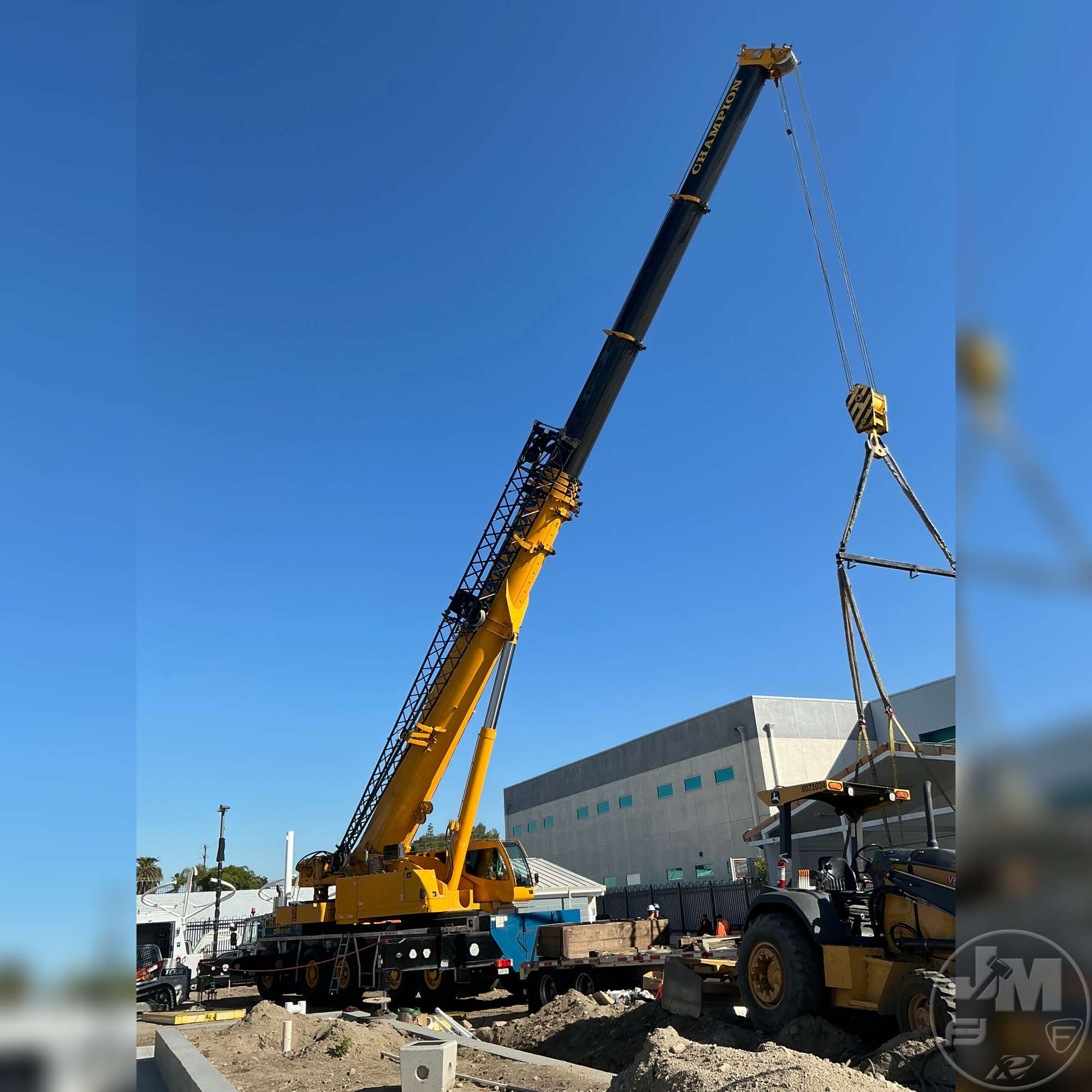

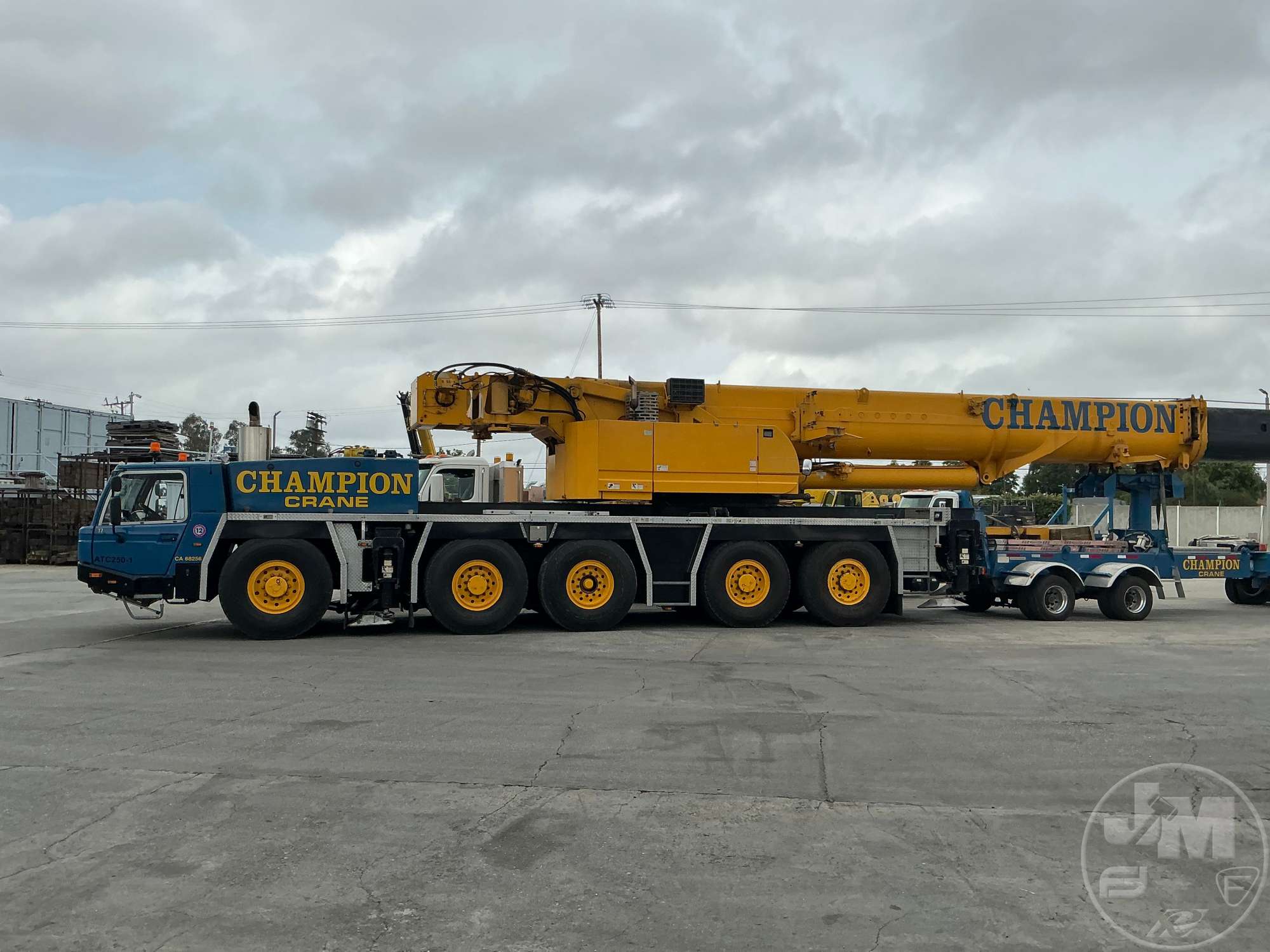

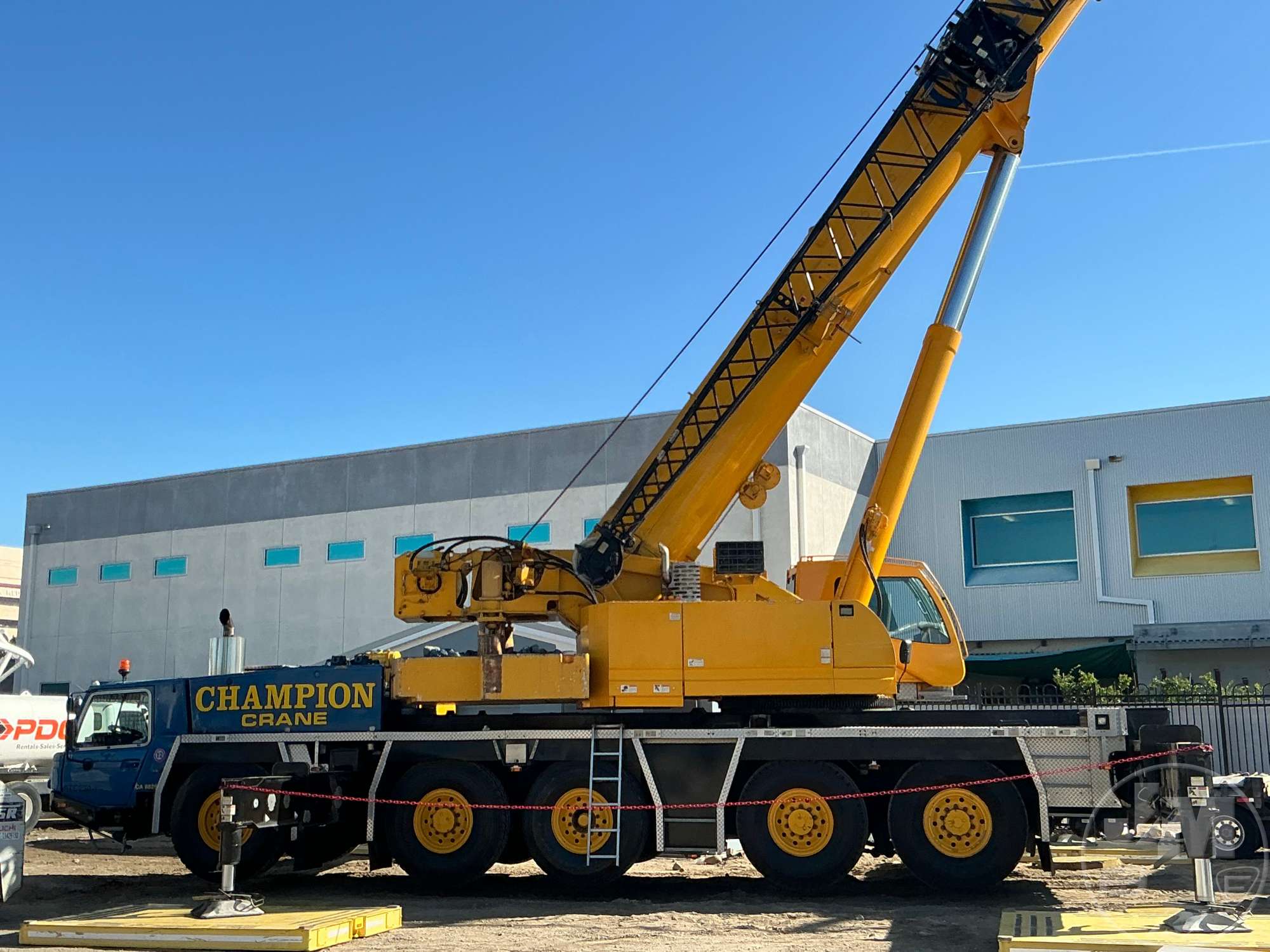

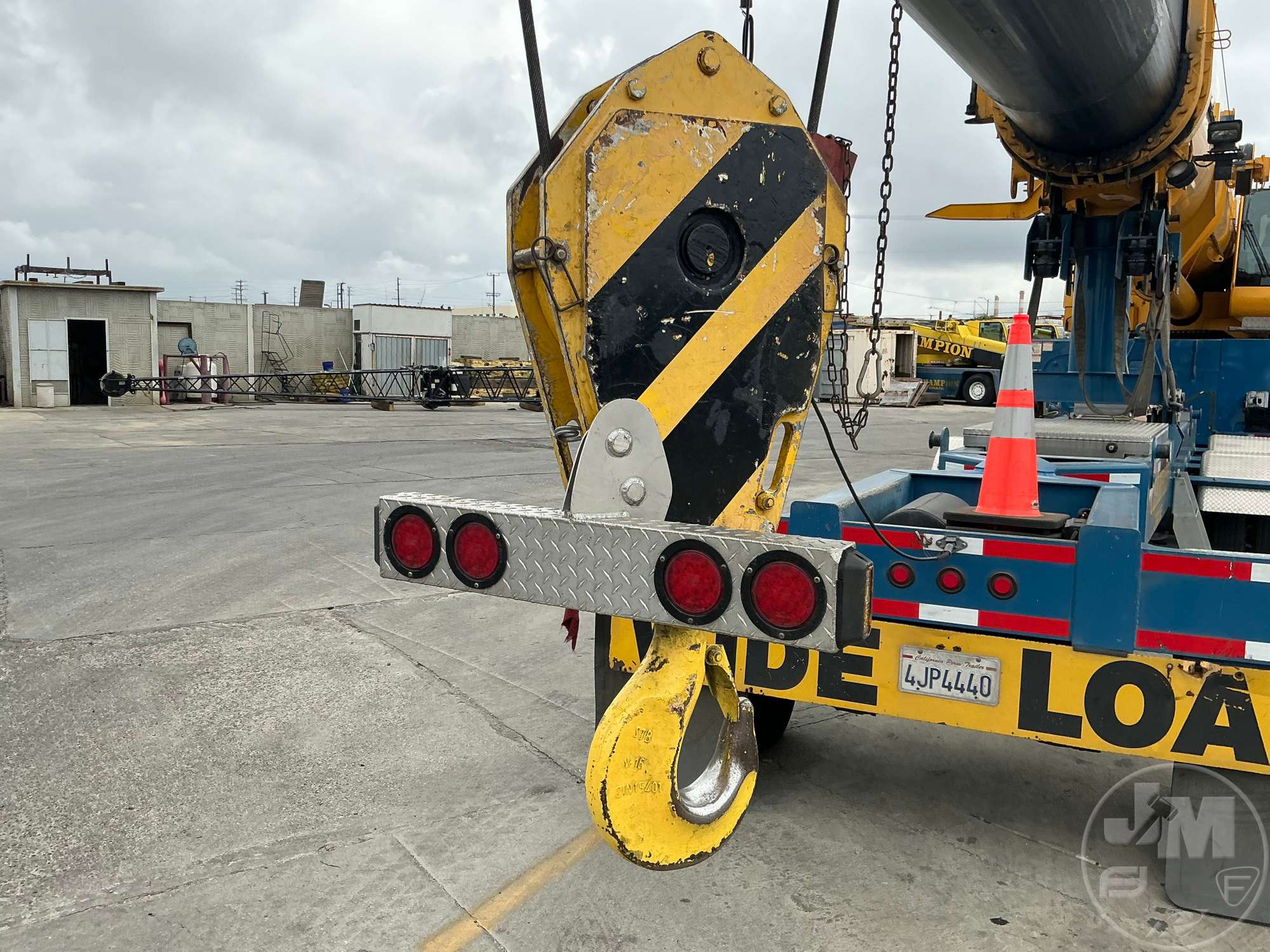

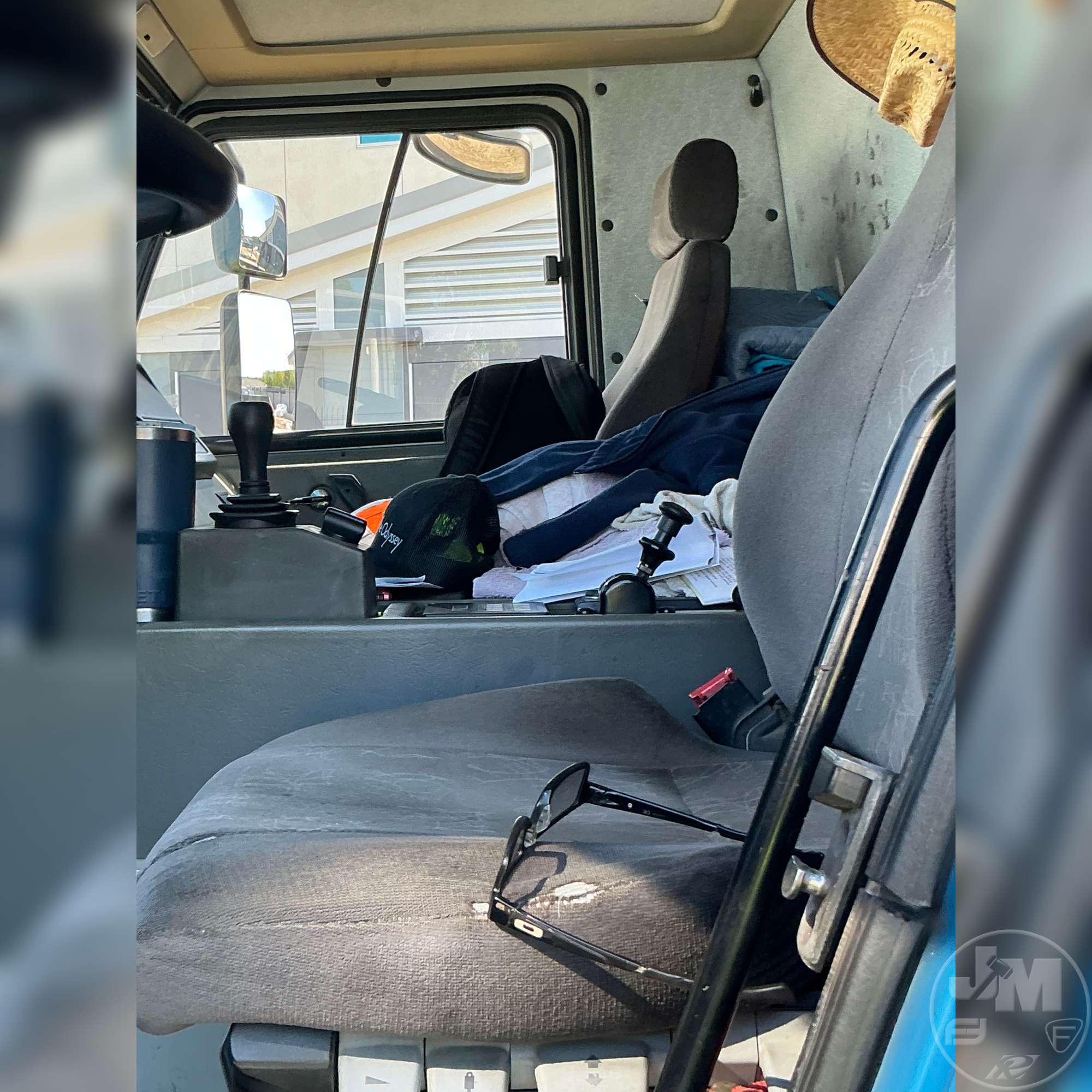

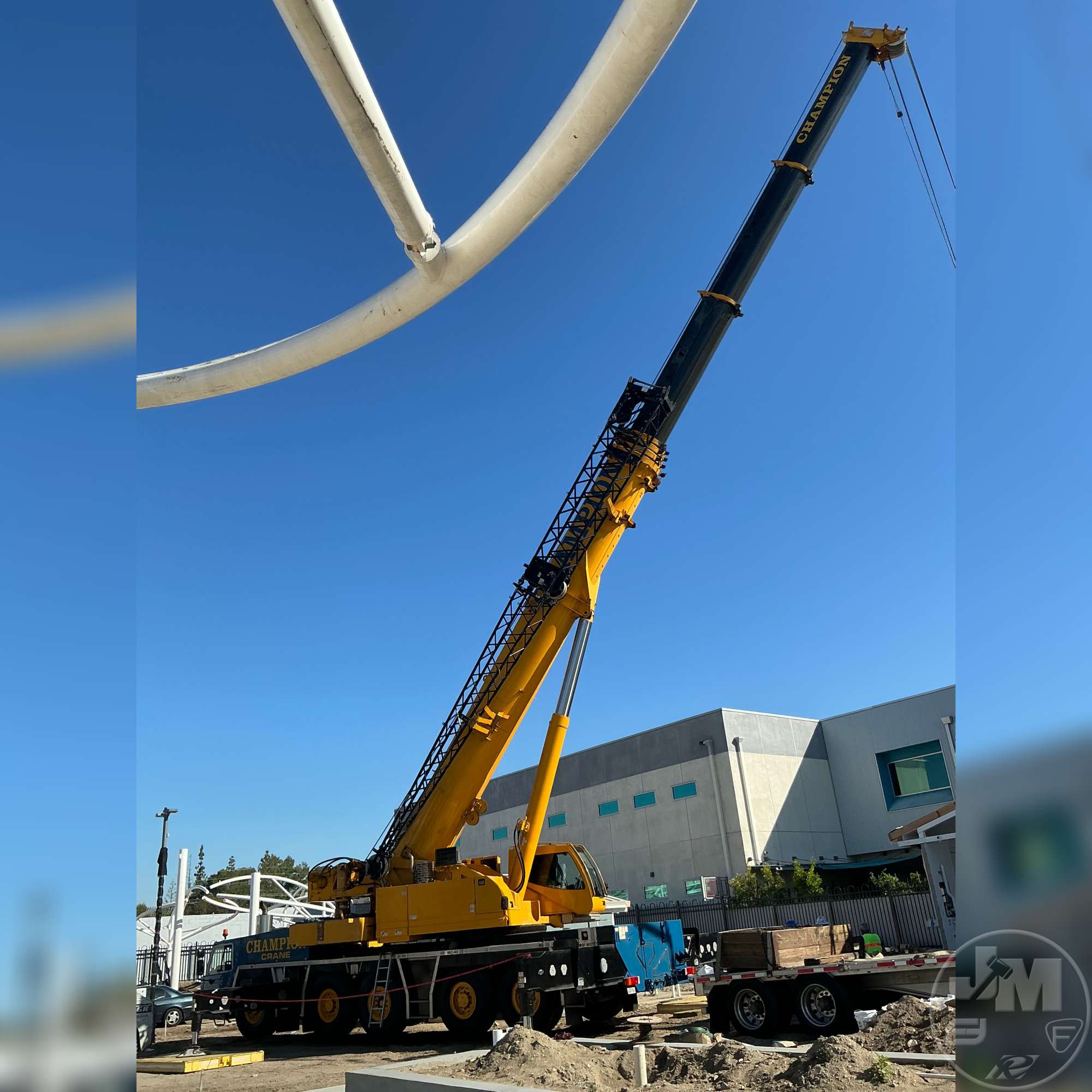

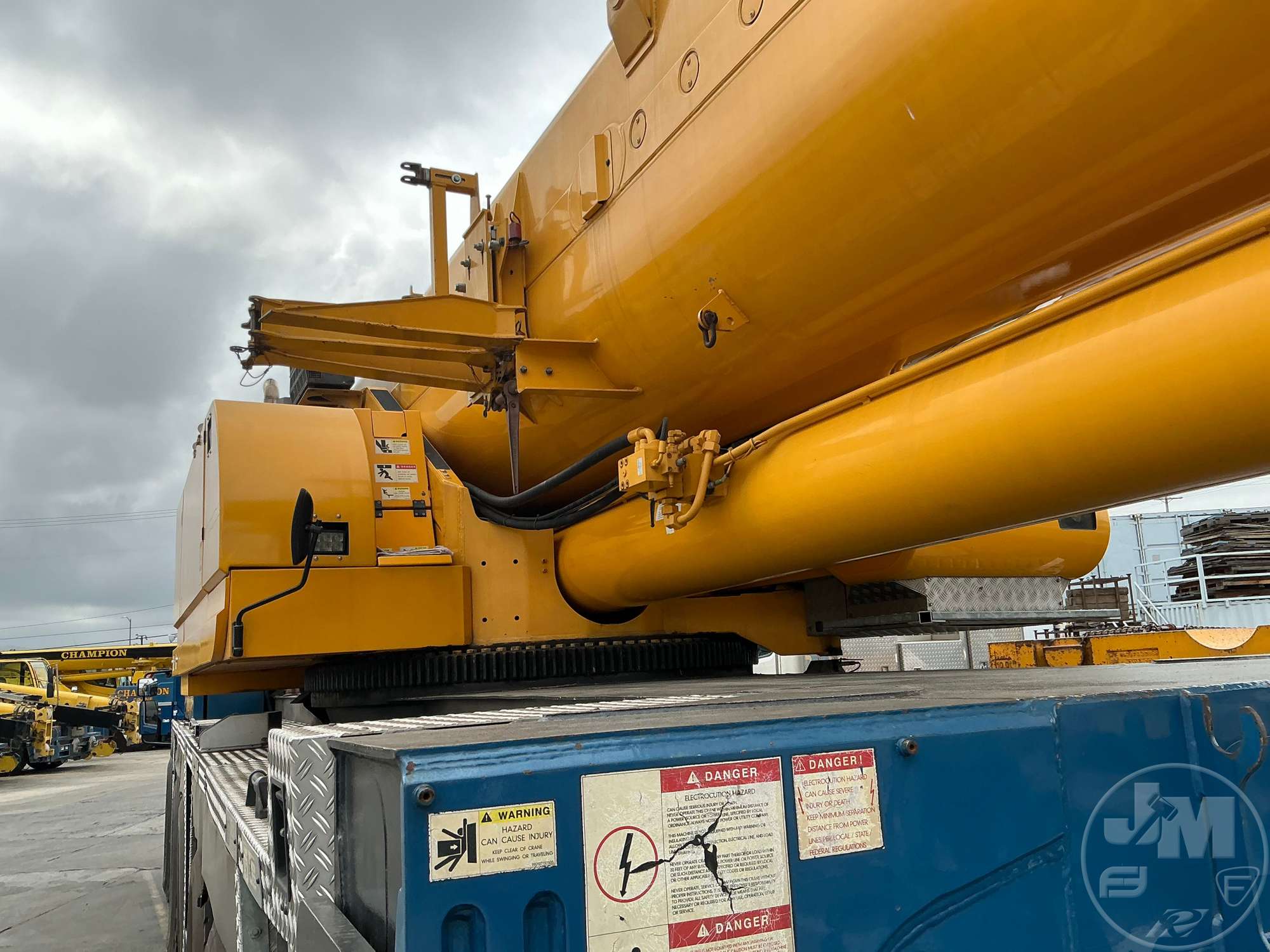

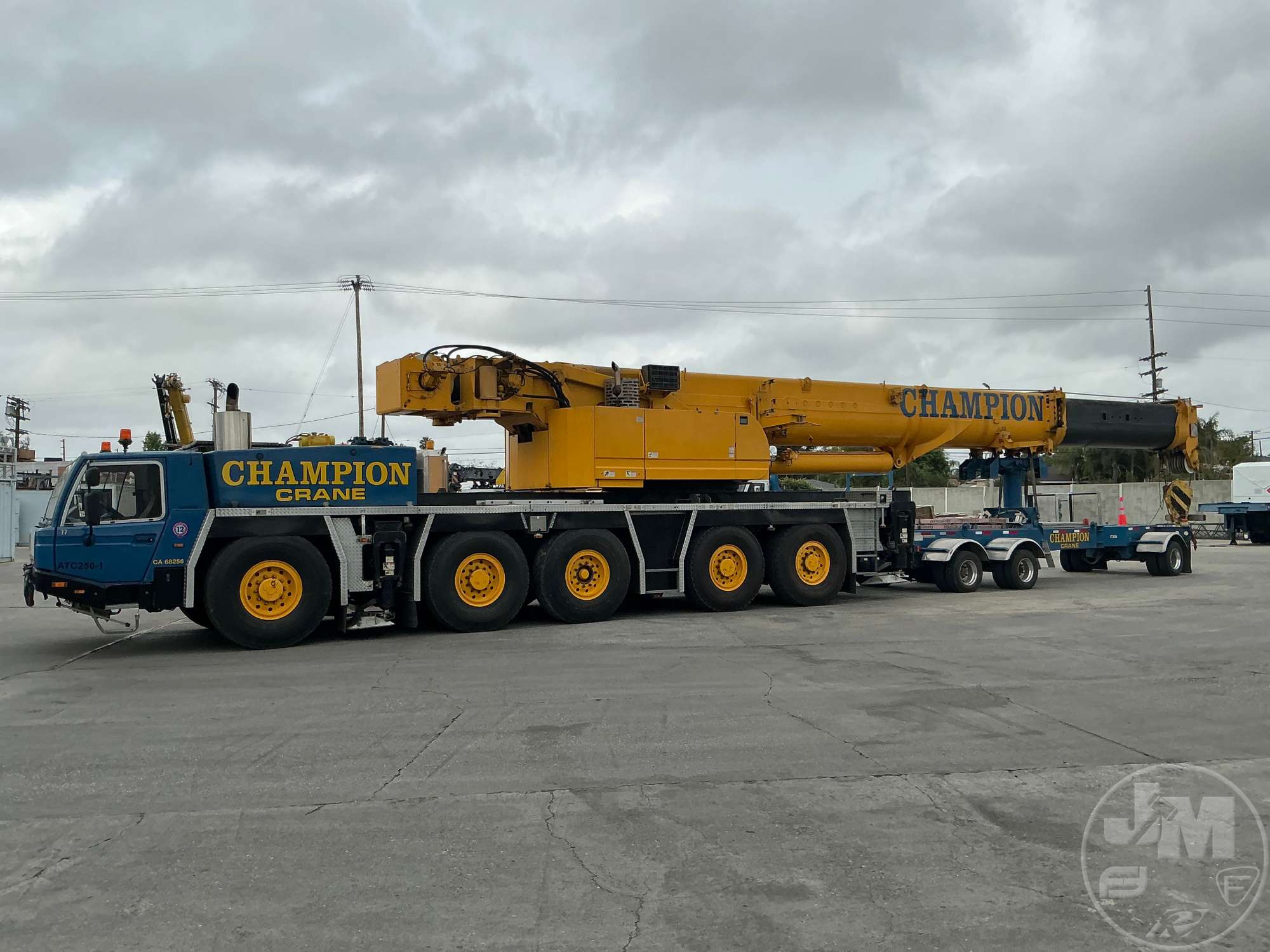

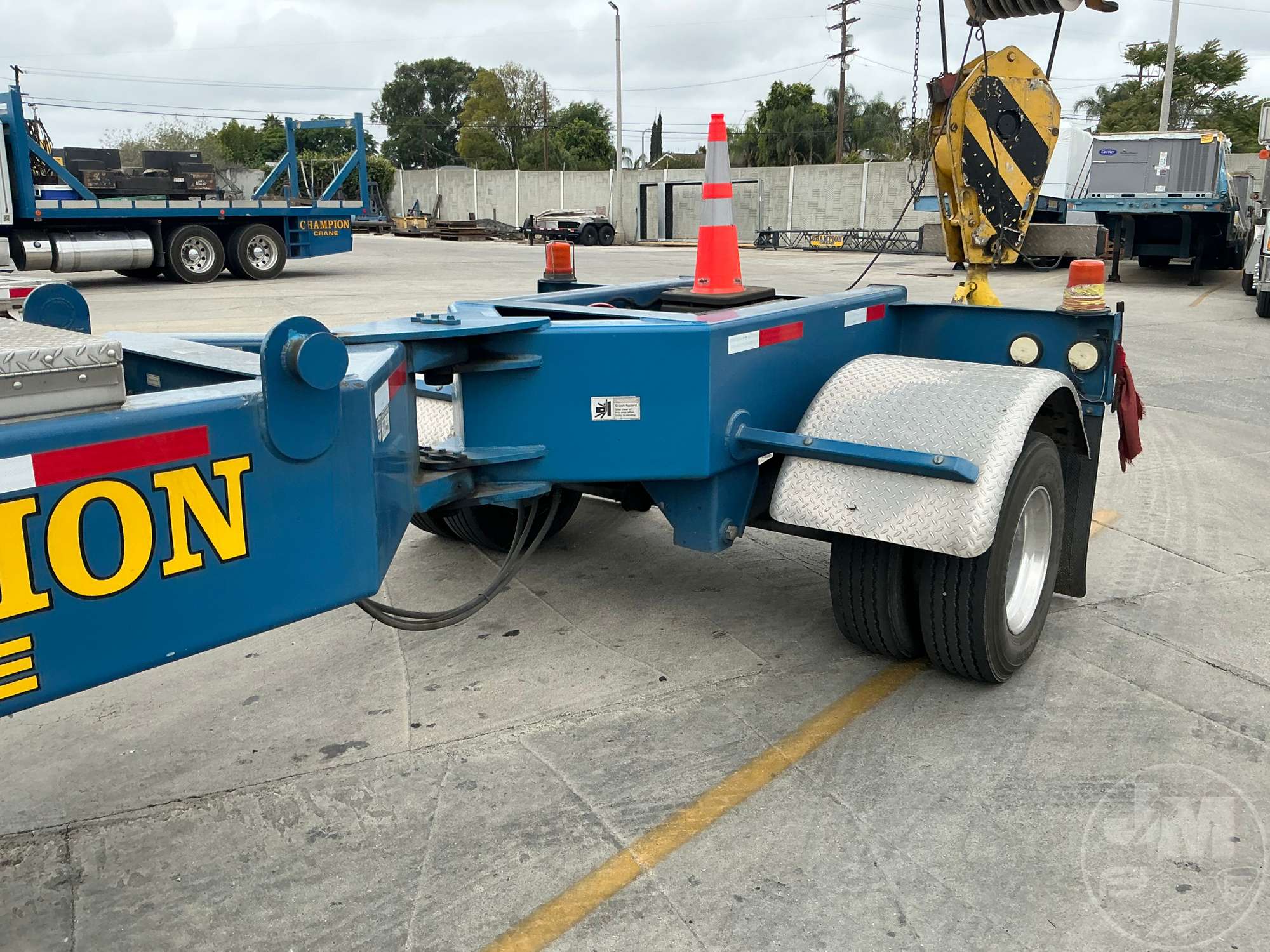

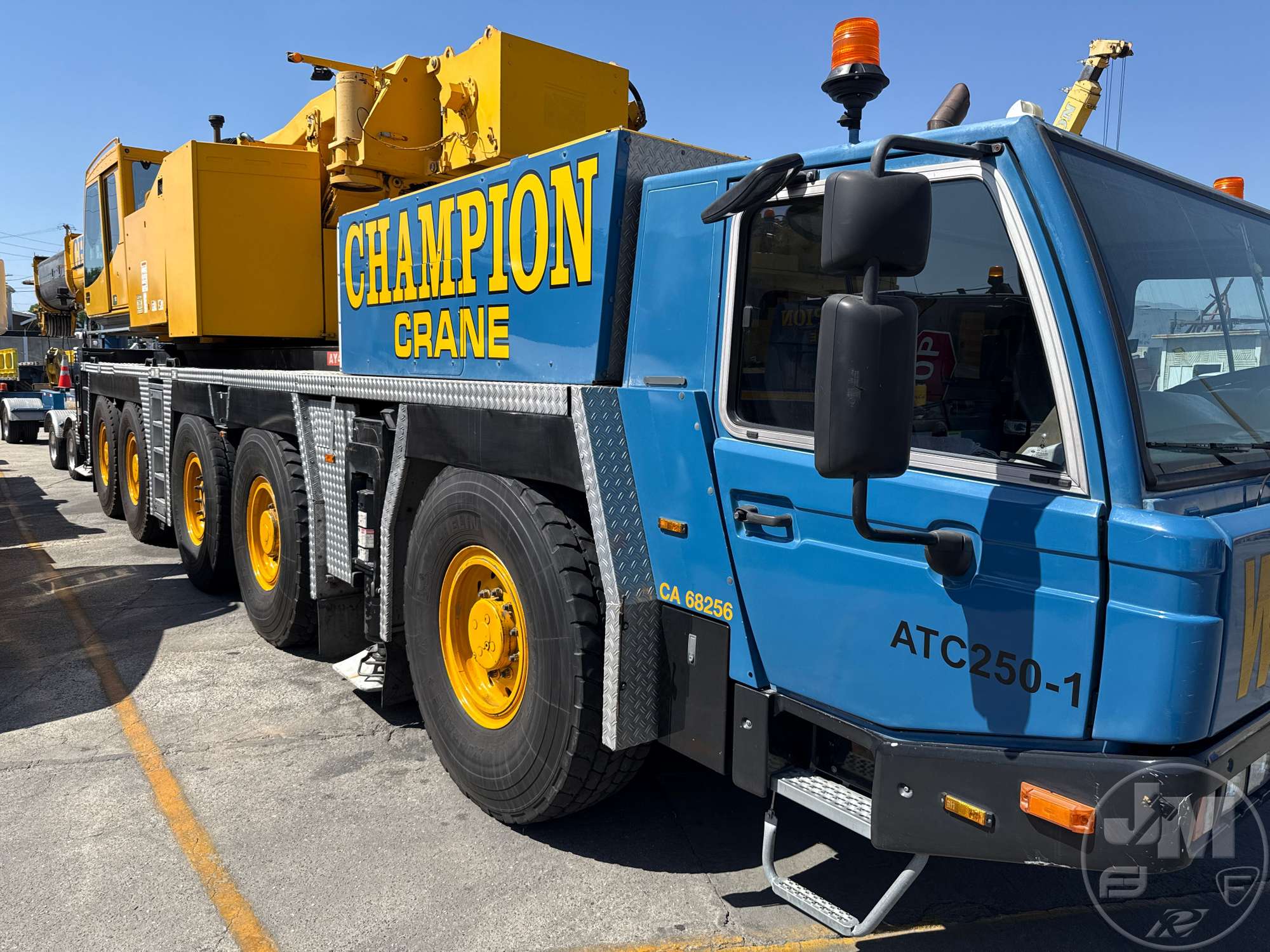

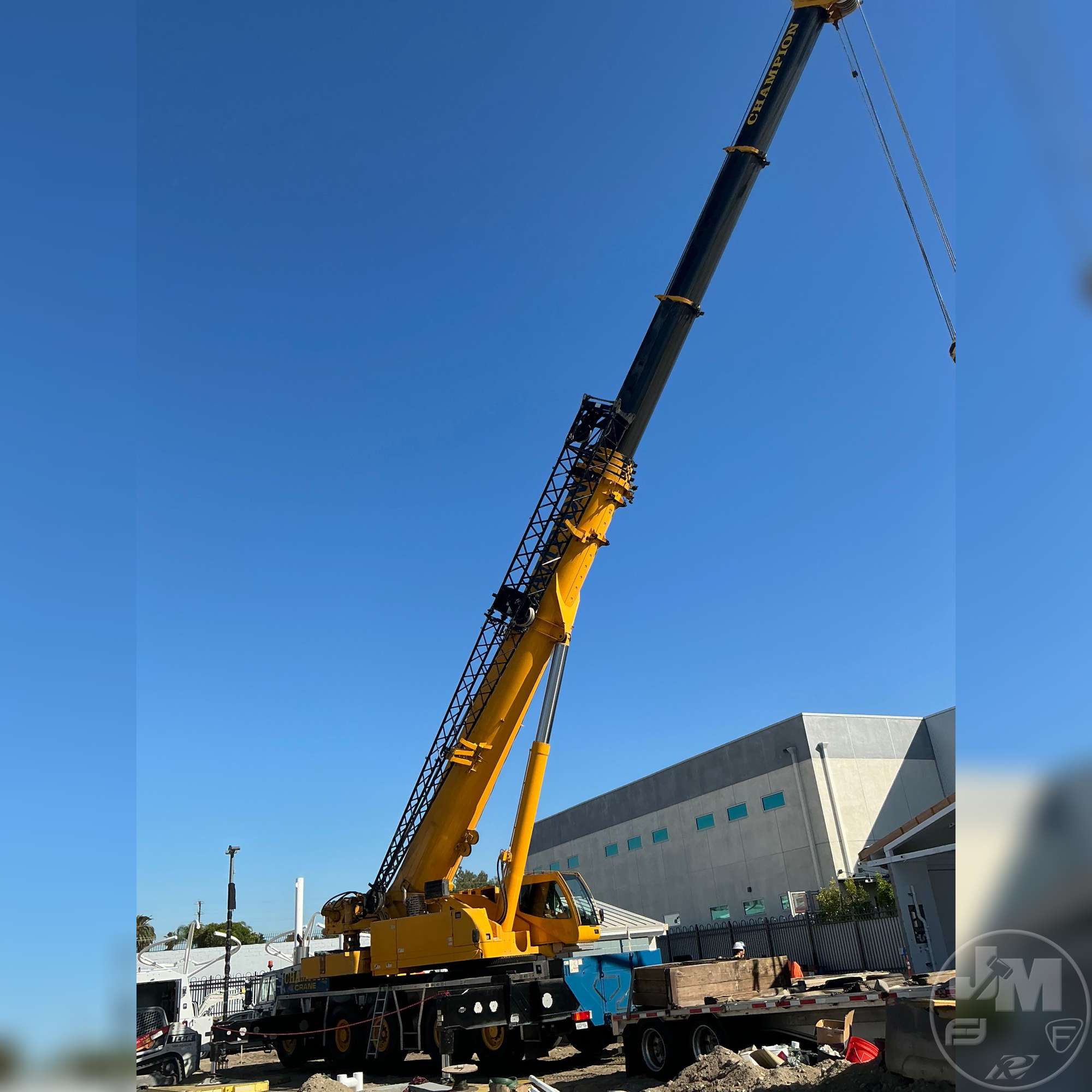

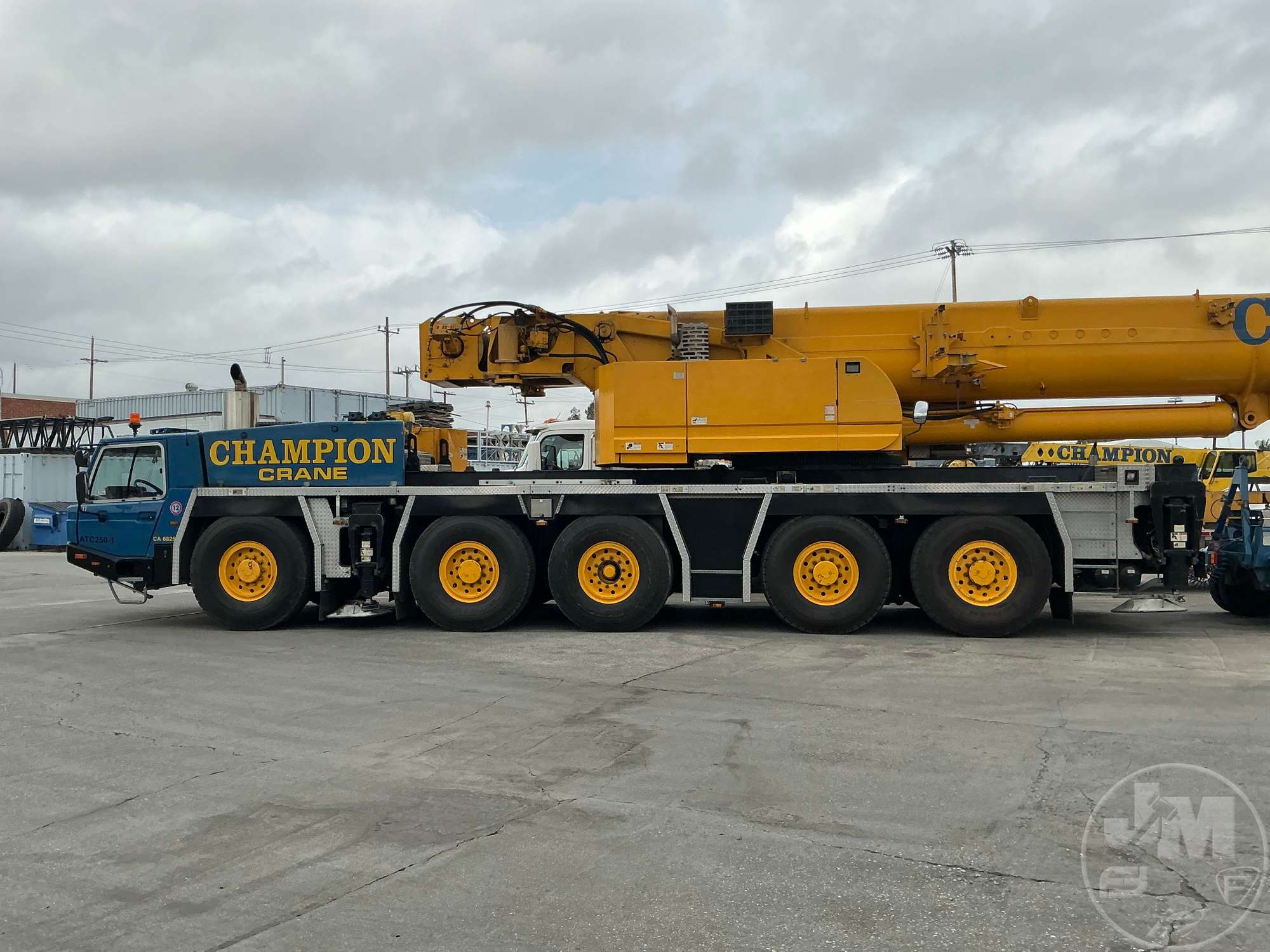

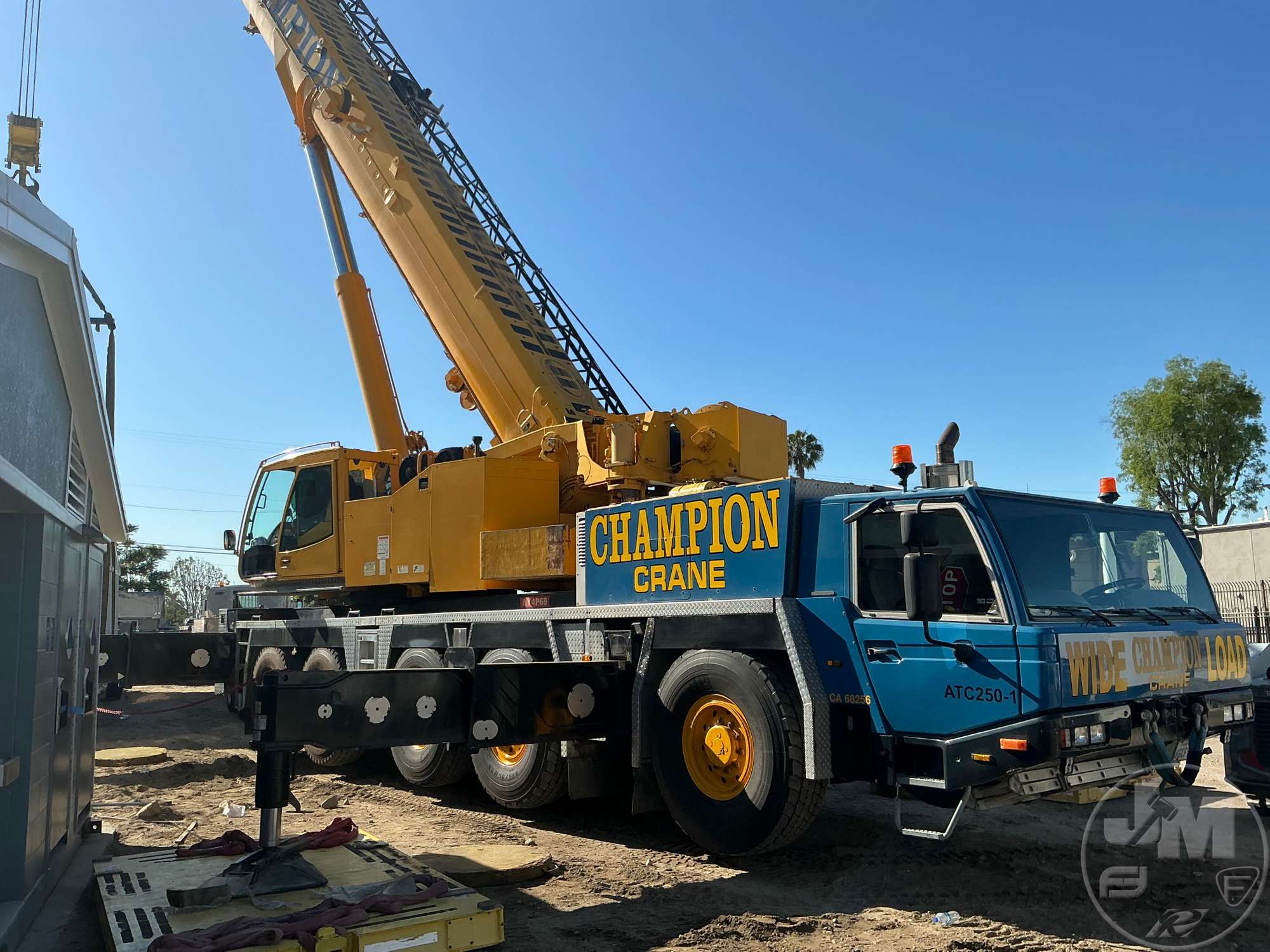

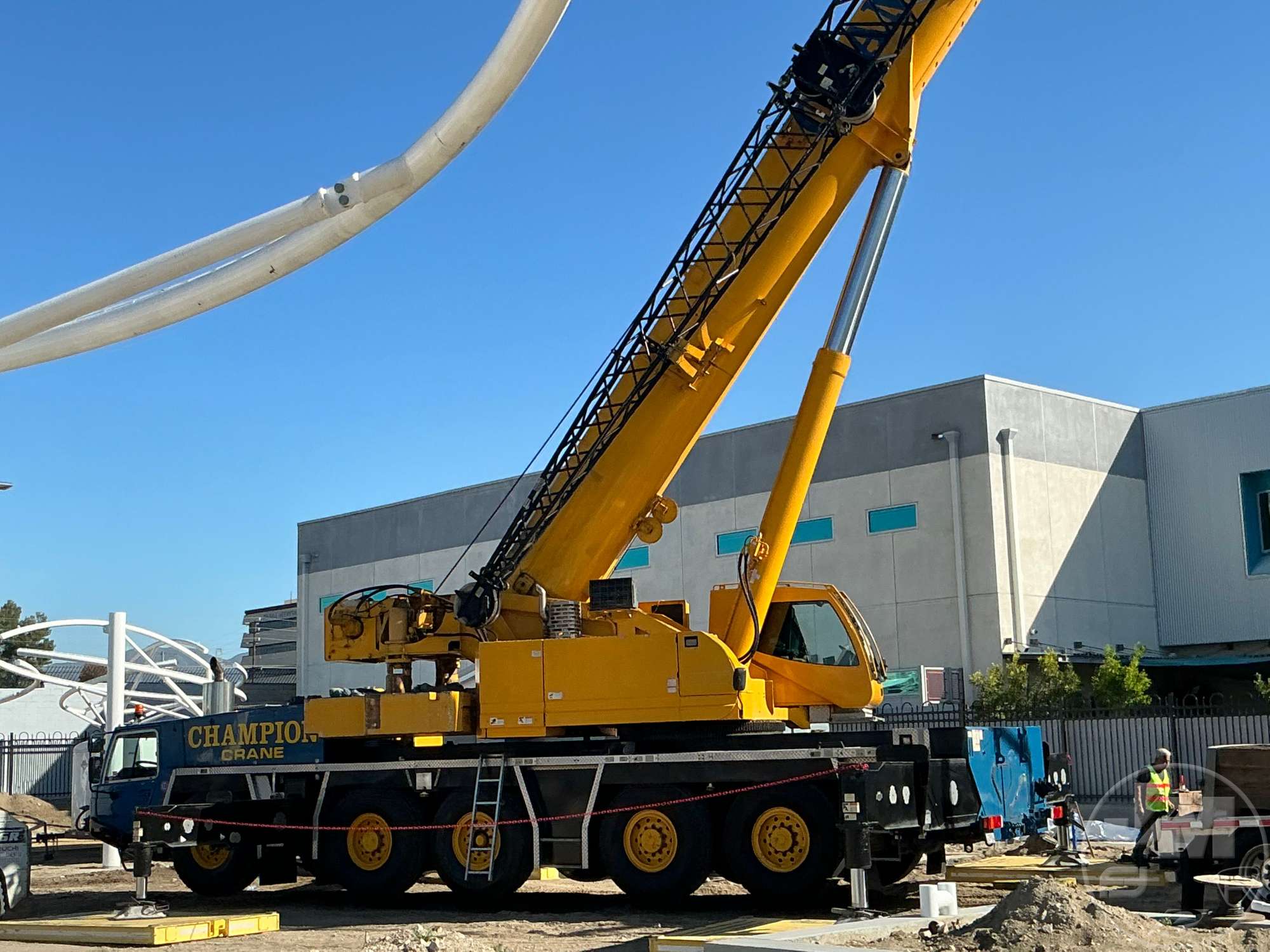

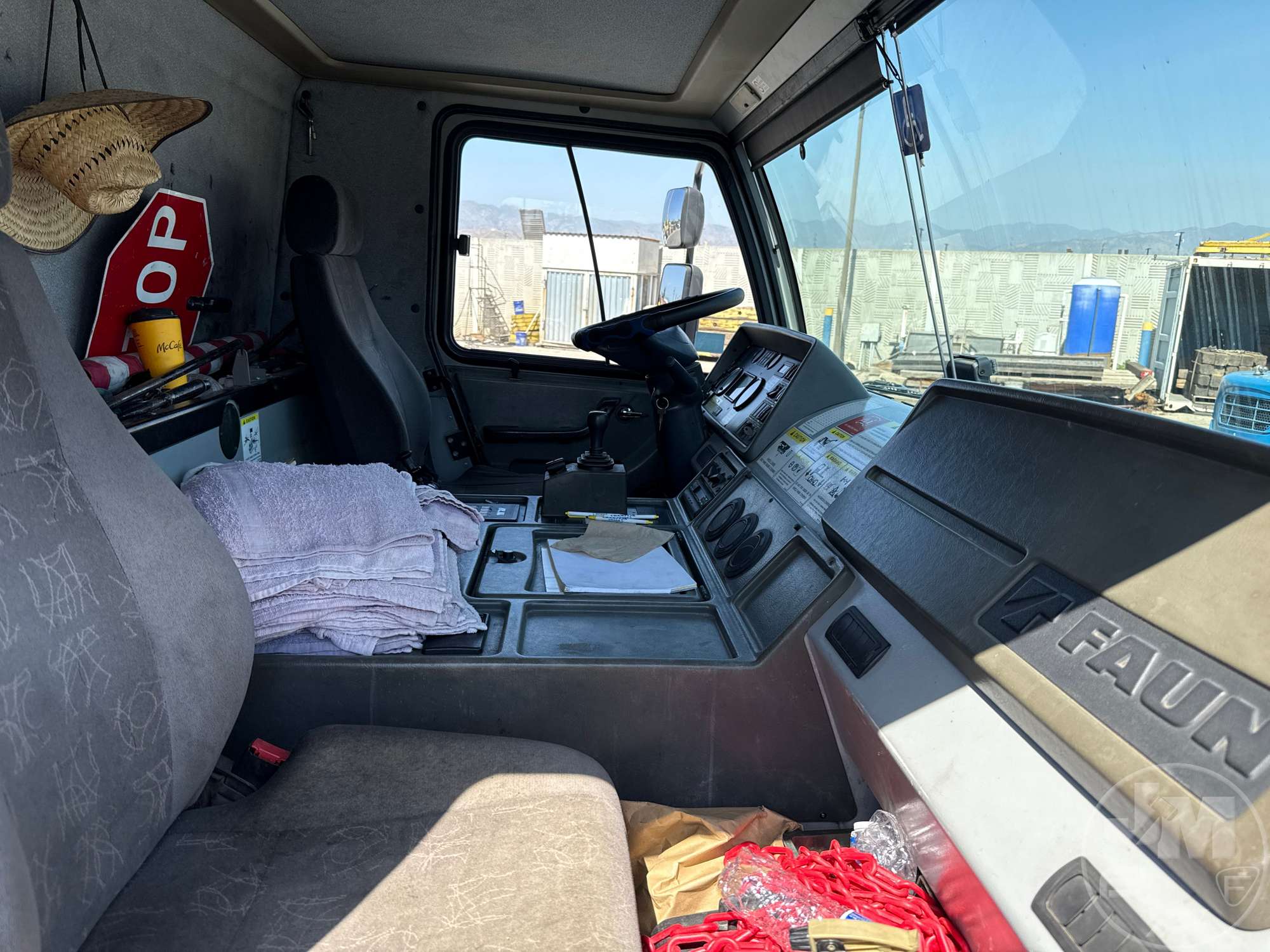

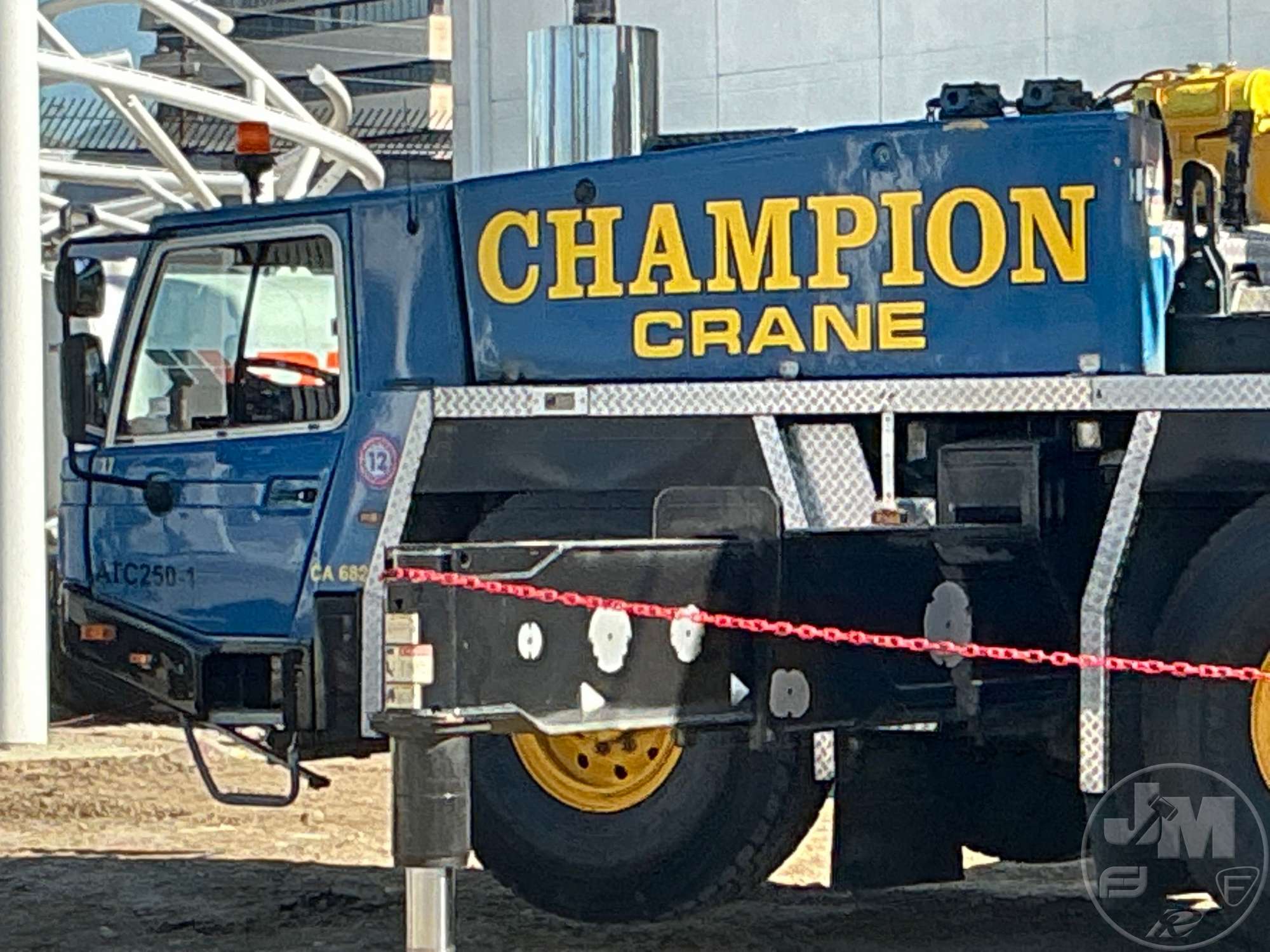

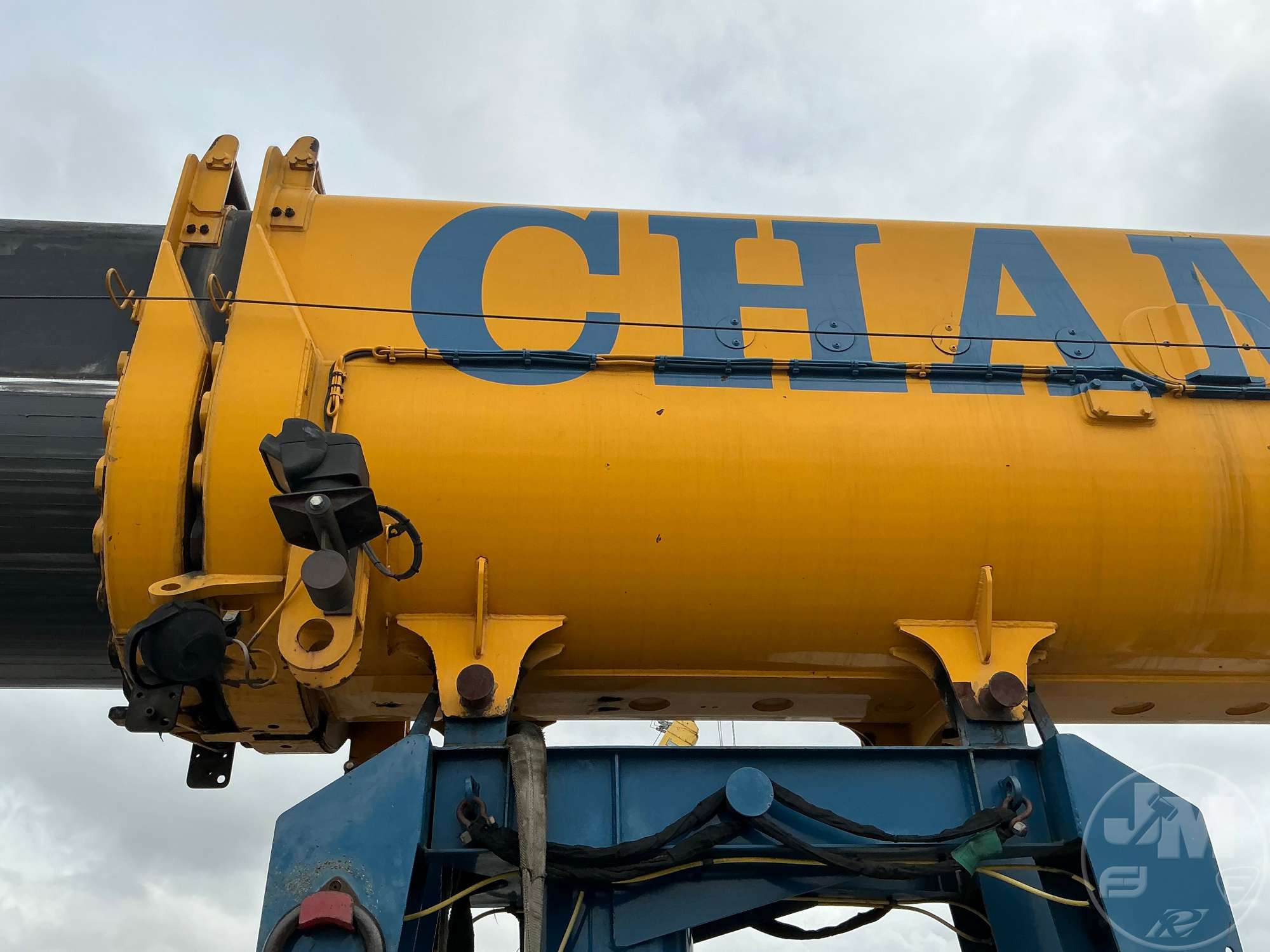

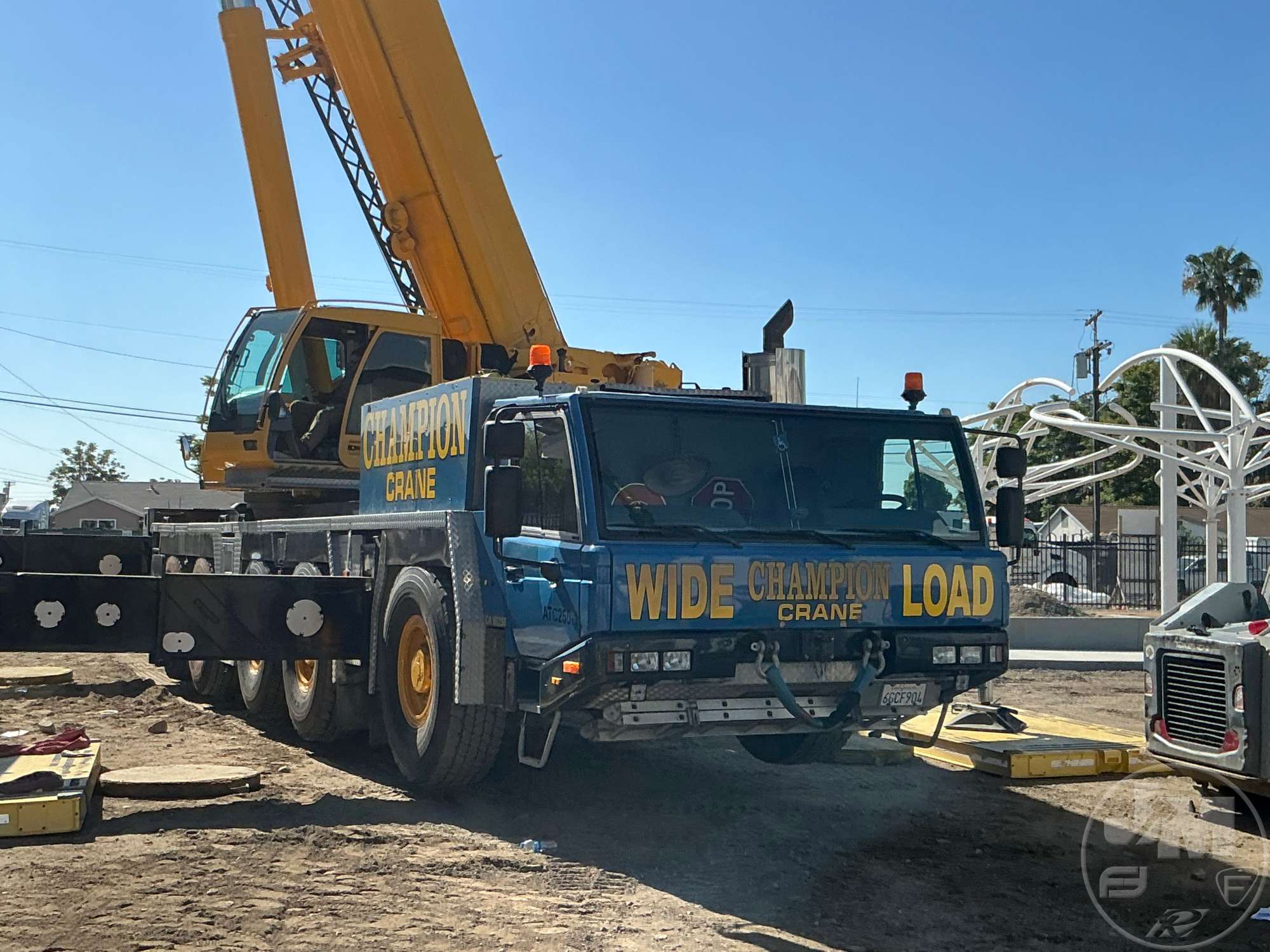

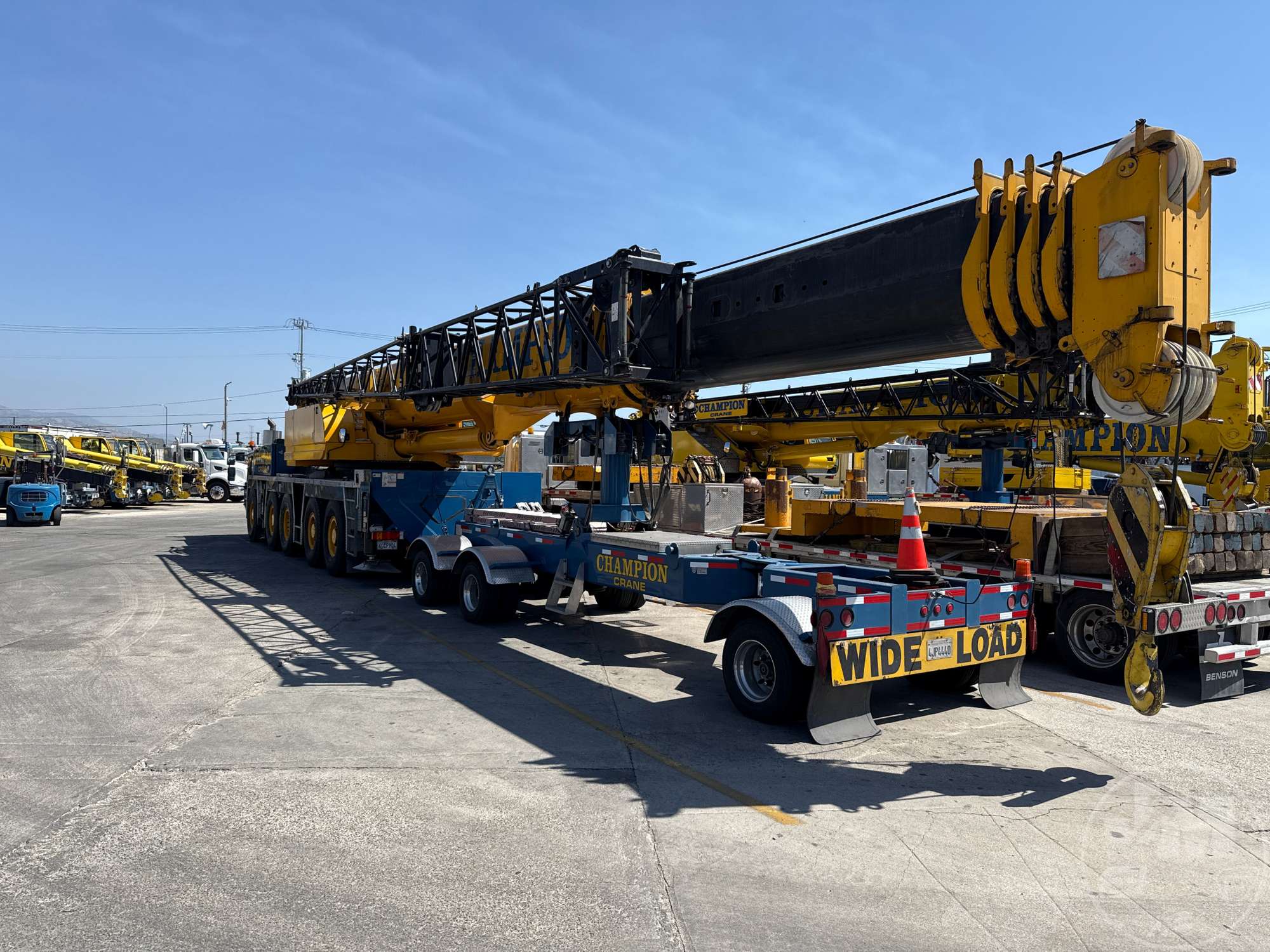

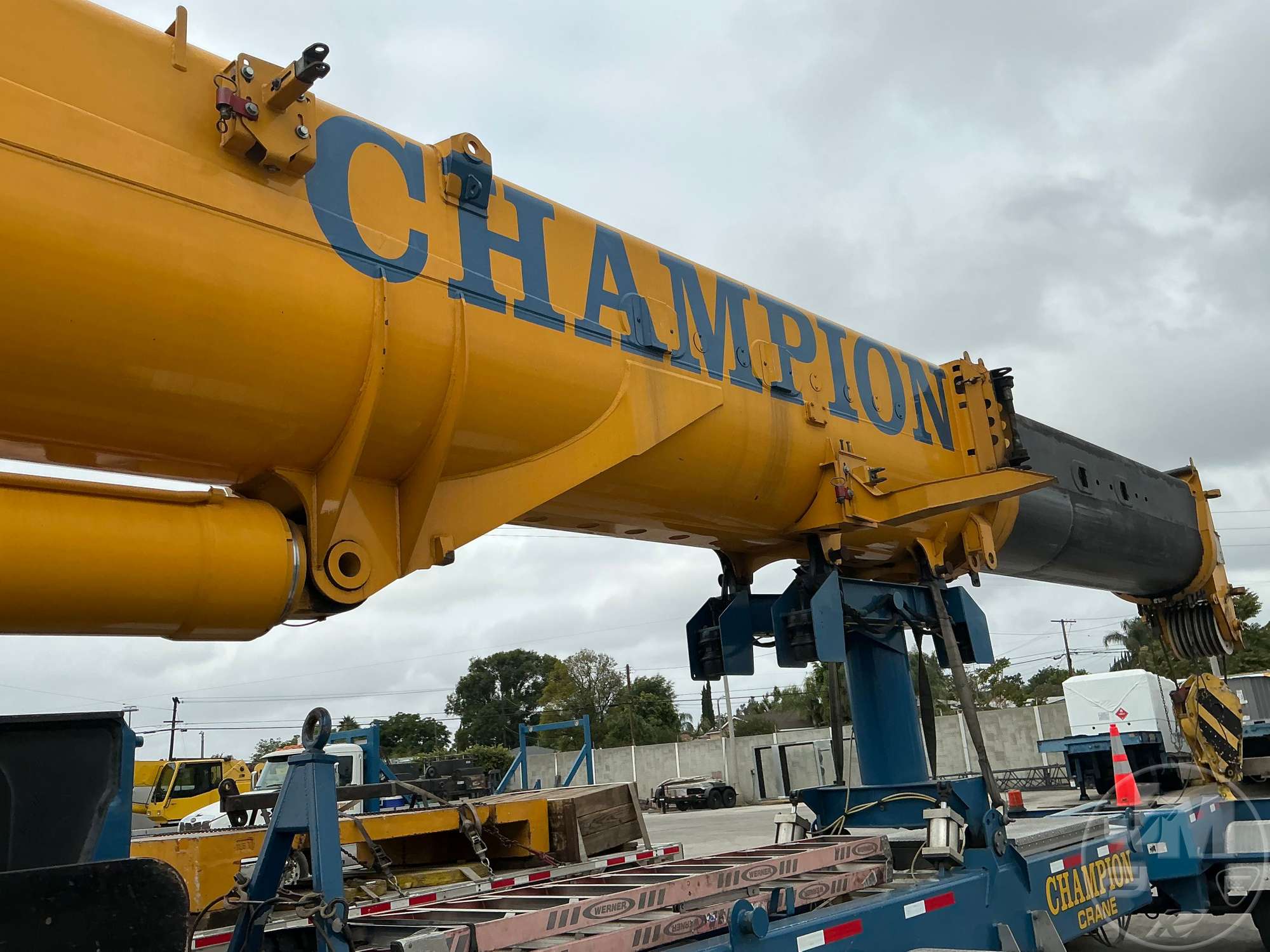

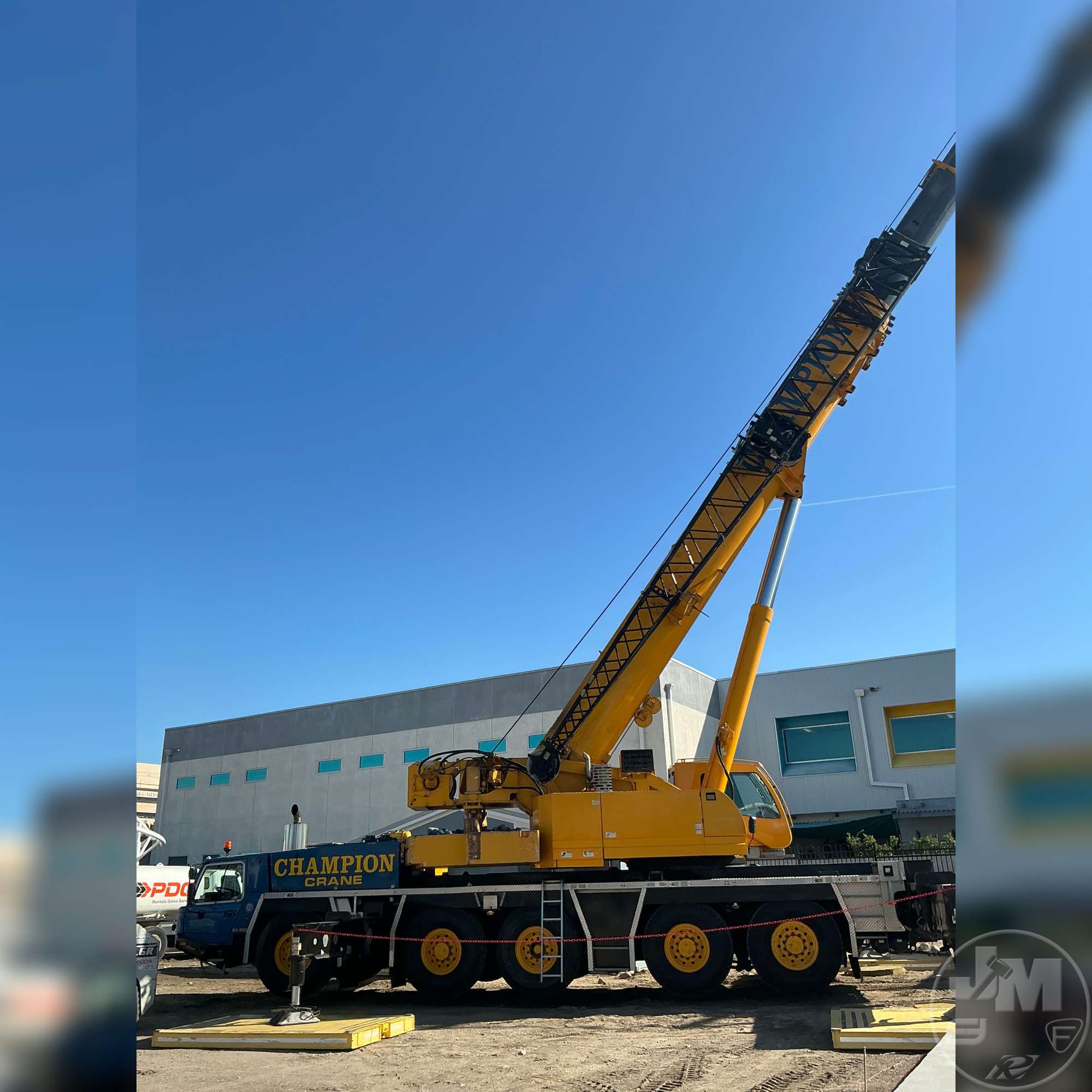

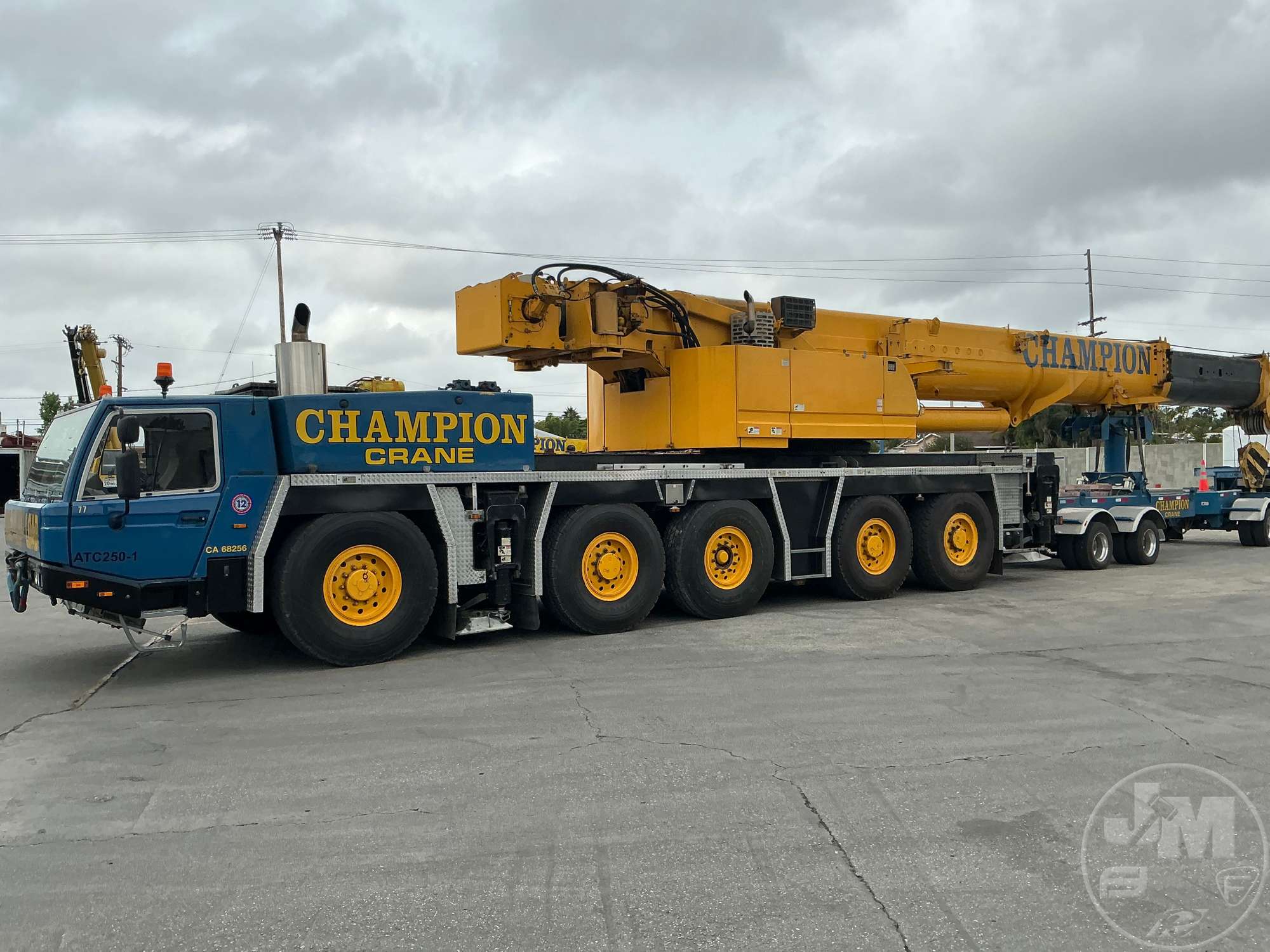

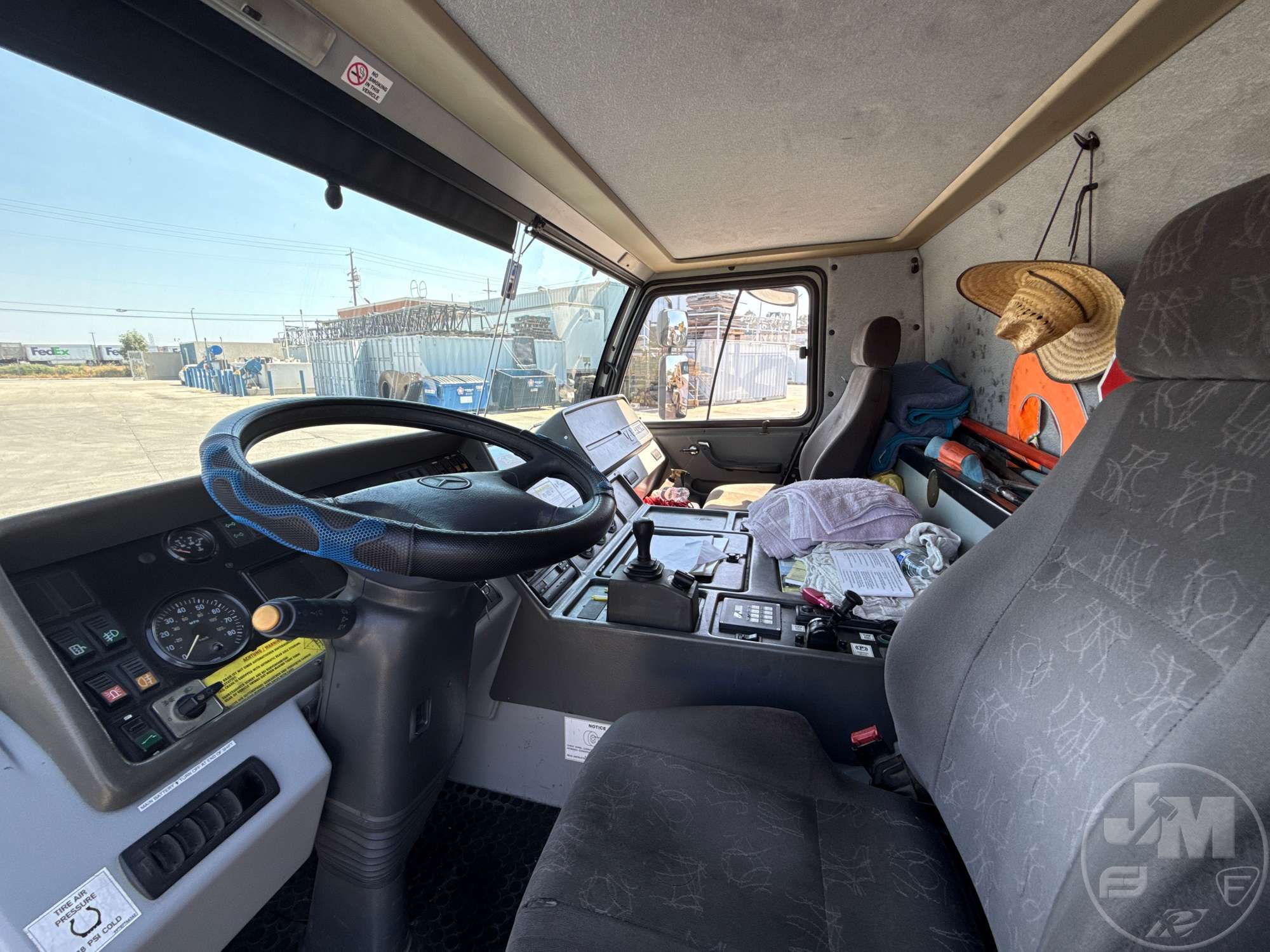

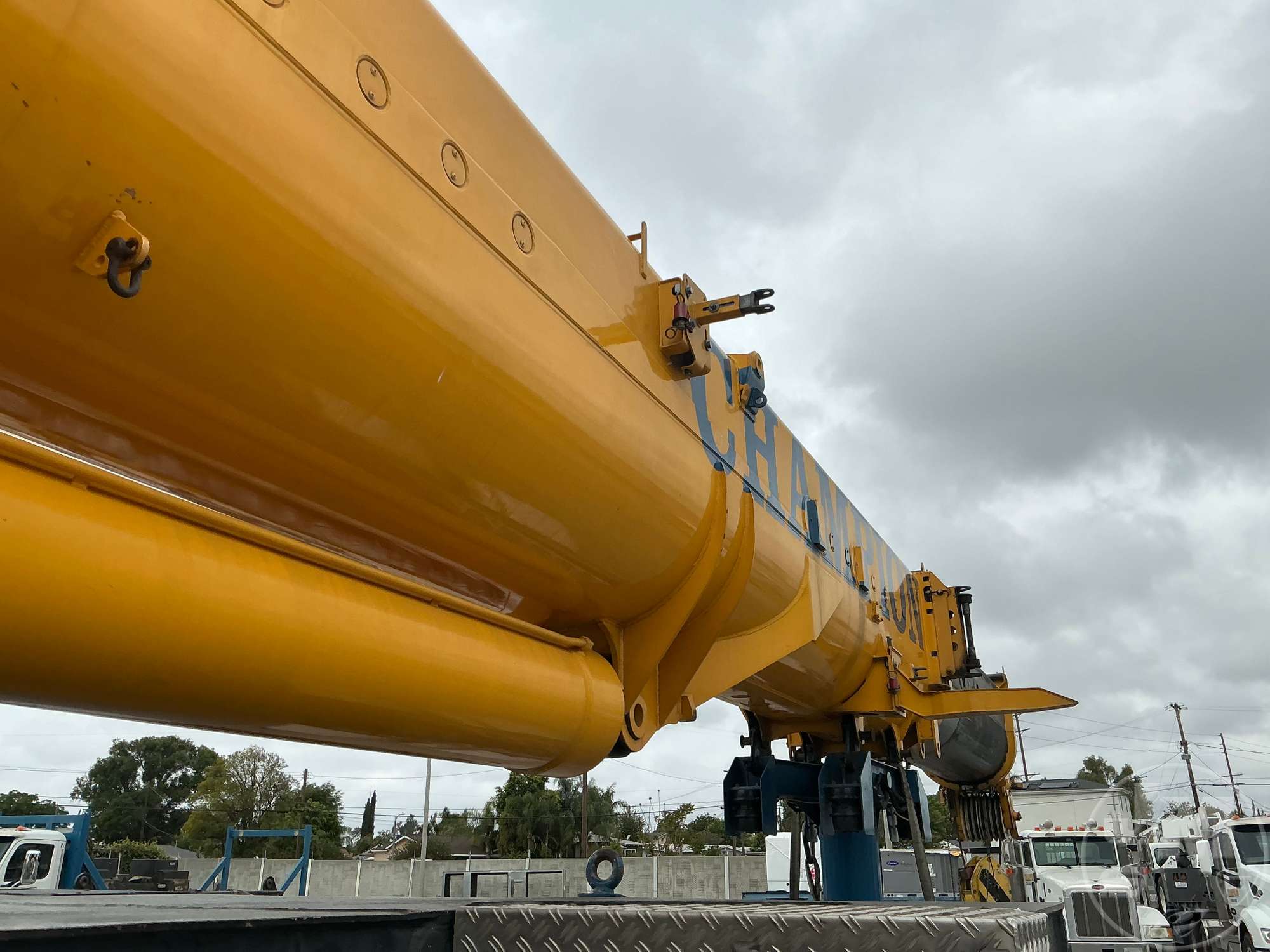

LINK-BELT ALL TERRAIN CRANE, Â 250 TON, 223' OF MAIN BOOM, 6 SECTION BOOM, 17'â€“43' BI-FOLD SWING-AWAY JIB WITH 63'â€“122' FLY INSERT COMBINATIONS PROVIDING EXTENDED REACH AND MULTIPLE CONFIGURATIONS, ROOSTER SHEAVE, AUX WINCH, BLOCK, BALL, ANTI-TWO BLOCK, BOOM DOLLY PREPPED, CAB, AC, RADIO, LOWER ENGINE MODEL MERCEDES-BENZ OM502LA 530 HP, MERCEDES-BENZ OM906LA 185 HP UPPER ENGINE MODEL, DIESEL, MAXIMUM 176,000 LBS, CARRIER TRANSMISSION: ZF AS-TRONIC AUTOMATED MANUAL W/16 FORWARD & 2 REVERSE SPEEDS, LOWER ODOMETER: 140388 KM, UPPER ENGINE HOURS: 13001, ***LOCATED IN PACOIMA, CA***BUYER RESPONSIBLE FOR DISASSEMBLY AND LOADOUT*** ****30+ DAY TITLE DELAY*******LOCATED IN PACOIMA, CA***

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom
Height	346 ft (105 m)
Max Elevating Angle	84 degrees
Max Height @ Max Raise Angle - no jib	235 ft (72 m)
Max Working Radius	210 ft (64 m)
Min Height @ Max Raise Angle	56 ft (17 m)
Min Working Radius	8 ft (2 m)
Number of Sections	7
Swing Speed	2 rpm
CARRIER ENGINE
Displacement	972 cu in (15,930 cu cm)
Gross Power	530 hp (395 kw)
Make	Link-Belt
Max Torque	1,770 lbs ft (2,400 nm)
Power Measured @	1,800 rpm
Torque Measured @	1,200 rpm
Dimensions
Carrier Length	44 ft (13 m)
Ground Clearance	1 ft (0 m)
Transport Height	13 ft (4 m)
Transport Length	52 ft (16 m)
Transport Width	11 ft (3 m)
Upper Structure Tail Swing Radius	17 ft (5 m)
Width w/ Outriggers Extended	27 ft (8 m)
Operating Specifications
Alternator Supplied Amperage	100 amps
Carrier Fuel Capacity	140 gal (530 l)
Carrier Hydraulic System Fluid Capacity	77 gal (290 l)
Carrier Oil Capacity	11 gal (40 l)
Number of Axels	5
Operating Voltage	24 volts
Operating Weight	136,339 lbs (61,842 kg)
Tire Size	20.5R25
Upper Structure Fuel Capacity	66 gal (250 l)
Upper Structure Oil Capacity	8 gal (29 l)
Transmission
Max Speed - Forward	53 mph (85 kph)
Max Speed - Reverse	4 mph (7 kph)
Number of Forward Gears	16
Number of Reverse Gears	2
Transmission Type	automated manual transmission
UPPER STRUCTURE ENGINE
Displacement	389 cu in (6,375 cu cm)
Gross Power	185 hp (138 kw)
Make	Link-Belt
Max Torque	553 lbs ft (750 nm)
Power Measured @	1,800 rpm
Torque Measured @	1,200 rpm
