Equipment ↠ Link-Belt ↠ Truck Cranes ↠ 2007 Link-Belt HTC8675

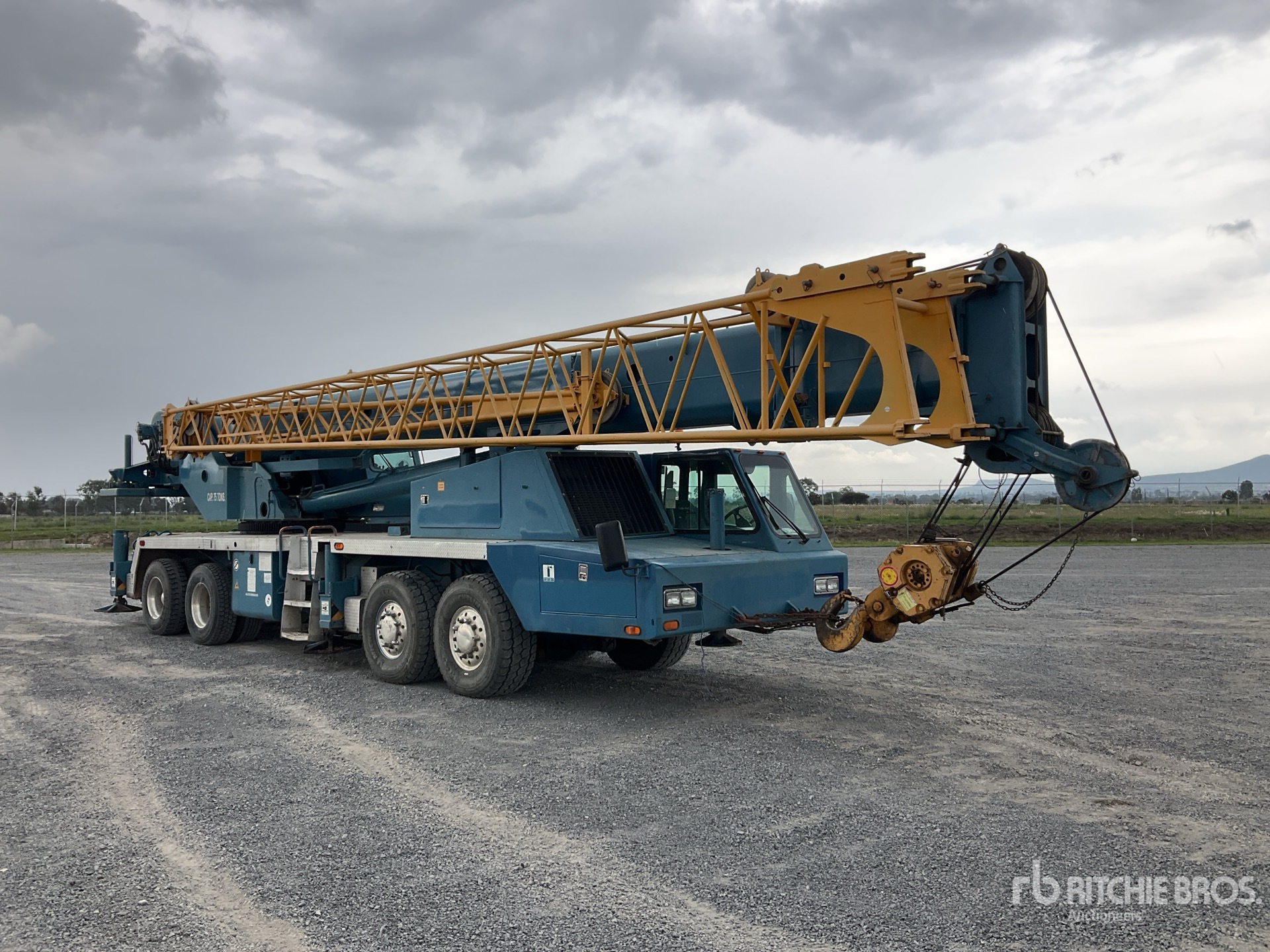

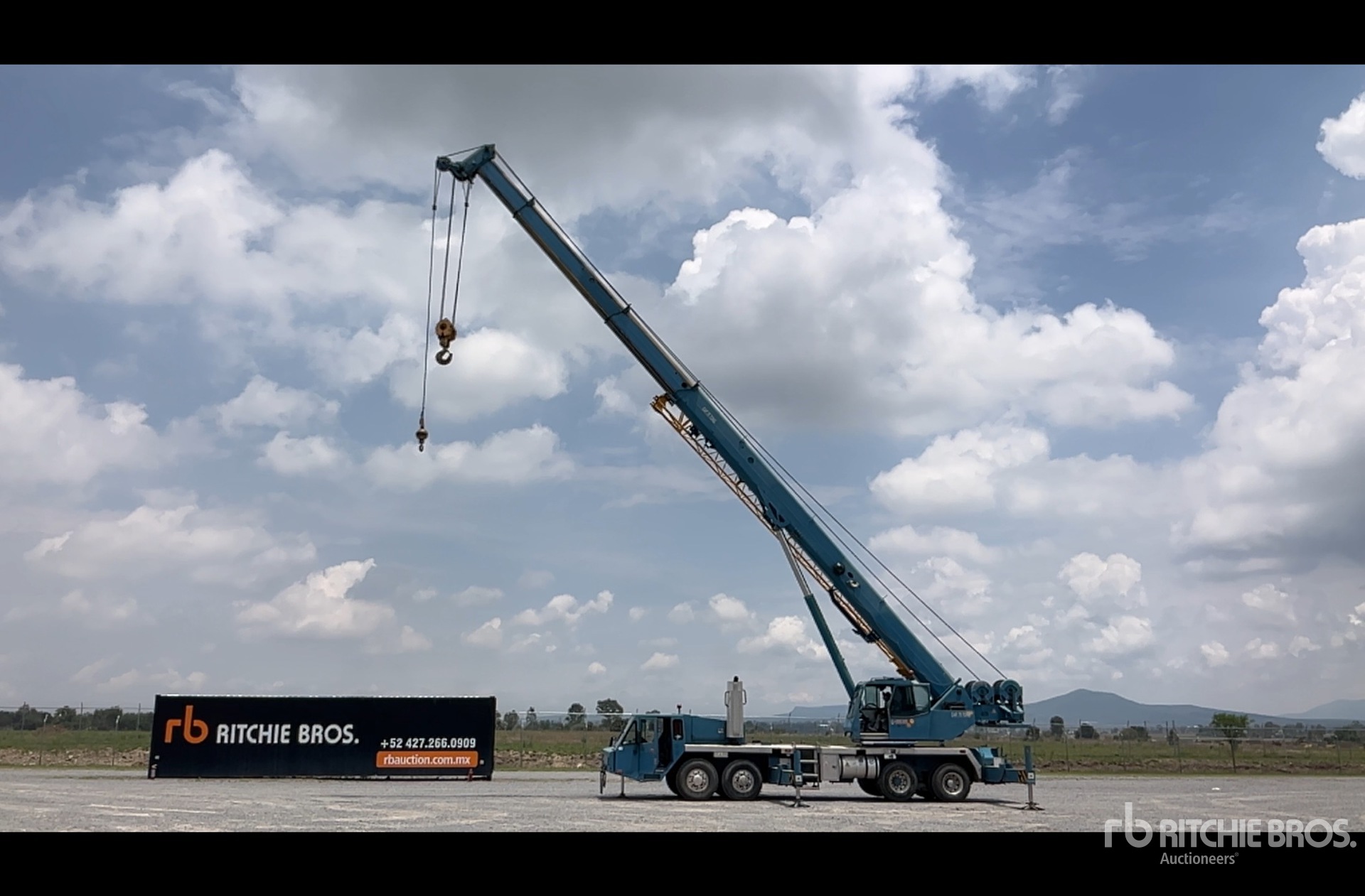

2007 Link-Belt HTC8675

Name: 2007 Link-Belt HTC8675
Brand: Link-Belt
SKU: 88506361
Price: 1 USD
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-06-12 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

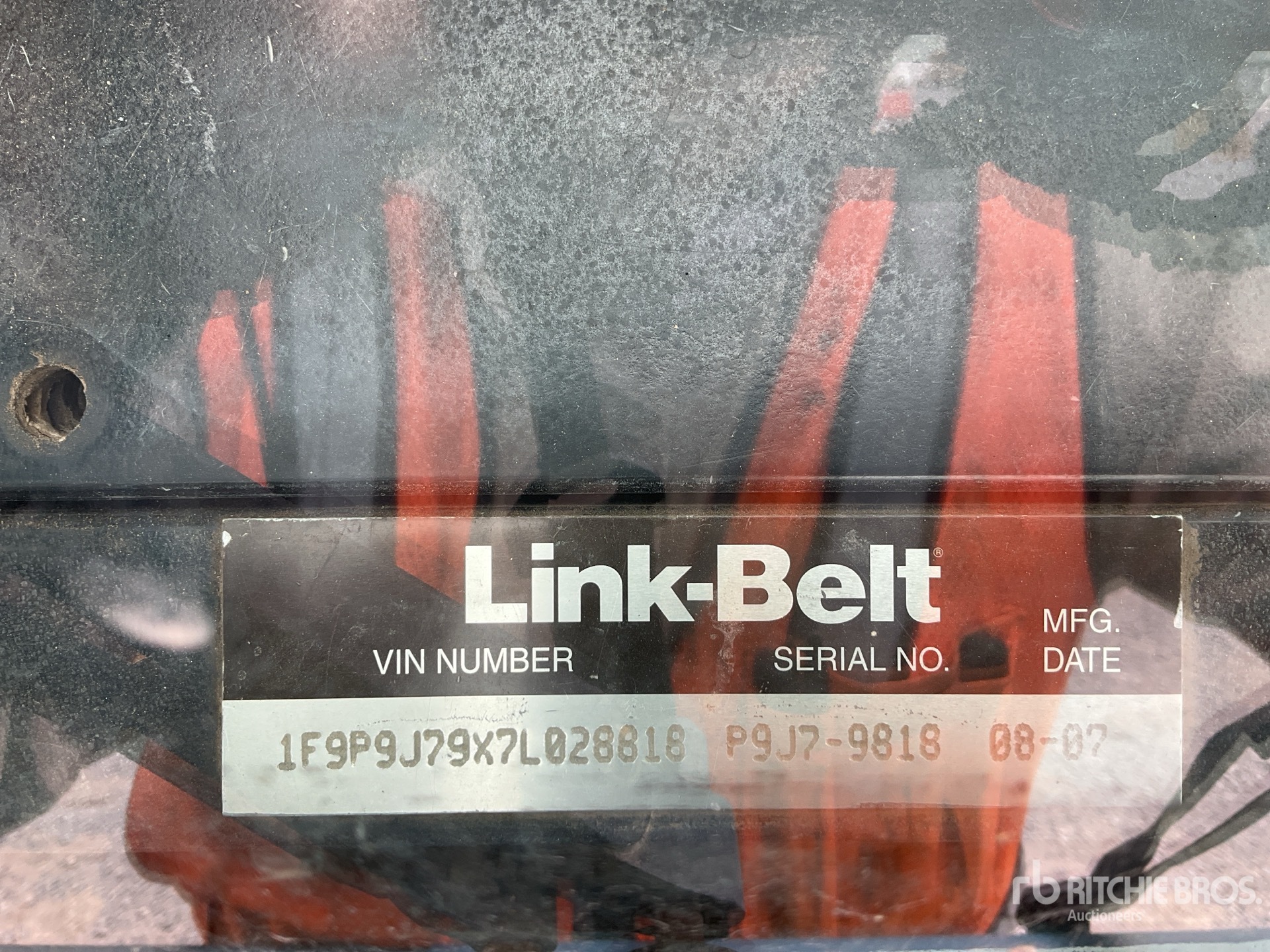

Serial Number:	P9J7-9818
Machine Location:	POLOTITLAN, MEX

Description:

Located in Lane 1 Spot 1, Automatic Transmission, 9640 hrs Carrier Engine, Cat C13 Diesel Carrier Engine, Anti Two-Block, Link-Belt Load Moment Indicator, 38 ft Minimum 115 ft Maximum Boom Length, Auxiliary Hoist, 36 ft to 61 ft Bifold Offset Jib, 68 ton Capacity Johnson 5 Sheave Hook Block, Overhaul Ball, 6.7 ton Counterweight, / Transmision Automatica , 9640 Horas de Camion, Motor Cat C13 Diesel, Bloque Antichoque, LMI Link-Belt, Pluma 38 ft - 115 ft, Polea Auxilia ... Sin suceptibilidad de plaqueo estatal o federal Closing Time: 2026-06-12 10:46:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom
Height	115 ft (35 m)
Max Elevating Angle	80 degrees
Max Height @ Max Raise Angle - no jib	136 ft (41 m)
Max Working Radius	115 ft (35 m)
Min Height @ Max Raise Angle	50 ft (15 m)
Min Working Radius	10 ft (3 m)
Number of Sections	4
Swing Speed	2 rpm
CARRIER ENGINE
Displacement	763 cu in (12,500 cu cm)
Gross Power	445 hp (332 kw)
Make	Link-Belt
Max Torque	1,550 lbs ft (2,101 nm)
Power Measured @	1,800 rpm
Torque Measured @	1,200 rpm
Dimensions
Carrier Length	38 ft (11 m)
Ground Clearance	1 ft (0 m)
Transport Height	12 ft (4 m)
Transport Length	49 ft (15 m)
Transport Width	9 ft (3 m)
Upper Structure Tail Swing Radius	14 ft (4 m)
Width w/ Outriggers Extended	26 ft (8 m)
Operating Specifications
Alternator Supplied Amperage	135 amps
Carrier Fuel Capacity	95 gal (360 l)
Carrier Hydraulic System Fluid Capacity	144 gal (545 l)
Carrier Oil Capacity	11 gal (40 l)
Number of Axels	4
Operating Voltage	12 volts
Operating Weight	74,320 lbs (33,711 kg)
Tire Size	front 445/65R22.5 rear 12R22.5
Transmission
Max Speed - Forward	63 mph (101 kph)
Max Speed - Reverse	6 mph (9 kph)
Number of Forward Gears	12
Number of Reverse Gears	2
Transmission Type	manual transmission
