For Sale: $14,500.00 USD

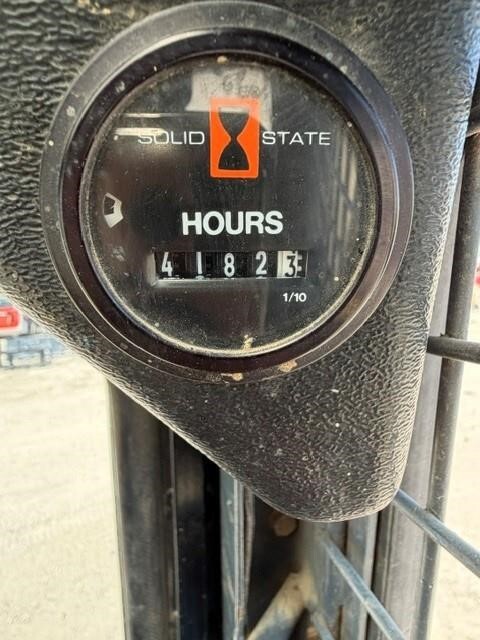

Apply for Financing| Hours: | 4182 |
| Stock Number: | SQ02F004141 |
| Machine Location: | ABERDEEN, SD |
| More Information: | https://jgeinc.com/inventory/skid+steers/2002-mustang-2054-aberdeen-sd-6a05f2272fa9ad38c00e03e2/ |
Supplied by HeavyEquipmentData.com →
| Dimensions | |
| Clearance at Max Lift and Dump | 8 ft (2 m) |
| Ground Clearance | 8 in (19 cm) |
| Height - Top of Cab | 10 ft (3 m) |
| Length w/o Bucket | 8 ft (2 m) |
| Length with Bucket | 10 ft (3 m) |
| Reach at Max Lift and Dump | 24 in (61 cm) |
| Turning Radius from Center - machine rear | 59 in (150 cm) |
| Wheelbase | 3 ft (1 m) |
| Width Over Tires | 6 ft (2 m) |

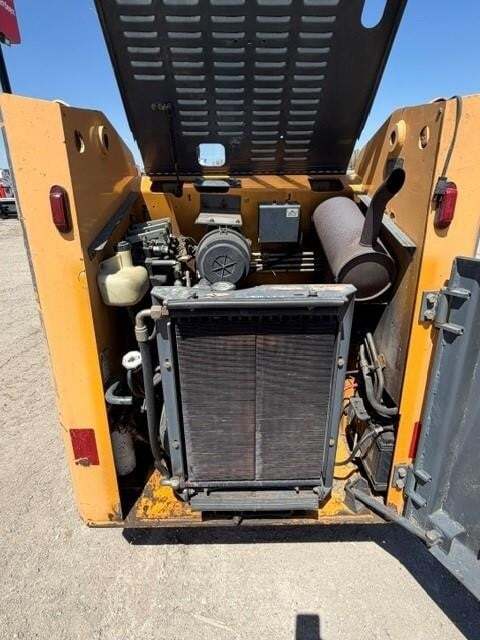

| Engine | |
| Displacement | 134 cu in (2,189 cu cm) |
| Engine Model | 4TNV88 |
| Gross Power | 47 hp (35 kw) |
| Number of Cylinders | 4 |
| Power Measured @ | 3,000 rpm |
| Hydraulic System | |
| Pump Flow Capacity | 28 gpm (106 lpm) |
| Relief Valve Pressure | 3,000 psi |
| Loader | |
| Breakout Force | 4,400 psi |
| Bucket Capacity | 1 cu yd (0 cu m) |
| Operating Load Rating | 1,750 lbs (794 kg) |
| Operating Width | 61 in (154 cm) |
| Tipping Angle | 3,300 degrees |
| Operating Specifications | |
| Alternator Supplied Amperage | 700 amps |
| Fuel Capacity | 14 gal (54 l) |
| Hydraulic System Fluid Capacity | 13 gal (49 l) |
| Max Speed | 7 mph (12 kph) |
| Operating Voltage | 12 volts |
| Operational Weight | 6,050 lbs (2,744 kg) |
