Equipment ↠ Takeuchi ↠ Compact Track Loaders ↠ 2012 Takeuchi TL240

2012 Takeuchi TL240 For Sale in North East, Md

Name: 2012 Takeuchi TL240
Brand: Takeuchi
SKU: 88804497
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-08-04 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

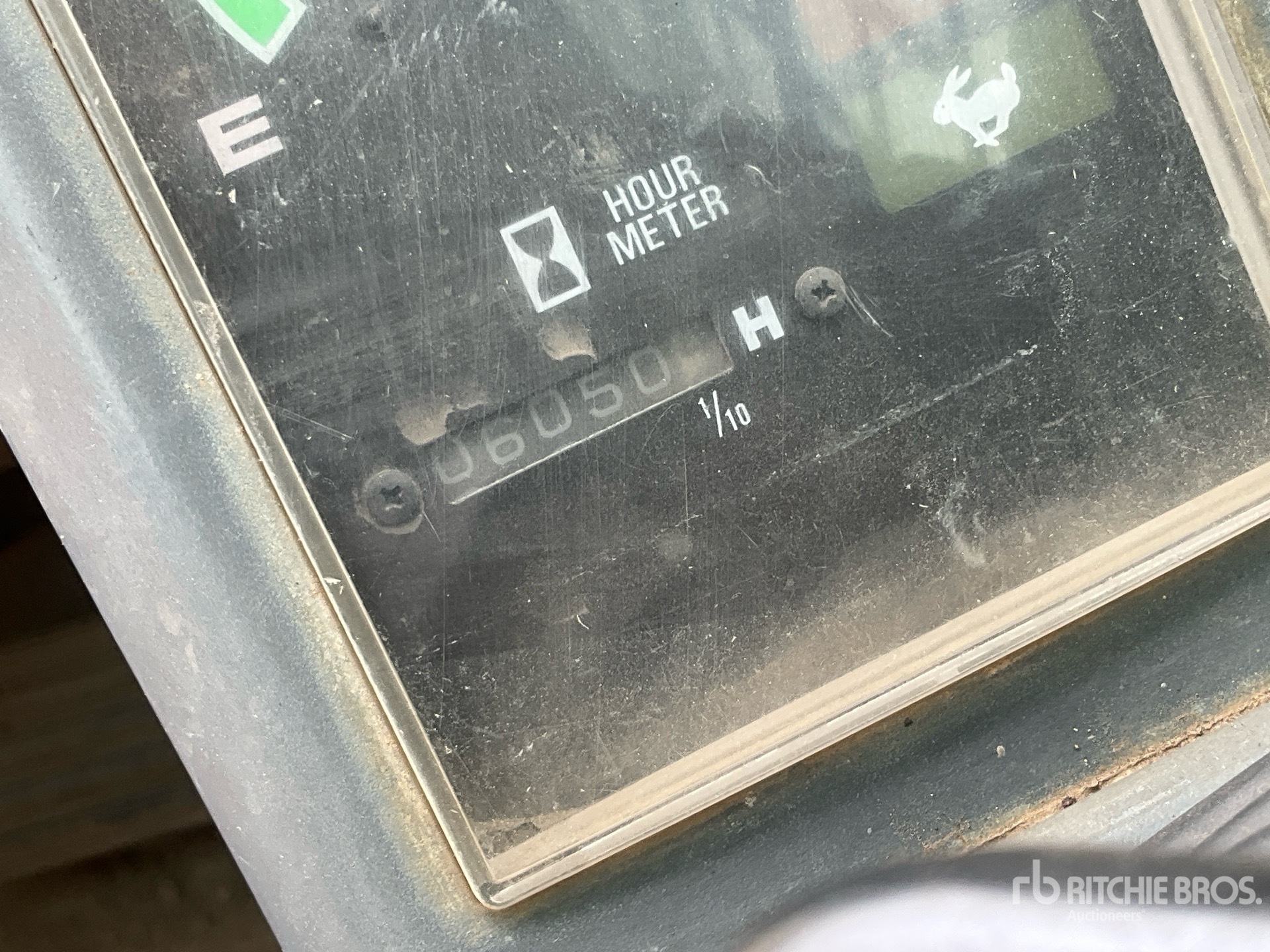

Hours:	6050

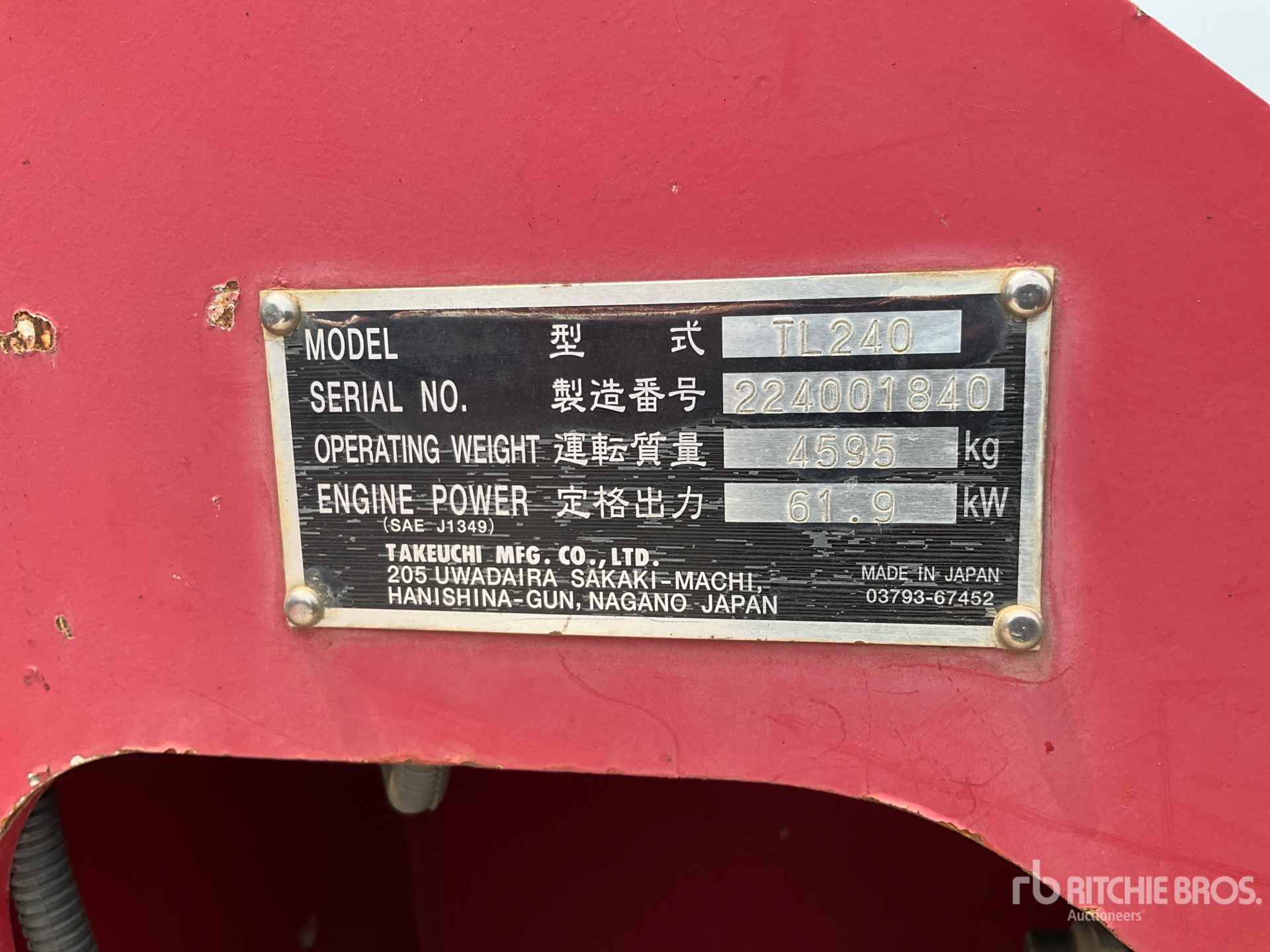

Serial Number:	244001840
Machine Location:	NORTH EAST, MD

Description:

Enclosed Cab, Joystick Steering, Tier 3, 2016 US EPA Label, 18 in Track Belts, Hydraulic Coupler, 40 in Forks Closing Time: 2026-08-04 07:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Dimensions
Clearance at Full Height and Dump	8 ft (2 m)
Clearance at Max Lift and Dump	8 ft (2 m)
Ground Clearance	1 ft (0 m)
Ground Clearance	13 in (33 cm)
Height - Top of Cab	8 ft (2 m)
Height - Top of Cab	8 ft (2 m)
Length - with Bucket	13 ft (4 m)
Length with Bucket on Ground	12 ft (4 m)
Reach at Dump Height	3 ft (1 m)
Reach at Max Lift and Dump	3 ft (1 m)
Turning Radius from Center - inc bucket	93 in (236 cm)
Turning Radius from Center - machine rear	66 in (167 cm)
Width Over Tracks	6 ft (2 m)
Width to Outside of Tracks	6 ft (2 m)
Engine
Aspiration	Turbocharged
Displacement	203 cu in (3,327 cu cm)
Displacement	203 cu in (3,320 cu cm)
Engine Model	4TNV98I
Engine Model	4TNV98T
Gross Power	86 hp (64 kw)
Max Torque	219 lbs ft (297 nm)
Net Power	83 hp (62 kw)
Net Power	83 hp (62 kw)
Number of Cylinders	4
Number of Cylinders	4
Peak Torque	219 lbs ft (297 nm)
Power Measured @	2,500 rpm
Power Measured @	2,500 rpm
Torque Measured @	1,850 rpm
Hydraulic System
Pump Flow	20 gpm (76 lpm)
Relief Valve Pressure	3,000 psi
Loader
Bucket Capacity	1 cu yd (1 cu m)
Operating Load	2,081 lbs (944 kg)
Tipping Angle	5,950 degrees
Operating Specifications
Alternator Supplied Amperage	40 amps
Bucket Capacity - heaped	1 cu yd (1 cu m)
Cooling System Fluid Capacity	4 gal (17 l)
Engine Oil Capacity	3 gal (10 l)
Fuel Capacity	24 gal (90 l)
Hydraulic System Fluid Capacity	20 gal (75 l)
Max Speed	7 mph (12 kph)
Max Speed - high range	7 mph (12 kph)
Max Speed - low range	5 mph (8 kph)
Operating Voltage	12 volts
Operating Weight	9,932 lbs (4,505 kg)
Operating Weight	10,364 lbs (4,701 kg)
Static Tipping Load	5,953 lbs (2,700 kg)
Undercarriage
Ground Pressure	4 psi
Ground Pressure	4 psi
Length of Track on Ground	5 ft (2 m)
Number of Track Rollers per Side	5
Number of Track Rollers per Side	5
Track Gauge	52 in (132 cm)
Track Shoe Width	18 in (45 cm)
Width of Track	18 in (45 cm)
