Equipment ↠ Takeuchi ↠ Compact Track Loaders ↠ 2013 Takeuchi TL250

2013 Takeuchi TL250 For Sale in Caorso, Ita

Name: 2013 Takeuchi TL250
Brand: Takeuchi
SKU: 88746342
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-07-09 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

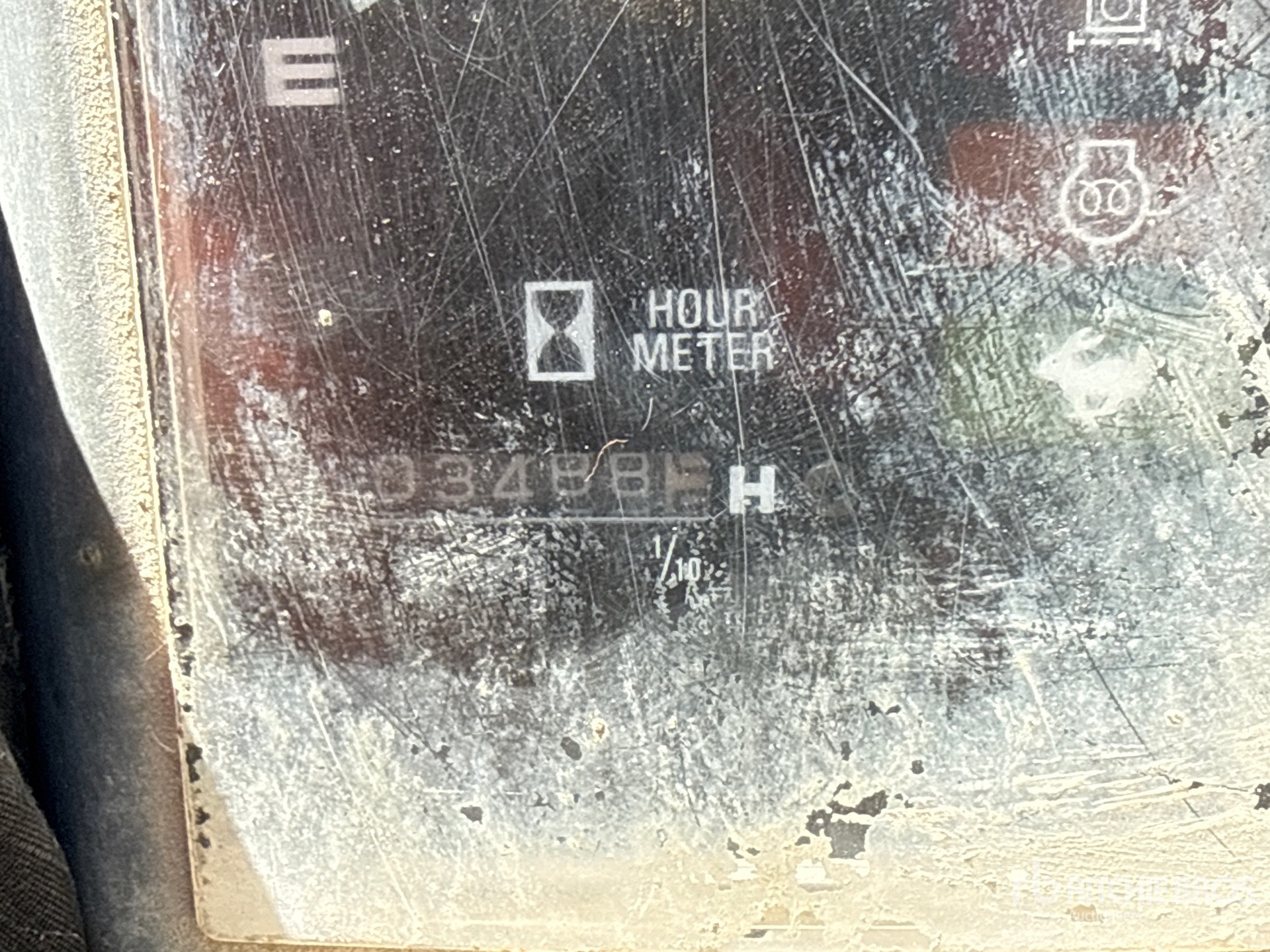

Hours:	3488

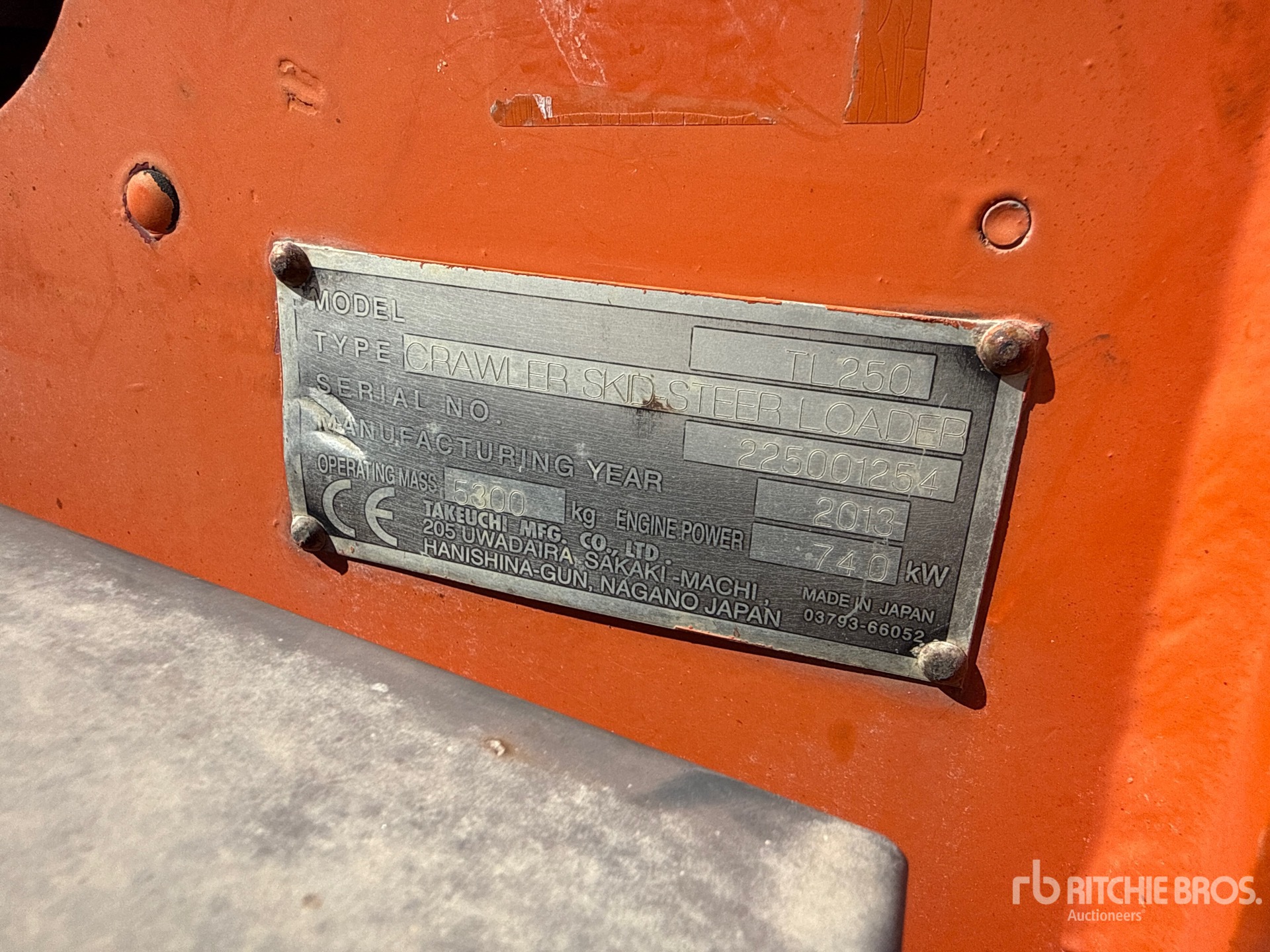

Serial Number:	225001254
Machine Location:	CAORSO, ITA

Description:

Hydraulic Coupler, Bucket ** Senza libretto di circolazione/ No registration **, Closing Time: 2026-07-09 09:33:20 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Takeuchi TL250 is a compact track loader designed for construction, landscaping, site preparation, and material handling applications. It features a tracked undercarriage for improved flotation, traction, and stability on soft or uneven ground. The TL250 is commonly used with buckets, forks, grapples, and other hydraulic attachments for loading, grading, digging, and cleanup tasks. As part of Takeuchi's compact track loader lineup, the TL250 is built for maneuverability in confined work areas while supporting productive operation in demanding jobsite conditions. It is a tracked machine in the compact equipment class, suited to utility, agricultural, and general earthmoving work.

Dimensions
Clearance at Full Height and Dump	8 ft (2 m)
Clearance at Max Lift and Dump	8 ft (2 m)
Ground Clearance	1 ft (0 m)
Ground Clearance	14 in (35 cm)
Height - Top of Cab	8 ft (2 m)
Height - Top of Cab	8 ft (2 m)
Length - with Bucket	13 ft (4 m)
Length with Bucket on Ground	13 ft (4 m)
Reach at Dump Height	3 ft (1 m)
Reach at Max Lift and Dump	3 ft (1 m)
Turning Radius from Center - inc bucket	96 in (244 cm)
Turning Radius from Center - machine rear	69 in (176 cm)
Width Over Tracks	6 ft (2 m)
Width to Outside of Tracks	6 ft (2 m)
Engine
Aspiration	Turbocharged
Displacement	232 cu in (3,800 cu cm)
Displacement	230 cu in (3,769 cu cm)
Engine Model	V3800DI
Engine Model	V3800DI-T
Gross Power	98 hp (73 kw)
Max Torque	231 lbs ft (314 nm)
Net Power	92 hp (69 kw)
Net Power	92 hp (68 kw)
Number of Cylinders	4
Number of Cylinders	4
Peak Torque	240 lbs ft (325 nm)
Power Measured @	2,600 rpm
Power Measured @	2,600 rpm
Torque Measured @	1,600 rpm
Hydraulic System
Pump Flow	24 gpm (89 lpm)
Relief Valve Pressure	3,000 psi
Loader
Bucket Capacity	1 cu yd (1 cu m)
Operating Load	2,408 lbs (1,092 kg)
Tipping Angle	7,055 degrees
Operating Specifications
Alternator Supplied Amperage	80 amps
Bucket Capacity - heaped	1 cu yd (1 cu m)
Cooling System Fluid Capacity	4 gal (17 l)
Engine Oil Capacity	4 gal (13 l)
Fuel Capacity	29 gal (108 l)
Hydraulic System Fluid Capacity	17 gal (65 l)
Max Speed	8 mph (12 kph)
Max Speed - high range	8 mph (12 kph)
Max Speed - low range	5 mph (8 kph)
Operating Voltage	12 volts
Operating Weight	11,453 lbs (5,195 kg)
Operating Weight	11,905 lbs (5,400 kg)
Static Tipping Load	7,055 lbs (3,200 kg)
Undercarriage
Ground Pressure	4 psi
Ground Pressure	5 psi
Length of Track on Ground	5 ft (2 m)
Number of Track Rollers per Side	6
Number of Track Rollers per Side	6
Track Gauge	56 in (141 cm)
Track Shoe Width	18 in (45 cm)
Width of Track	18 in (45 cm)
