2006 Terex TA30 For Sale in Fort Worth, Tx

Name: 2006 Terex TA30
Brand: Terex
SKU: 88824670
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-08-19 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Hours:	11939

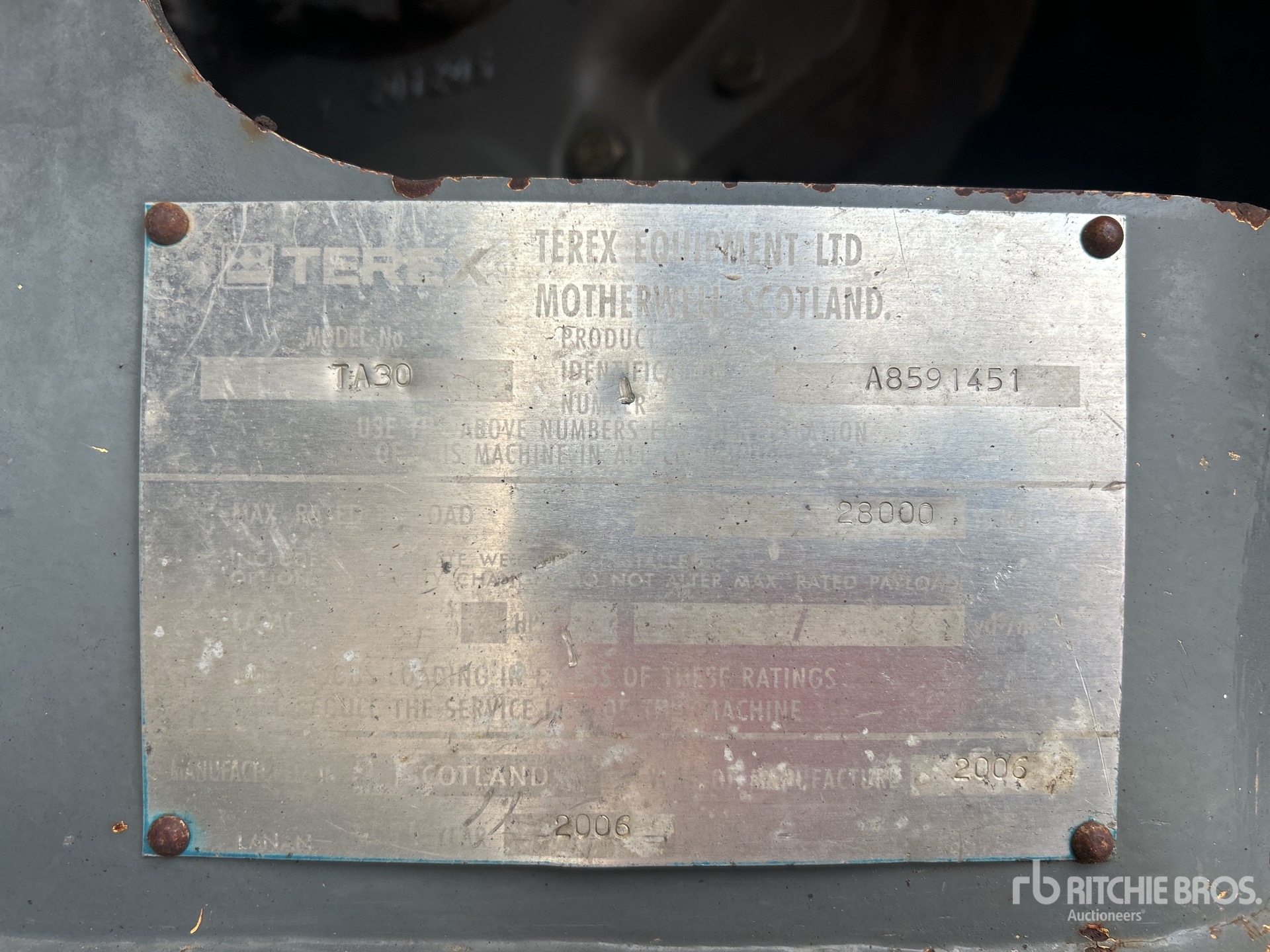

Serial Number:	A8591451
Machine Location:	FORT WORTH, TX

Description:

Air Conditioner, 23.5R25 Tires Closing Time: 2026-08-19 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Terex TA30 is an off-highway articulated dump truck designed for hauling material in construction, quarry, mining, and earthmoving applications. It is part of Terex's TA series and is built for operation on rough terrain and unpaved job sites. The TA30 typically features a 6x6 drivetrain, articulated steering, and a rear dump body for efficient material transport. It is used for moving aggregates, soil, rock, and overburden in demanding site conditions. The model is recognized for its haul capacity, traction, and off-road mobility, making it suitable for heavy-duty material handling in large-scale earthmoving operations and site development projects.

Articulating/Rigid
Articulating/Rigid	Articulated
Dimensions
Dump Ground Clearance	2 ft (1 m)
Dump Height	20 ft (6 m)
Ground Clearance	1 ft (0 m)
Overall Height	11 ft (3 m)
Overall Length	32 ft (10 m)
Overall Width	10 ft (3 m)
Wheelbase	17 ft (5 m)
DRIVE SYSTEM
Drive Config	6x6
Dump
Capacity - Heaped	23 cu yd (18 cu m)
Capacity - Struck	18 cu yd (14 cu m)
Dump Angle	65 degrees
Lower Time	8 seconds
Raise Time	12 seconds
Rated Payload	61,730 lbs (28,000 kg)
Engine
Aspiration	turbocharged
Displacement	660 cu in (10,815 cu cm)
Engine Model	QSM11
Gross Power	385 hp (287 kw)
Make	Cummins
Max Torque	1,310 lbs ft (1,776 nm)
Net Power	333 hp (248 kw)
Number of Cylinders	6
Power Measured @	2,100 rpm
Torque Measured @	1,400 rpm
Operating Specifications
Alternator Supplied Amperage	70 amps
Cooling System Fluid Capacity	14 gal (54 l)
Engine Oil Capacity	9 gal (34 l)
Fuel Capacity	103 gal (390 l)
Hydraulic System Fluid Capacity	53 gal (202 l)
Operating Voltage	24 volts
Tire Size	23.5R25
Transmission Fluid Capacity	17 gal (63 l)
Transmission
Max Speed	32 mph (51 kph)
Number of Forward Gears	6
Number of Reverse Gears	3
Transmission Type	ZF 6WG 310 RPC fully automatic
Weights
Center Axle - empty	11,685 lbs (5,300 kg)
Center Axle - loaded	36,860 lbs (16,719 kg)
Front Axle - empty	25,840 lbs (11,721 kg)
Front Axle - loaded	37,040 lbs (16,801 kg)
Operating Weight	111,308 lbs (50,489 kg)
Rear Axle - empty	11,905 lbs (5,400 kg)
Rear Axle - loaded	37,360 lbs (16,946 kg)
Total Empty	49,430 lbs (22,421 kg)
Total Loaded	111,160 lbs (50,421 kg)
