2012 Toyota 8FGCU20 For Sale in Fort Worth, Tx

Name: 2012 Toyota 8FGCU20
Brand: Toyota
SKU: 88579637
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-17 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Hours:	11601

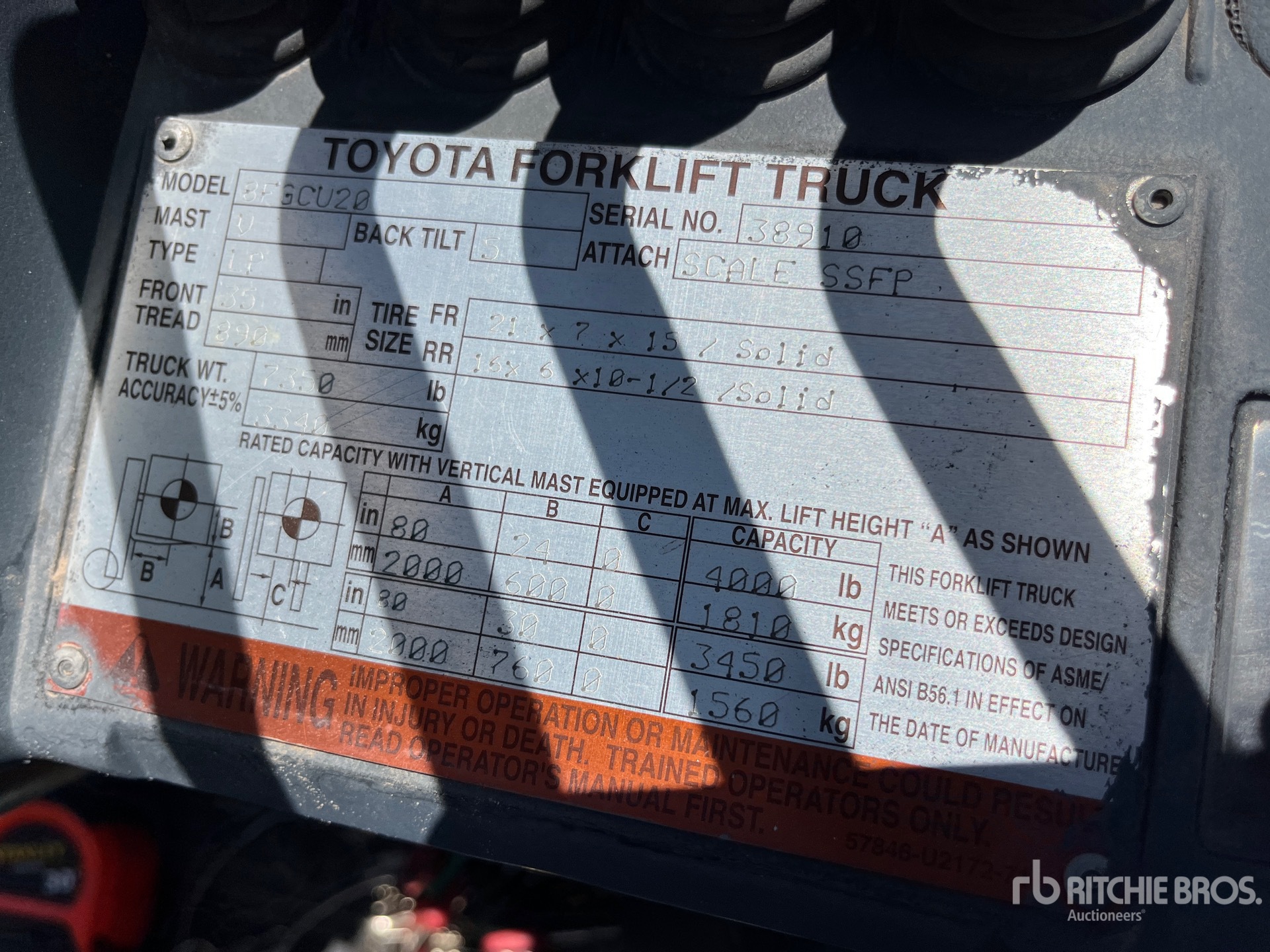

Serial Number:	38910
Machine Location:	FORT WORTH, TX

Description:

2 Stage Mast, Full Free Lift, 80 in Max Lift Height, 57.5 in Lowered Mast Height, 41 in Forks, Fork Positioner, 2012 US EPA Label, Toyota 4 Cylinder 2.237 L LPG Engine Closing Time: 2026-06-17 02:01:12 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Toyota 8FGCU20 is a cushion-tire forklift in Toyota's 8FGCU series, designed for indoor material handling and warehouse applications. It is powered by a gasoline or LPG engine, depending on configuration, and is commonly used for loading, unloading, pallet transport, and general lift truck duties on smooth surfaces. The 8FGCU20 typically has a 4,000 lb. rated load capacity, a compact chassis, and a three-stage mast option for improved lift height in confined spaces. Toyota's System of Active Stability and ergonomic operator controls are commonly associated with this model line. It is used in distribution, manufacturing, and industrial facilities.

Brakes
Parking brake	Foot
Service brake	Hydraulic
Dimensions
Fork Spread Max	3 ft (1 m)
Fork Spread Min-outer edge to edge	10 in (25 cm)
Free lift	6 in (15 cm)
Gradeability	36%
Height to Top of Overhead Guard	7 ft (2 m)
Length to Fork Face	8 ft (2 m)
Max Fork Height	11 ft (3 m)
Overall Height - mast lowered	7 ft (2 m)
Overall Width	4 ft (1 m)
Turning Radius	6 ft (2 m)
Wheelbase	5 ft (1 m)
Engine
Displacement	136 cu in (2,229 cu cm)
Engine Make	TOYOTA
Engine Model	4Y-ECS
Number of Cylinders	4
Power	51 hp (38 kw)
Power Measured @	2,250 rpm
Torque	118 lbs ft (160 nm)
Torque Measured @	2,100 rpm
MAST
Load Capacity	4,000 lbs (1,814 kg)
Load Center	24 in (60 cm)
Mast Tip Forward	6 degrees
Mast Tip Rear	10 degrees
Operating Specifications
Fuel Capacity	12 gal (45 l)
Hydraulic System Fluid Capacity	20 gal (76 l)
Hydraulic System Relief Valve Pressure	2,275 psi
Max Speed	11 mph (17 kph)
Number of Front Wheels	2
Number of Rear Wheels	2
Operating Weight	7,143 lbs (3,240 kg)
Tire Type	Cushion
Performance
Drawbar Pull Max -Full Load	40,786 lbs (18,500 kg)
Drawbar Pull Max -No Load	18,298 lbs (8,300 kg)
