Equipment ↠ Toyota ↠ Forklifts ↠ 2010 Toyota 8FGCU25

2010 Toyota 8FGCU25

Name: 2010 Toyota 8FGCU25
Brand: Toyota
SKU: 88566393
Price: 1 USD
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-06-17 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

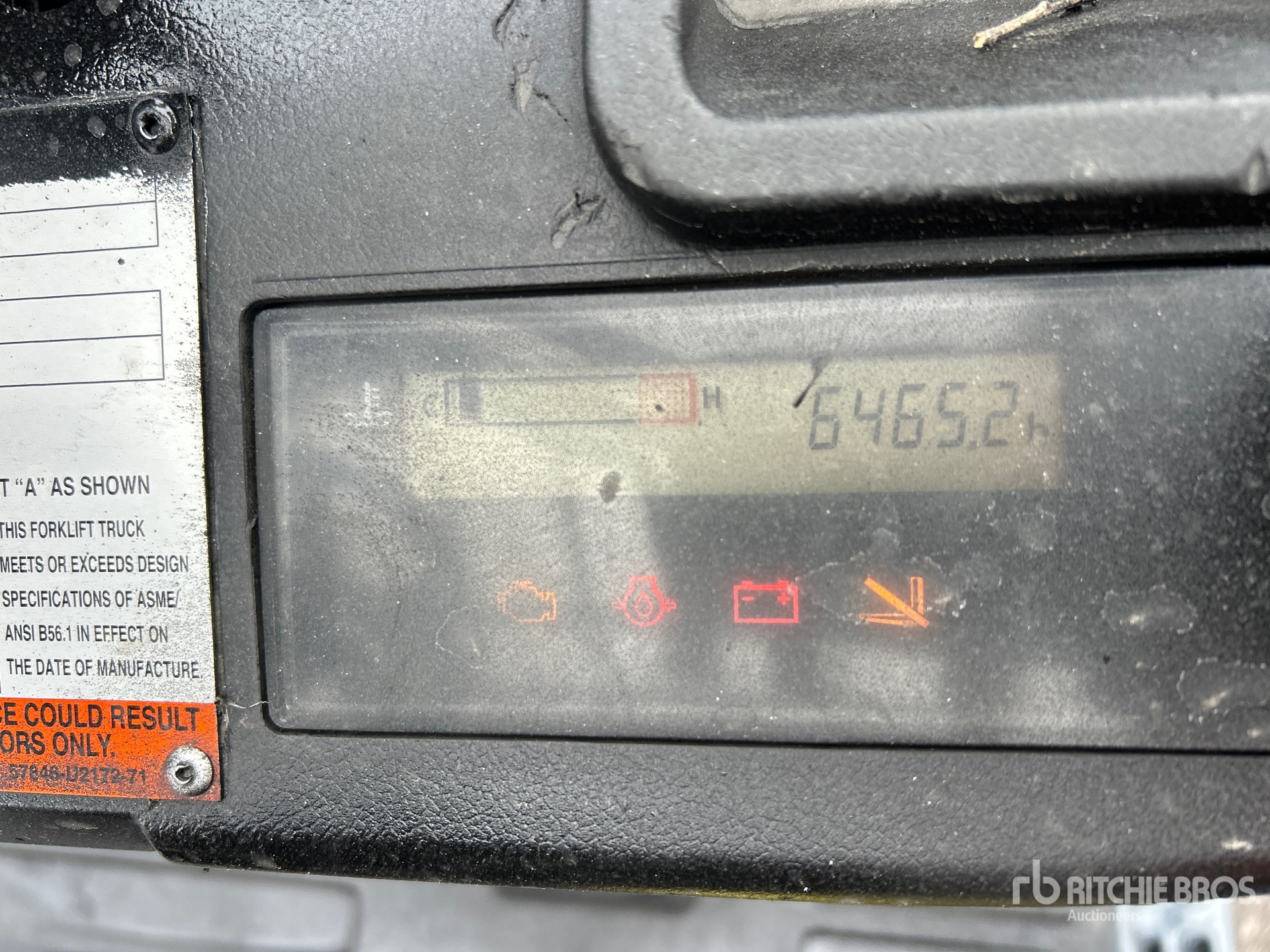

Hours:	6465

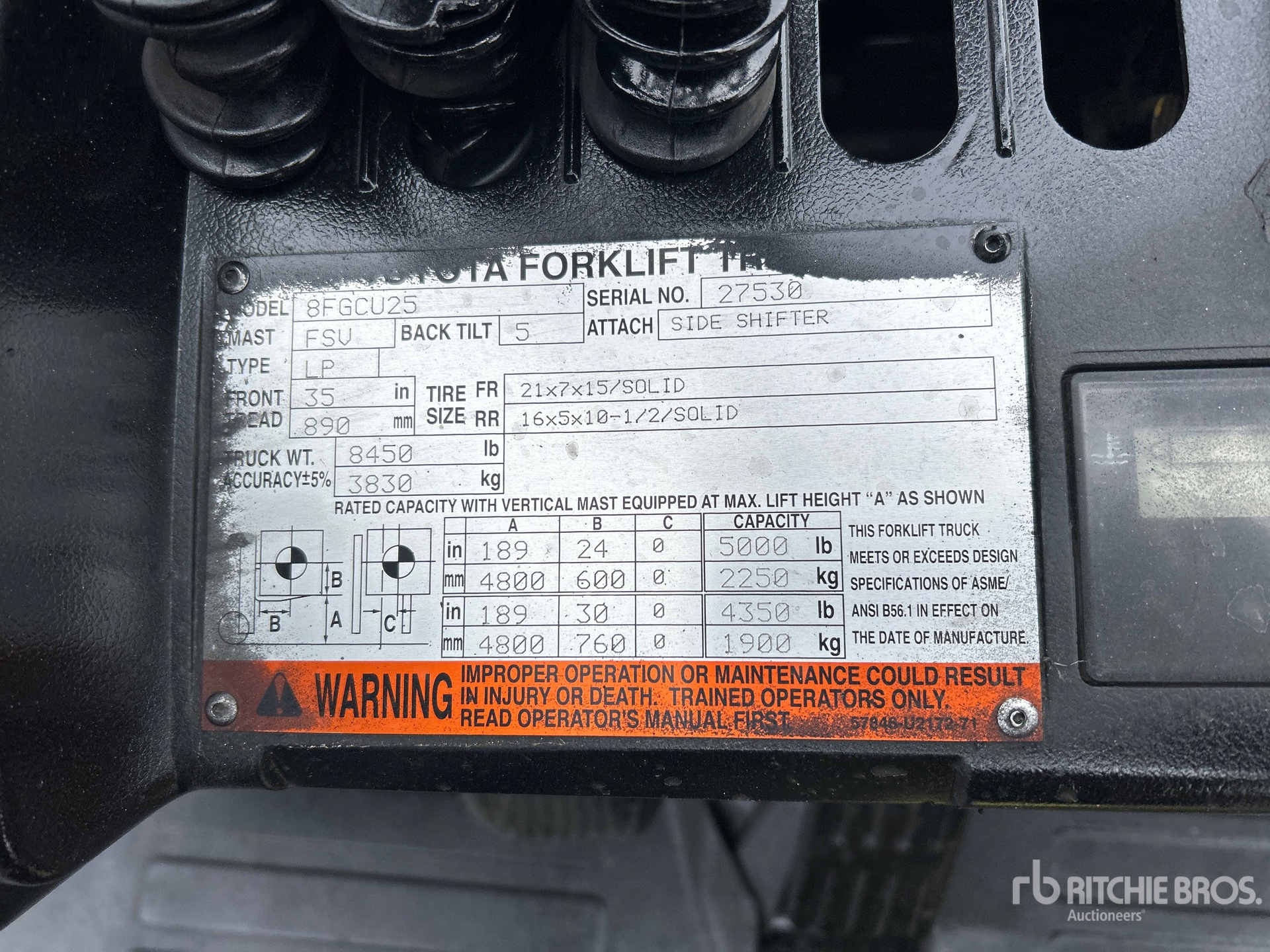

Serial Number:	27530
Machine Location:	FORT WORTH, TX

Description:

3 Stage Mast, Full Free Lift, 189 in Max Lift Height, 80 in Lowered Mast Height, 42 in Forks, Side Shift, 2010 US EPA Label, Toyota 4Y ECS 4 Cylinder 38 kW 2.237 L LPG Engine

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Toyota 8FGCU25 is a cushion tire forklift in Toyota's 8-Series, designed for indoor material handling and warehouse operations. It is powered by a gasoline or LPG engine, depending on configuration, and is commonly used for loading, unloading, pallet transport, and general lift truck duties on smooth surfaces. The 8FGCU25 has a 5,000 lb class lift capacity, a compact turning radius, and a sit-down operator compartment for maneuverability in tight aisles and dock areas. Toyota's System of Active Stability and ergonomic controls are commonly associated with this model line. It is used in distribution centers, manufacturing facilities, and industrial storage environments.

Dimensions
Height to Top of Overhead Guard	7 ft (2 m)
Length to Fork Face	8 ft (2 m)
Overall Width	4 ft (1 m)
Turning Radius	7 ft (2 m)
Engine
Displacement	136 cu in (2,229 cu cm)
Engine Make	TOYOTA
Engine Model	4Y-ECS
Number of Cylinders	4
Power	51 hp (38 kw)
Power Measured @	2,570 rpm
Torque	118 lbs ft (160 nm)
Torque Measured @	2,100 rpm
MAST
Lift Speed	124 ft/min (38 m/min)
Load Capacity	5,000 lbs (2,268 kg)
Load Center	24 in (60 cm)
Operating Specifications
Fuel Capacity	12 gal (45 l)
Hydraulic System Fluid Capacity	20 gal (76 l)
Hydraulic System Relief Valve Pressure	2,275 psi
Max Speed	11 mph (17 kph)
Number of Front Wheels	2
Number of Rear Wheels	2
Operating Weight	8,003 lbs (3,630 kg)
Tire Type	Cushion
Performance
Drawbar Pull Max -Full Load	40,786 lbs (18,500 kg)
Drawbar Pull Max -No Load	17,196 lbs (7,800 kg)
