Toyota 8FGCU32

Name: Toyota 8FGCU32
Brand: Toyota
SKU: 88566392
Price: 1 USD
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-06-17 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

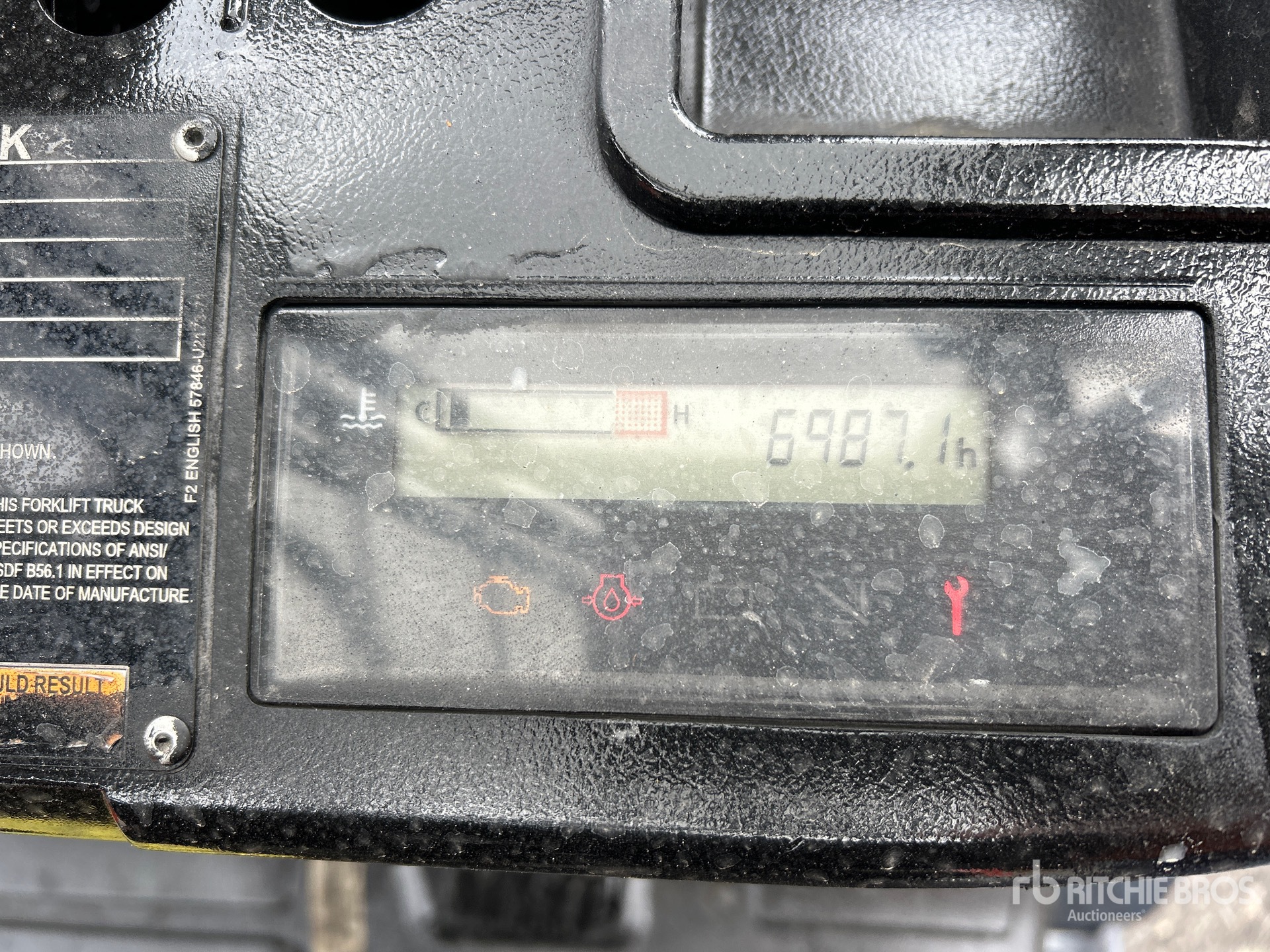

Hours:	6987

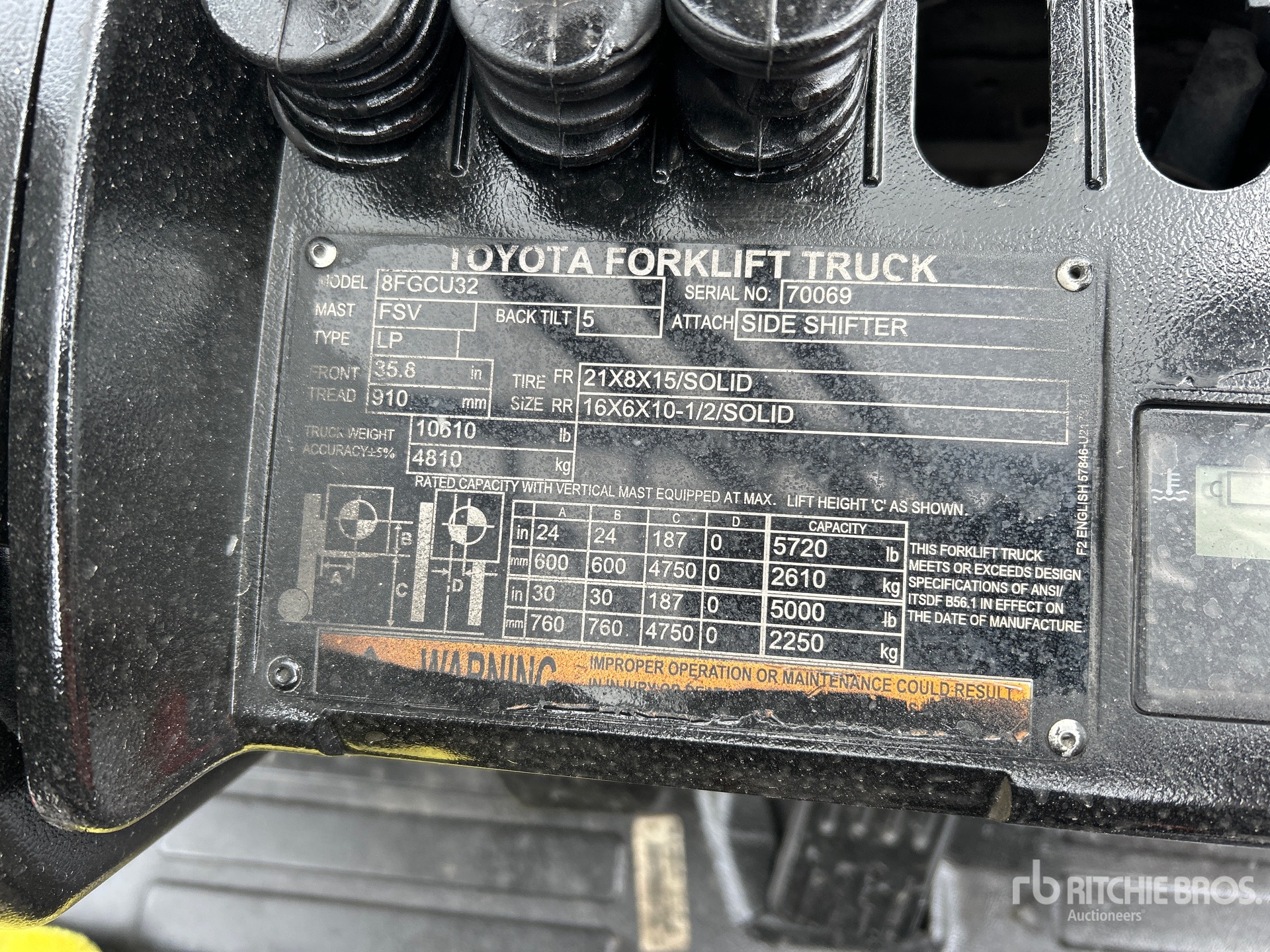

Serial Number:	70069
Machine Location:	FORT WORTH, TX

Description:

3 Stage Mast, Full Free Lift, 187 in Max Lift Height, 86 in Lowered Mast Height, 42 in Forks, Side Shift, 2018 US EPA Label, Toyota 4Y ECS 4 Cylinder 38 kW 2.237 L LPG Engine Closing Time: 2026-06-19 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Toyota 8FGCU32 is a cushion-tire forklift in Toyota's 8-Series, designed for indoor material handling and warehouse applications. It is powered by a Toyota 4Y gasoline or LPG engine, depending on configuration, and is commonly used for loading, unloading, pallet transport, and general lift truck duties on smooth surfaces. The 8FGCU32 typically features a 3,200 lb lift capacity, pneumatic-style operator controls, and Toyota's System of Active Stability for improved handling. As a compact counterbalance forklift, it is suited to distribution centers, manufacturing facilities, and dock work where maneuverability and reliable performance are required.

Dimensions
Fork Spread Max	3 ft (1 m)
Fork Spread Min-outer edge to edge	10 in (25 cm)
Free lift	5 in (14 cm)
Height to Top of Overhead Guard	7 ft (2 m)
Length to Fork Face	8 ft (3 m)
Max Fork Height	11 ft (3 m)
Overall Height - mast lowered	7 ft (2 m)
Overall Width	4 ft (1 m)
Turning Radius	7 ft (2 m)
Wheelbase	5 ft (1 m)
Engine
Displacement	136 cu in (2,229 cu cm)
Engine Make	TOYOTA
Engine Model	4Y - ECS
Number of Cylinders	4
Power	51 hp (38 kw)
Power Measured @	2,570 rpm
Torque	87 lbs ft (118 nm)
Torque Measured @	2,100 rpm
MAST
Lift Speed	102 ft/min (31 m/min)
Load Capacity	6,614 lbs (3,000 kg)
Load Center	24 in (61 cm)
Mast Tip Forward	6 degrees
Mast Tip Rear	5 degrees
Operating Specifications
Fuel Capacity	12 gal (45 l)
Hydraulic System Fluid Capacity	20 gal (76 l)
Hydraulic System Relief Valve Pressure	2,275 psi
Max Speed	11 mph (17 kph)
Number of Front Wheels	2
Number of Rear Wheels	2
Operating Weight	9,722 lbs (4,410 kg)
Tire Type	Cushion
Performance
Drawbar Pull Max -Full Load	40,786 lbs (18,500 kg)
Drawbar Pull Max -No Load	16,535 lbs (7,500 kg)
Tires
Front Tires Size	21 x 8 x 15
Rear Tires Size	16 x 6 x 10-1/2
Transmission
Number of Forward / Reverse Speeds	1-1
