Equipment ↠ Volvo ↠ Excavators ↠ 2012 Volvo EC480D

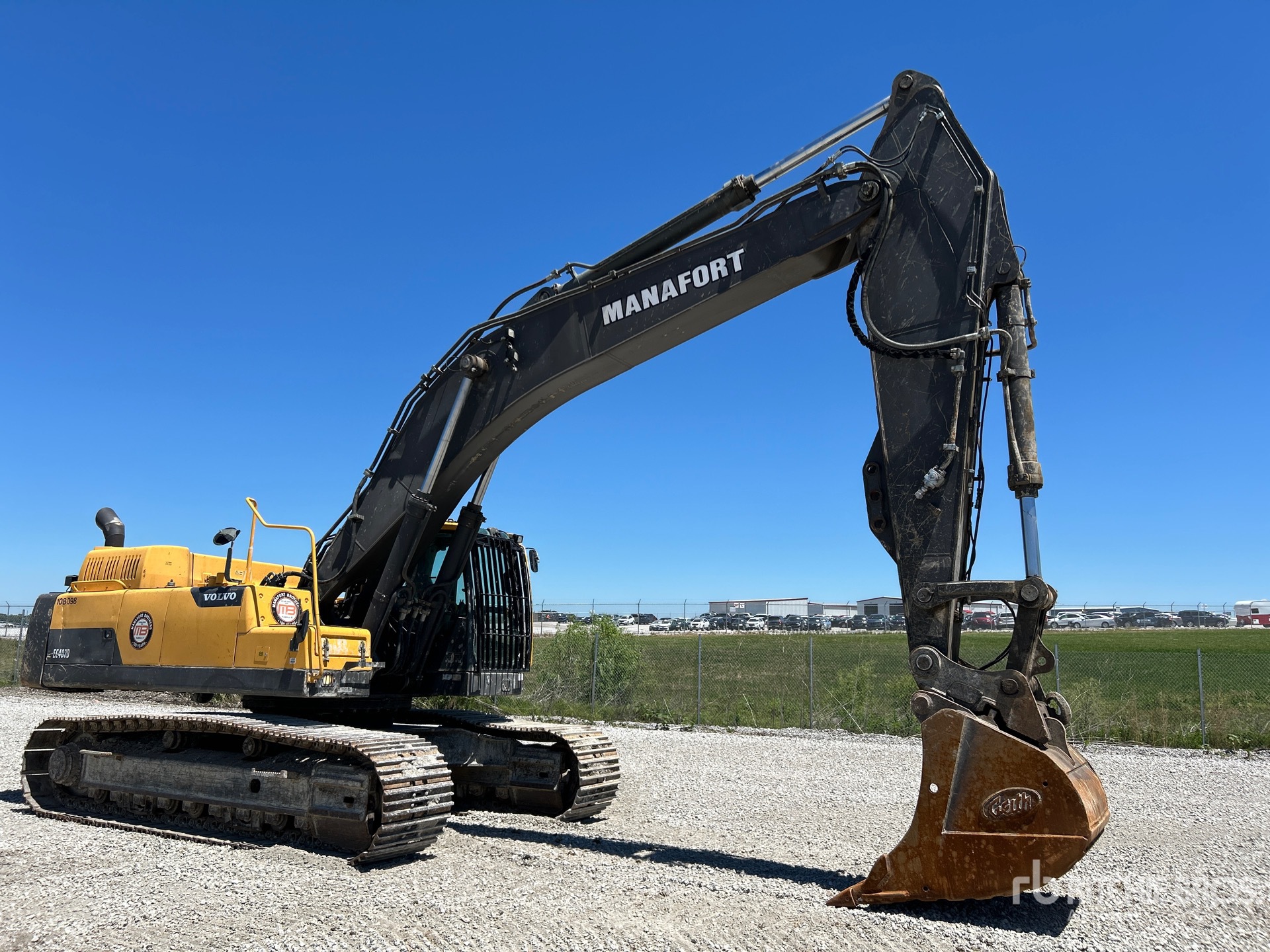

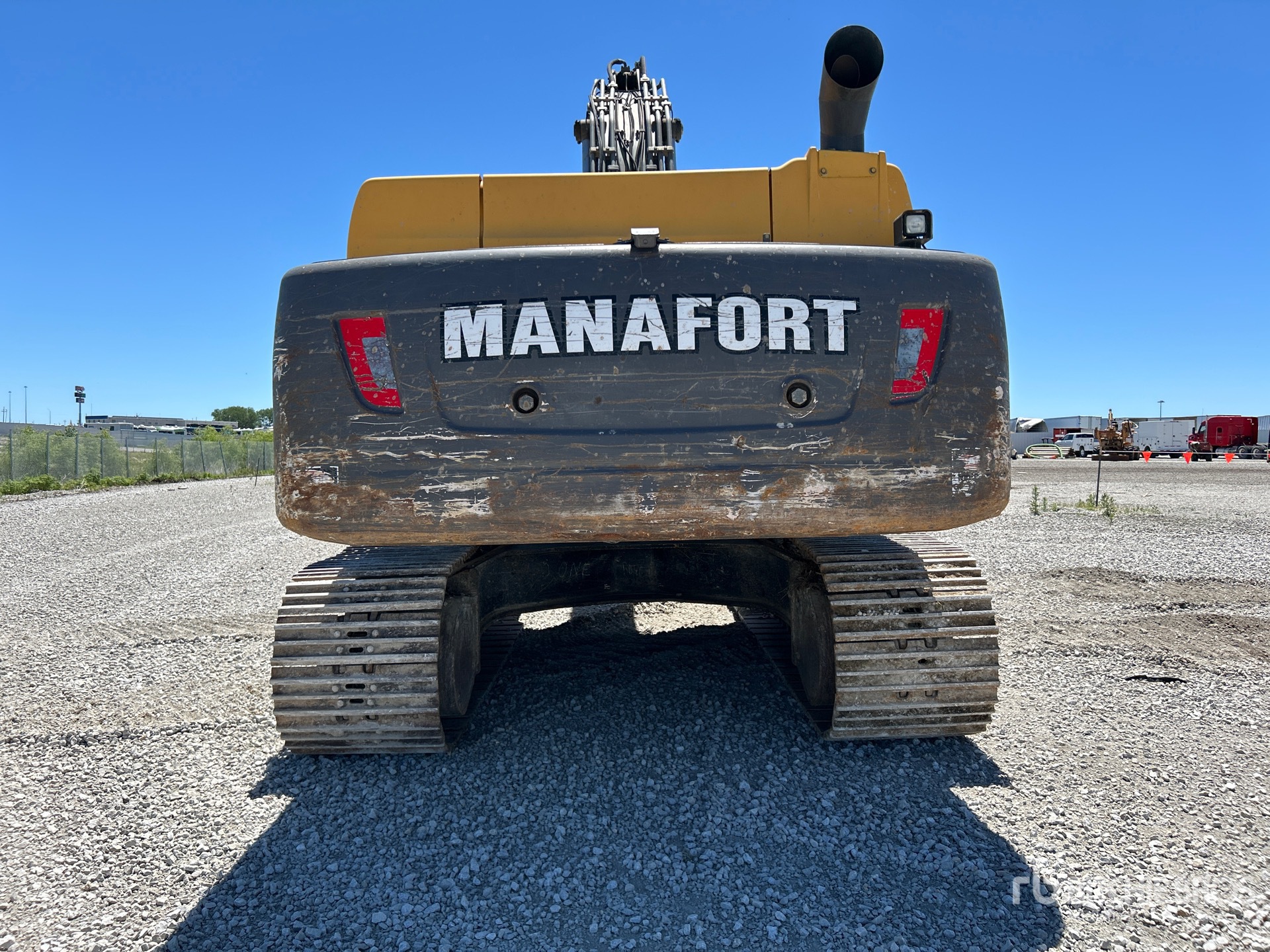

2012 Volvo EC480D For Sale in Chicago, Il

Name: 2012 Volvo EC480D
Brand: Volvo
SKU: 88613557
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-25

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

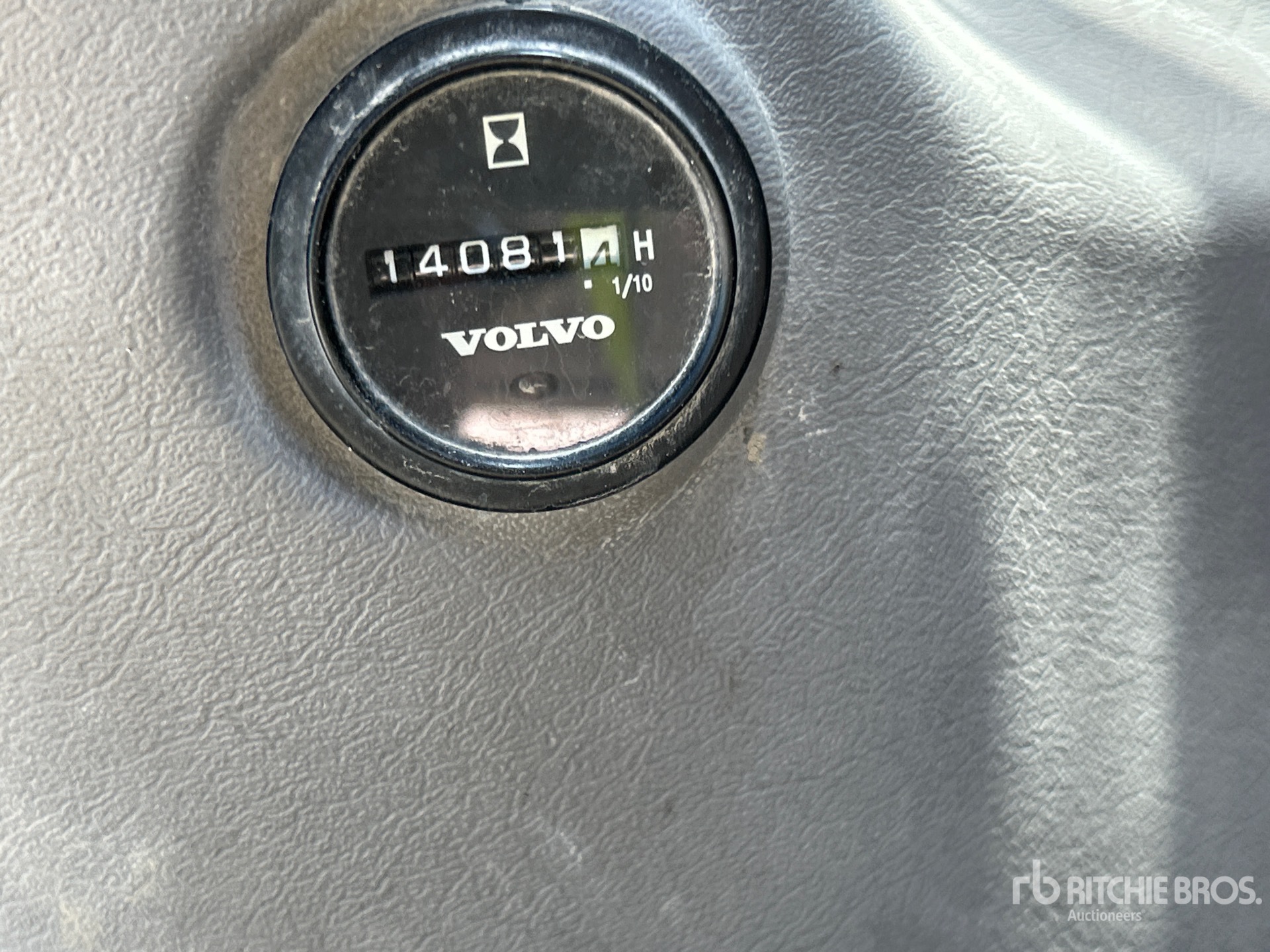

Hours:	14074

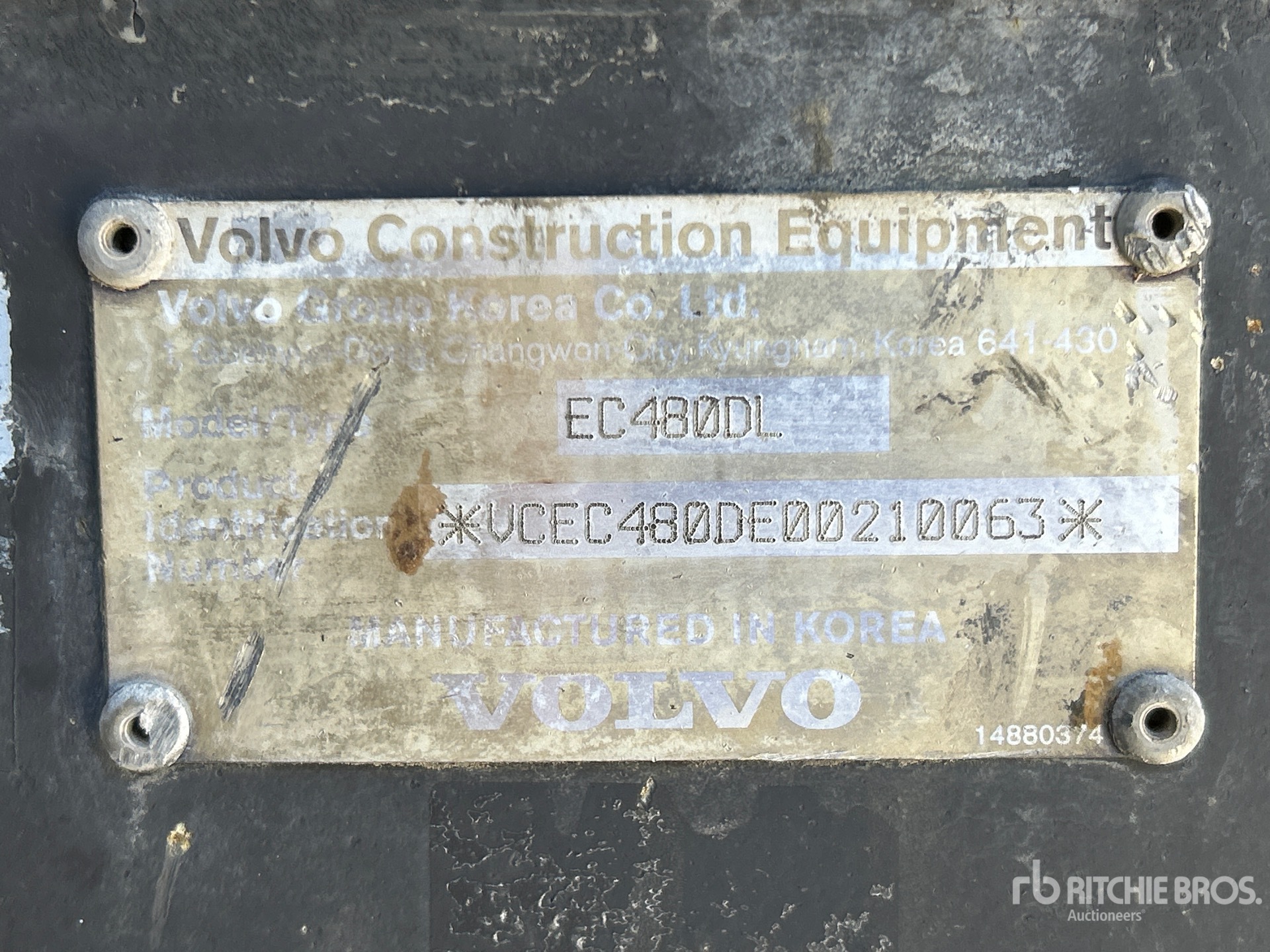

Serial Number:	VCEC480DE00210063
Machine Location:	CHICAGO, IL

Description:

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	36 ft (11 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	25 ft (8 m)
Max Reach Along Ground	36 ft (11 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Shipping Height of Unit	13 ft (4 m)
Shipping Length of Unit	40 ft (12 m)
Boom/Stick Excavator Option 2
Max Cutting Height	37 ft (11 m)
Max Digging Depth	25 ft (8 m)
Max Loading Height	26 ft (8 m)
Max Reach Along Ground	39 ft (12 m)
Max Vertical Wall Digging Depth	23 ft (7 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	40 ft (12 m)
Boom/Stick Excavator Option 3
Max Cutting Height	37 ft (11 m)
Max Digging Depth	27 ft (8 m)
Max Loading Height	26 ft (8 m)
Max Reach Along Ground	40 ft (12 m)
Max Vertical Wall Digging Depth	25 ft (7 m)
Shipping Length of Unit	40 ft (12 m)
Boom/Stick Excavator Option 4
Max Cutting Height	37 ft (11 m)
Max Digging Depth	30 ft (9 m)
Max Loading Height	26 ft (8 m)
Max Reach Along Ground	43 ft (13 m)
Max Vertical Wall Dig Depth	26 ft (8 m)
Shipping Length of Unit	40 ft (12 m)
Bucket
Maximum Bucket Capacity	5 cu yd (4 cu m)
Reference Bucket Capacity	4 cu yd (3 cu m)
Dimensions
Ground Clearance	2 ft (1 m)
Height - Top of Cab	11 ft (3 m)
Length of Track on Ground	14 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	13 ft (4 m)
Width to Outside of Tracks	12 ft (4 m)
Engine
Aspiration	Turbocharged with Intercooler
Displacement	781 cu in (12,798 cu cm)
Engine Model	D13H
Gross Power	360 hp (268 kw)
Max Torque	1,328 lbs ft (1,800 nm)
Net Power	348 hp (260 kw)
Power Measured @	1,800 rpm
Torque Measured @	1,400 rpm
Operating Specifications
Alternator Supplied Amperage	80 amps
Cooling System Fluid Capacity	16 gal (60 l)
Engine Oil Capacity	11 gal (42 l)
Fuel Capacity	181 gal (685 l)
Hydraulic Pump Flow Capacity	189 gpm (716 lpm)
Hydraulic System Fluid Capacity	139 gal (525 l)
Hydraulic System Relief Valve Pressure	5,120 psi
Operating Voltage	24 volts
Operating Weight	106,483 lbs (48,300 kg)
Swing Mechanism
Swing Speed	9 rpm
Undercarriage
Drawbar Pull	74,970 lbs (34,006 kg)
Ground Pressure	10 psi
Max Travel Speed	3 mph (5 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	52
Number of Track Rollers per Side	9
Shoe Size	28 in (70 cm)
Track Gauge	9 ft (3 m)
