Equipment ↠ Volvo ↠ Motor Graders ↠ 2002 Volvo G720B

2002 Volvo G720B For Sale in Ocana, Esp

Name: 2002 Volvo G720B
Brand: Volvo
SKU: 88394150
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-10 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

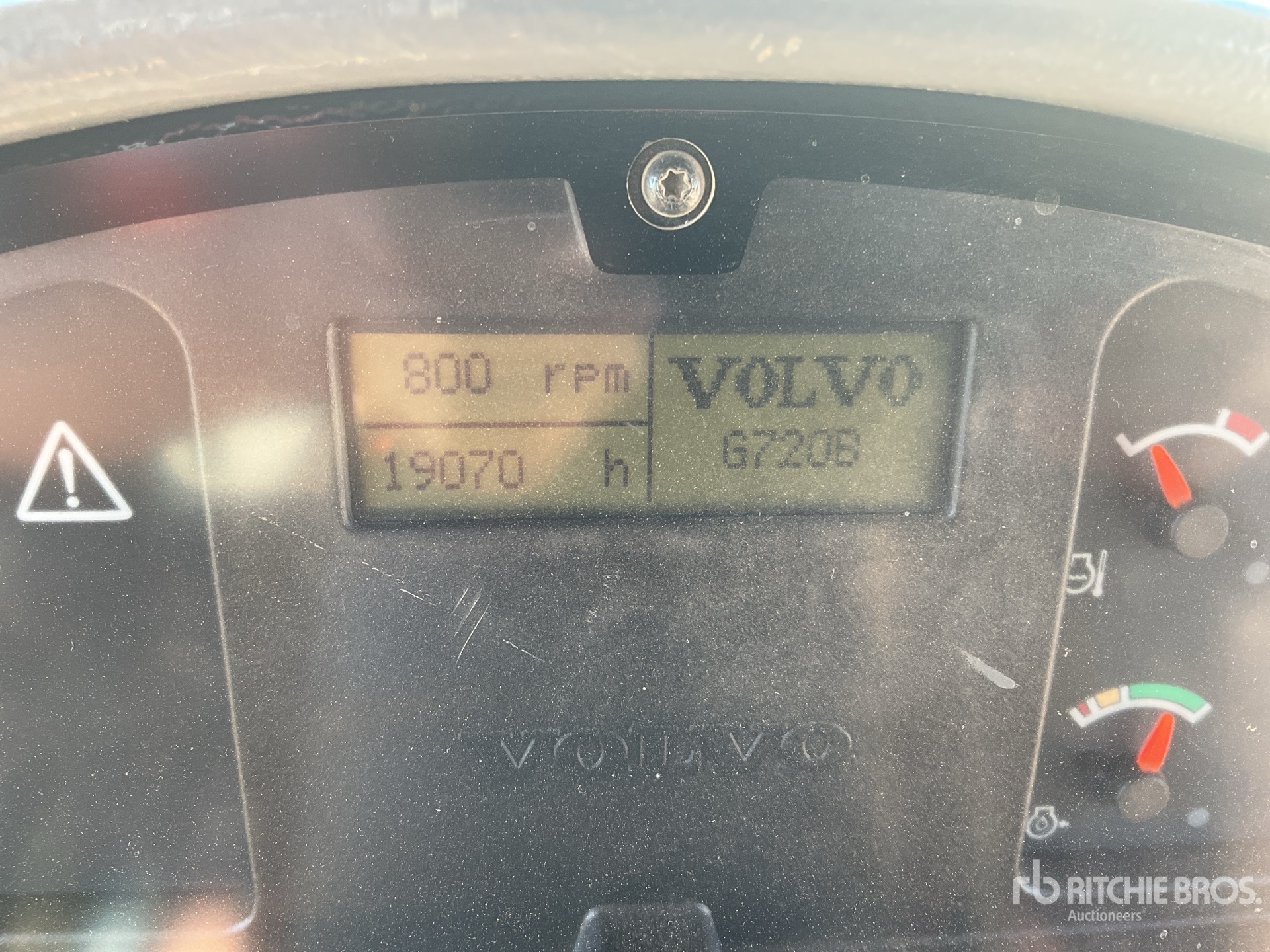

Hours:	19070
Serial Number:	035258
Machine Location:	OCANA, ESP

Description:

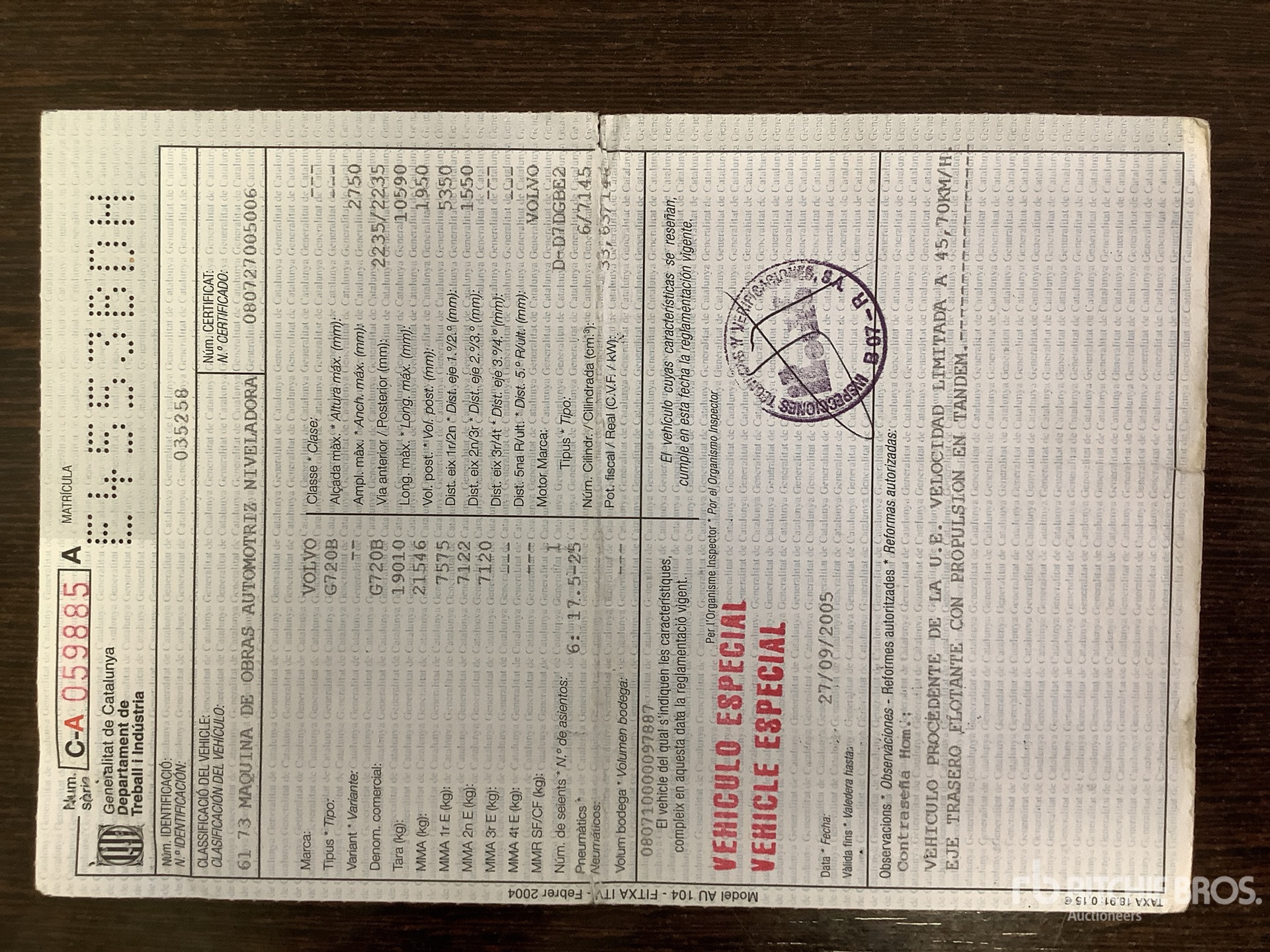

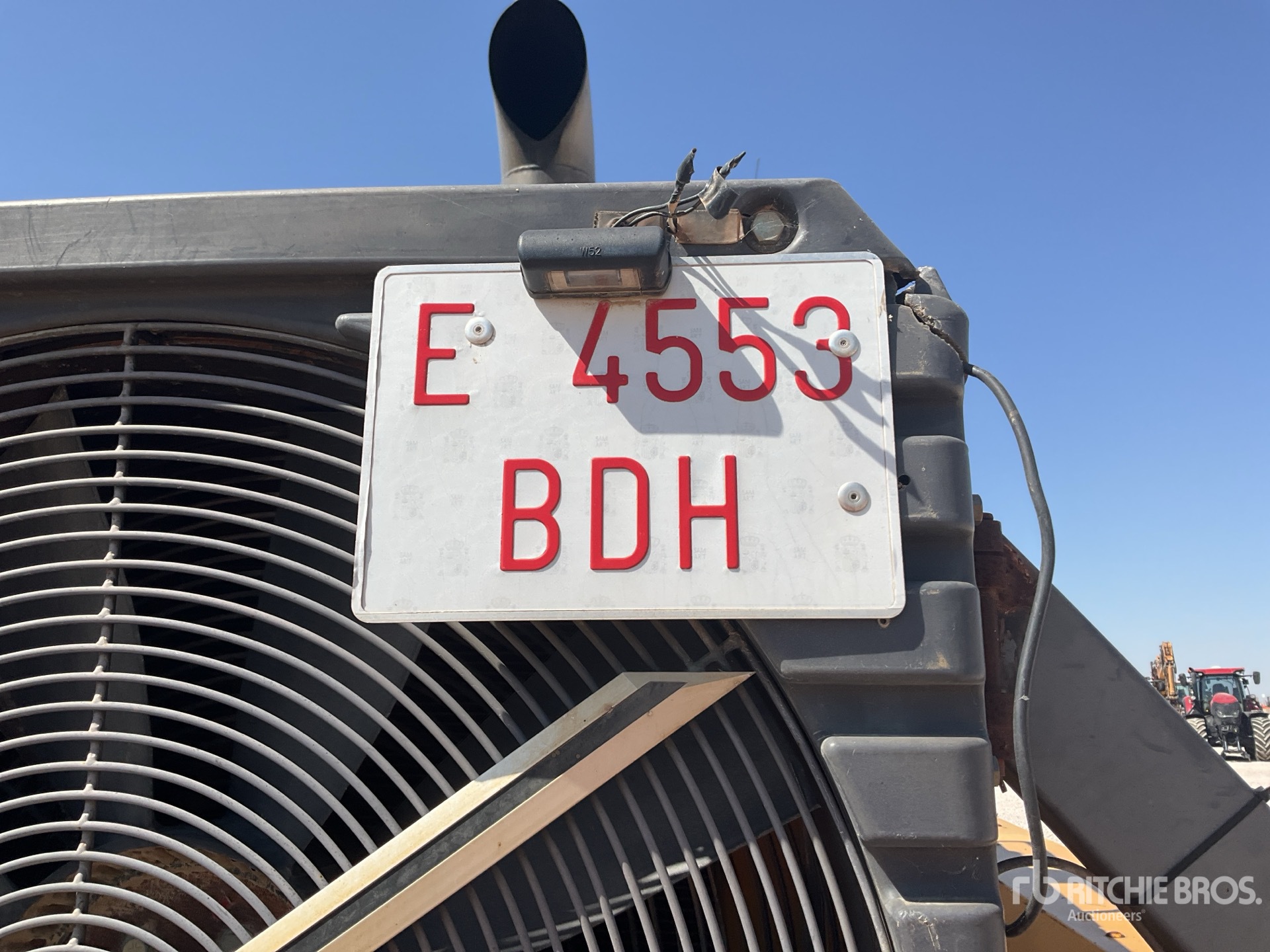

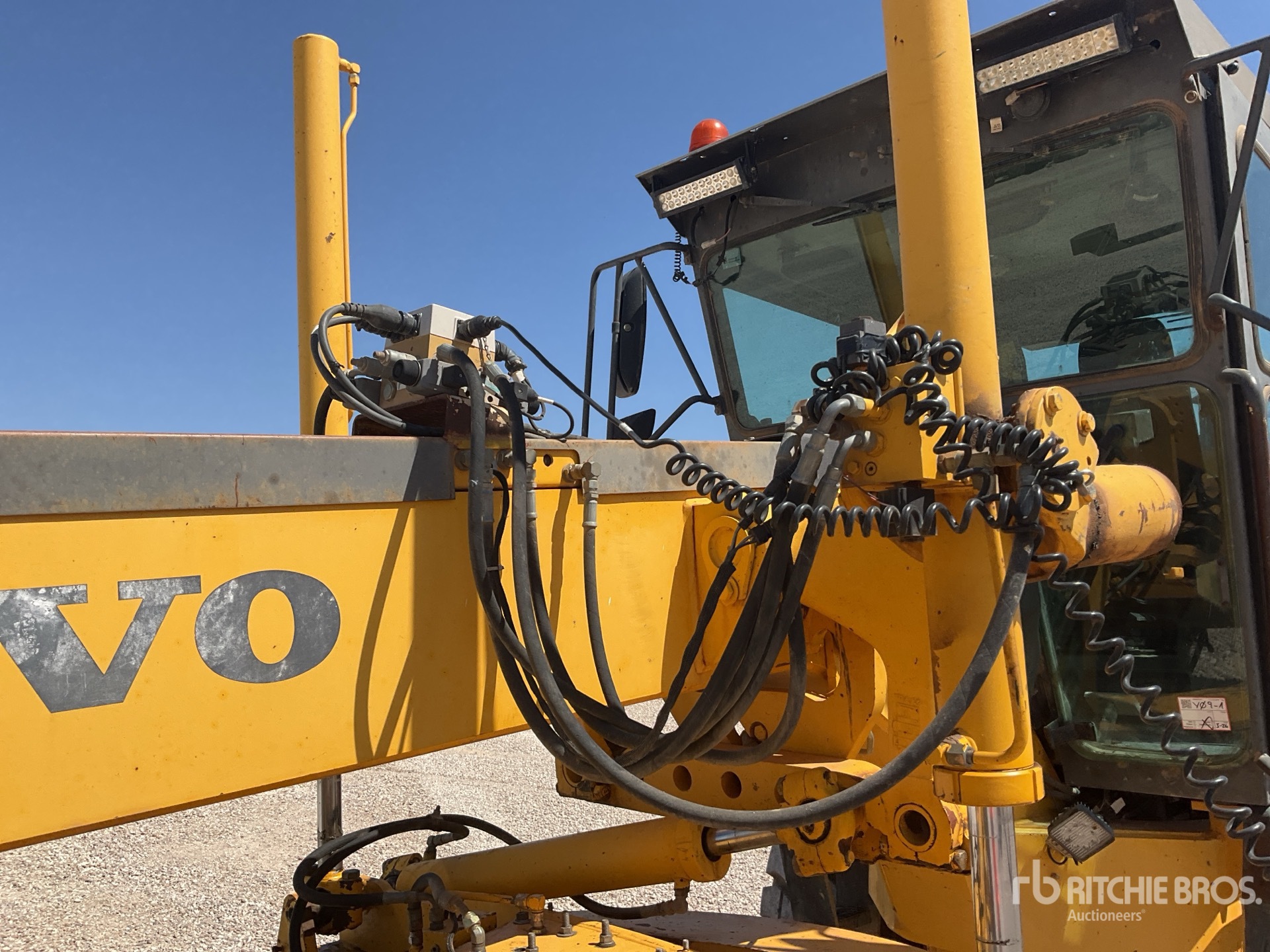

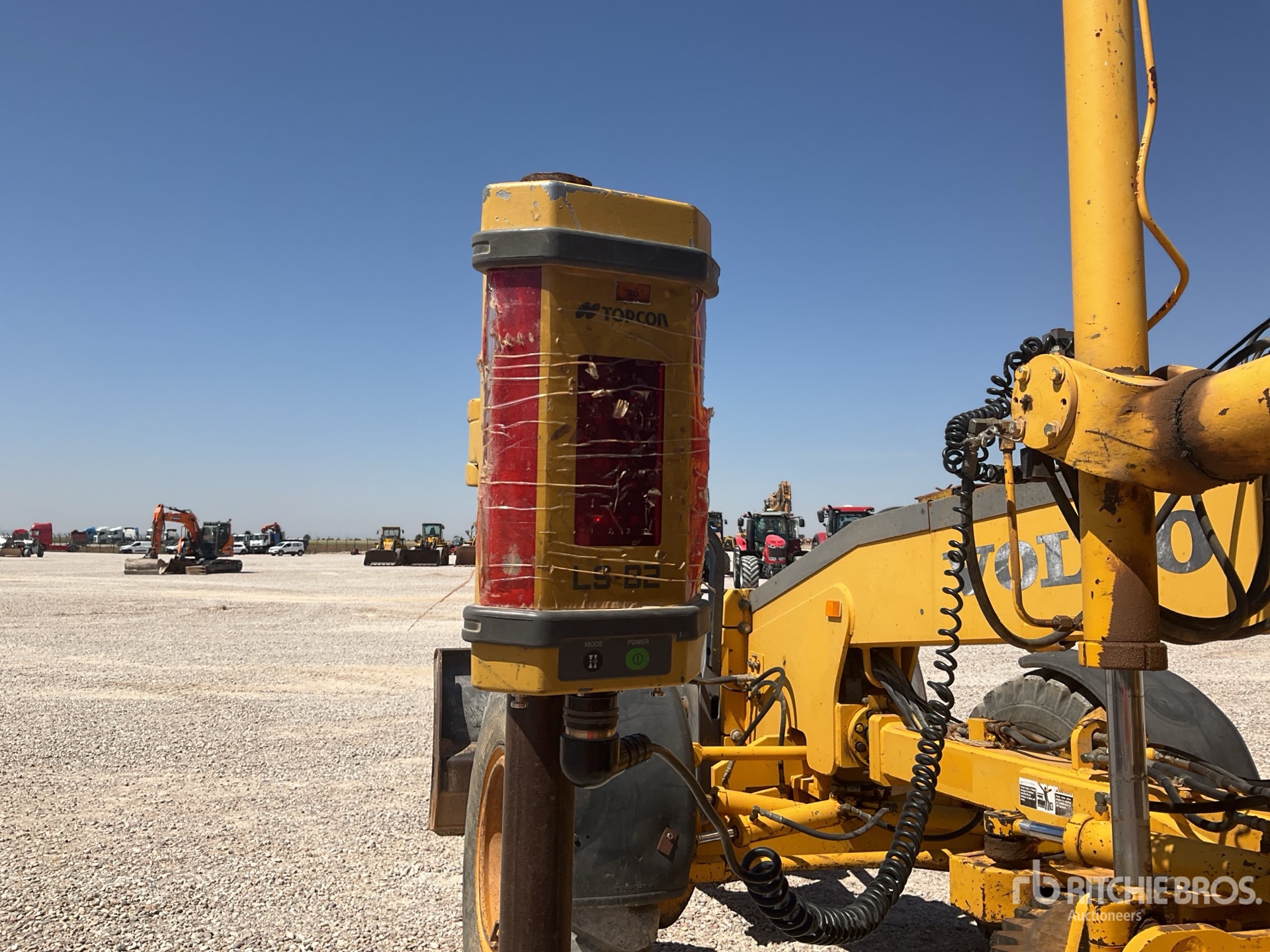

Enclosed Cab, Air Conditioner, 2002 US EPA Label, 12 ft / 3.66 m Moldboard, Front Auxiliary Hydraulics, Front Mounted Snow Plow, Ripper, 17.5-25 Tires, GPS topcon 2D Matriculado en Espana / Spanish Registration Closing Time: 2026-06-10 01:19:10 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Volvo G720B is a motor grader designed for road construction, maintenance, and earthmoving applications. Built for grading, leveling, ditching, and surface finishing, it is used on highways, municipal roads, site preparation, and mining support work. The G720B features a moldboard blade mounted between the front and rear axles, allowing precise control of material movement and grade accuracy. As part of Volvo's grader lineup, it is associated with durable frame construction, operator visibility, and hydraulic blade control. The model is commonly referenced in equipment inventories, used machinery listings, and fleet records for grading and road maintenance operations.

Circle
Blade Tip Angle - Front	44 degrees
Blade Tip Angle - Rear	7 degrees
Diameter	66 in (168 cm)
Max Lift Above Ground	18 in (44 cm)
Max Reach Outside Tires - Left	80 in (202 cm)
Max Reach Outside Tires - Right	79 in (201 cm)
Rotation	360 degrees
Shift Left	31 in (77 cm)
Shift Right	30 in (75 cm)
Dimensions
Blade Base	9 ft (3 m)
Height to Top of Isomount Cab	10 ft (3 m)
Overall Length	30 ft (9 m)
Wheelbase	20 ft (6 m)
Width Over Tires	8 ft (3 m)
Engine
Aspiration	Turbocharged
Displacement	436 cu in (7,145 cu cm)

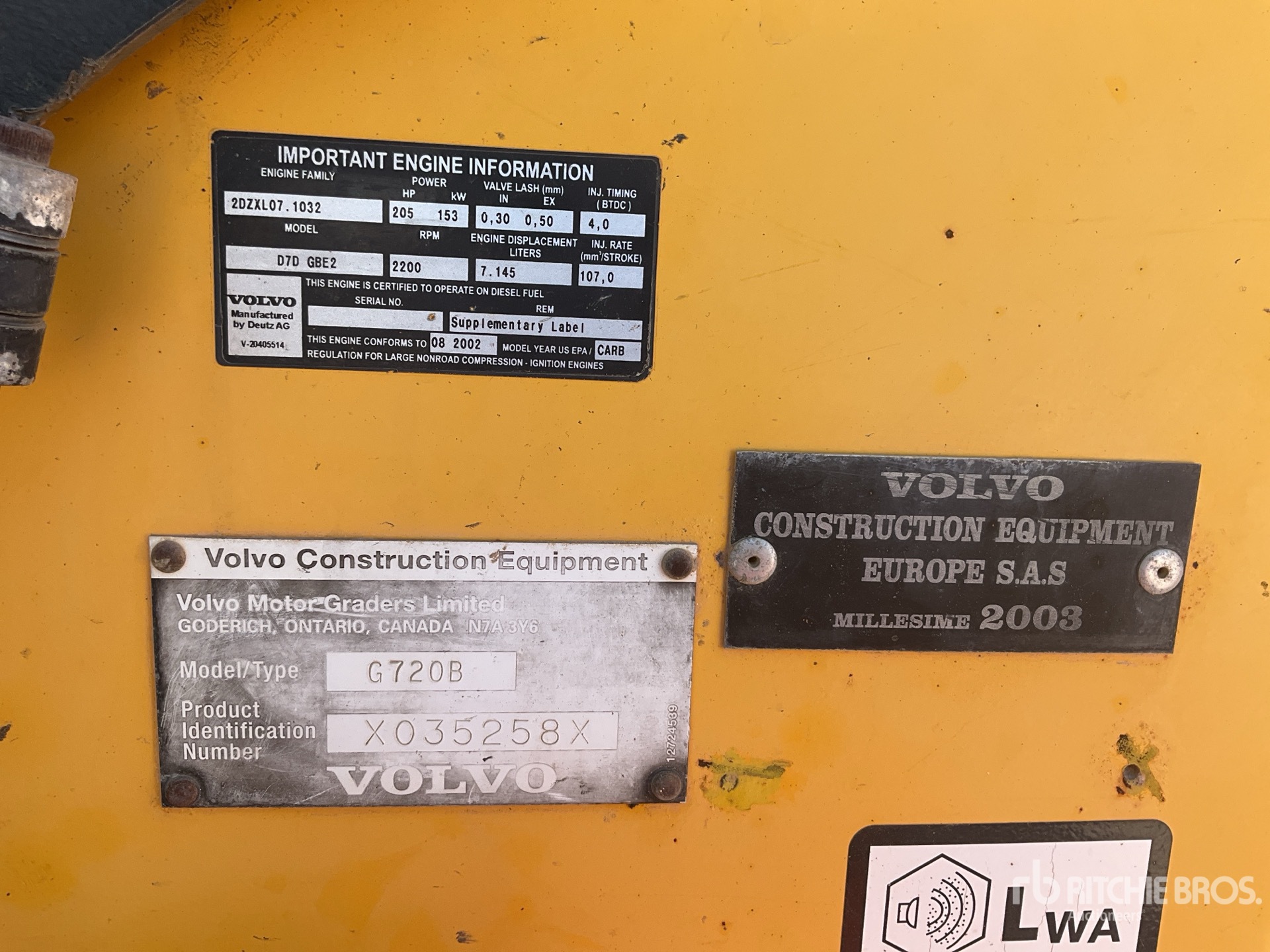

Engine Model	D7DGBE2
Max Power	198 hp (148 kw)
Net Power Gears 7-8	198 hp (148 kw)
Net Torque Gears 7-8	701 lbs ft (950 nm)
Power Measured @	2,200 rpm
Torque Measured @	1,400 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	16 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	75 gpm (284 lpm)
Pump Type	load sensing hydraulic
Relief Valve Pressure	2,700 psi
Moldboard
Blade Down Pressure	17,148 lbs (7,778 kg)
Blade Pull at Max Weight	21,726 lbs (9,855 kg)
Max Depth of Cut	32 in (81 cm)
Moldboard Height	25 in (64 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	27 in (67 cm)
Side Shift Right	27 in (67 cm)
Operating Specifications
Alternator Supplied Amperage	80 amps
Cooling System Fluid Capacity	7 gal (28 l)
Fuel Capacity	100 gal (379 l)
Hydraulic System Fluid Capacity	35 gal (134 l)
Operating Voltage	24 volts
Rear Diff/Final Drive Fluid Capacity	6 gal (23 l)
Std Operation Weight - Front Axle	9,859 lbs (4,472 kg)
Std Operation Weight - Rear Axle	24,141 lbs (10,950 kg)
Std Operation Weight - Total	34,000 lbs (15,422 kg)
Tandem Case Fluid Capacity (each)	27 gal (100 l)
Tire Size	14.00 x 24 G-2
Transmission Fluid Capacity	10 gal (38 l)
Steering System
Articulation Angle	22 degrees
Transmission
Max Speed - Forward	29 mph (46 kph)
Max Speed - Reverse	20 mph (33 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	4
Transmission Type	Powershift
