Equipment ↠ Volvo ↠ Motor Graders ↠ 2005 Volvo G780

2005 Volvo G780 For Sale in Fairfield, OH

Name: 2005 Volvo G780
Brand: Volvo
SKU: 88545454
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-06-25 Click here to place a bid

Jeff Martin Auctioneers, Inc

Jeff Martin Auctioneers, Inc Dealer Info

Jeff Martin Auctioneers, Inc Website

Click here to email Jeff Martin Auctioneers, Inc.

Click for Phone Number

Machine Info:

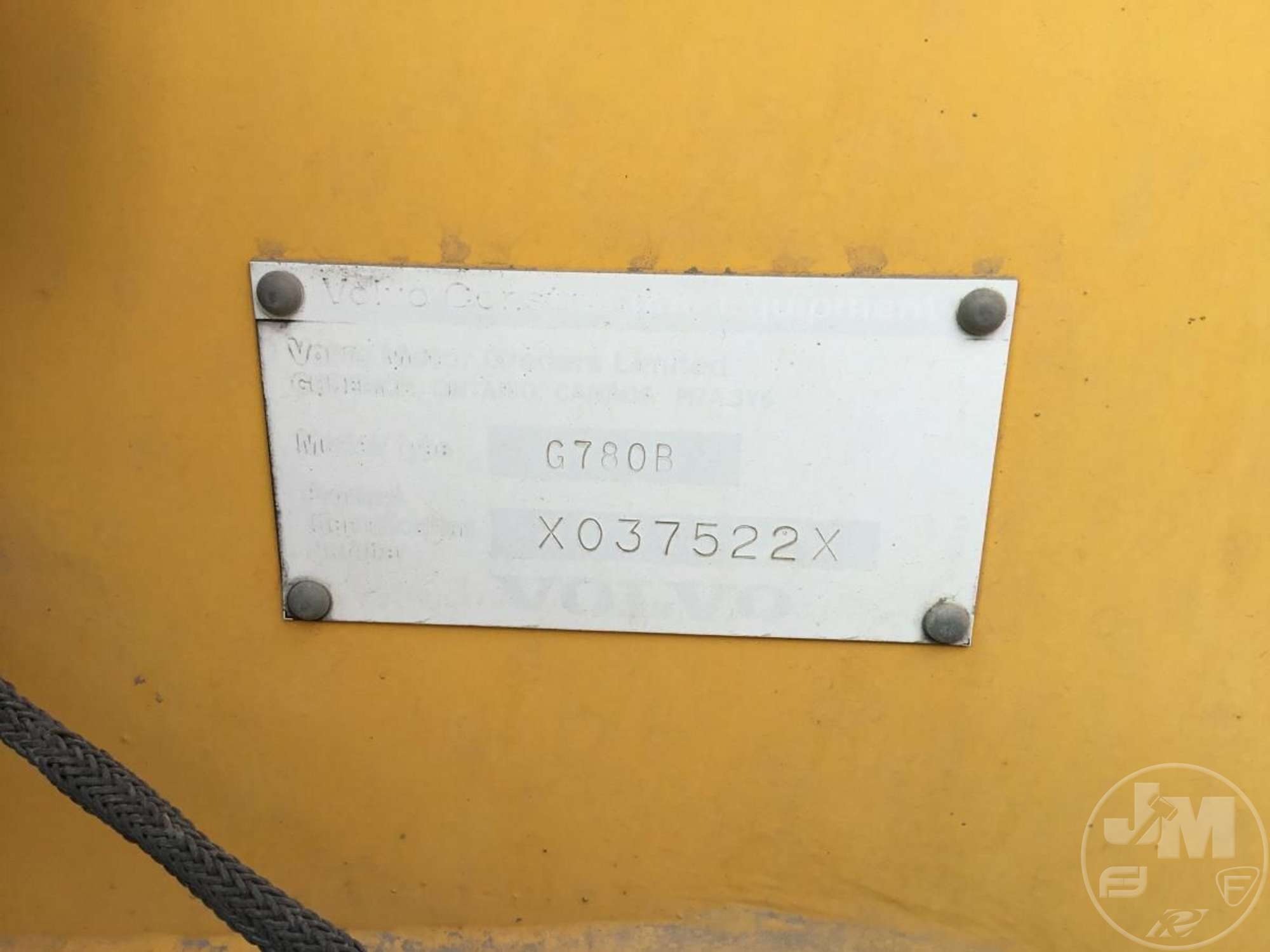

Serial Number:	37522
Machine Location:	FAIRFIELD, OH
More Information:	https://www.jeffmartinauctioneers.com/auctions/1261/lot/328988-2005-VOLVO-G780-MOTORGRADER-SN%3A-37522

Description:

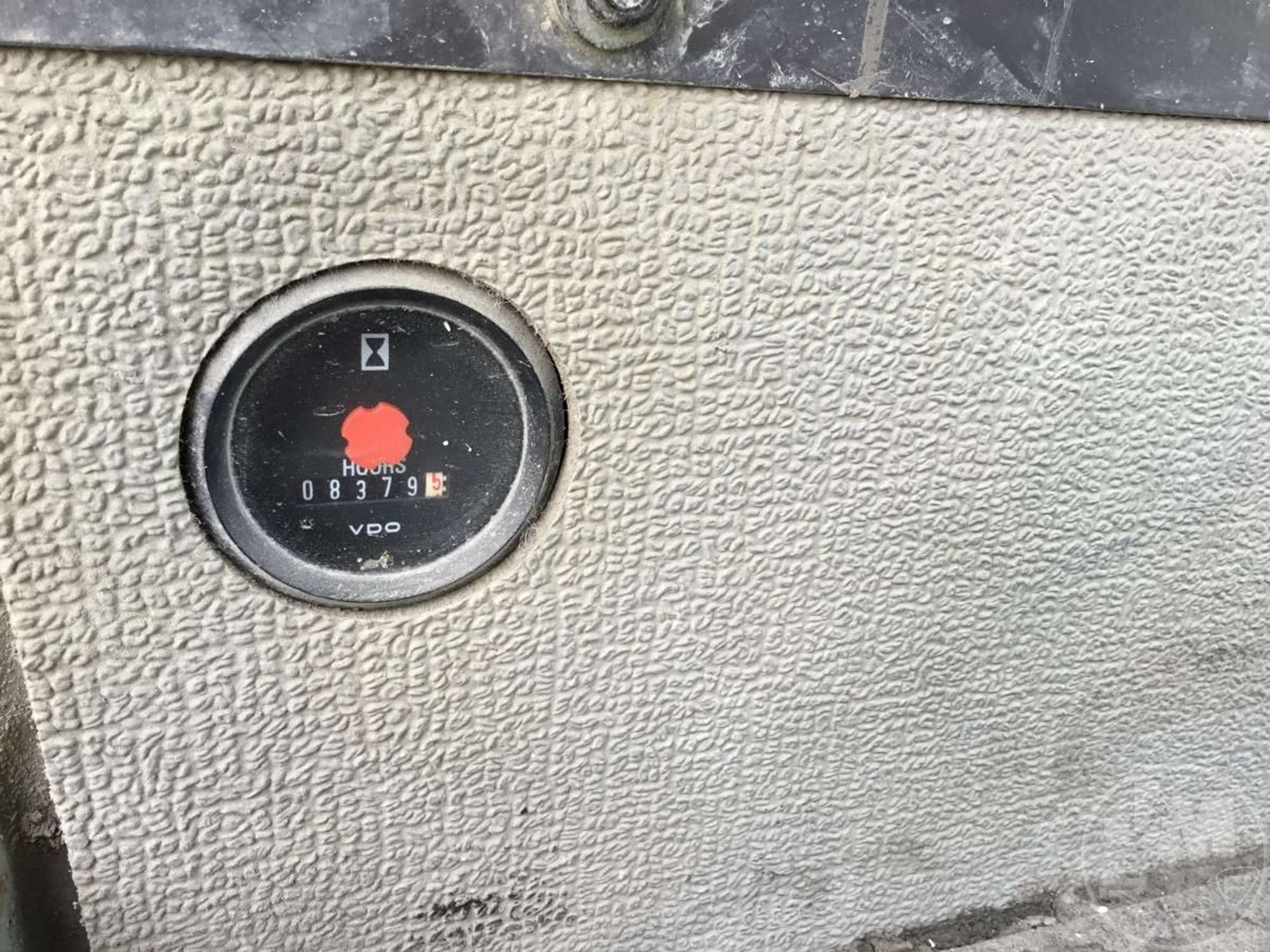

VOLVO MOTORGRADER, CAB, REAR MOUNT SCARIFIER, HOUR METER READS: 8369

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Circle
Blade Tip Angle - Front	46 degrees
Blade Tip Angle - Rear	13 degrees
Diameter	67 in (169 cm)
Max Lift Above Ground	17 in (43 cm)
Max Reach Outside Tires - Left	91 in (231 cm)
Max Reach Outside Tires - Right	91 in (230 cm)
Rotation	360 degrees
Shift Left	30 in (76 cm)
Shift Right	30 in (75 cm)
Dimensions
Blade Base	9 ft (3 m)
Height to Top of Isomount Cab	11 ft (3 m)
Overall Length	29 ft (9 m)
Wheelbase	21 ft (6 m)
Width Over Tires	9 ft (3 m)
Engine
Aspiration	Turbocharged
Displacement	659 cu in (10,801 cu cm)
Engine Model	M11
Max Power	210 hp (157 kw)
Net Power Gears 7-8	210 hp (157 kw)
Net Torque Gears 7-8	760 lbs ft (1,030 nm)
Power Measured @	2,100 rpm
Torque Measured @	1,300 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	16 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	48 gpm (183 lpm)
Pump Type	load sensing hydraulic
Relief Valve Pressure	2,500 psi
Moldboard
Blade Down Pressure	23,485 lbs (10,653 kg)
Blade Pull at Max Weight	26,507 lbs (12,023 kg)
Max Depth of Cut	33 in (84 cm)
Moldboard Height	31 in (79 cm)
Moldboard Thickness	1 in (3 cm)
Moldboard Width	14 ft (4 m)
Side Shift Left	27 in (67 cm)
Side Shift Right	27 in (67 cm)
Operating Specifications
Alternator Supplied Amperage	75 amps
Cooling System Fluid Capacity	13 gal (50 l)
Fuel Capacity	100 gal (379 l)
Hydraulic System Fluid Capacity	24 gal (90 l)
Operating Voltage	24 volts
Rear Diff/Final Drive Fluid Capacity	9 gal (34 l)
Std Operation Weight - Front Axle	13,290 lbs (6,028 kg)
Std Operation Weight - Rear Axle	29,454 lbs (13,360 kg)
Std Operation Weight - Total	42,743 lbs (19,388 kg)
Tandem Case Fluid Capacity (each)	28 gal (105 l)
Tire Size	16.00 x 24 G-2
Transmission Fluid Capacity	10 gal (38 l)
Steering System
Articulation Angle	22 degrees
Transmission
Max Speed - Forward	24 mph (38 kph)
Max Speed - Reverse	17 mph (27 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	4
Transmission Type	Powershift
