2005 Volvo G780B For Sale in Fairfield, OH

Name: 2005 Volvo G780B
Brand: Volvo
SKU: 88638865
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-06-25 Click here to place a bid

Jeff Martin Auctioneers, Inc

Jeff Martin Auctioneers, Inc Dealer Info

Jeff Martin Auctioneers, Inc Website

Click here to email Jeff Martin Auctioneers, Inc.

Click for Phone Number

Machine Info:

Serial Number:	037522
Machine Location:	FAIRFIELD, OH
More Information:	https://www.jeffmartinauctioneers.com/auctions/1261/lot/328988-2005-VOLVO-G780B-MOTORGRADER-SN%3A-037522

Description:

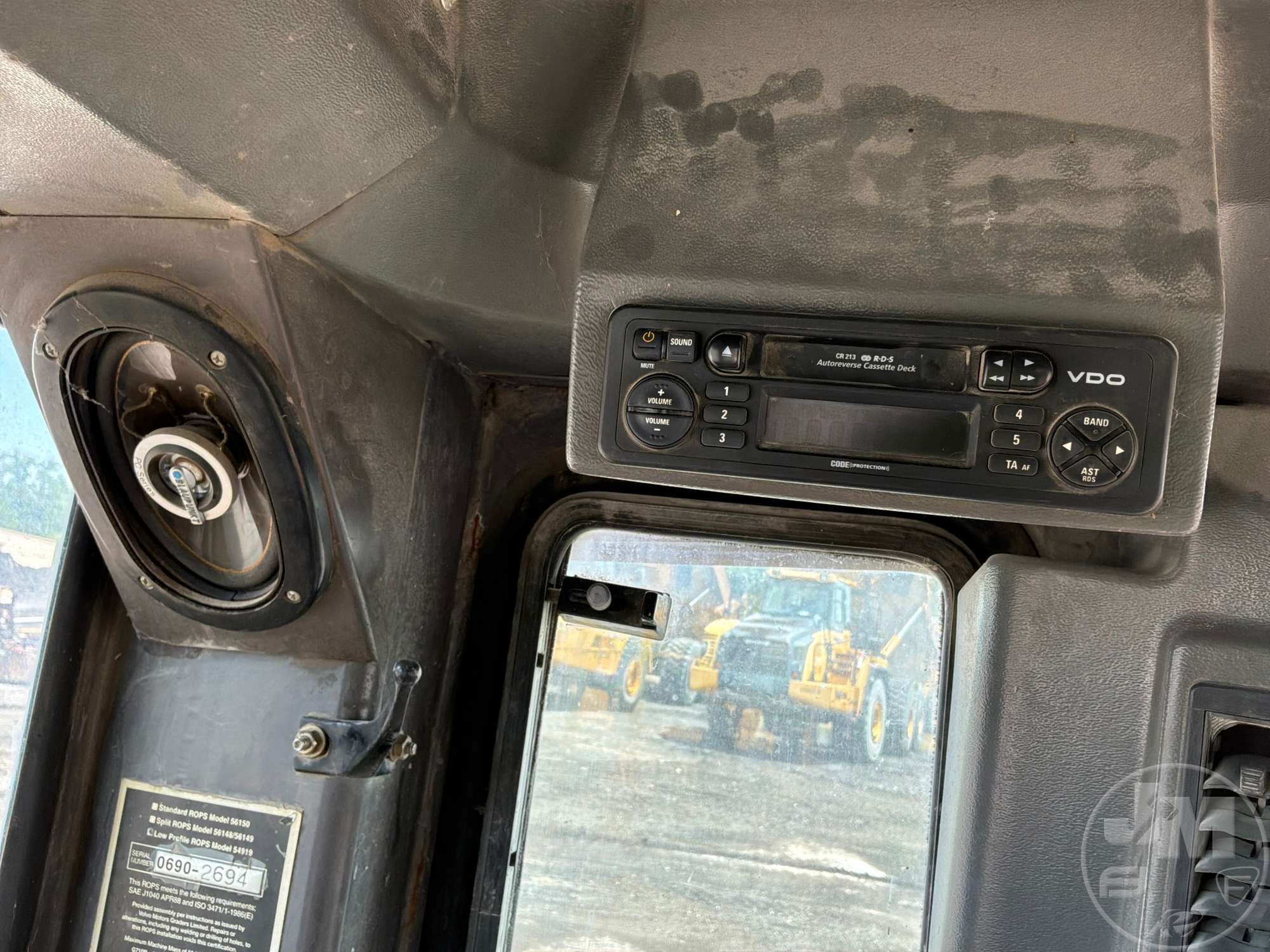

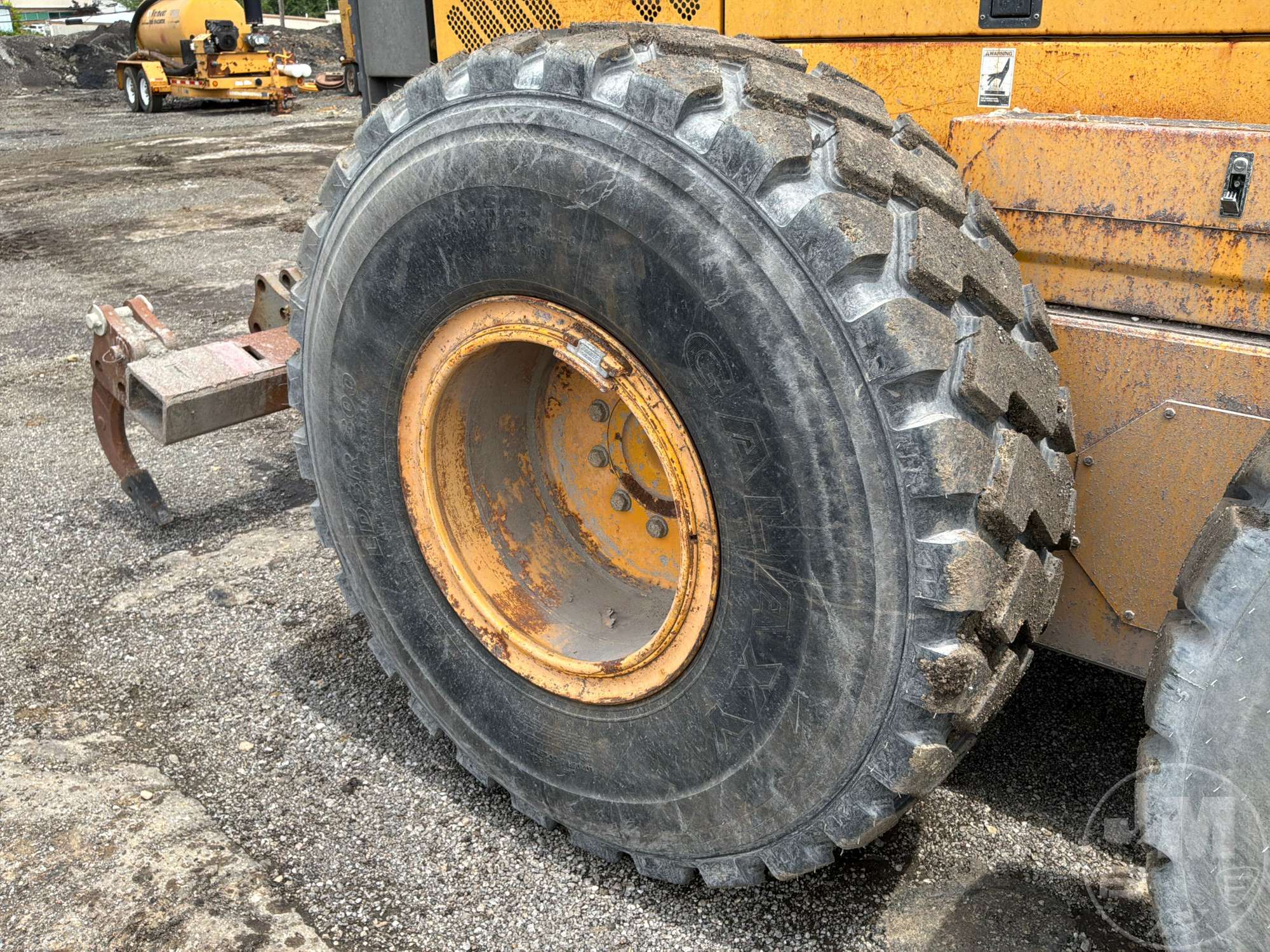

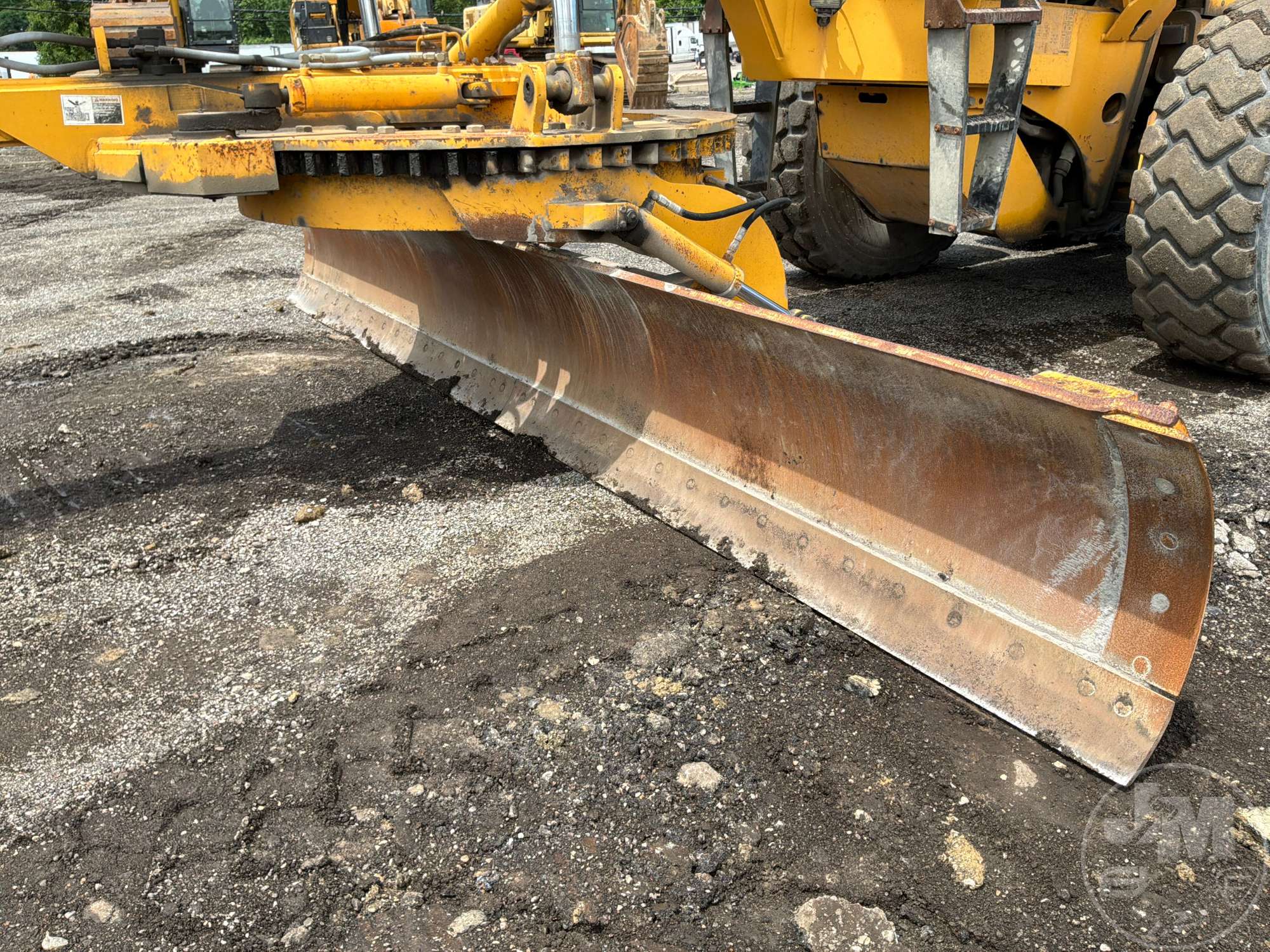

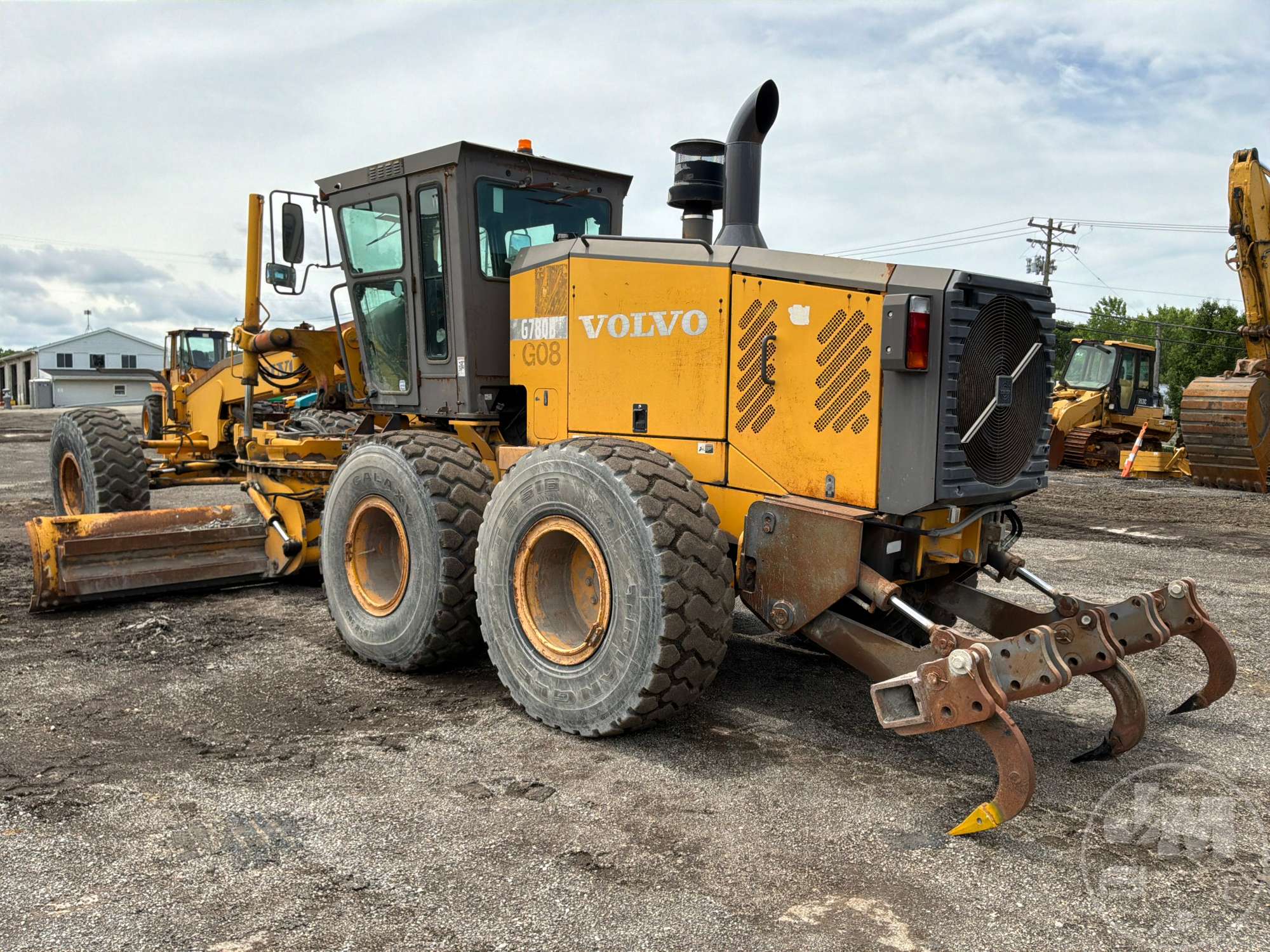

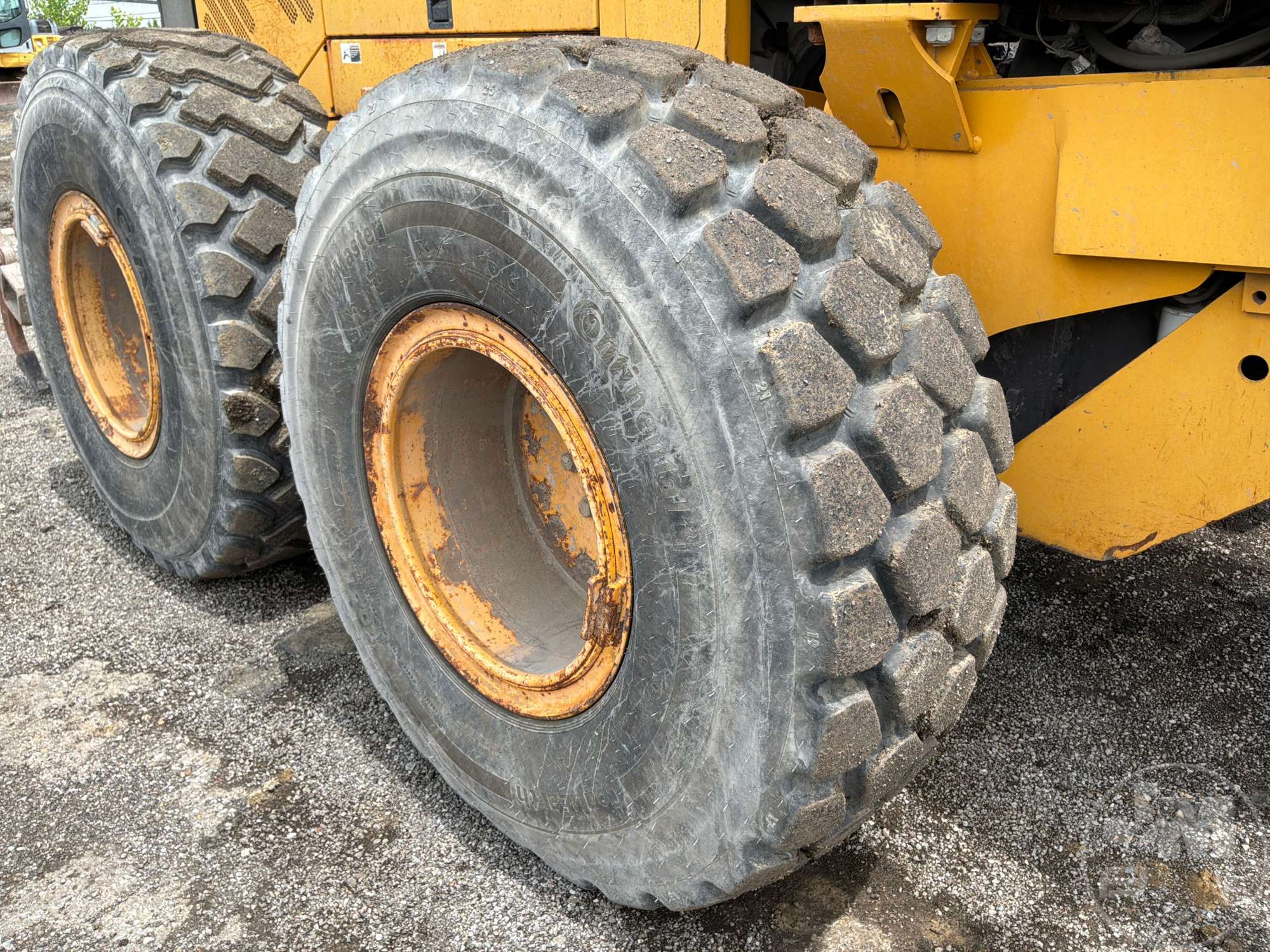

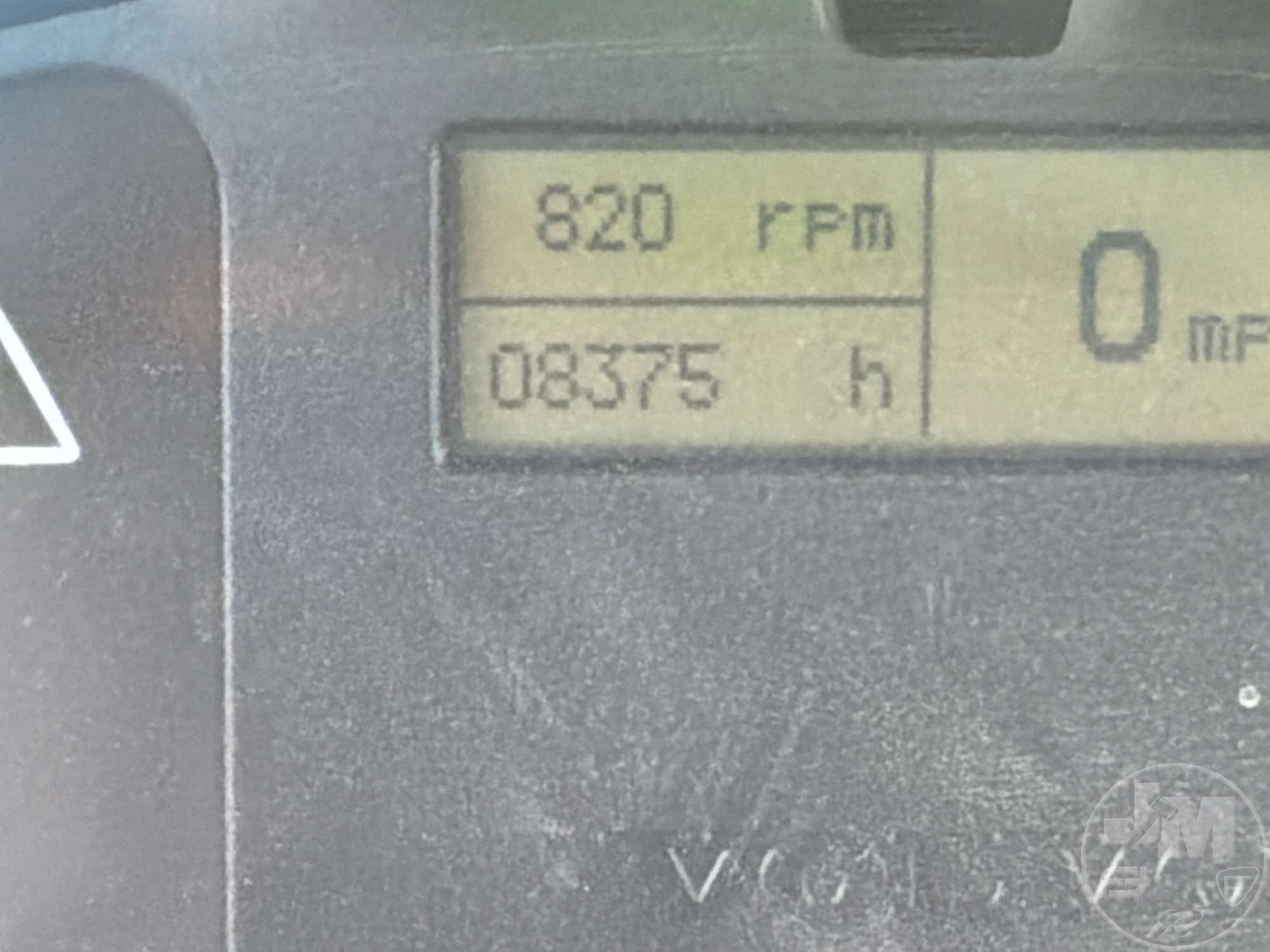

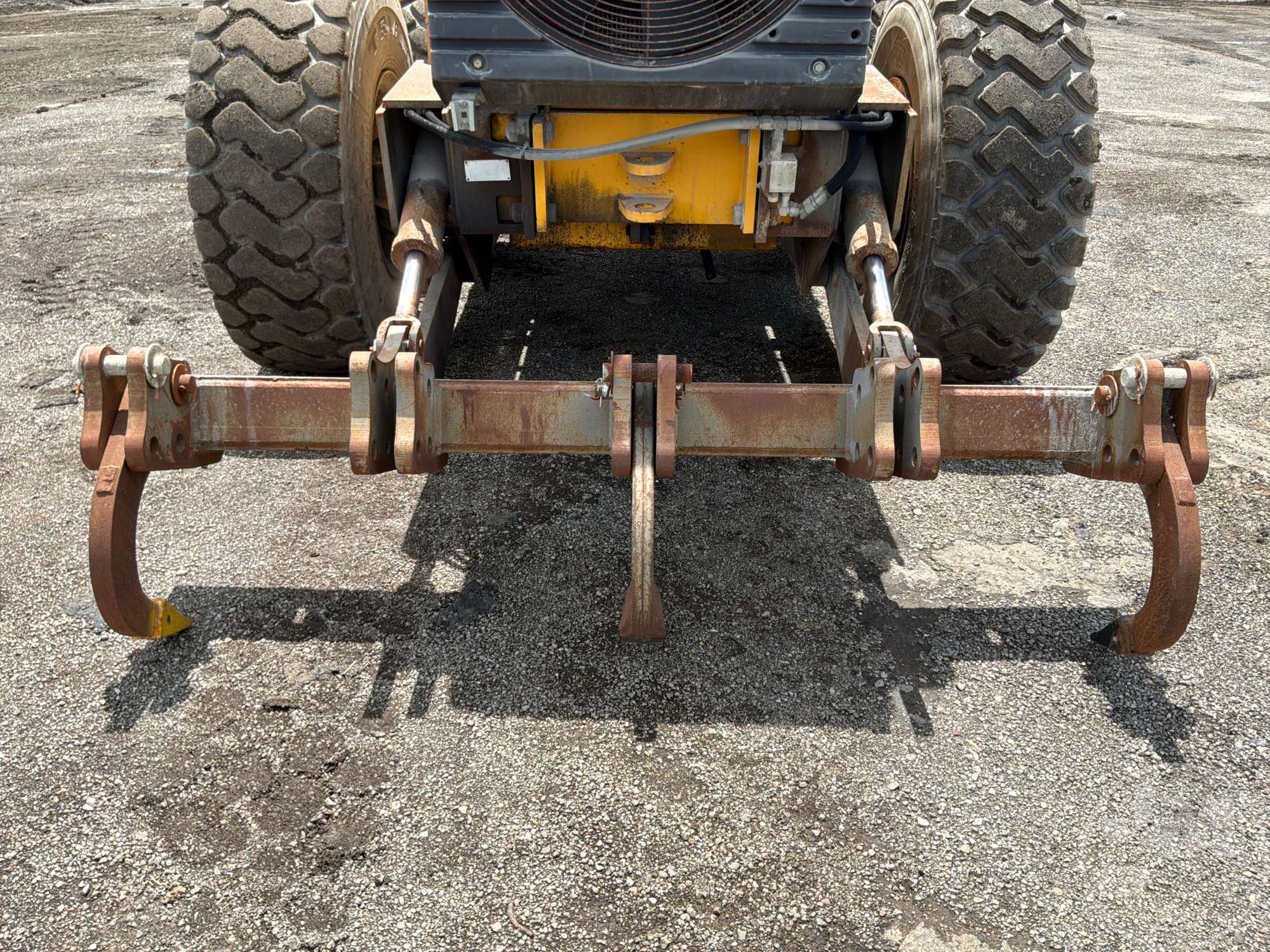

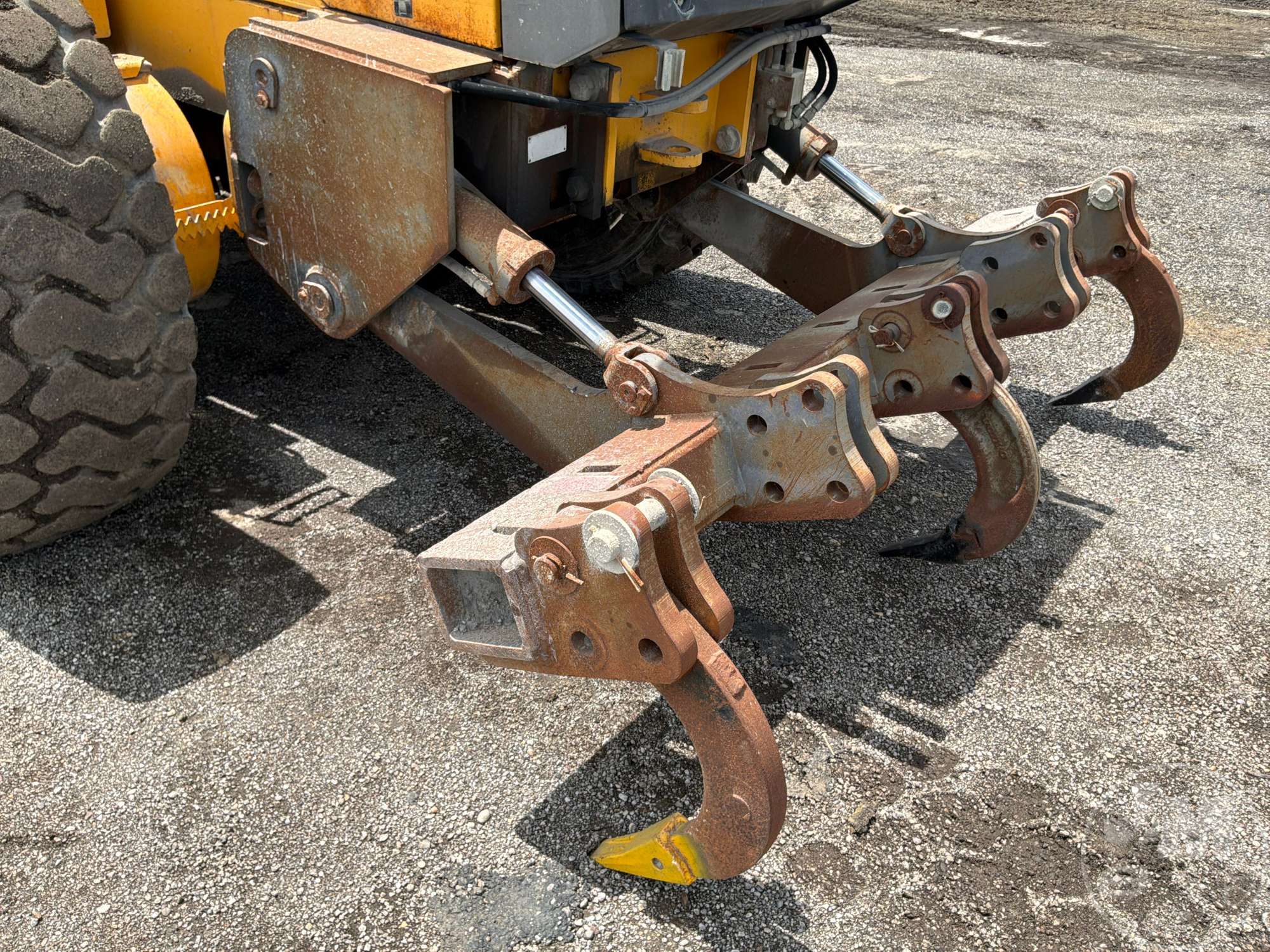

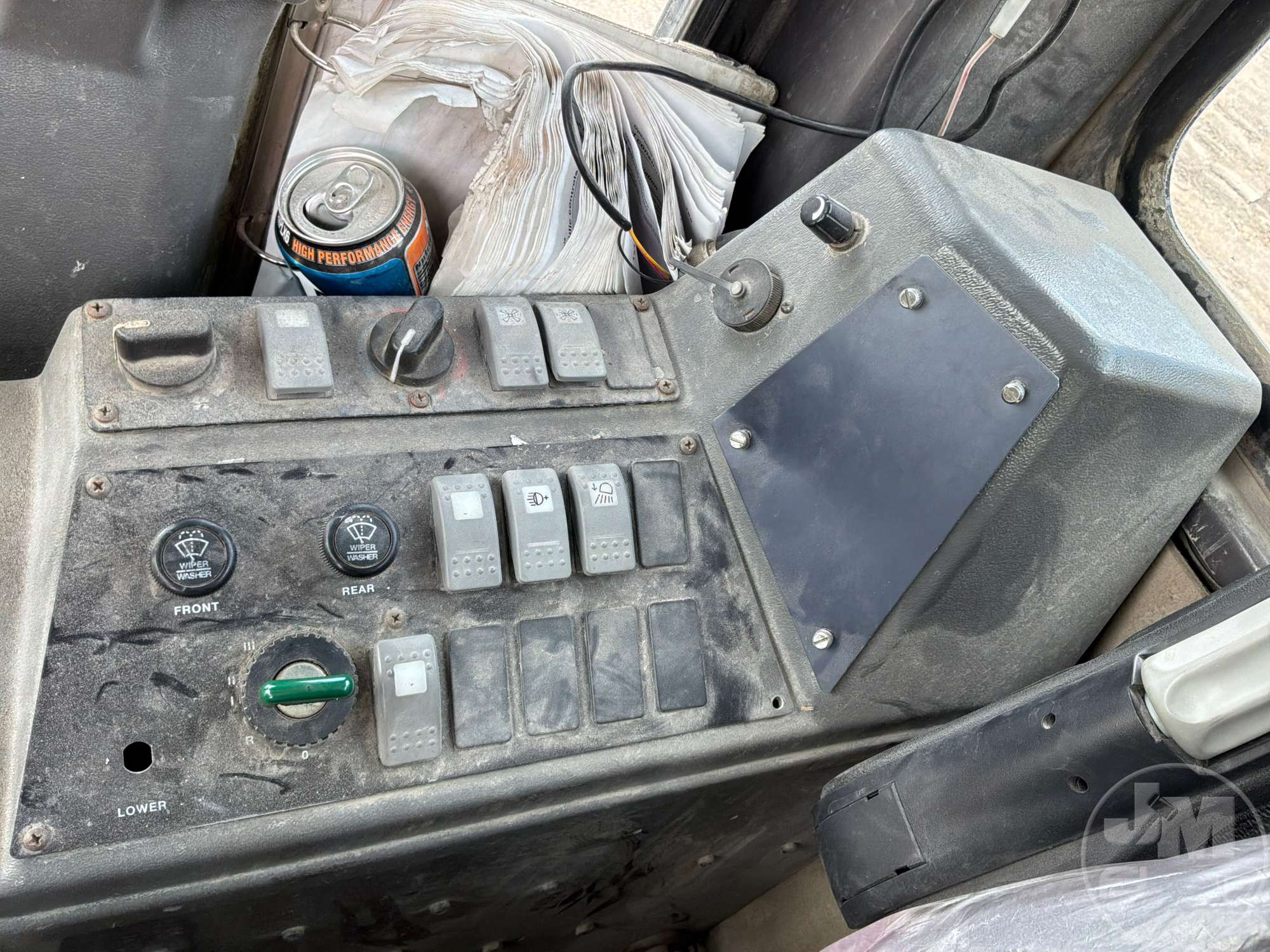

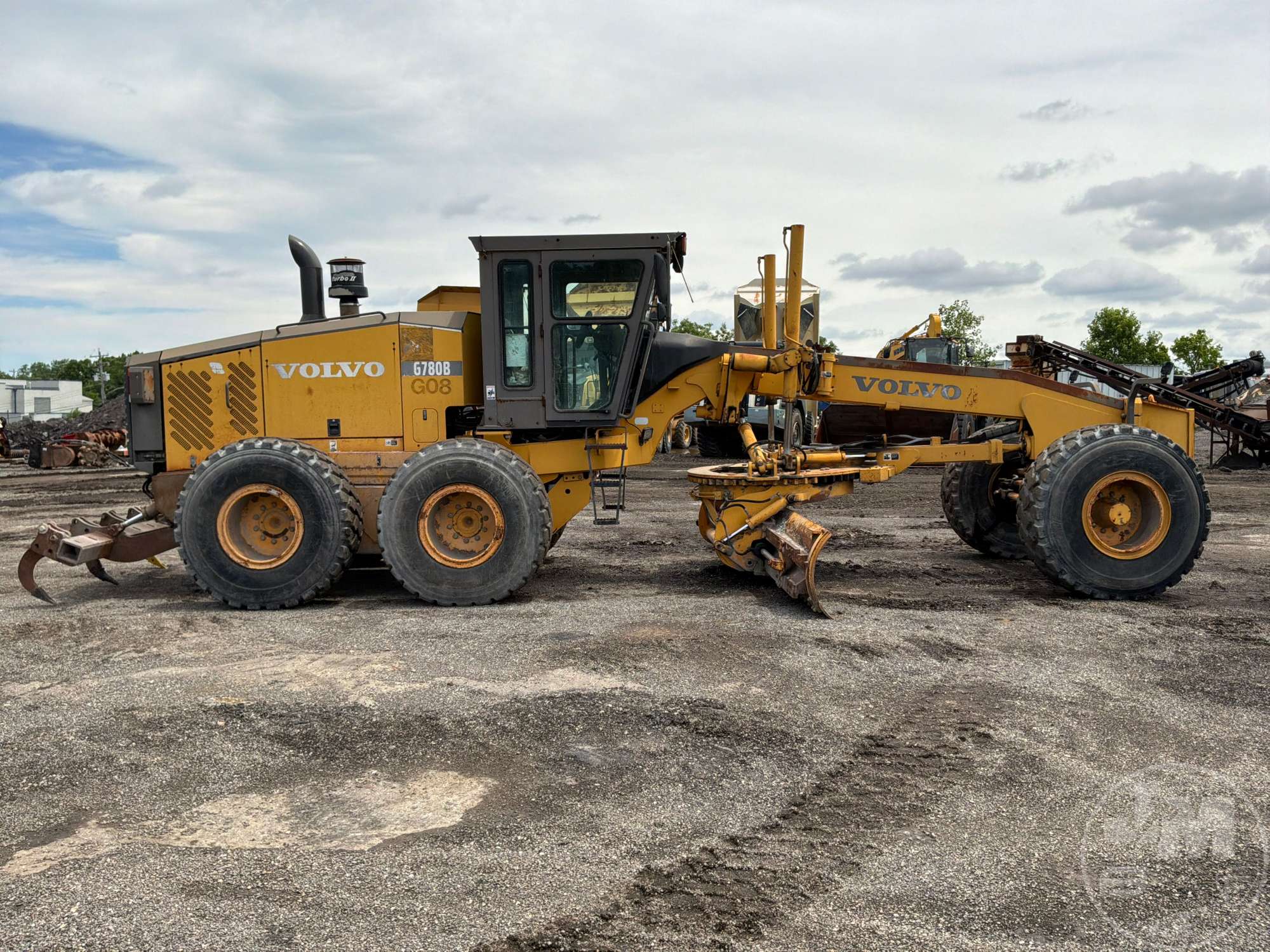

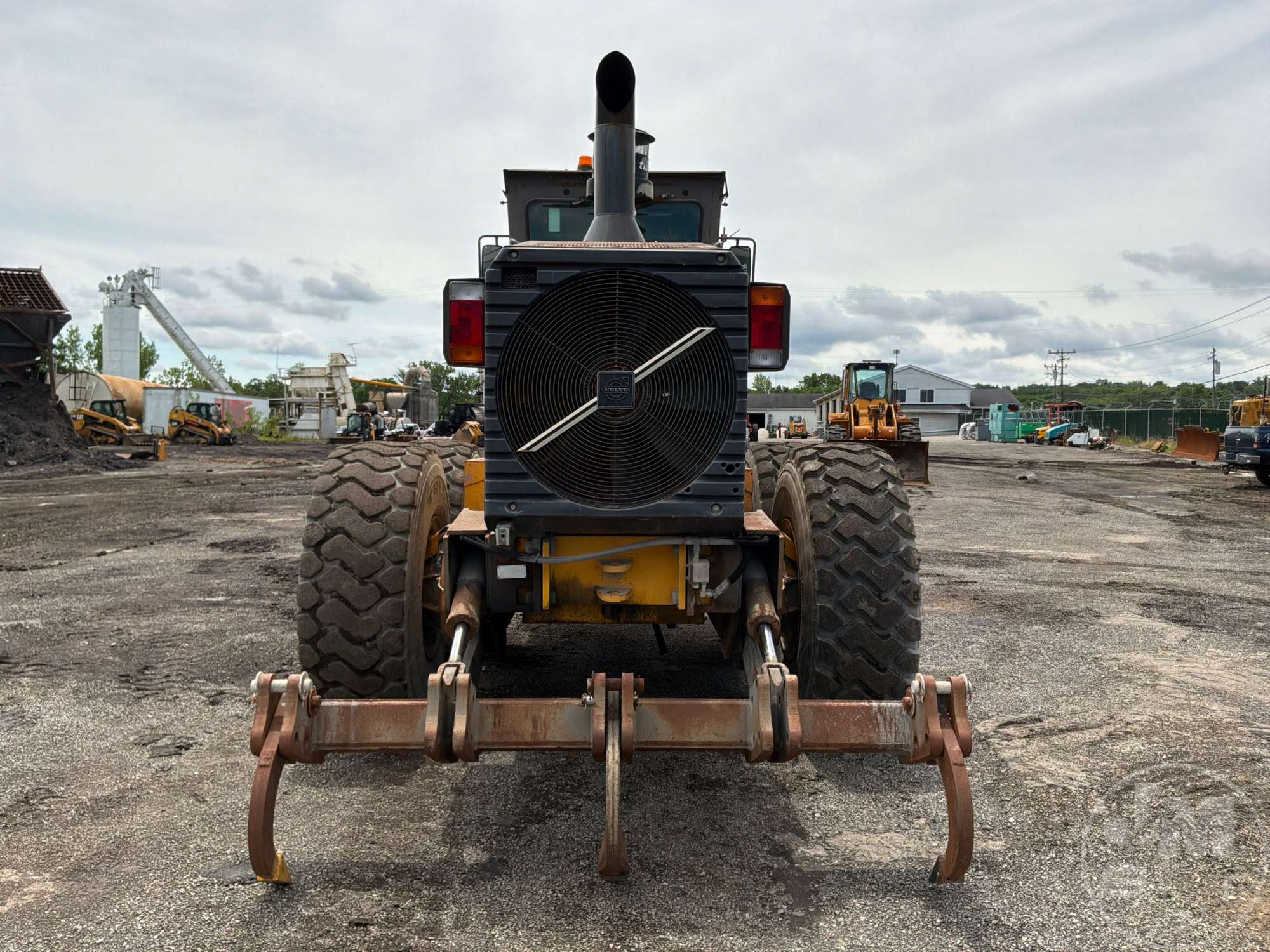

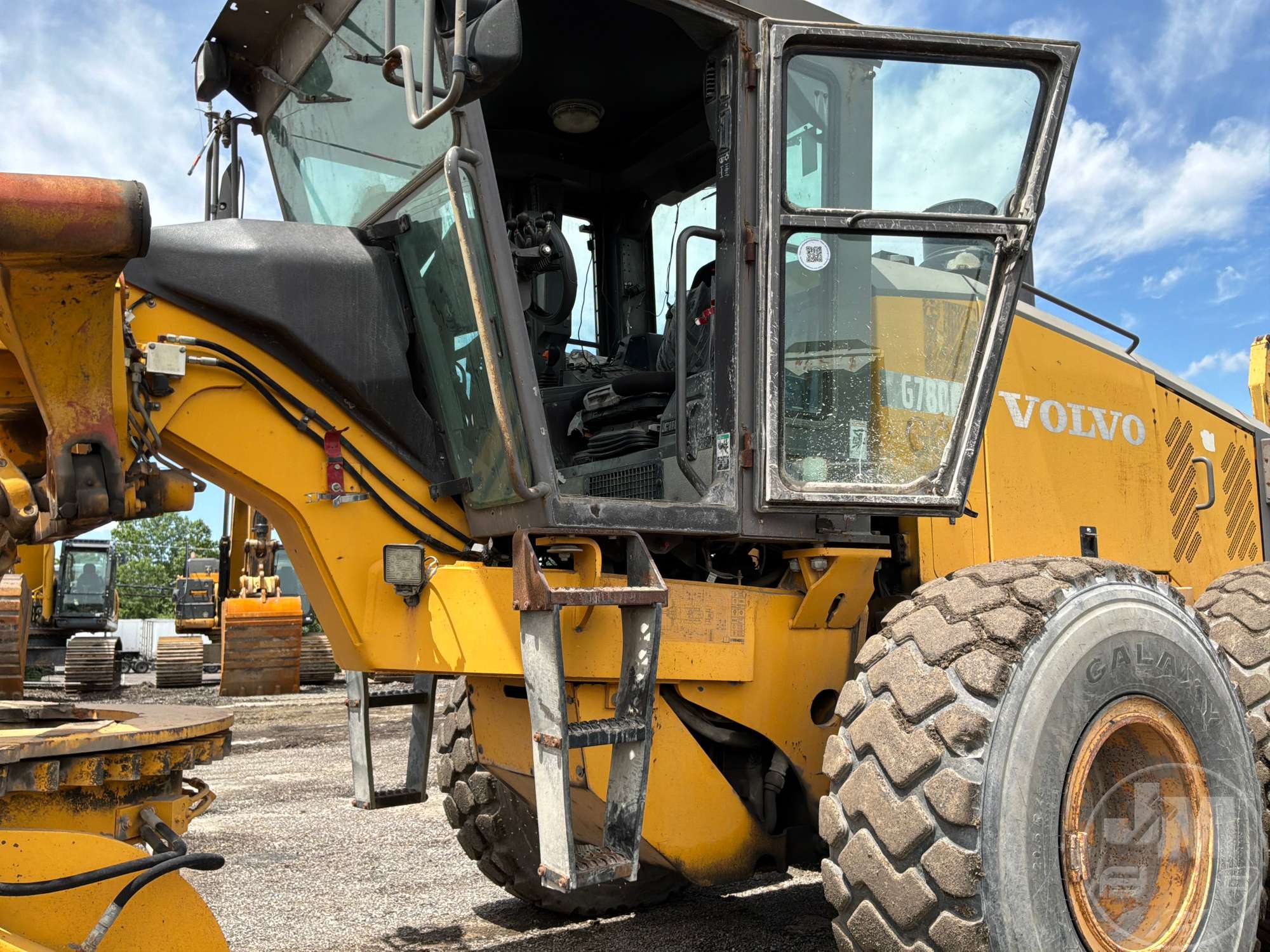

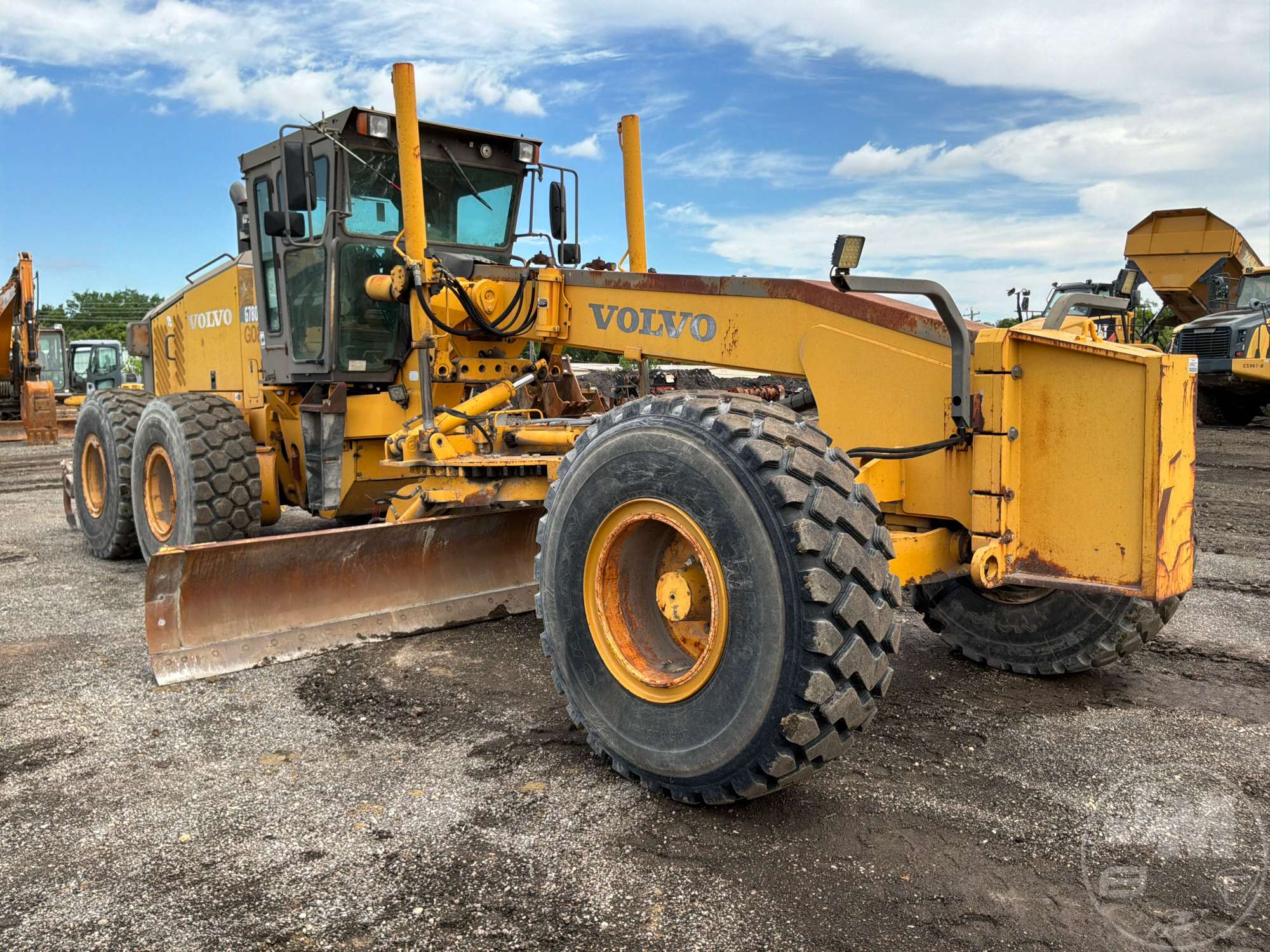

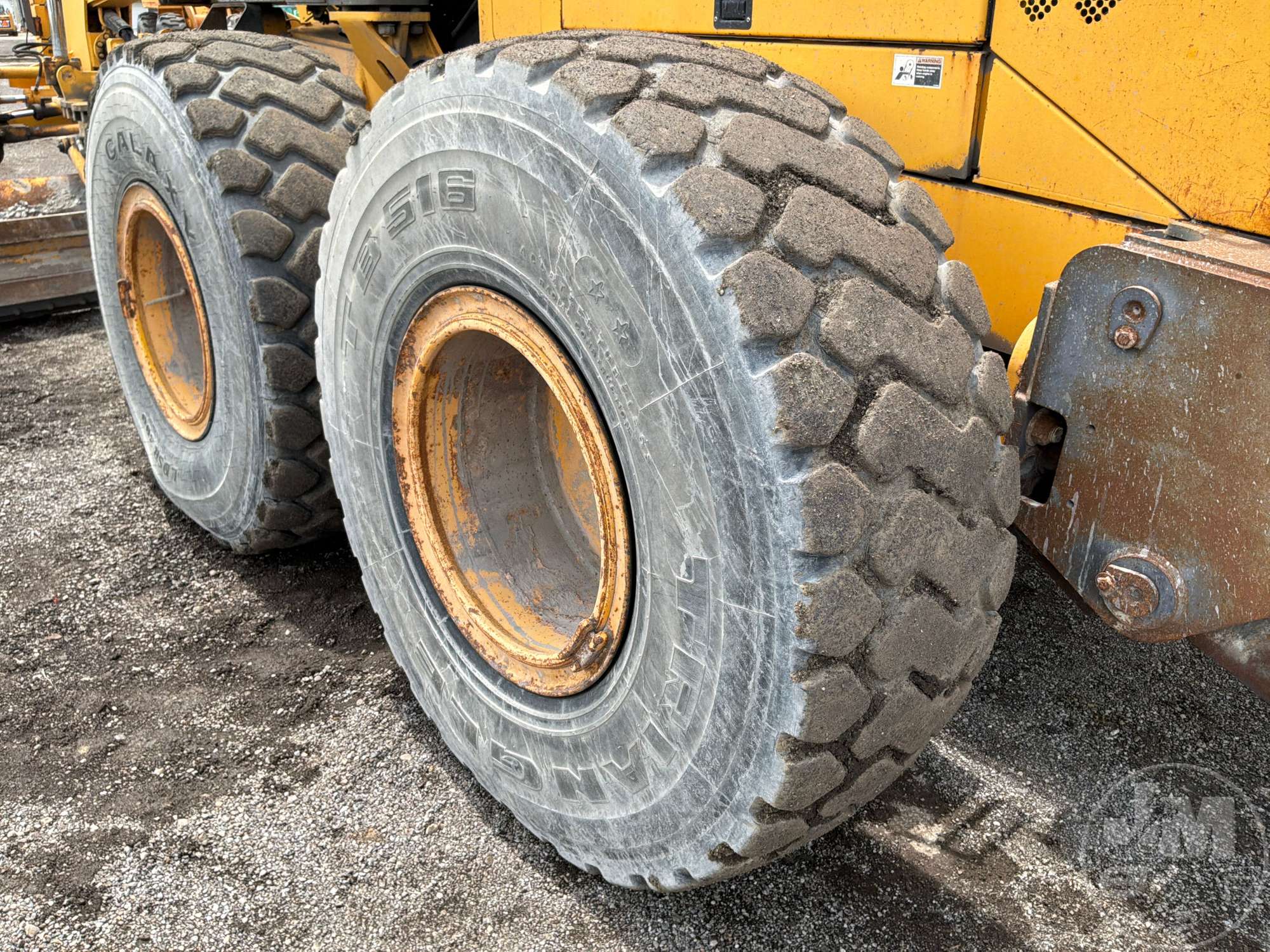

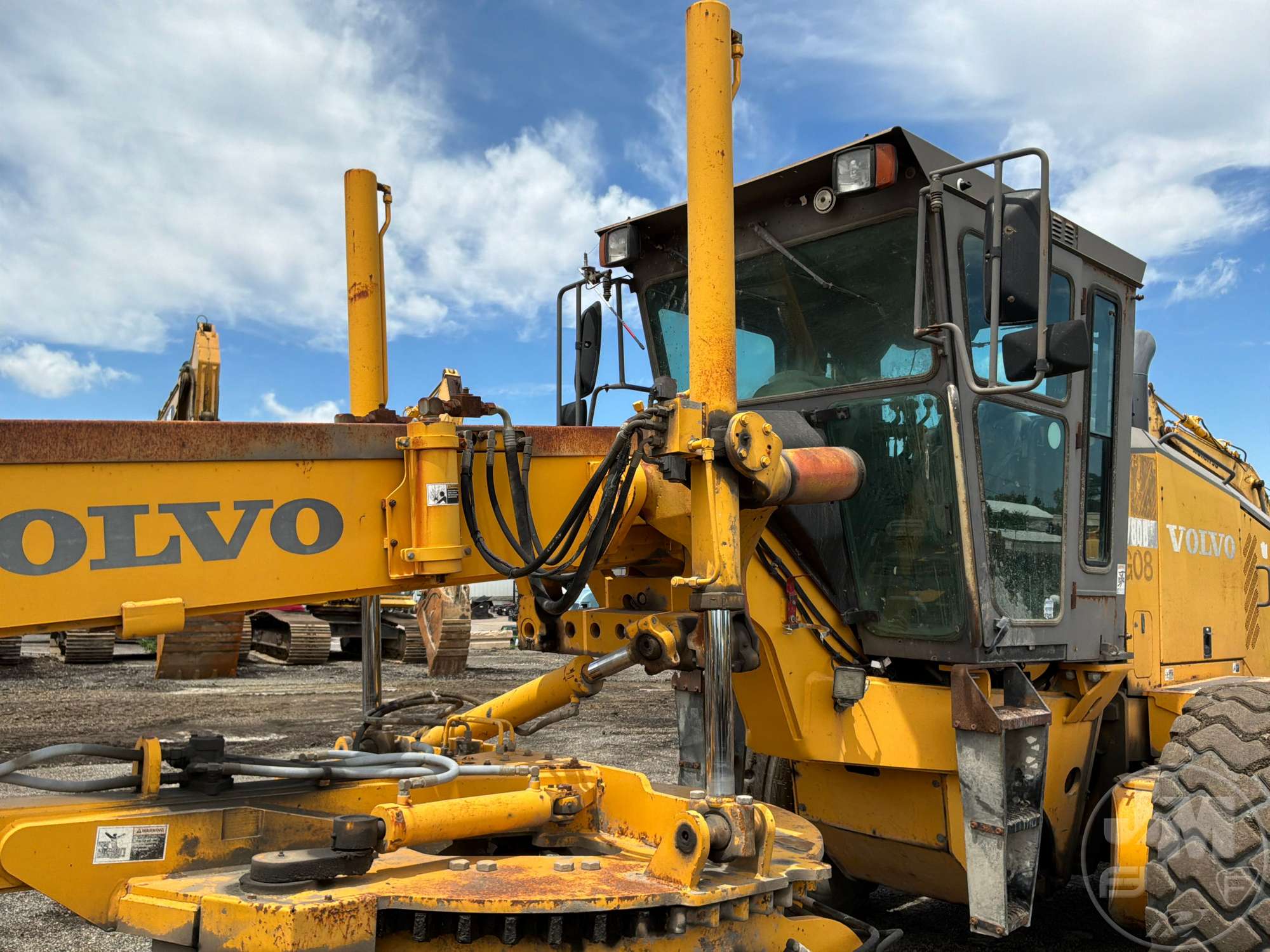

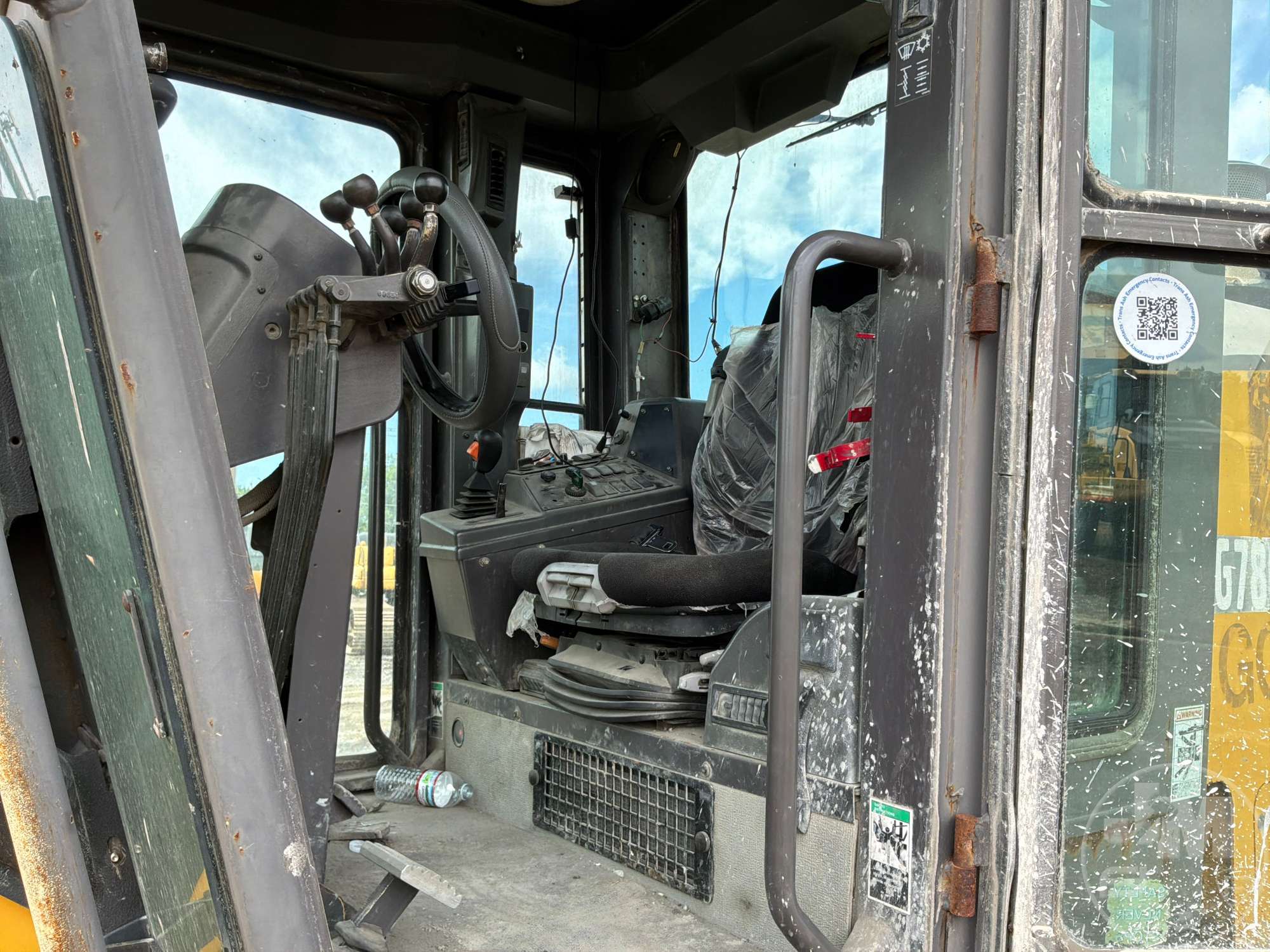

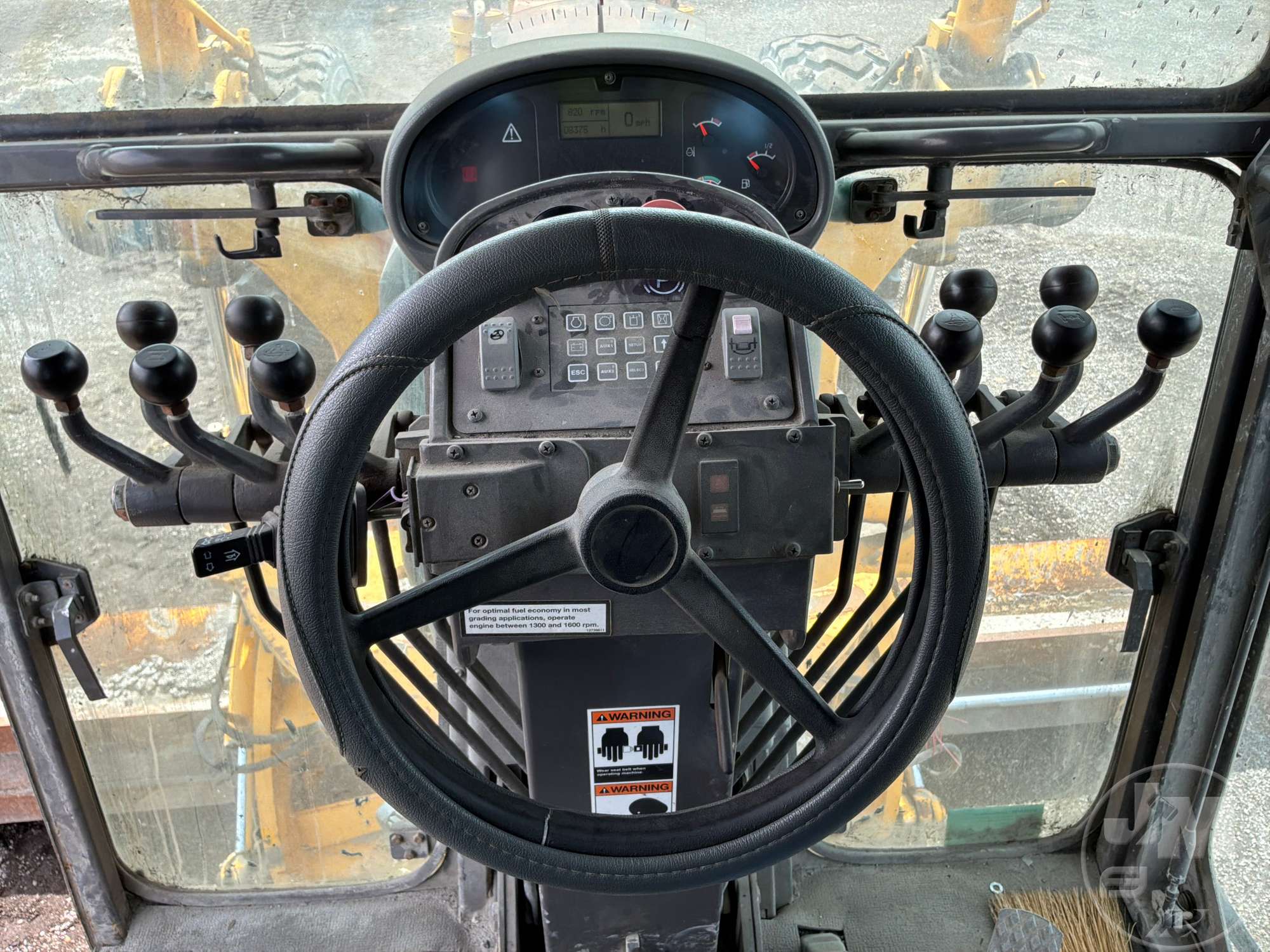

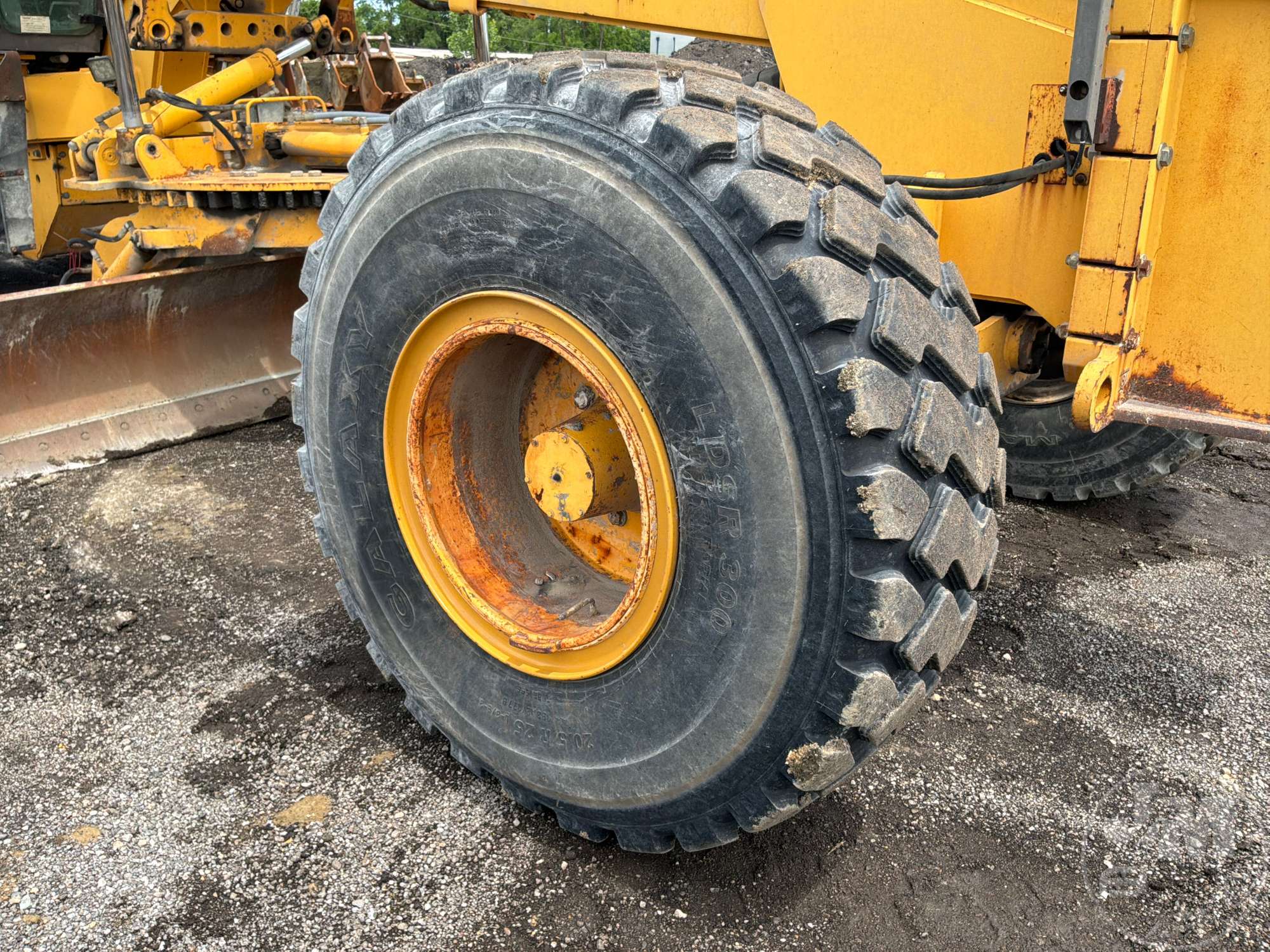

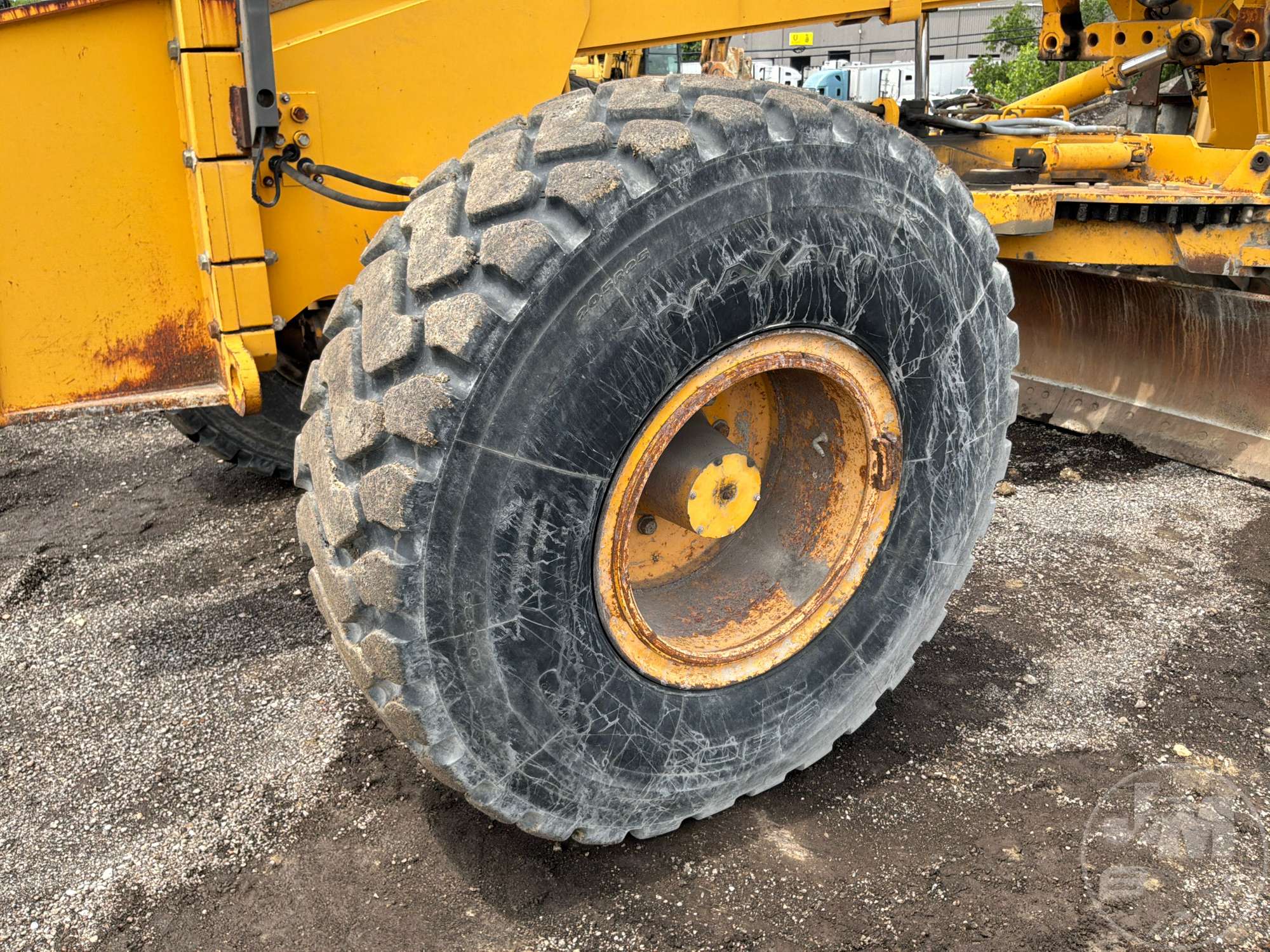

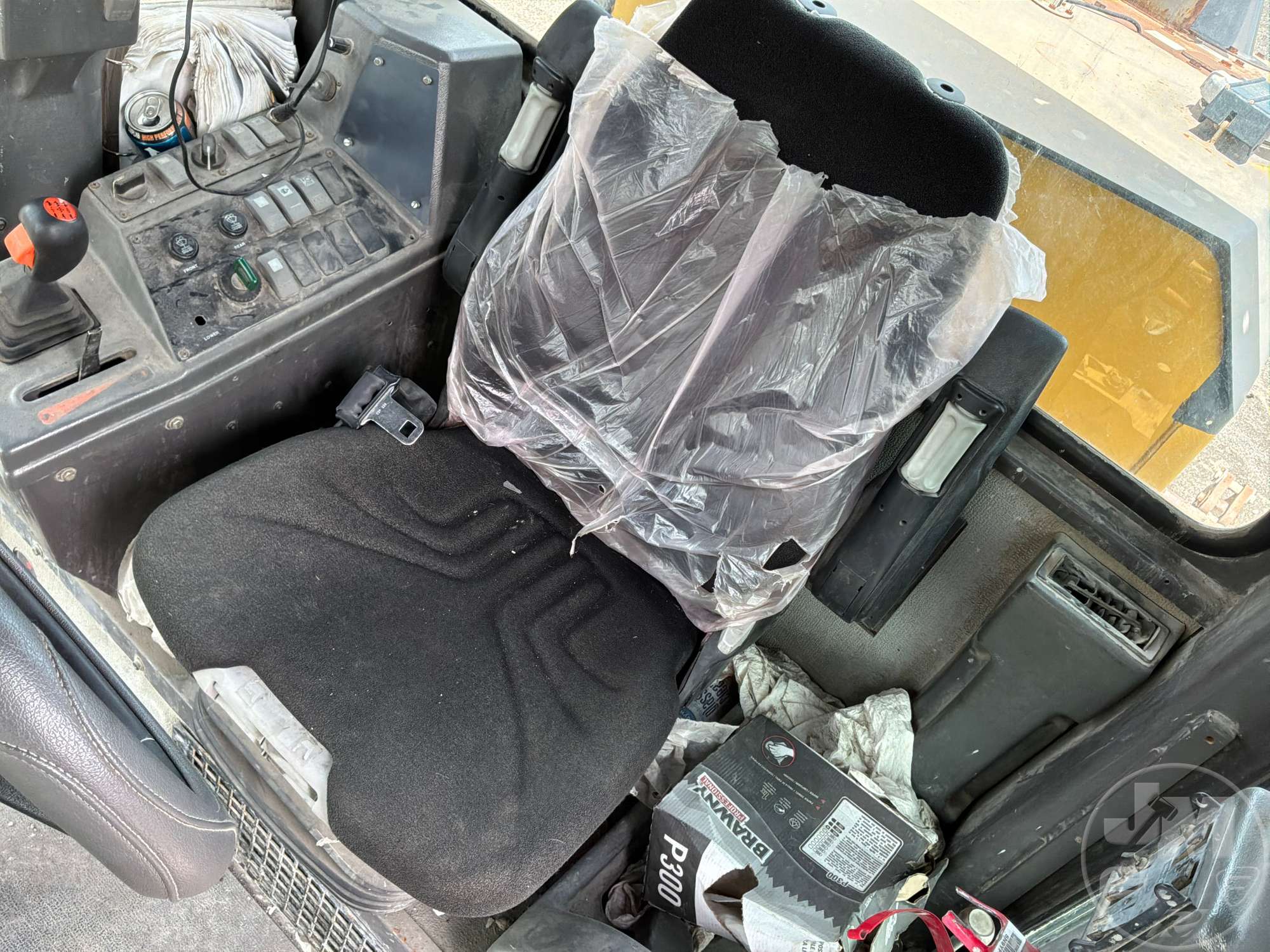

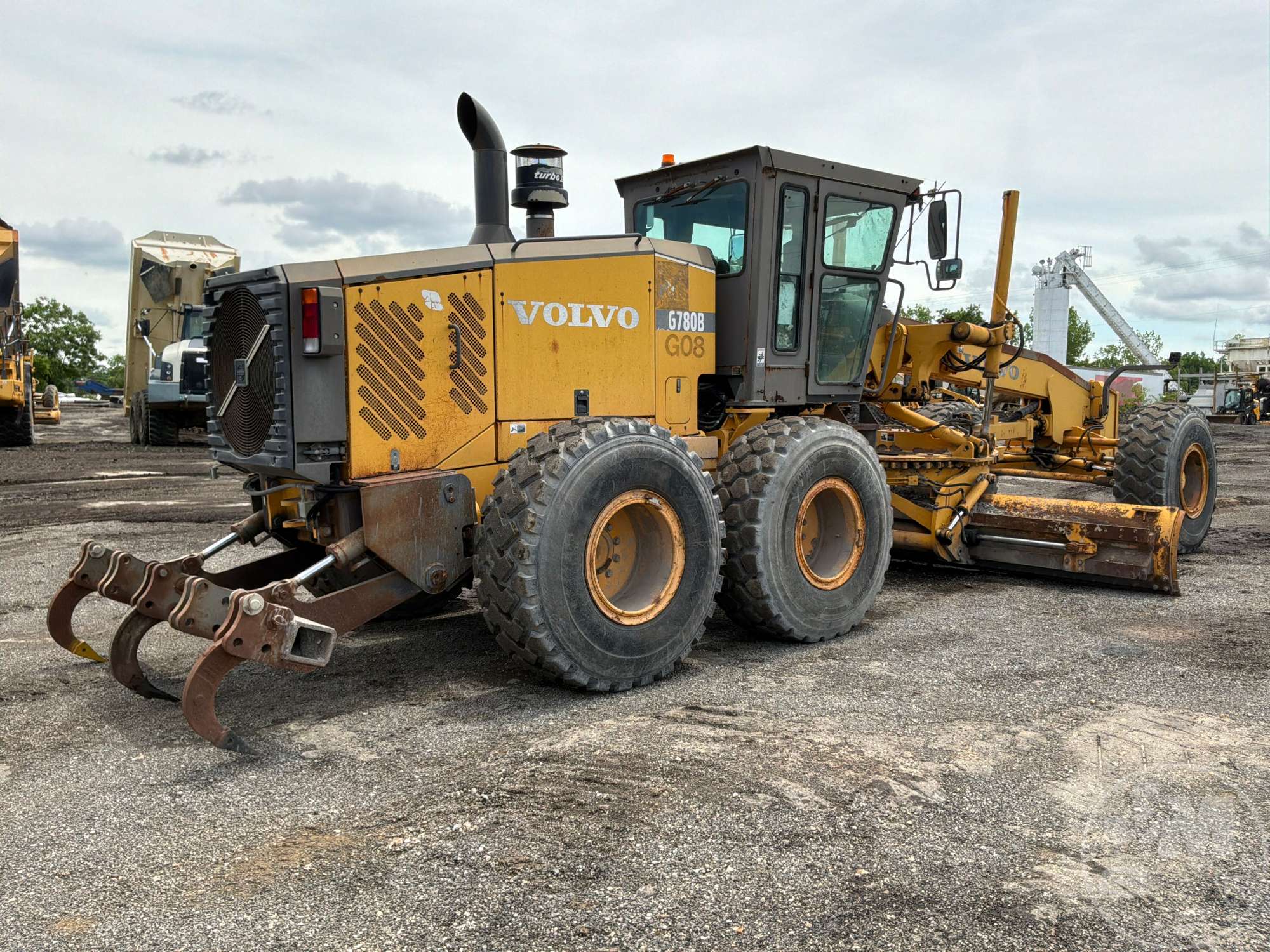

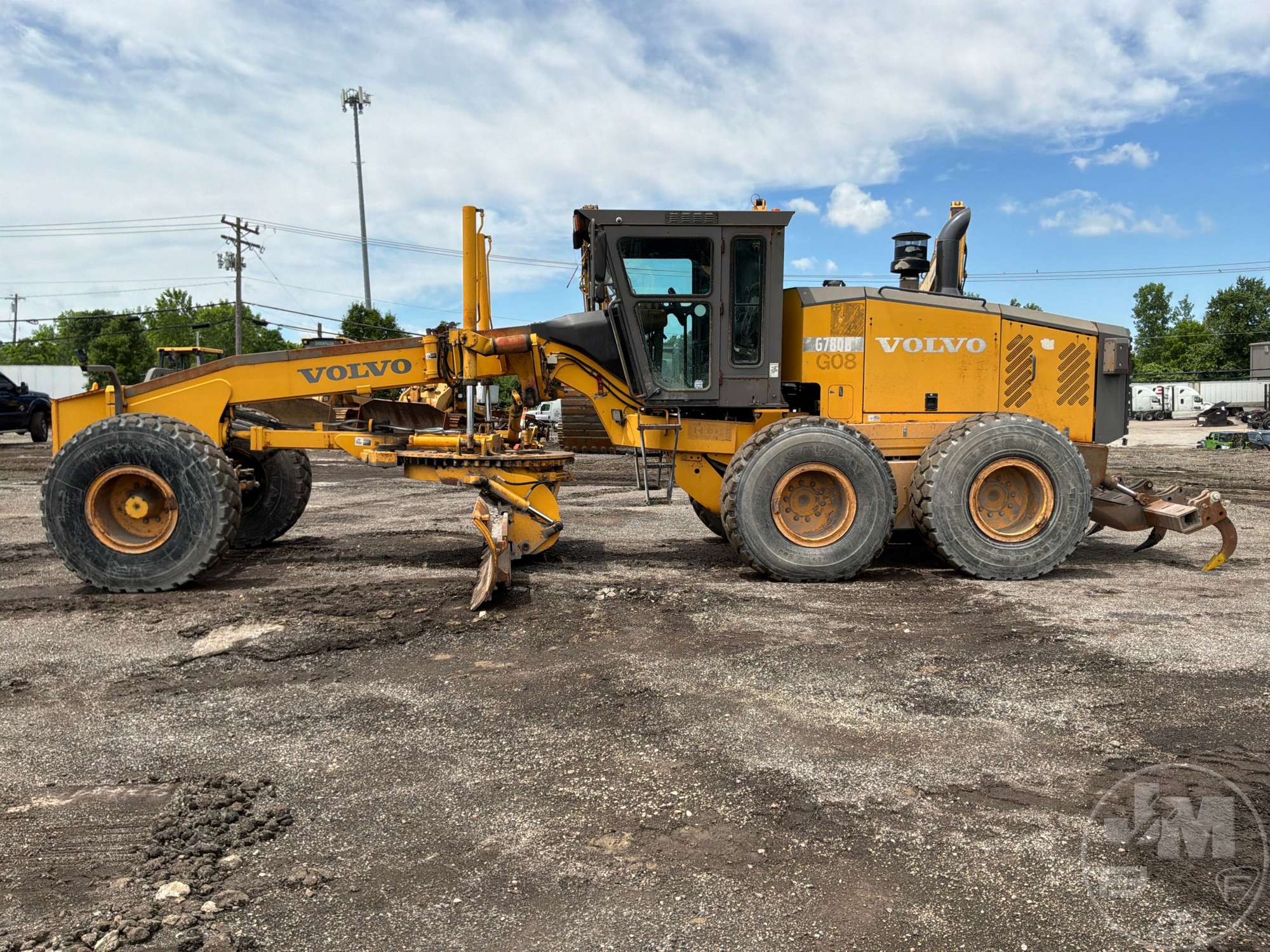

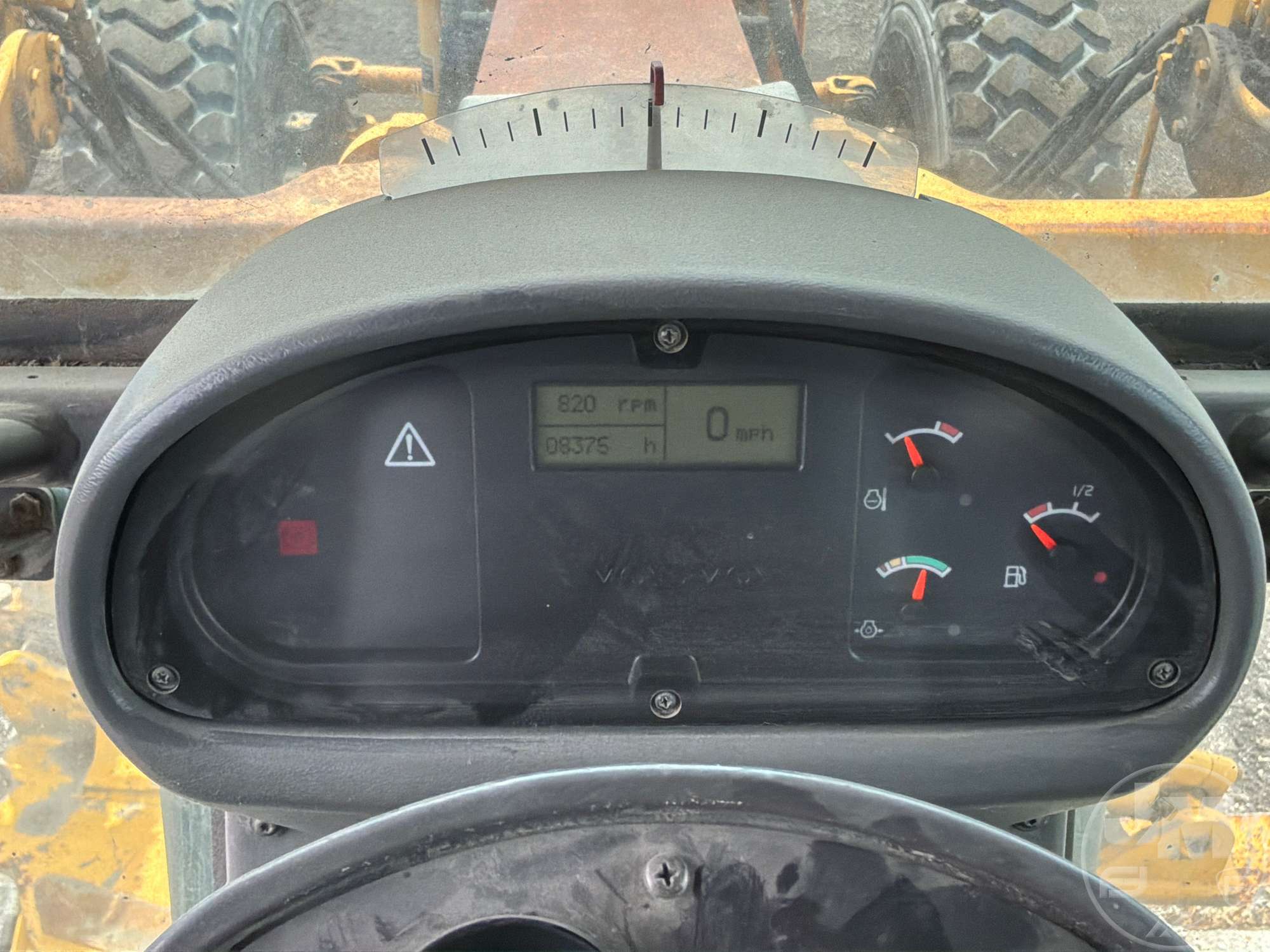

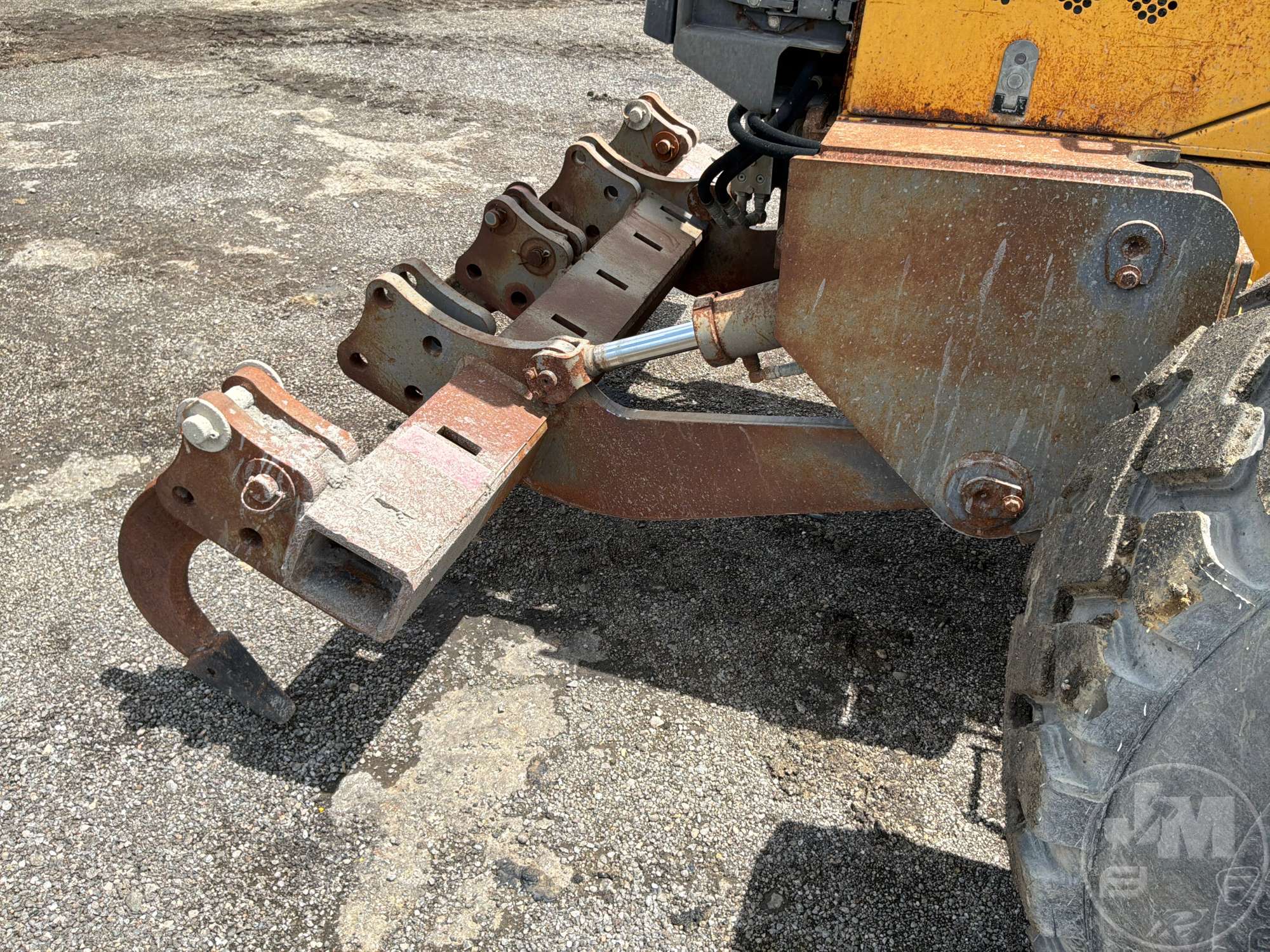

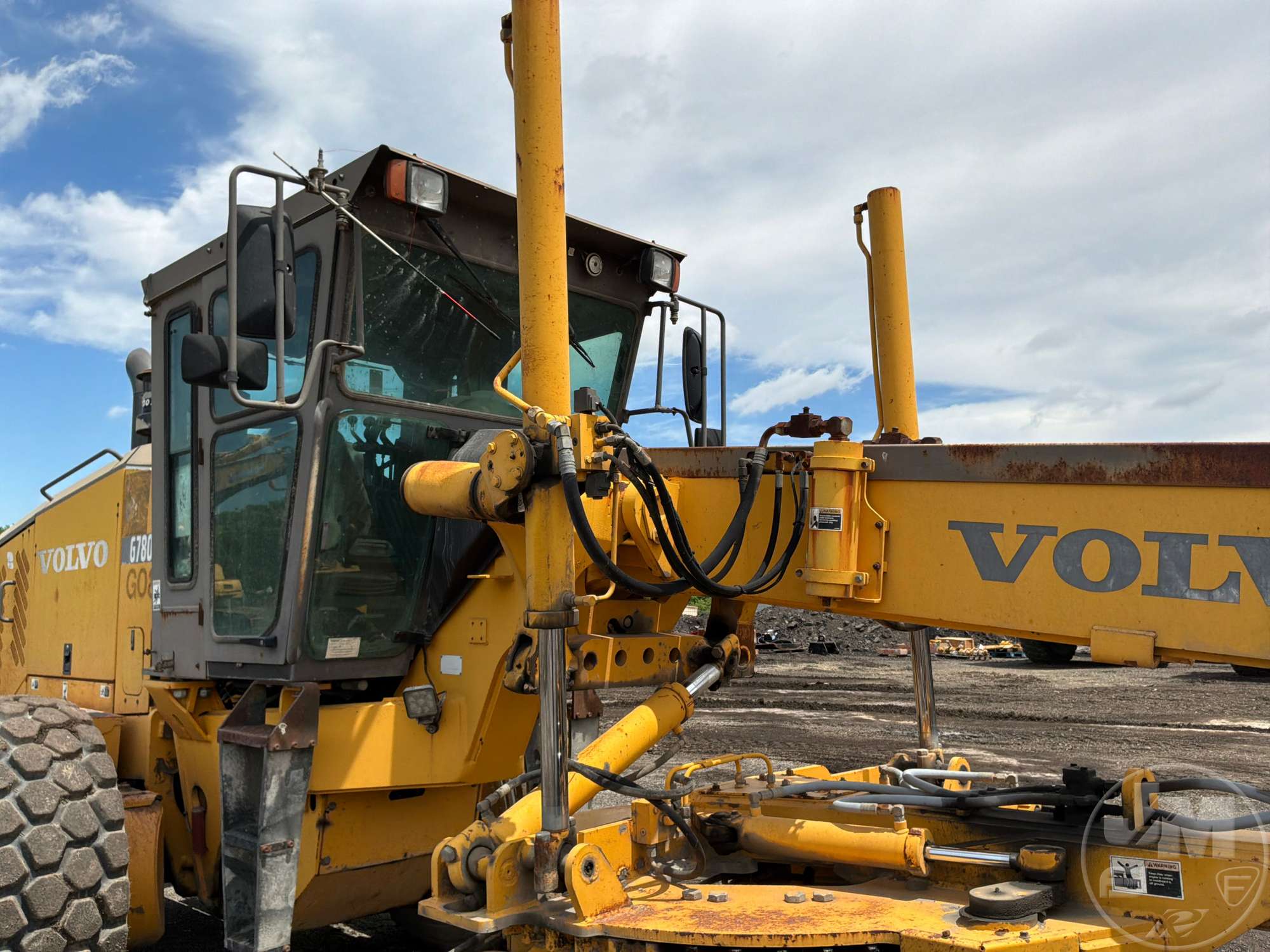

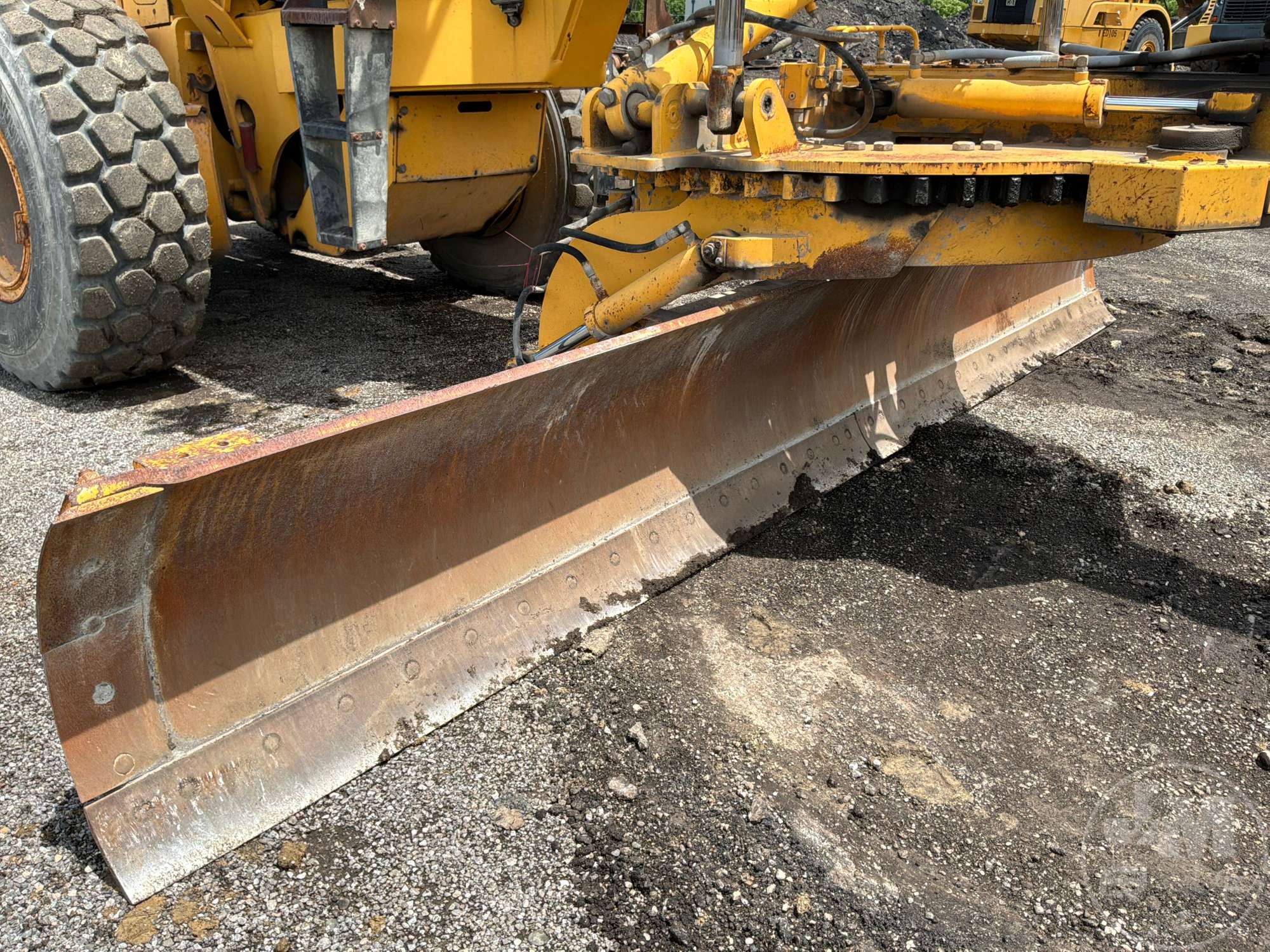

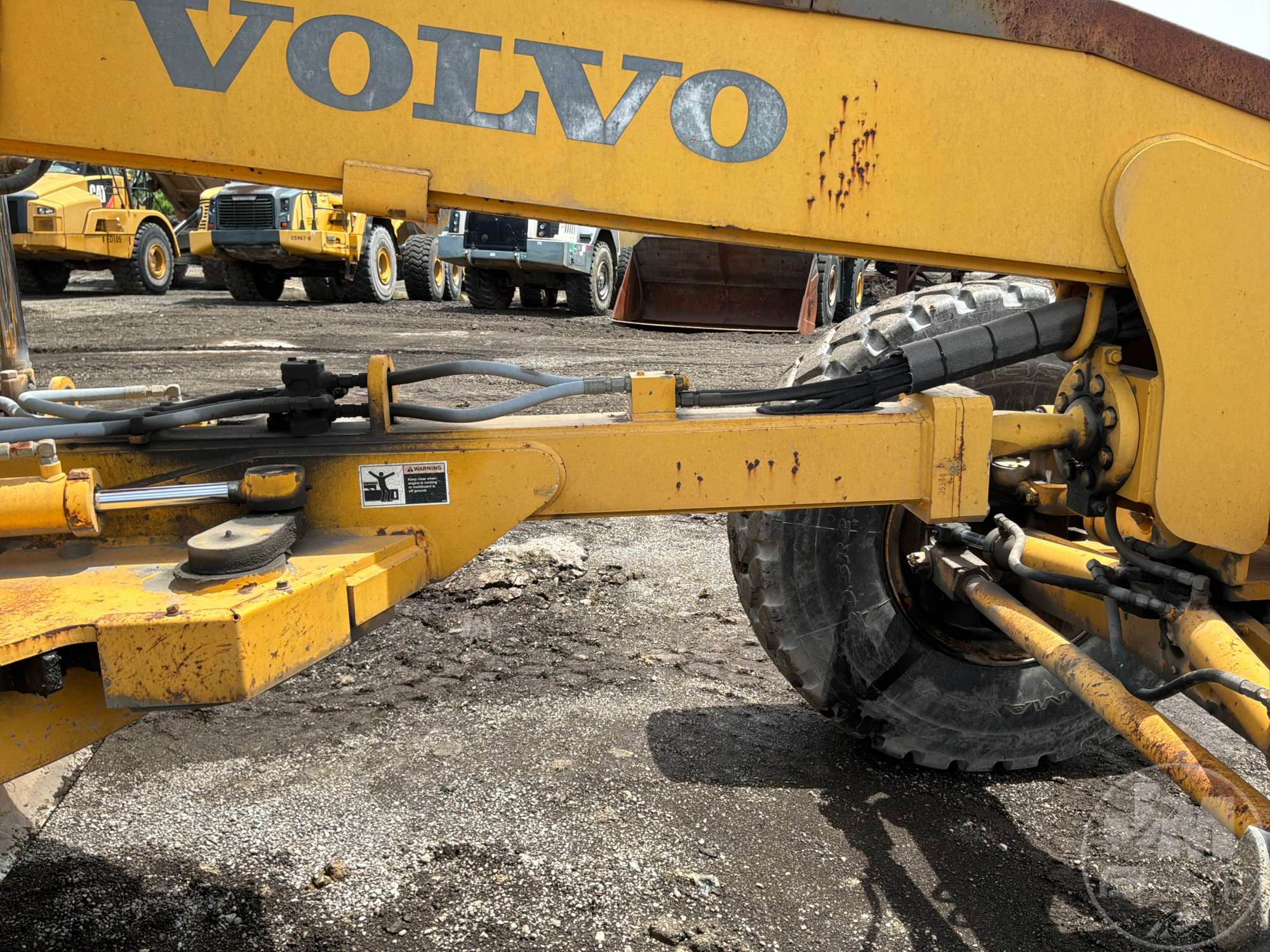

VOLVO MOTORGRADER, CAB, A/C, RADIO, 16' MOLDBOARD, REAR MOUNT SCARIFIER, 20.5RX25 TIRES, HOUR METER READS: 8375

From the manufacturer:

Supplied by HeavyEquipmentData.com →

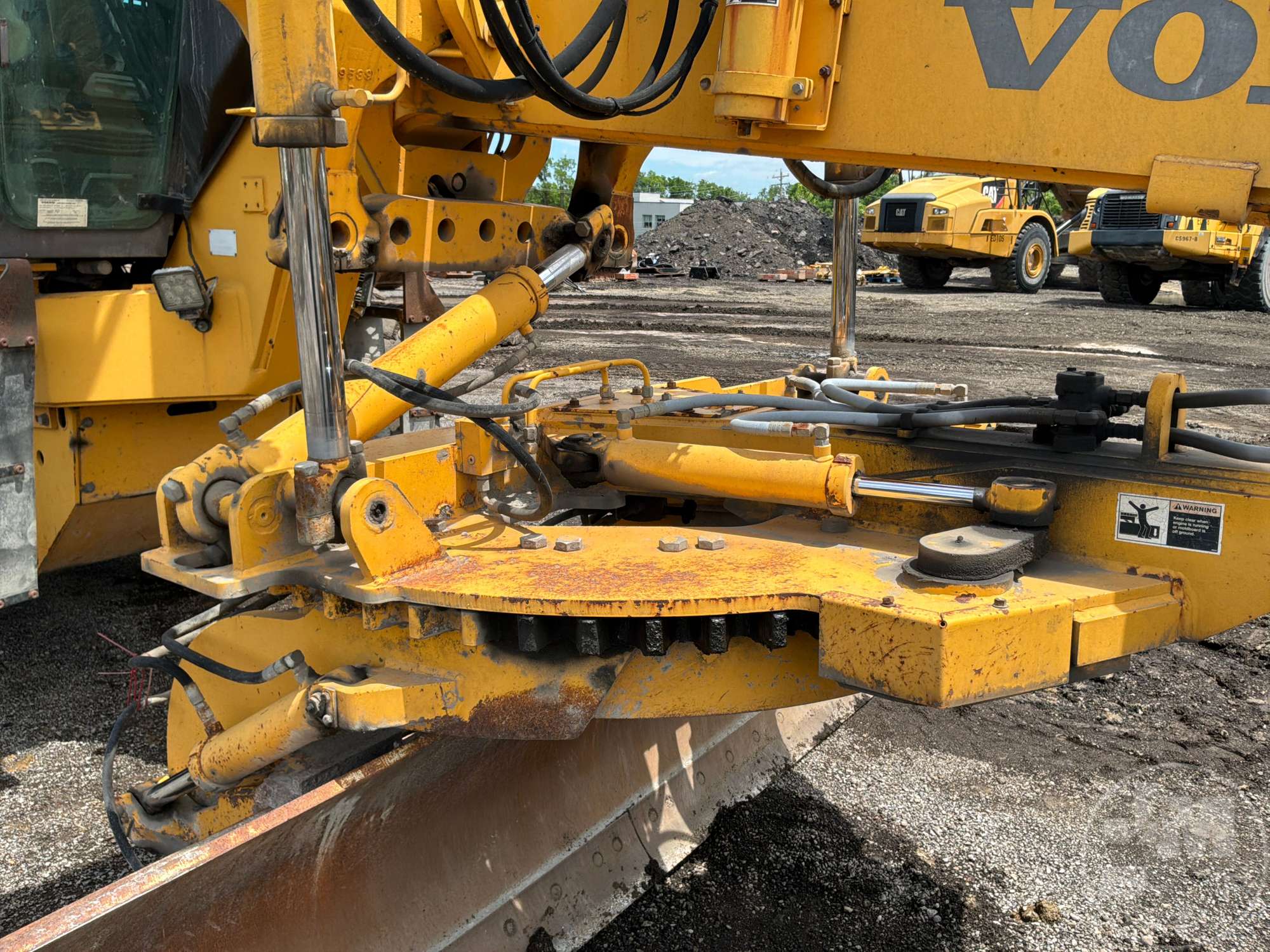

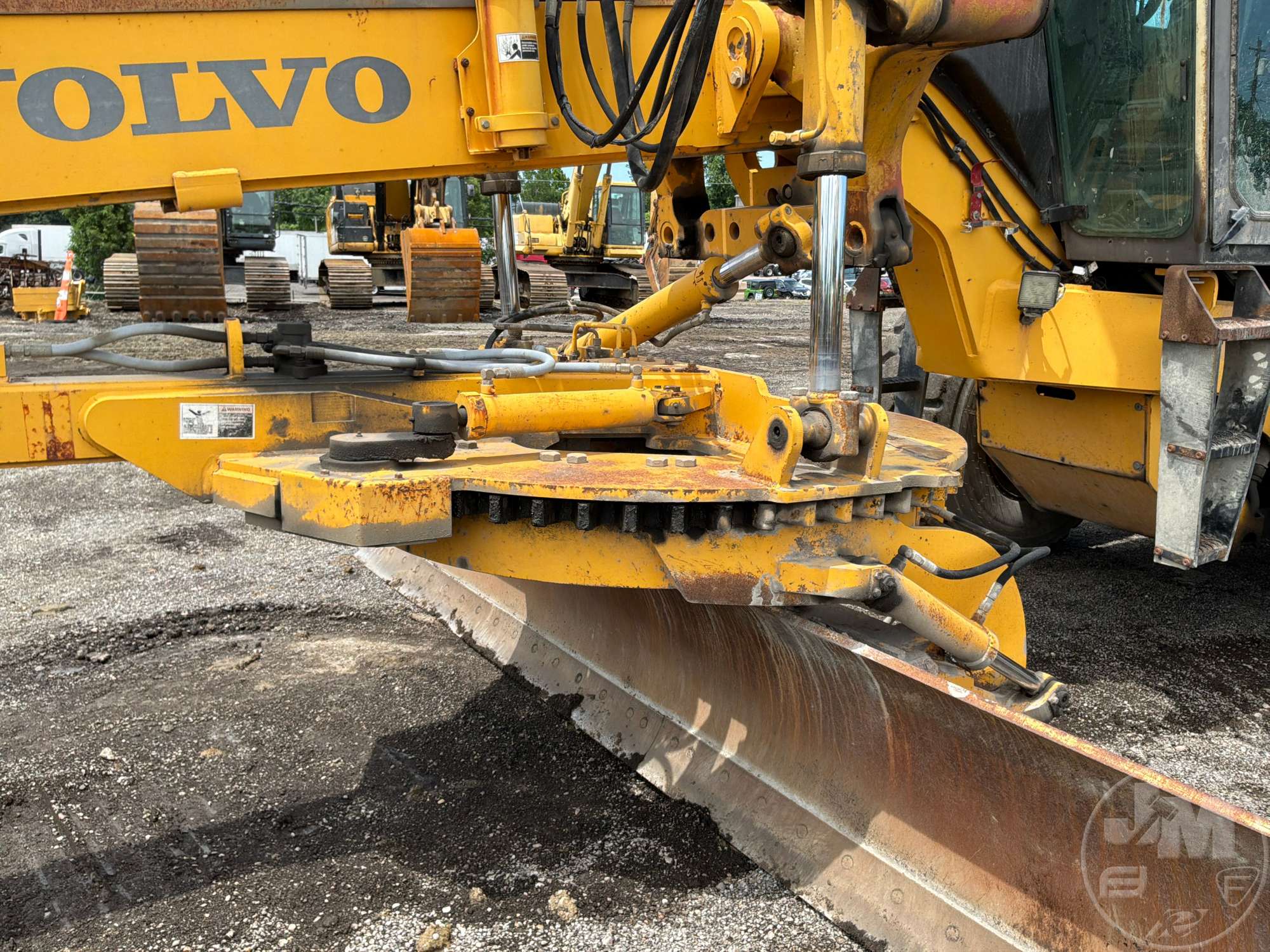

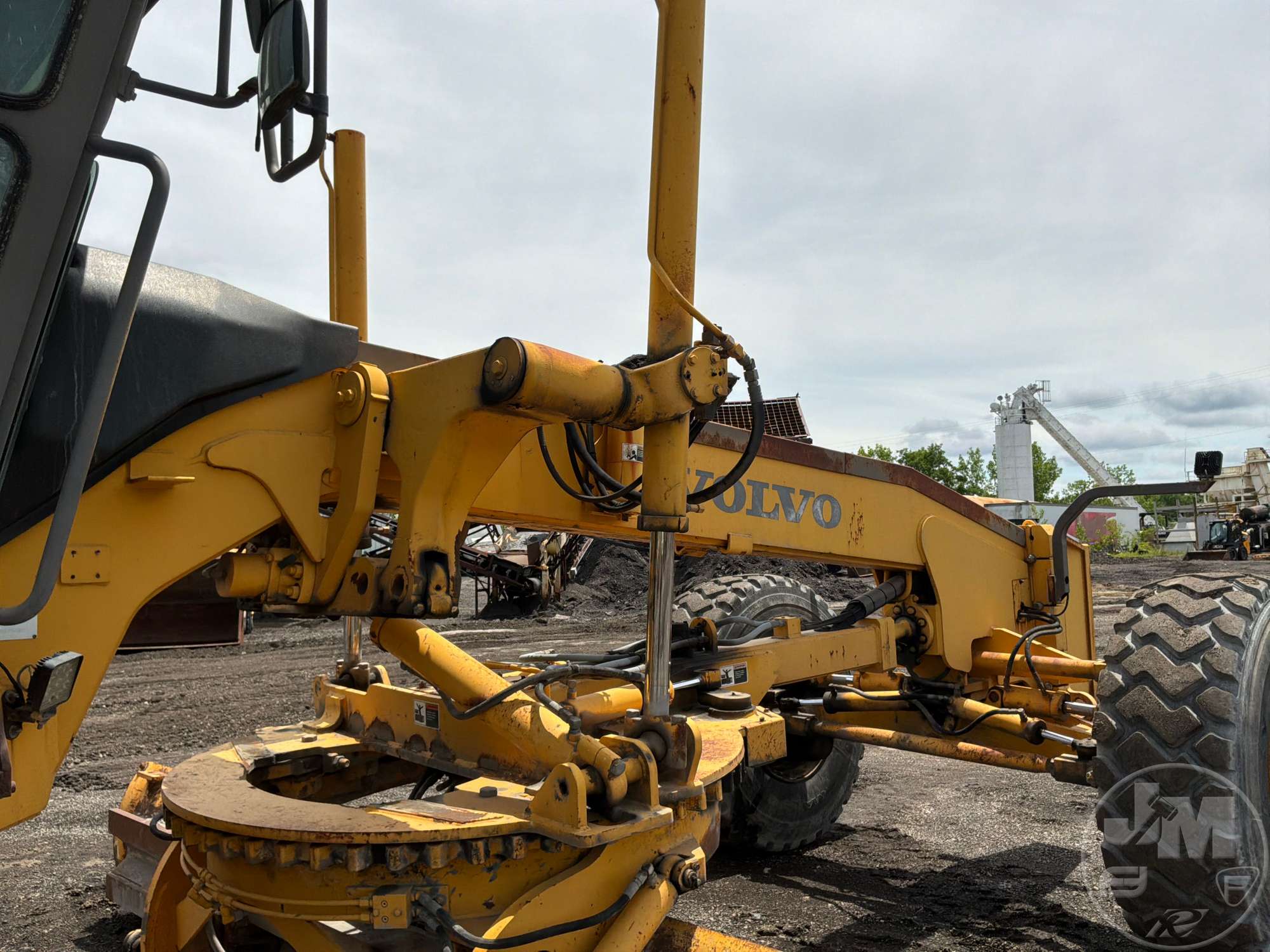

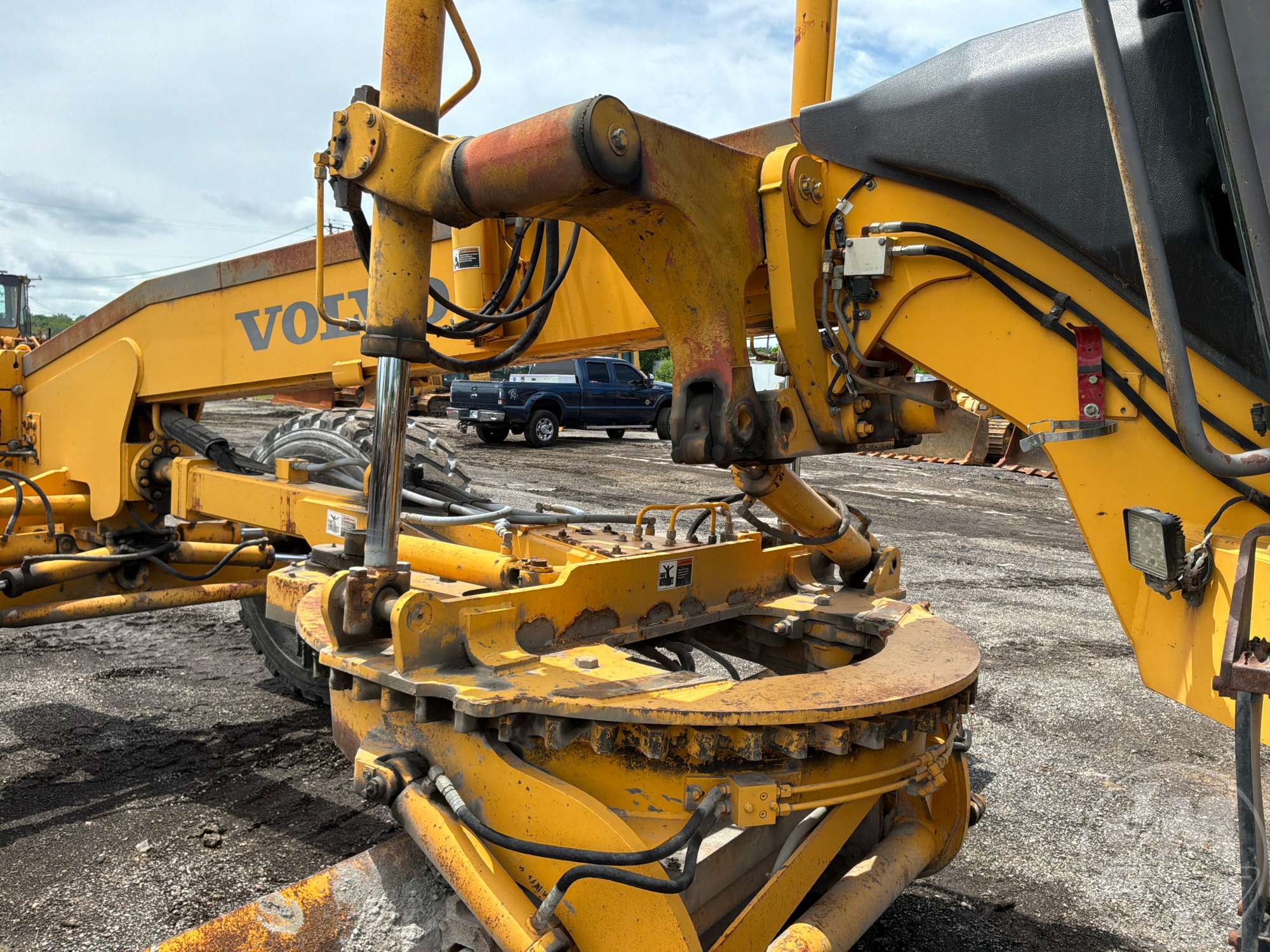

Circle
Blade Tip Angle - Front	46 degrees
Blade Tip Angle - Rear	13 degrees
Diameter	67 in (169 cm)
Max Lift Above Ground	17 in (43 cm)
Max Reach Outside Tires - Left	91 in (231 cm)
Max Reach Outside Tires - Right	91 in (230 cm)
Rotation	360 degrees
Shift Left	30 in (76 cm)
Shift Right	30 in (75 cm)
Dimensions
Blade Base	9 ft (3 m)
Height to Top of Isomount Cab	11 ft (3 m)
Overall Length	31 ft (9 m)
Wheelbase	21 ft (6 m)
Width Over Tires	9 ft (3 m)

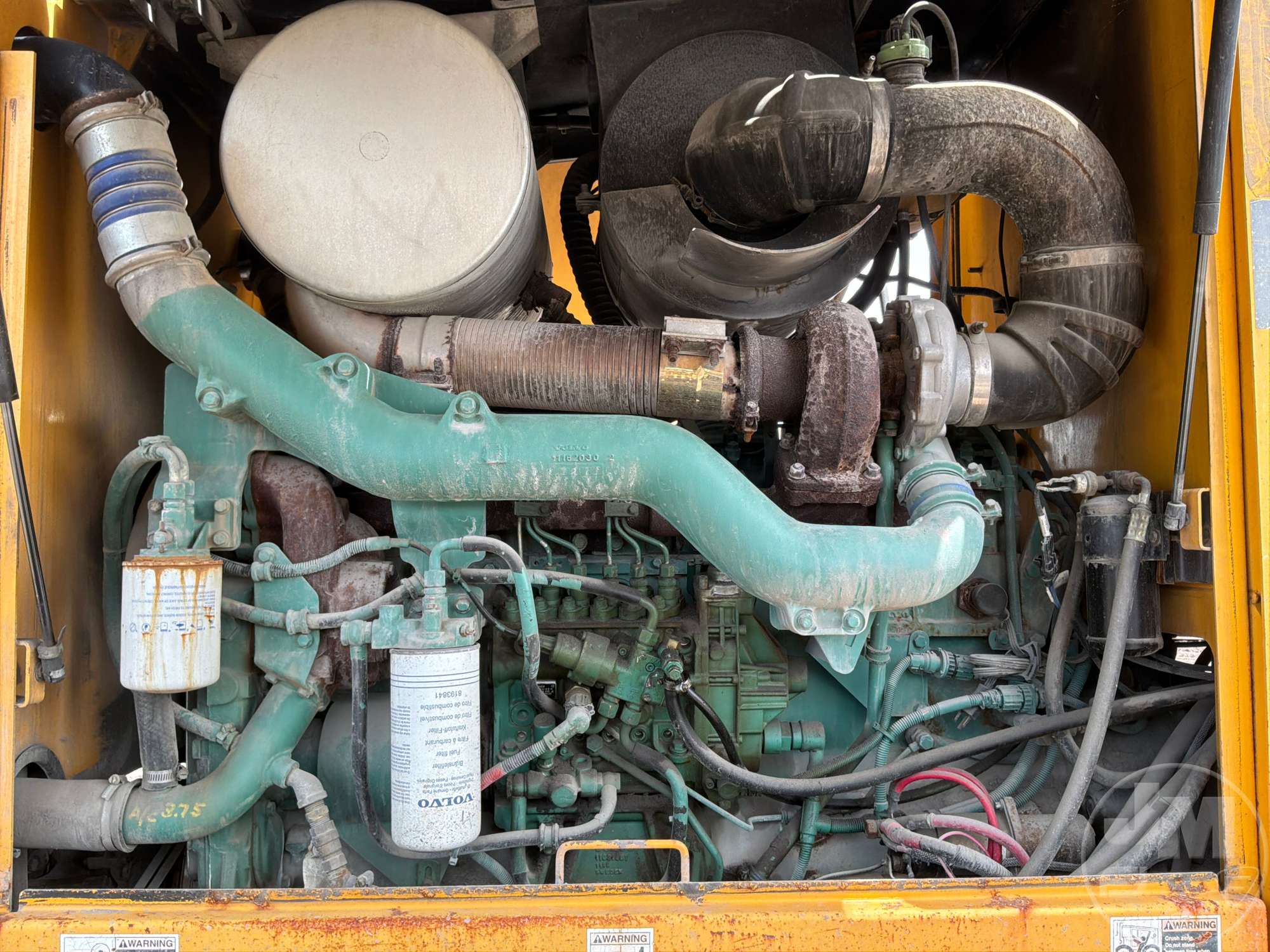

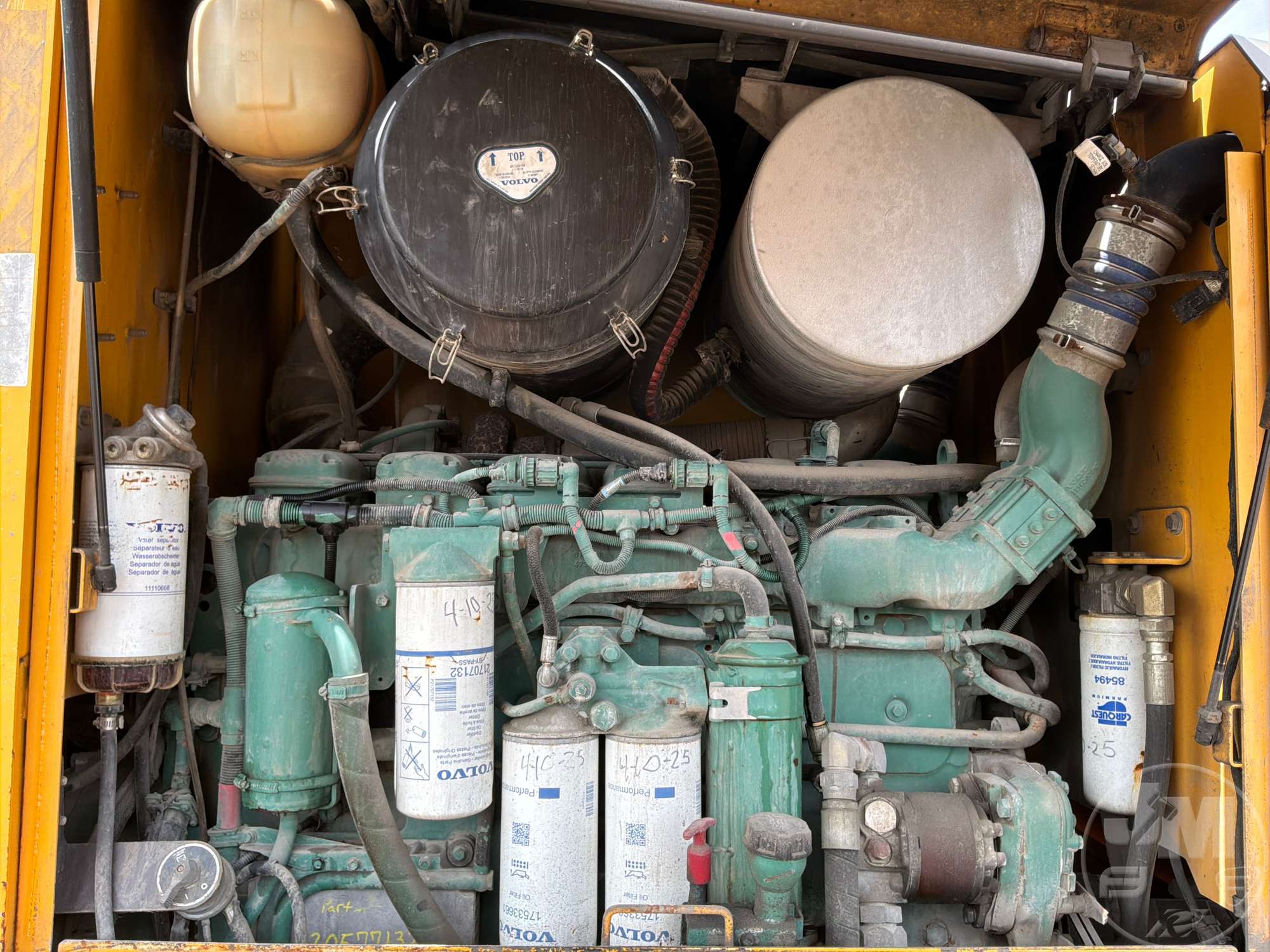

Engine
Aspiration	Turbocharged
Displacement	586 cu in (9,603 cu cm)
Engine Model	D10BGAE2
Max Power	243 hp (181 kw)
Net Power Gears 7-8	243 hp (181 kw)
Net Torque Gears 7-8	846 lbs ft (1,147 nm)
Number of Cylinders	6
Power Measured @	2,100 rpm
Torque Measured @	1,100 rpm

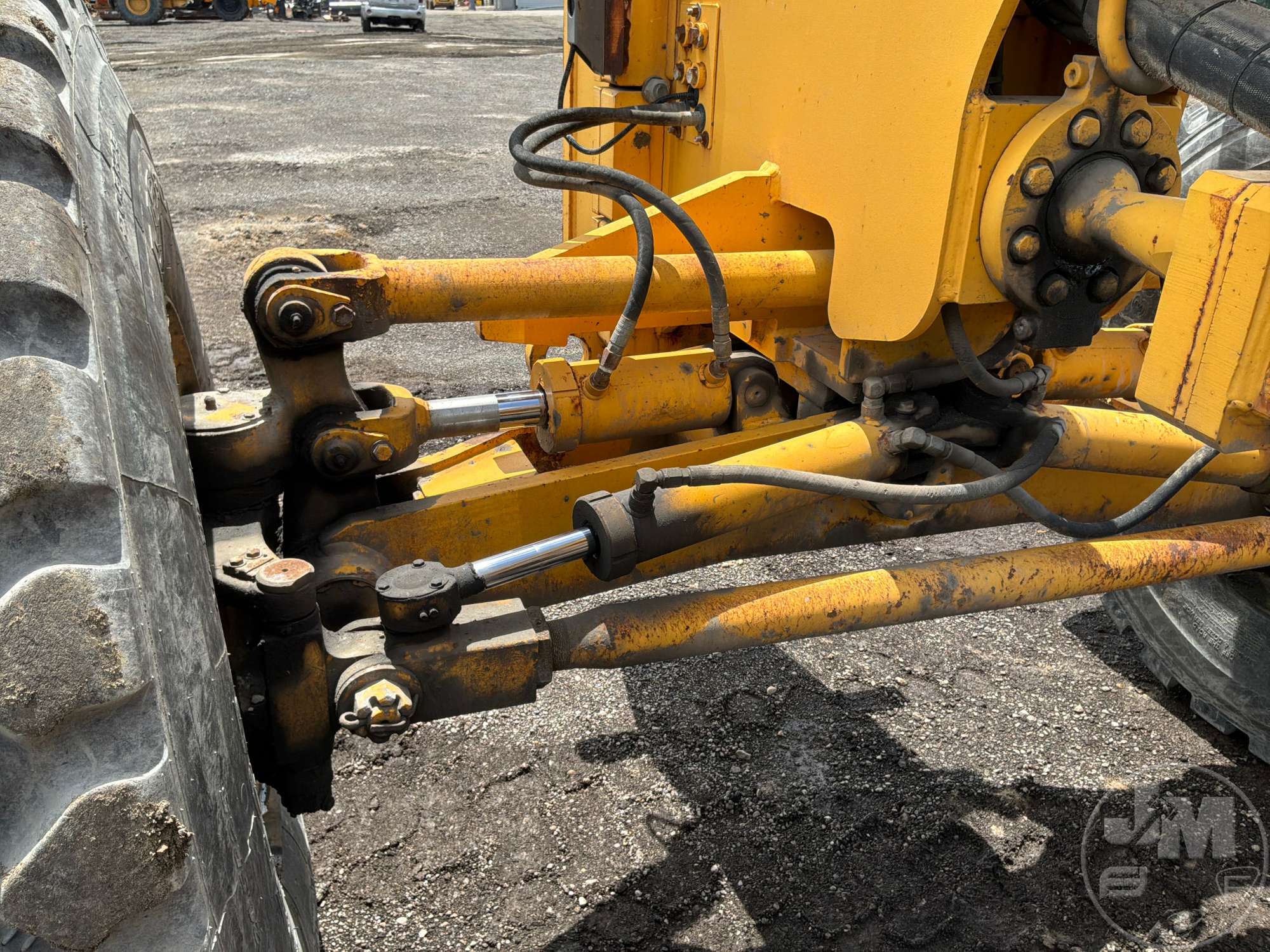

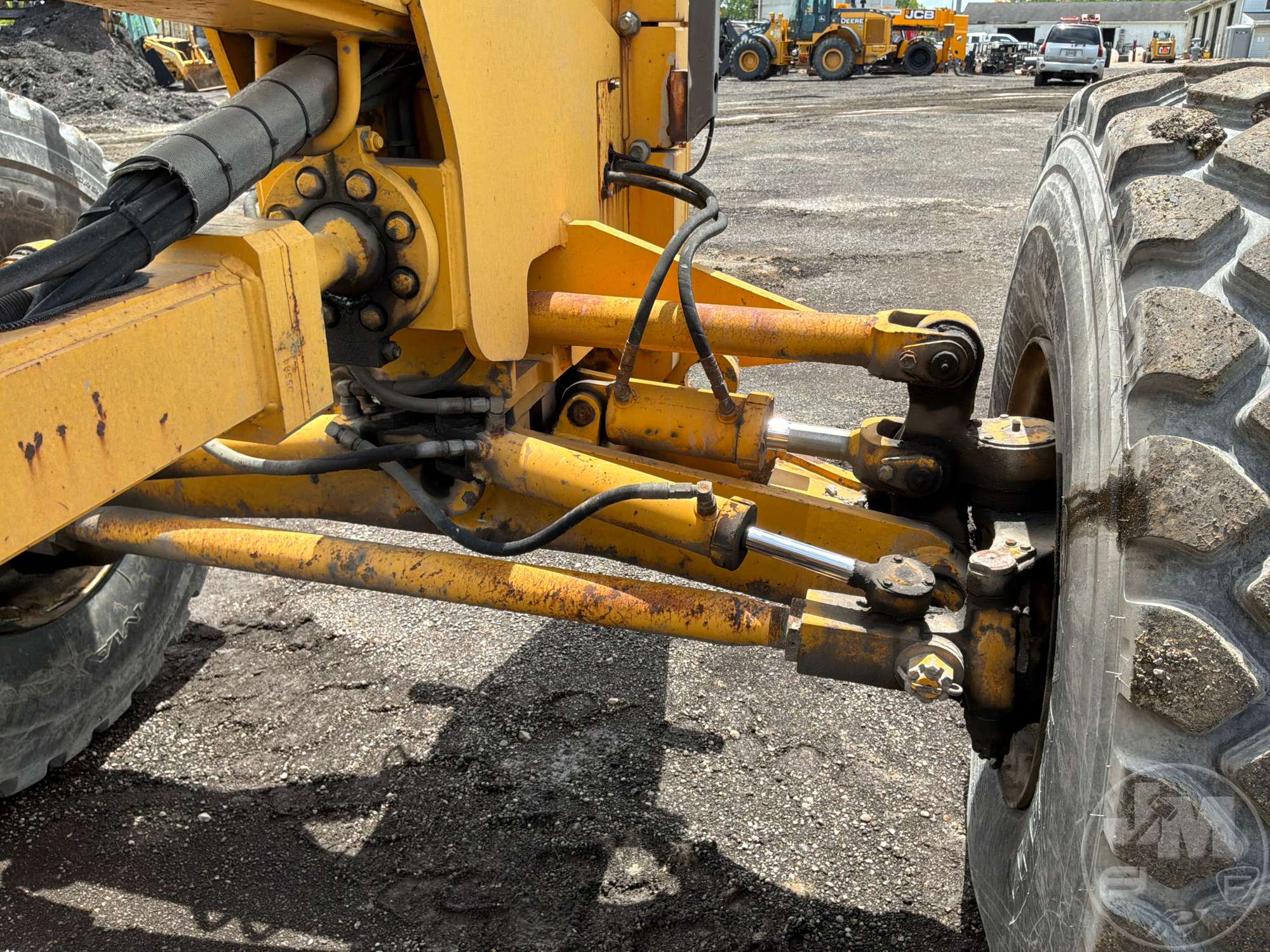

Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	16 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	75 gpm (284 lpm)
Pump Type	load sensing hydraulic
Relief Valve Pressure	2,700 psi

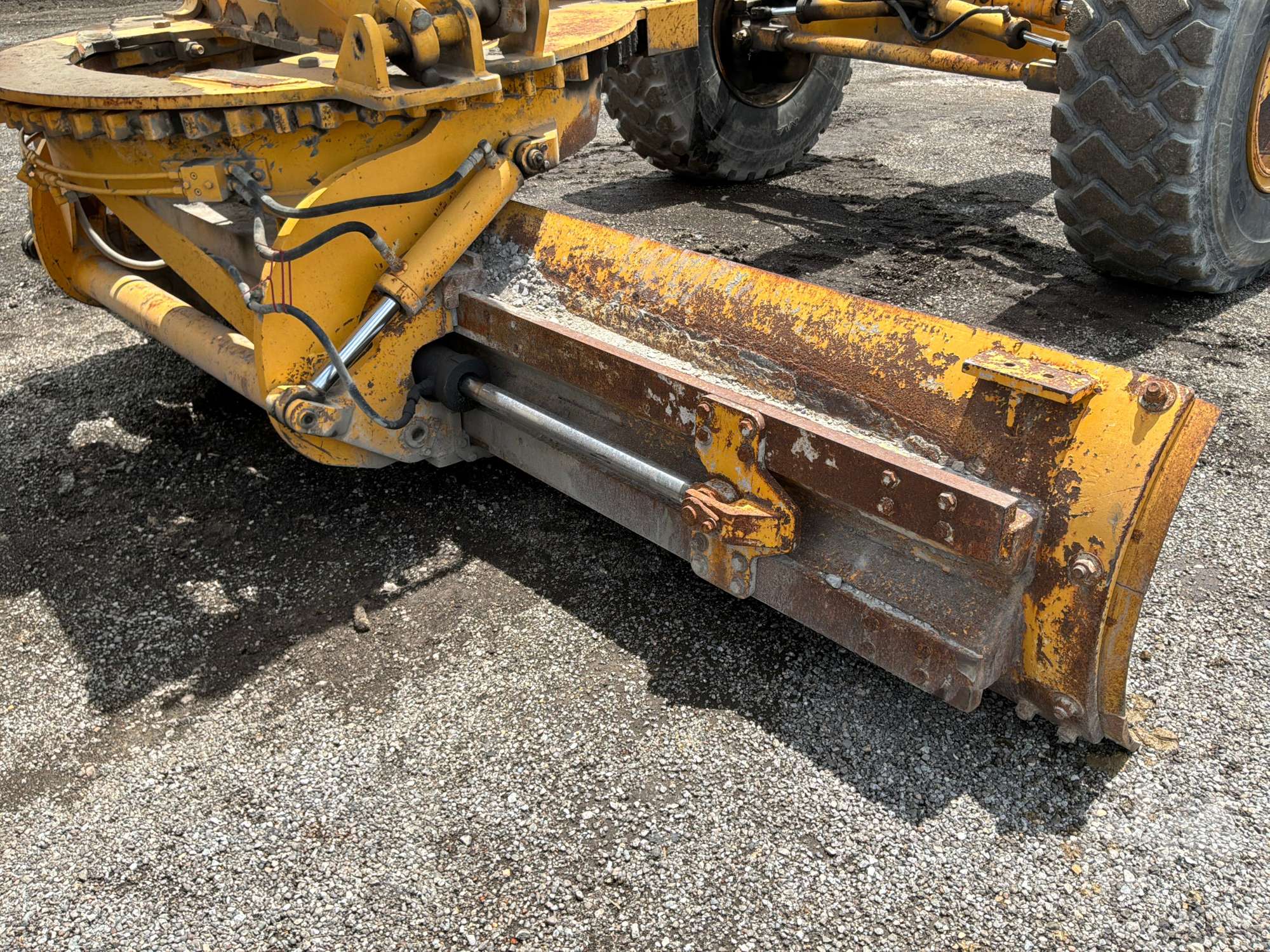

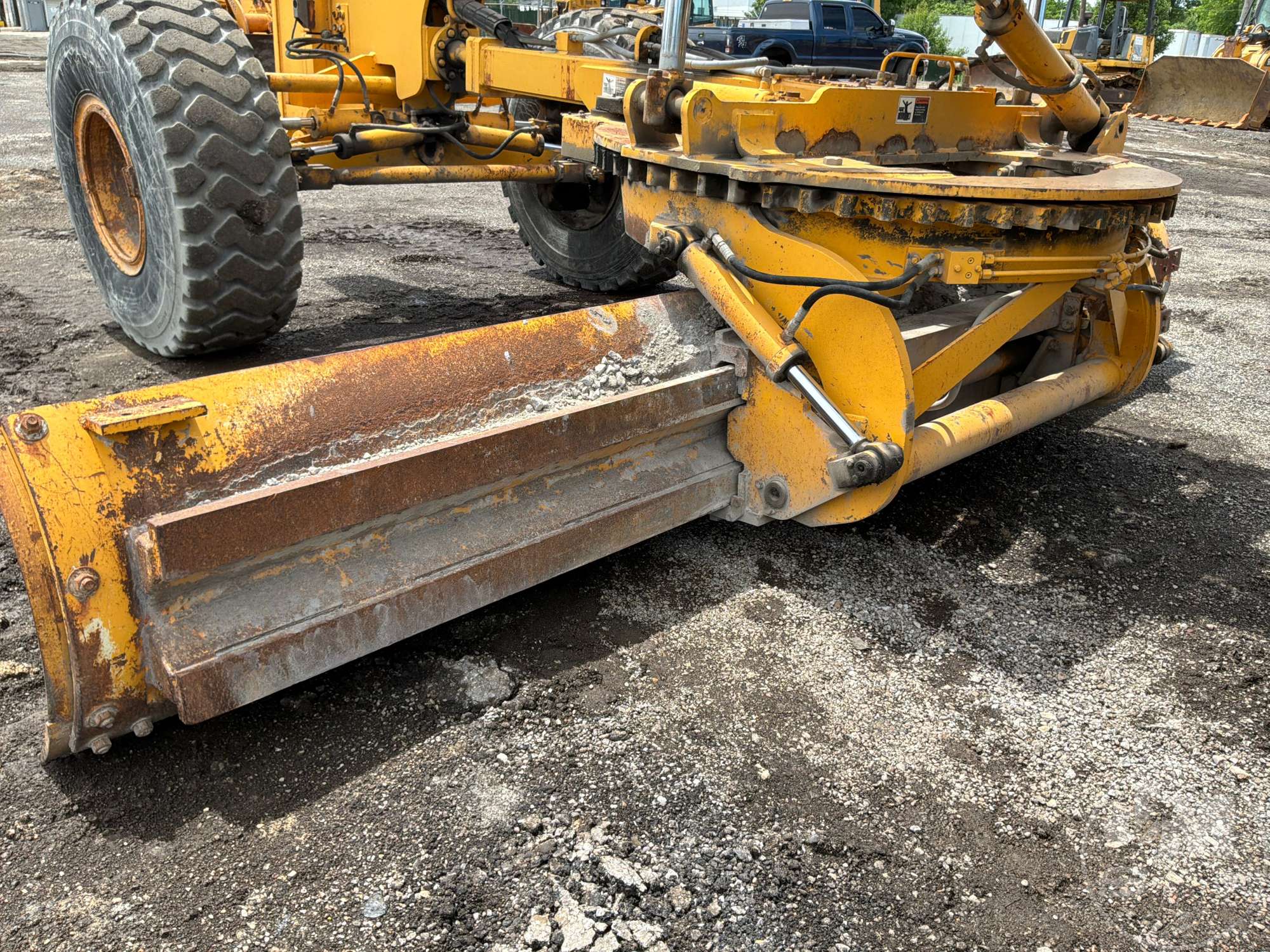

Moldboard
Blade Down Pressure	22,963 lbs (10,416 kg)
Blade Pull at Max Weight	27,248 lbs (12,360 kg)
Max Depth of Cut	33 in (84 cm)
Moldboard Height	31 in (79 cm)
Moldboard Thickness	1 in (3 cm)
Moldboard Width	14 ft (4 m)
Side Shift Left	27 in (67 cm)
Side Shift Right	27 in (67 cm)
Operating Specifications
Alternator Supplied Amperage	80 amps
Cooling System Fluid Capacity	8 gal (31 l)
Fuel Capacity	120 gal (454 l)
Hydraulic System Fluid Capacity	35 gal (134 l)
Operating Voltage	24 volts
Rear Diff/Final Drive Fluid Capacity	9 gal (34 l)
Std Operation Weight - Front Axle	12,842 lbs (5,825 kg)
Std Operation Weight - Rear Axle	30,276 lbs (13,733 kg)
Std Operation Weight - Total	43,250 lbs (19,618 kg)
Tandem Case Fluid Capacity (each)	28 gal (105 l)
Tire Size	16.00 x 24 G-2
Transmission Fluid Capacity	10 gal (38 l)
Steering System
Articulation Angle	22 degrees
Transmission
Max Speed - Forward	24 mph (38 kph)
Max Speed - Reverse	17 mph (27 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	4
Transmission Type	Powershift
