    Equipment ↠ Volvo ↠ Motor Graders ↠ 2013 Volvo G960

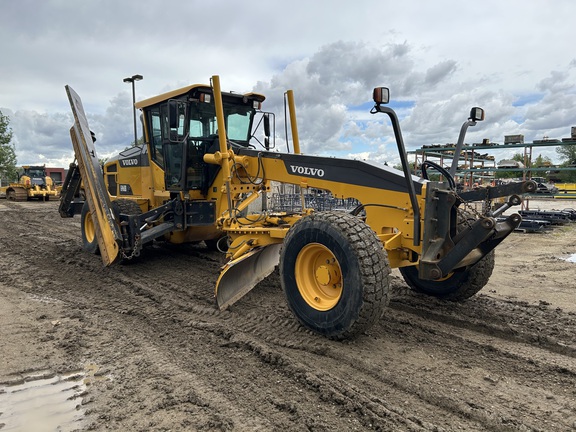

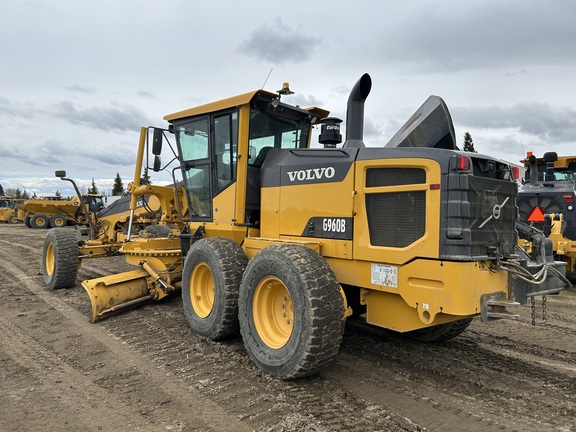

    2013 Volvo G960 For Sale in Edmonton, AB


    / Save to Watch List

    For Sale: $80,828.00 USD
    Converted From: 115,000.00 CAD

    Apply for Financing

    Brandt Tractor LTD

    Brandt Tractor LTD Dealer Info
    Brandt Tractor LTD Website
    Click here to email Brandt Tractor LTD.

    Request an equipment inspection

    Get shipping quotes


    Contact: Canadian Residents: 1-888-227-2638

    Click for Phone Number

    Machine Info:

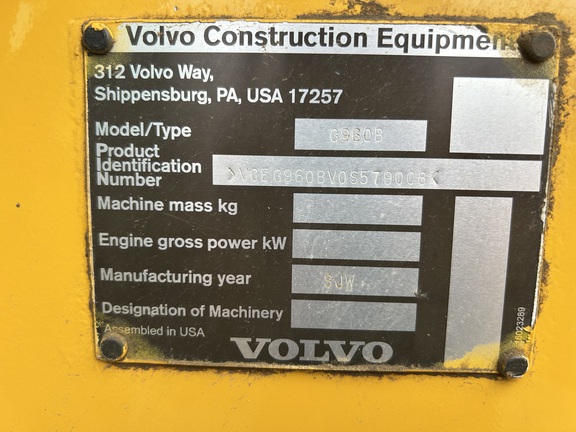

    Serial Number:VCEG960BV0S579008
    Stock Number:0U579008
    Machine Location:EDMONTON, AB

    Description:

    Cab w/ AC, Antler Rack Controls; 4.27 m (14 ft.) Blade; 17.5 Tires; All Wheel Drive; Snow Wing, Front Lift Group

    Machine Details:

    General Specifications

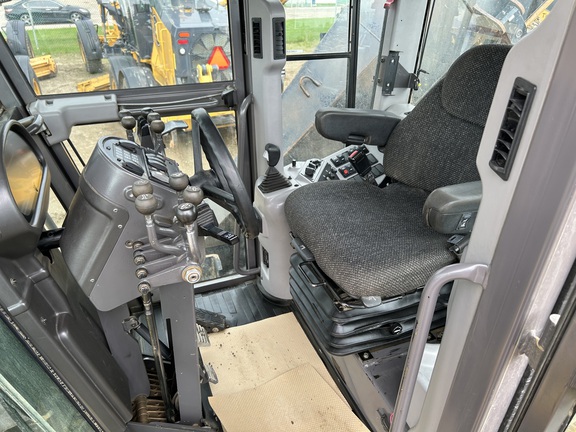

    Operators StationAntler Rack Controls
    Blades4.27 m (14 ft.) Blade
    Tires17.5 Tires
    PowertrainAll Wheel Drive

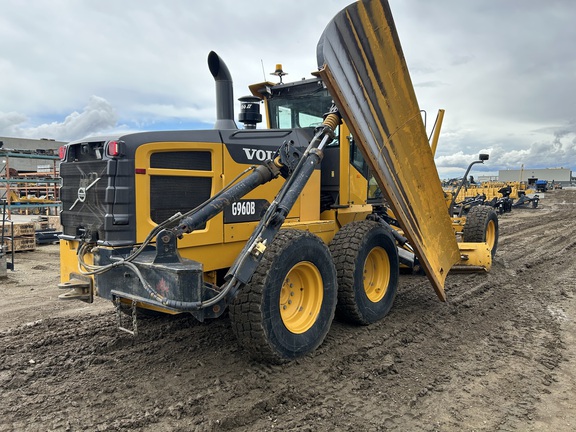

    AttachmentsSnow Wing


    From the manufacturer:

    Supplied by HeavyEquipmentData.com →

    Circle
    Blade Tip Angle - Front 45 degrees
    Blade Tip Angle - Rear 6 degrees
    Diameter 64 in (163 cm)
    Max Reach Outside Tires - Left 80 in (203 cm)
    Max Reach Outside Tires - Right 79 in (201 cm)
    Rotation 360 degrees
    Shift Left 31 in (77 cm)
    Shift Right 30 in (75 cm)
    Dimensions
    Blade Base 9 ft (3 m)
    Height to Top of Isomount Cab 11 ft (3 m)
    Overall Length 30 ft (9 m)
    Rear Ground Clearance 2 ft (1 m)
    Wheelbase 21 ft (6 m)
    Width Over Tires 8 ft (3 m)
    Engine
    Aspiration Turbocharged Aftercooled
    Displacement 436 cu in (7,145 cu cm)
    Engine Model D7E
    Max Power 242 hp (180 kw)
    Net Power Gears 7-8 242 hp (180 kw)
    Net Torque Gears 7-8 791 lbs ft (1,072 nm)
    Number of Cylinders 6
    Power Measured @ 1,800 rpm
    Torque Measured @ 1,500 rpm
    Front Axle
    Ground Clearance 2 ft (1 m)
    Oscillation - Total 16 degrees
    Wheel Lean 18 degrees
    Hydraulic System
    Pump Flow 55 gpm (208 lpm)
    Pump Type Axial piston pump
    Relief Valve Pressure 3,000 psi
    Moldboard
    Blade Down Pressure 19,421 lbs (8,809 kg)
    Blade Pull at Max Weight 28,350 lbs (12,859 kg)
    Max Depth of Cut 31 in (79 cm)
    Moldboard Height 25 in (64 cm)
    Moldboard Thickness 1 in (2 cm)
    Moldboard Width 12 ft (4 m)
    Side Shift Left 27 in (67 cm)
    Side Shift Right 27 in (67 cm)
    Operating Specifications
    Alternator Supplied Amperage 80 amps
    Cooling System Fluid Capacity 9 gal (34 l)
    Fuel Capacity 107 gal (405 l)
    Hydraulic System Fluid Capacity 24 gal (91 l)
    Max Operation Weight - Front Axle 16,700 lbs (7,575 kg)
    Max Operation Weight - Rear Axle 31,500 lbs (14,288 kg)
    Max Operation Weight - Total 48,200 lbs (21,863 kg)
    Oil System Fluid Capacity 6 gal (22 l)
    Operating Voltage 24 volts
    Std Operation Weight - Front Axle 11,240 lbs (5,098 kg)
    Std Operation Weight - Rear Axle 27,450 lbs (12,451 kg)
    Std Operation Weight - Total 38,690 lbs (17,550 kg)
    Tandem Case Fluid Capacity (each) 26 gal (100 l)
    Tire Size 14:00 x 24 G-2
    Transmission Fluid Capacity 16 gal (61 l)
    Steering System
    Articulation Angle 23 degrees
    Turning Radius 24 ft (7 m)
    Transmission
    Max Speed - Forward 28 mph (46 kph)
    Max Speed - Reverse 20 mph (32 kph)
    Number of Gears - Forward 8
    Number of Gears - Reverse 4
    Transmission Type HTE 840 Fully sequential direct drive Volvo powershift transmission
