2018 Volvo L120H For Sale in Moerdijk, Nld

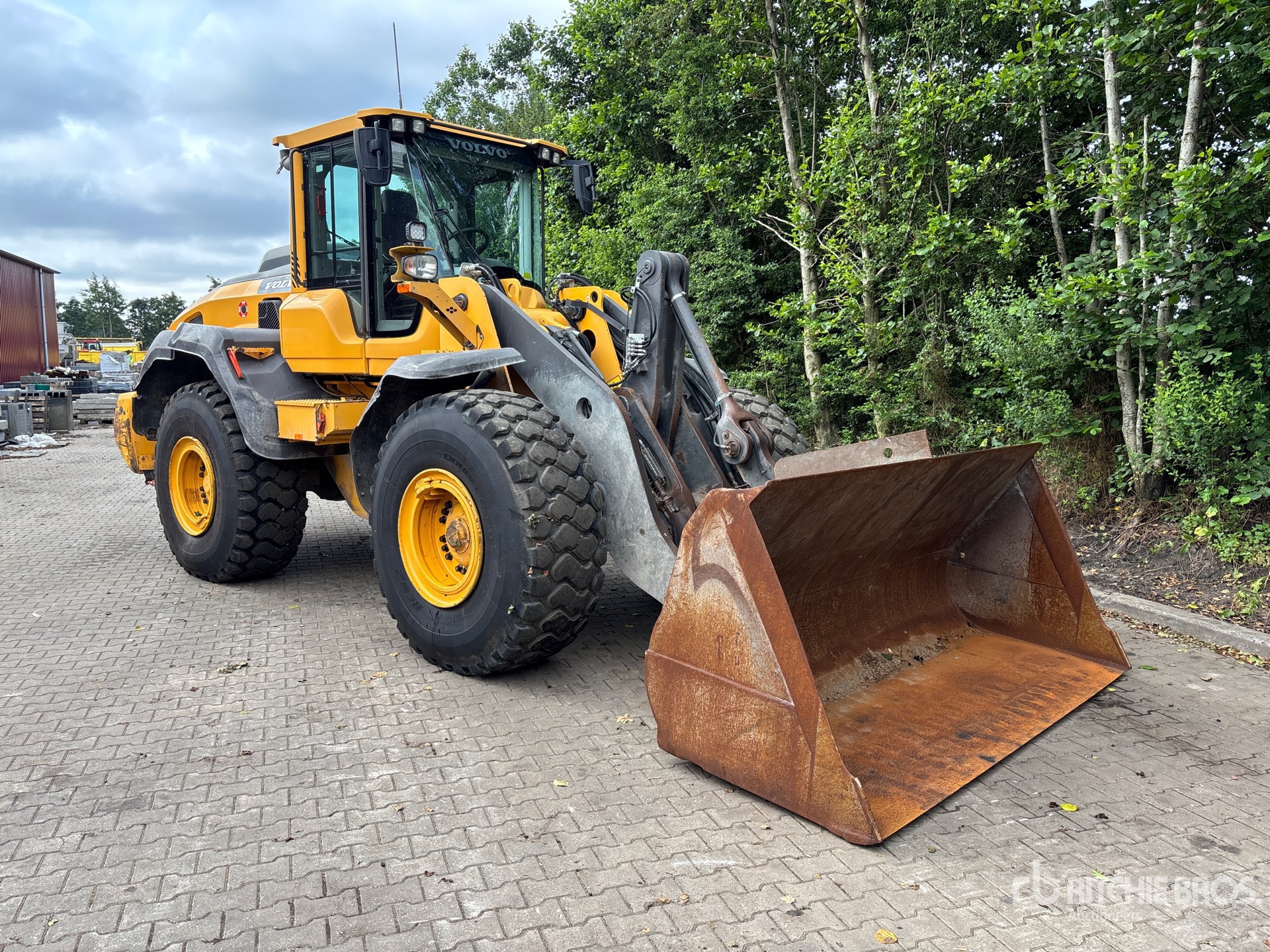

Name: 2018 Volvo L120H
Brand: Volvo
SKU: 88728020
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-07-07 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

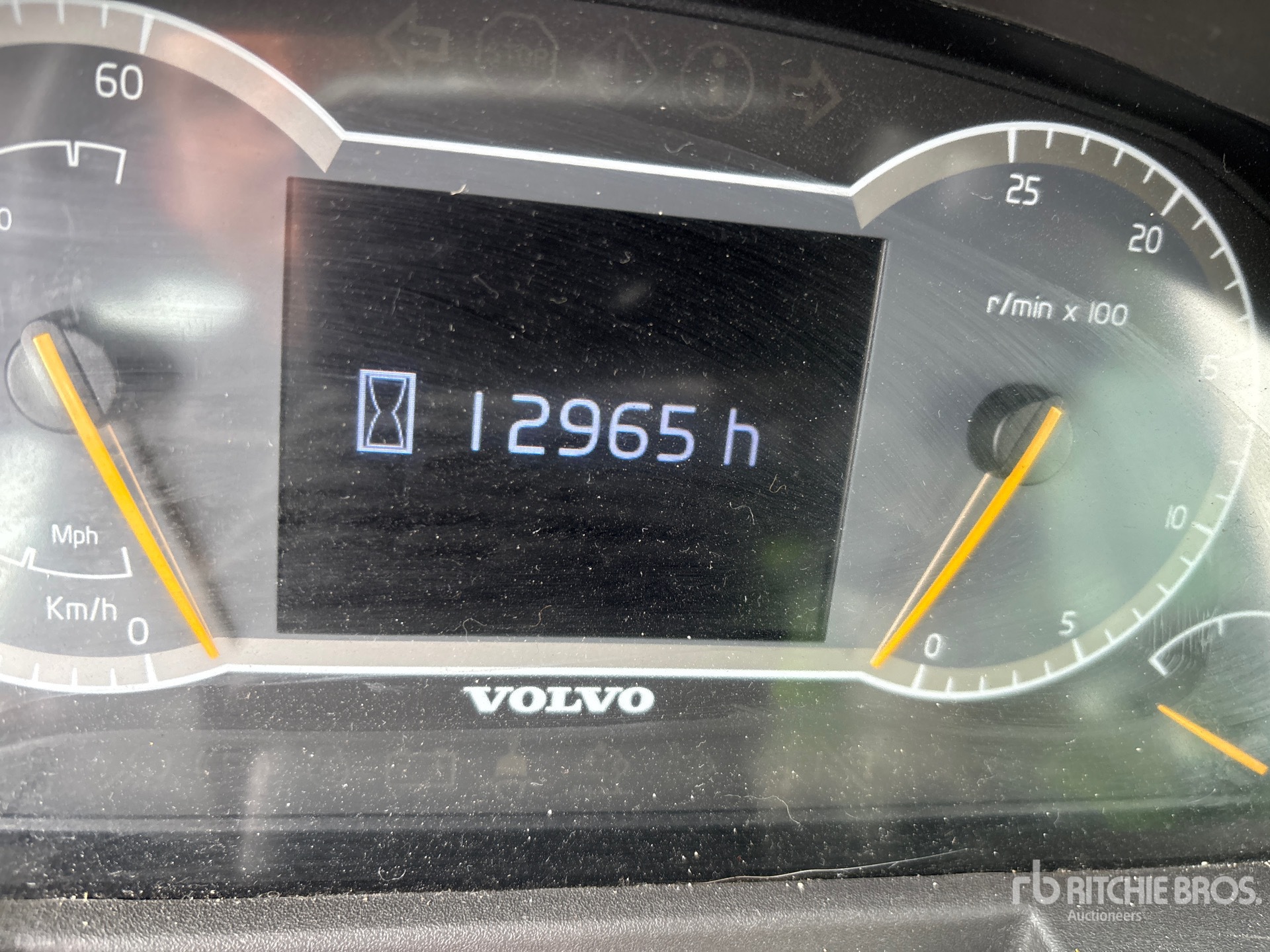

Hours:	12965

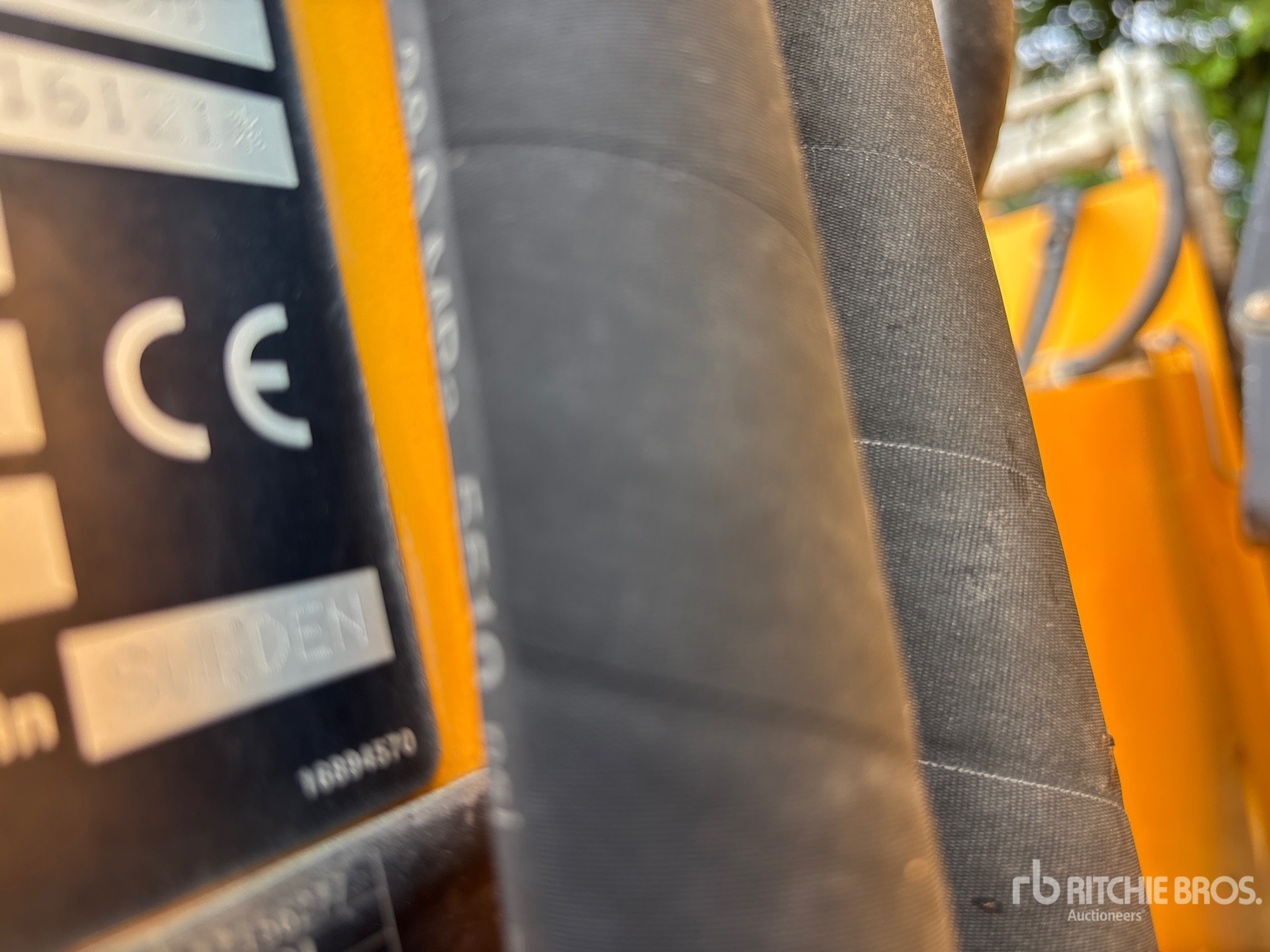

Serial Number:	VCEL120HV00016121
Machine Location:	MOERDIJK, NLD

Description:

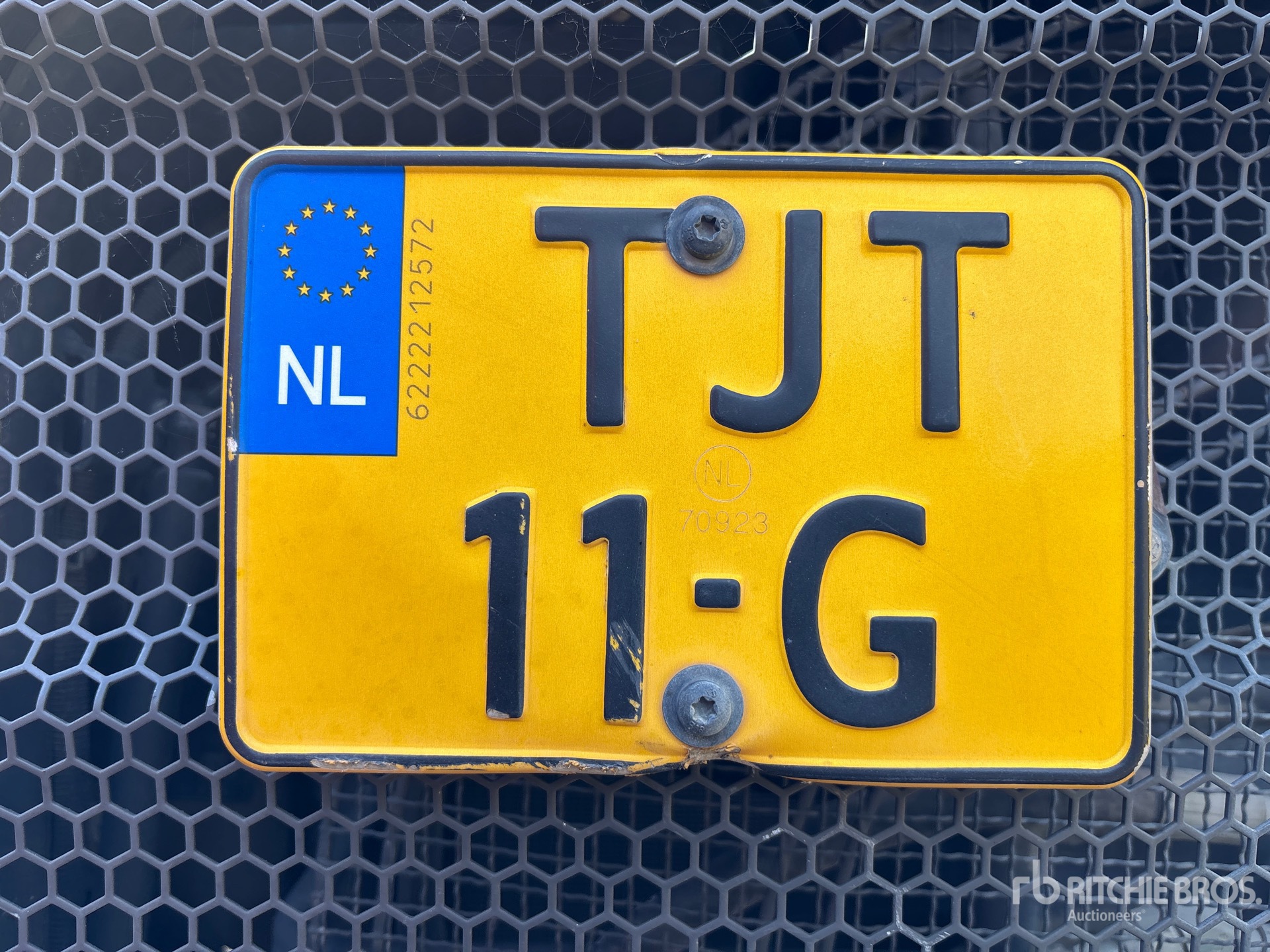

Enclosed Cab, Air Conditioner, Rear View Camera, Air Ride Seat, Ride Control, Autoshift, Traction Control, Requires AdBlue, Auxiliary Hydraulics, Hydraulic Coupler, 2750 mm Bucket, Auto Lube, 23.5R25 Tires ** Dutch Registration Available, First Registered in June 2018 ** This item is located outside of our yard. Please arrange an appointment for viewing via email: [email protected]. Appointment requests are accepted until July 3rd, 5pm. **, Closing Time: 2026-07-07 03:54:10 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Volvo L120H is a medium-size wheel loader designed for material handling, loading, stockpiling, and general construction applications. It is part of Volvo Construction Equipment's H-series and is commonly used in aggregate yards, quarries, recycling operations, and industrial sites. The L120H is known for its articulated frame, hydraulic lifting system, and operator cab designed for visibility and control. Typical configurations include a general-purpose bucket, quick coupler, and a range of attachments for site-specific tasks. The model is used where efficient cycle times, maneuverability, and reliable loading performance are required in wheel loader operations.

Axles
Axle oil front	10 gal (36 l)
Axle oil rear	11 gal (41 l)
Front	Volvo AWB 31
Rear	Volvo AWB 30
Rear axle oscillation	13 degrees
Bucket
Breakout Force	41,365 lbs (18,763 kg)
Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin - Max Height	14 ft (4 m)
Length with Bucket on Ground	27 ft (8 m)
Wheelbase	11 ft (3 m)
Width Over Tires	9 ft (3 m)
Drive System
Torque multiplication, stall ratio	2.47:1
Transmission	Volvo HTL 206C
Transport speed, maximum	25 mph (40 kph)
Electrical System
Alternator rating	2280/80 (W/A)
Battery capacity	2 x 170 Ah
Cold cranking capacity	1000 A
Starter motor output	7 hp (6 kw)
Voltage	24 V
Engine
Aspiration	Turbocharged
Displacement	476 cu in (7,800 cu cm)
Engine Model	Volvo D8J
Gross Power	272 hp (203 kw)
Number of Cylinders	6
Power Measured @	1,500 rpm
Torque Measured @	1,450 rpm
General Specifications
Bucket Capacity (Since 2016)	3.2 - 12.4 (2.4 - 9.5)
Bucket Capacity (Since 2017)	4.3 - 12.4 (3.3 - 9.5)
Bucket Capacity (Since 2019)	3.25 - 12.5 (3.3 - 9.5)
Bucket Capacity (Since 2020)	8.4 (6.4)
Bucket Capacity (2021)	8.4 (6.4)
Bucket Capacity (Since 2022)	5.0 (3.8)
Bucket Capacity (2023)	5.0 (3.8)
Bucket Capacity (2024)	5.0 (3.8)
Engine Power (Since 2016)	276 (206)
Engine Power (Since 2017)	272 (203)
Engine Power (2019)	272 (203)
Engine Power (2020)	272 (203)
Engine Power (2021)	272 (203)
Engine Power (2022)	272 (203)
Engine Power (2023)	272 (203)
Engine Power (2024)	272 (203)
Engine type (Since 2016)	D8J
Engine type (2017)	D8J
Engine type (Since 2019)	Volvo D8J
Engine type (2020)	Volvo D8J
Engine type (2021)	Volvo D8J
Engine type (2022)	Volvo D8J
Engine type (2023)	Volvo D8J
Engine type (Since 2024)	Volvo D8M
Max Dump Height (Since 2016)	9.5 (2.9)
Max Dump Height (2017)	9.5 (2.9)
Max Dump Height (Since 2019)	9.8 (2.9)
Max Dump Height (Since 2020)	9.5 (2.9)
Max Dump Height (2021)	9.5 (2.9)
Max Dump Height (Since 2022)	9.2 (2.7)
Max Dump Height (2023)	9.2 (2.7)
Max Dump Height (2024)	9.2 (2.7)
Operating Weight (Since 2016)	42,830 (19,427)
Operating Weight (2017)	42,830 (19,427)
Operating Weight (Since 2019)	45,635 - 47,620 (20,700 - 21,600)
Operating Weight (Since 2020)	42,830 (19,427)
Operating Weight (2021)	42,830 (19,427)
Operating Weight (Since 2022)	44,820 (20,330)
Operating Weight (2023)	44,820 (20,330)
Operating Weight (2024)	44,820 (20,330)
Hydraulic cycle times (unloaded)
Lift	5 seconds
Lower	3 seconds
Tilt	2 seconds
Total cycle time	10 seconds
Hydraulic System
Engine speed	1,900 rpm
Working pressure	Pump 1 - 27 MPa Pump 2 - 29 MPa Pump 3 - 21 MPa
Operating Specifications
Cooling System Fluid Capacity	11 gal (43 l)
DEF tank capacity	7 gal (25 l)
Engine Oil Fluid Capacity	6 gal (22 l)
Fuel Capacity	71 gal (270 l)
Hydraulic System Fluid Capacity	35 gal (133 l)
Transmission Fluid Capacity	10 gal (38 l)
Steering System
Articulation angle	40 degrees
Cylinder bore	3 in (8 cm)
Maximum flow	32 gpm (120 lpm)
Rod diameter	2 in (5 cm)
Steering cylinders	2
Stroke	2 ft (0 m)
Working pressure	21 MPa 210 bar
Weights
Operational Weight	42,830 lbs (19,427 kg)
