Equipment ↠ Volvo ↠ Wheel Loaders ↠ 2016 Volvo L35G

2016 Volvo L35G For Sale in Chilliwack, Bc

Name: 2016 Volvo L35G
Brand: Volvo
SKU: 88816287
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-07-30 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

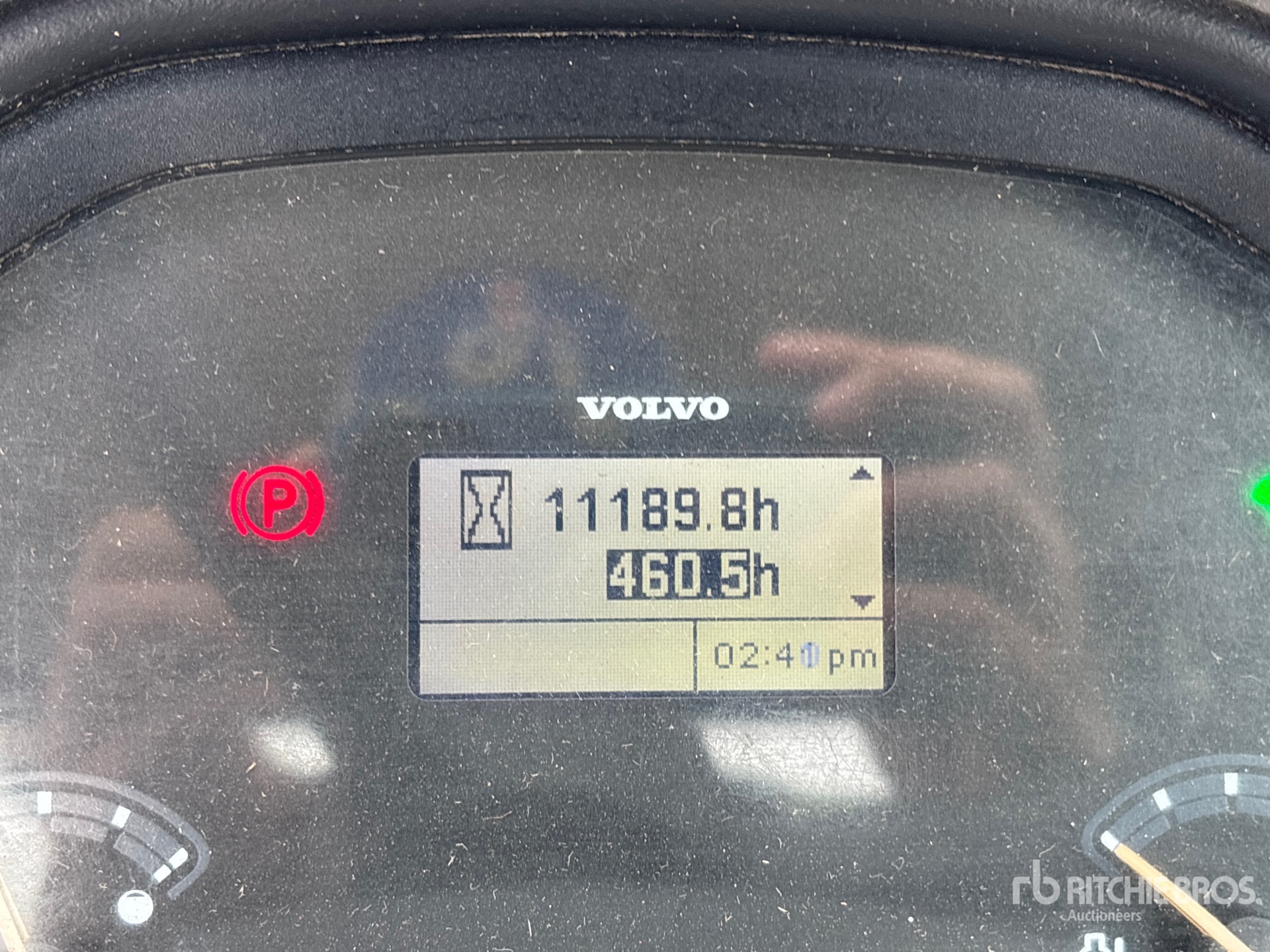

Hours:	11190

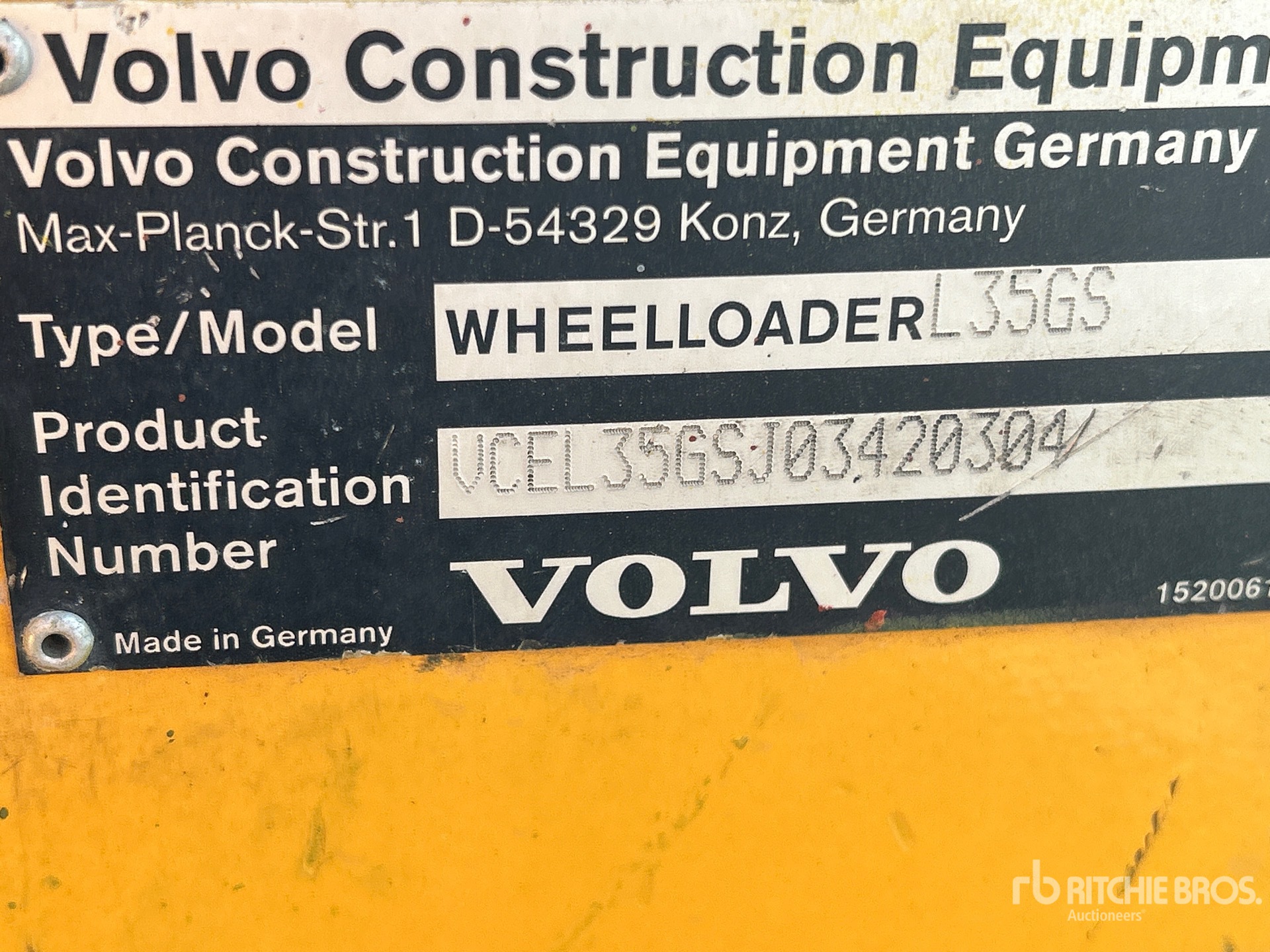

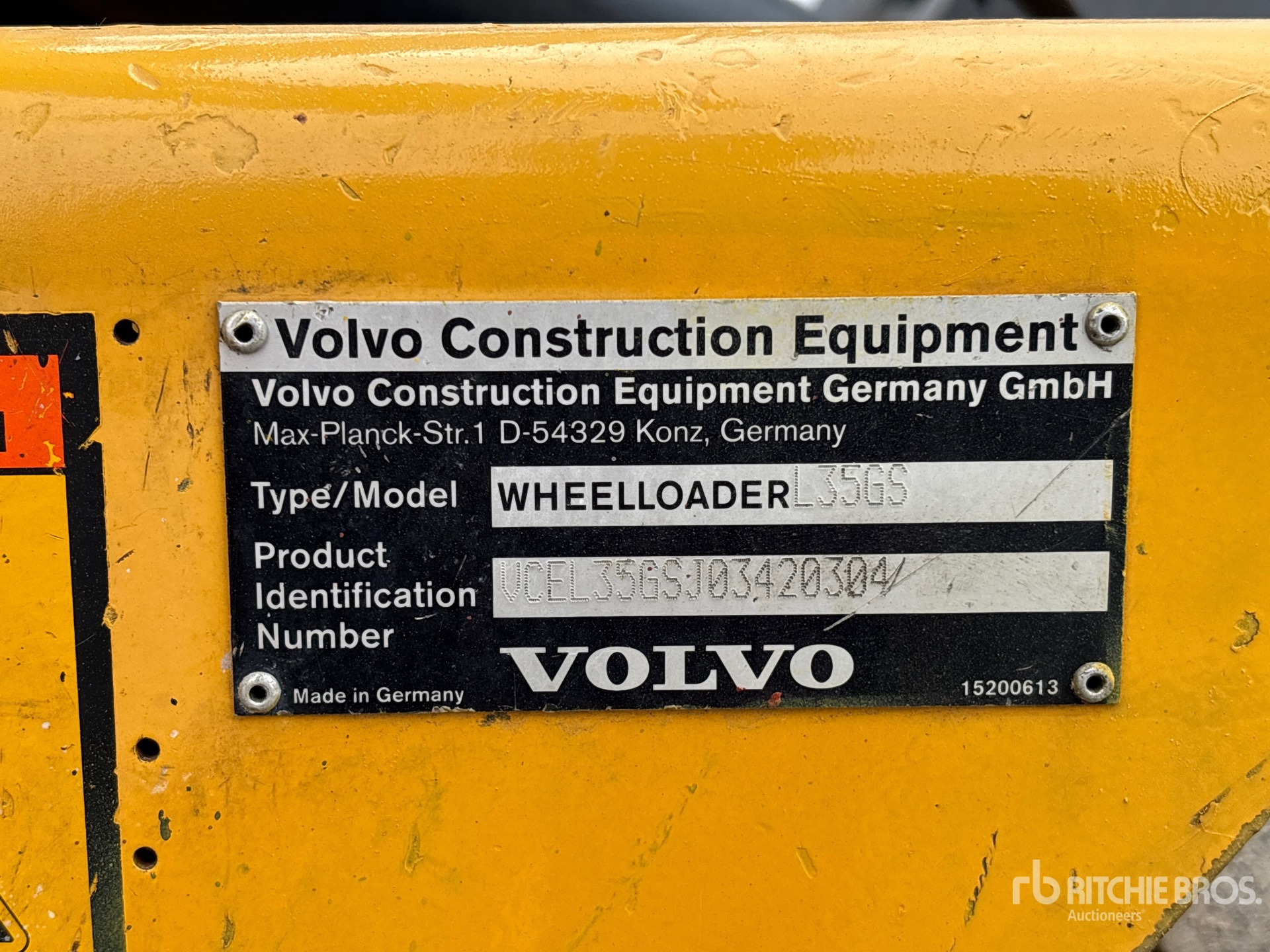

Serial Number:	VCEL35GSJ03420304
Machine Location:	CHILLIWACK, BC

Description:

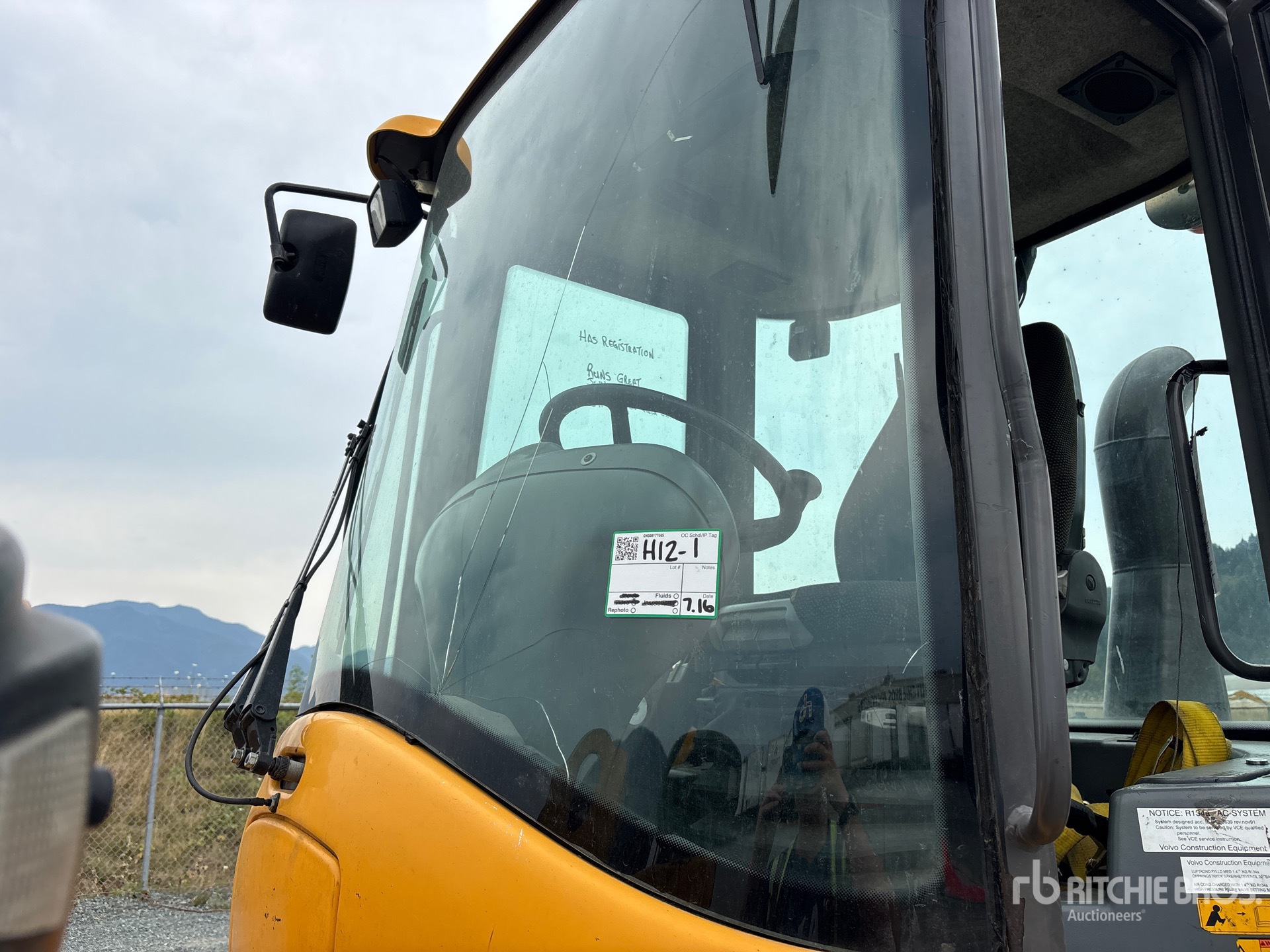

Enclosed Cab, Air Conditioner, Air Ride Seat, Tier 4, 2022 US EPA Label, CARB Compliant, Auxiliary Hydraulics, Hydraulic Coupler, 1.0 cyd 75 in Bucket Appointments recommended - Book at, https://www.ritchieappointments.com - Buyer responsible for loadout - No loading dock available - see deficiencies, Closing Time: 2026-07-30 09:48:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Volvo L35G is a compact wheel loader designed for material handling, construction, landscaping, agriculture, and municipal work. It is part of Volvo's G-series wheel loader line and is built for maneuverability, visibility, and efficient operation in confined job sites. The L35G typically features articulated steering, a versatile quick coupler system, and compatibility with a range of buckets and attachments. Its diesel powertrain, hydraulic performance, and operator-focused cab support loading, stockpiling, grading, and site cleanup tasks. The Volvo L35G is commonly used where a smaller wheel loader is needed for reliable performance and easy transport.

Bucket
Breakout Force	13,601 lbs (6,169 kg)
Dump Clearance at Max Raise	9 ft (3 m)
Dimensions
Ground Clearance	2 ft (1 m)
Height - Top of Cab	9 ft (3 m)
Hinge Pin - Max Height	11 ft (3 m)
Length with Bucket on Ground	18 ft (5 m)
Wheelbase	7 ft (2 m)
Width Over Tires	6 ft (2 m)
Drive System
Transport speed, maximum	19 mph (30 kph)
Electrical System
Alternator rating	1260/90 (W/A)
Battery capacity	100 Ah
Starter motor output	4 hp (3 kw)
Voltage	12 V
Engine
Aspiration	Turbocharged
Bore	4 in (10 cm)
Displacement	201 cu in (3,300 cu cm)
Engine Model	Volvo D3.3M or D3.3H
Gross Power	74 hp (55 kw)
Make	Volvo
Net Power	75 hp (56 kw)
Number of Cylinders	4
Power Measured @	2,600 rpm
Stroke	5 in (12 cm)
Torque Measured @	1,500 rpm
General Specifications
Bucket Capacity (Since 2016)	1.3 - 2.0 (.99 - 1.5)
Bucket Capacity (Since 2017)	1.6 - 2.0 (1.2 - 1.5)
Bucket Capacity (2019)	1.6 - 2.0 (1.2 - 1.5)
Bucket Capacity (Since 2020)	1.7 (1.3)
Bucket Capacity (2021)	1.7 (1.3)
Bucket Capacity (Since 2022)	1.6 (1.2)
Bucket Capacity (2023)	1.6 (1.2)
Engine Power (Since 2016)	71 (53)
Engine Power (2017)	71 (53)
Engine Power (2019)	71 (53)
Engine Power (2020)	71 (53)
Engine Power (2021)	71 (53)
Engine Power (Since 2022)	74 (55)
Engine Power (2023)	74 (55)
Engine type (Since 2016)	Volvo D3.3D
Engine type (2017)	Volvo D3.3D
Engine type (Since 2019)	Volvo D3.3H
Engine type (2020)	Volvo D3.3H
Engine type (2021)	Volvo D3.3H
Engine type (Since 2022)	Volvo D3.3M
Engine type (2023)	Volvo D3.3M
Max Dump Height (Since 2016)	8.8 (2.7)
Max Dump Height (2017)	8.8 (2.7)
Max Dump Height (2019)	8.8 (2.7)
Max Dump Height (2020)	8.8 (2.7)
Max Dump Height (2021)	8.8 (2.7)
Max Dump Height (2022)	8.8 (2.7)
Max Dump Height (2023)	8.8 (2.7)
Operating Weight (Since 2016)	13,779 (6,250)
Operating Weight (2017)	13,779 (6,250)
Operating Weight (Since 2019)	13,448 (6,099)
Operating Weight (Since 2020)	13,779 (6,250)
Operating Weight (Since 2021)	13,448 (6,100)
Operating Weight (2022)	13,448 (6,100)
Operating Weight (2023)	13,448 (6,100)
Hydraulic cycle times (unloaded)
Dump time	1 seconds
Lift	6 seconds
Lower	4 seconds
Hydraulic System
Engine speed	2,600 rpm
Pump Flow Capacity	18 gpm (69 lpm)
Working pressure	24 MPa 240 bar
Operating Specifications
Cooling System Fluid Capacity	3 gal (11 l)
Engine Oil Fluid Capacity	3 gal (11 l)
Fuel Capacity	22 gal (84 l)
Hydraulic System Fluid Capacity	14 gal (54 l)
Rated Bucket Capacity	1 - 2 cu yd (1 - 2 cu m)
Steering System
Articulation angle	40 degrees
Maximum flow	9 gpm (34 lpm)
Steering cylinders	1
Working pressure	19 MPa 2756 psi
Weights
Operational Weight	13,779 lbs (6,250 kg)
